For a whole infrastructure: 9 minutes of runtime at half load (5000 W) and 5 minutes at 70%, the time it takes to switch over to a generator. 94% efficiency at full load and internal bypass.
Runtime 9 minutes at 50% load (5000 W)
Runtime 5 minutes at 70% load (7000 W)
3-wire terminal block connection: fixed wiring, to be installed by an electrician

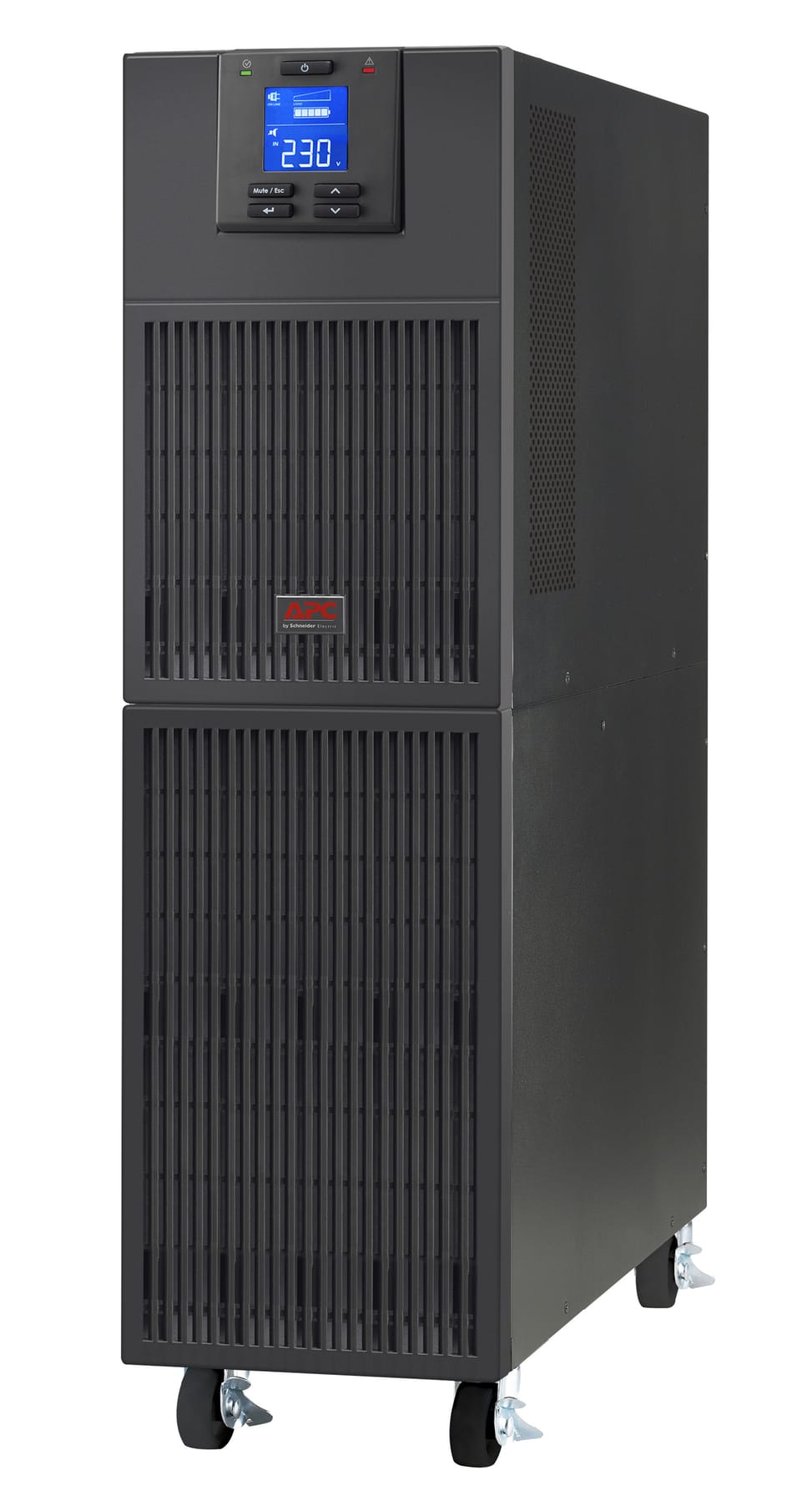

Tower format, floor-standing
Sine wave output
94% efficiency at full load
Automatic and manual internal bypass
USB and RS-232 serial ports for automatic server shutdown
SmartSlot for a network management card
LCD status and control display
Emergency power off (EPO) button
Accepts an input of 176 to 300 V at full load
1% harmonic distortion at the output
Noise level 58 dB: to be installed in a technical room

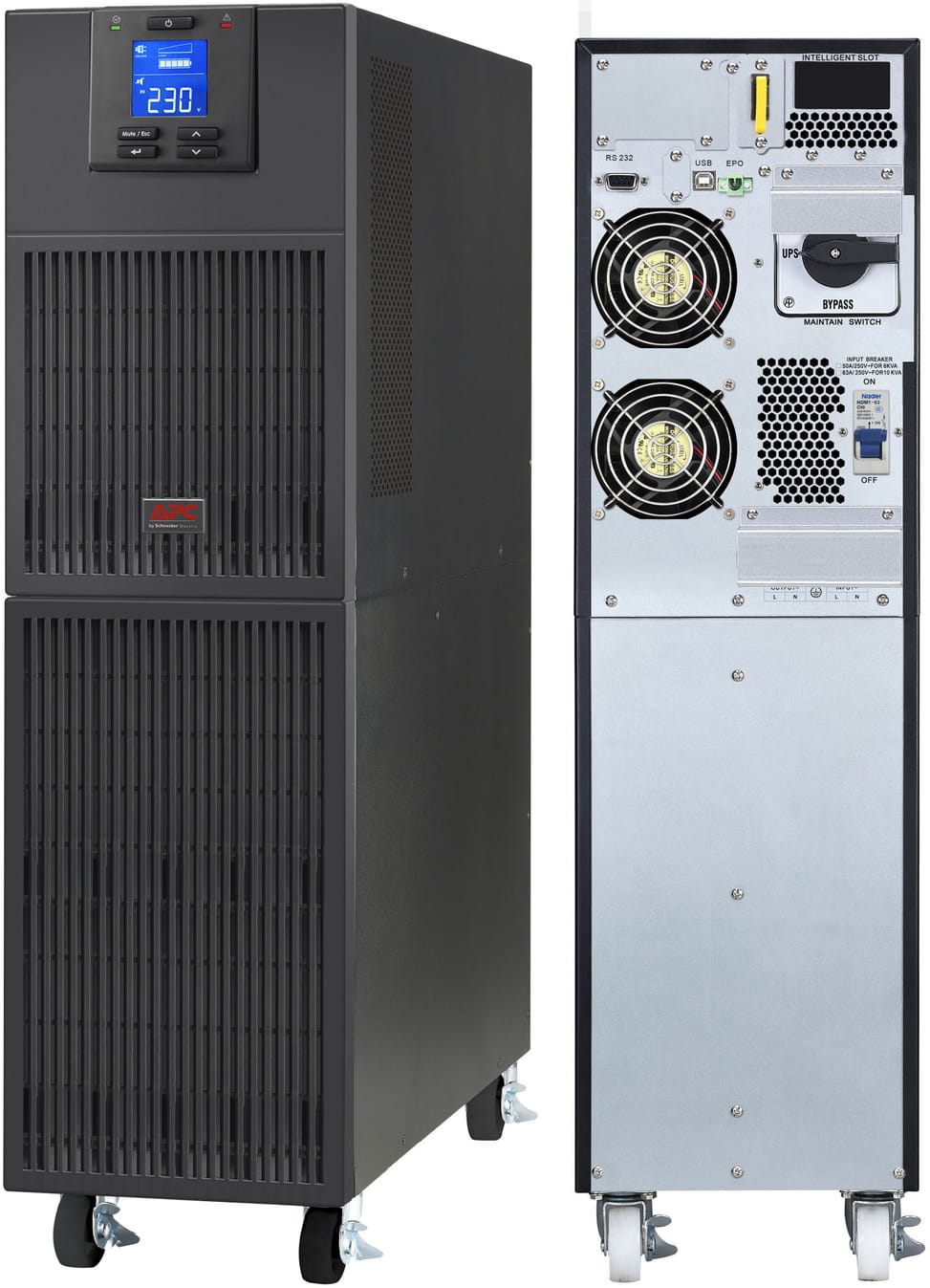

Very high-power online UPS for critical infrastructure: online double-conversion, 10 kW / 10 kVA. Technology & protection: power is constantly rebuilt — equipment receives flawless power without ever touching the mains, with zero transfer time. Maximum protection against power cuts, surges, voltage fluctuations and electrical noise. Power: 10 kVA for 10 kW of usable power (power factor of 1) — all of the rated power available in watts. Runtime: approx. 9 minutes at half load (5000 W), 5 minutes at 70%. Ports: terminal block connection (fixed wiring by an electrician). Active cooling (≈ 58 dB), to be installed in a technical room. Designed, for example, for server racks and data centres. Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How long does the SRV10KI run on battery?
9 minutes at 50% load, i.e. 5,000 W, and 5 minutes at 70%, i.e. 7,000 W. On infrastructure of this size, these minutes are less for carrying on working than for switching over to a generator or starting an orderly shutdown.
Why does this 10 kVA unit really deliver 10 kW?
Because its power factor is 1: all of the apparent power is available in watts. Compare these 10,000 W with the combined consumption of your racks, your storage and your switches — it is the only value that determines what the UPS can support.
Does the SRV10KI connect to outlets or to a terminal block?
To a 3-wire terminal block (phase, neutral, earth): the unit has no outlets. The connection is fixed wiring to be installed by an electrician, with a dedicated circuit sized for 10 kVA.
How much floor space does the SRV10KI really take up?
68.5 cm high, 19 cm wide and 44.7 cm deep, for 65 kg — a narrow but heavy tower unit, to be placed on the floor. Allow for 77 kg on delivery, packaging included.
What is the quality of the power delivered by the SRV10KI?
A sine wave with 1% harmonic distortion and a crest factor of 3:1, synchronised with the mains at 50/60 Hz ± 3 Hz. In double conversion, this quality does not depend on the quality of the incoming mains.
What input voltage does the UPS accept before drawing on the battery?
176 to 300 V at full load, and 110 to 300 V at half load: the tolerance narrows as the load increases. The frequency is accepted from 40 to 70 Hz, which leaves some margin behind a generator.
Can the UPS be serviced without cutting the power?
Yes, an automatic and manual internal bypass keeps the equipment powered: the automatic bypass in the event of an internal fault, the manual one for scheduled maintenance. Conversely, an emergency power off button lets you shut everything down in one go.
What efficiency, and how much noise in the technical room?
94% at full load and a noise level of 58 dB. At this power, the unit is permanently fan-cooled: it belongs in a technical room, and its heat output must be included in the air-conditioning calculation.
Which cables and ports are provided to manage the SRV10KI?

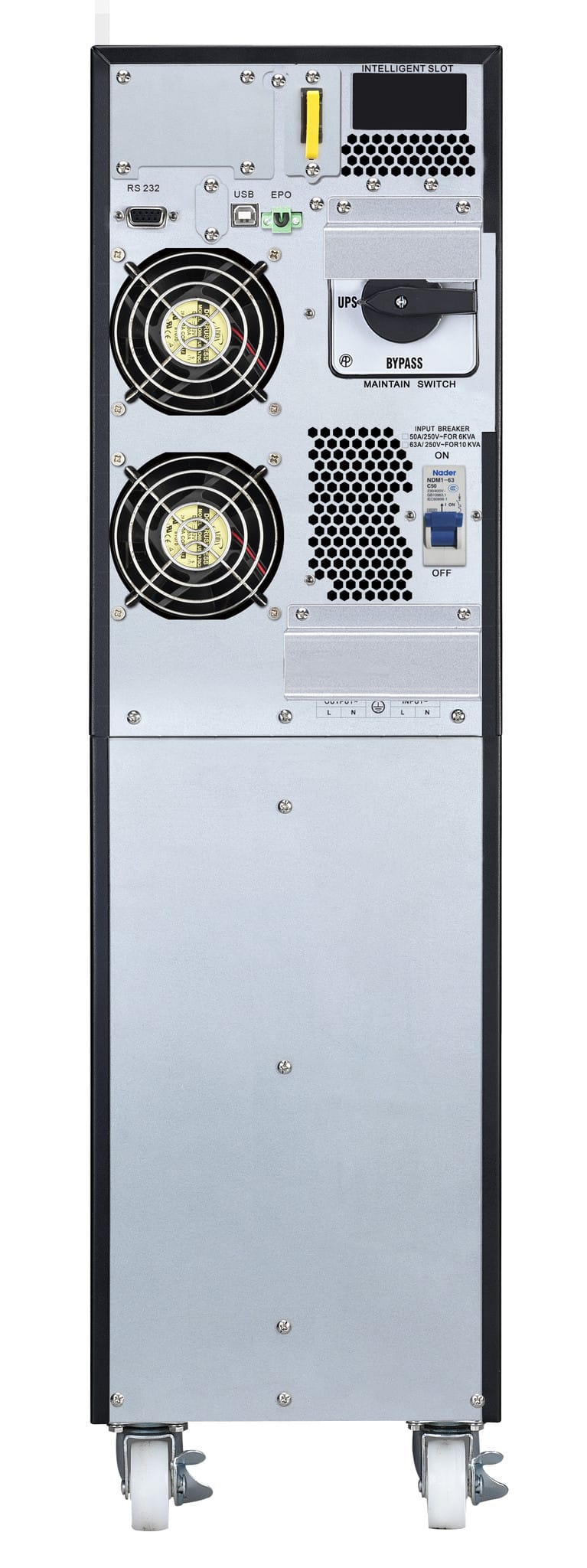

A USB cable, an RS-232 configuration cable, and a CD with the software and the manual. On the unit itself: a DB-9 RS-232 port, a USB port and a free Intelligent Smart Slot for a network management card.
How much surge energy can the SRV10KI absorb?
600 joules on its built-in surge protector. The UPS itself remains the main line of defence: in double conversion, the output is continuously rebuilt and passes on neither the spikes nor the dips of the incoming mains.
Is the APC Easy UPS SRV10KI new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 2 years, covering repair or replacement. The datasheet lists all the electrical, thermal and environmental values.
