An all-fibre aggregation switch to link switches, servers and storage arrays over ultra-fast connections. Built-in LCM touchscreen, completely silent fanless operation, managed through UniFi Network.

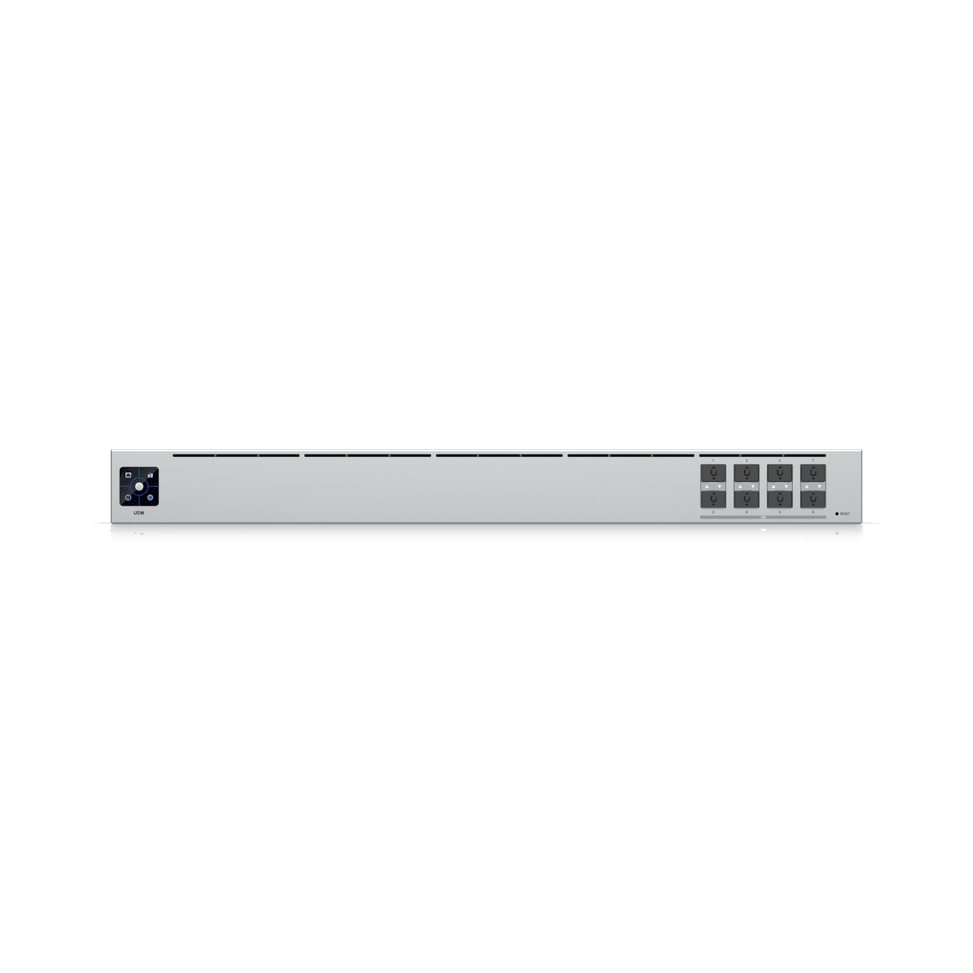

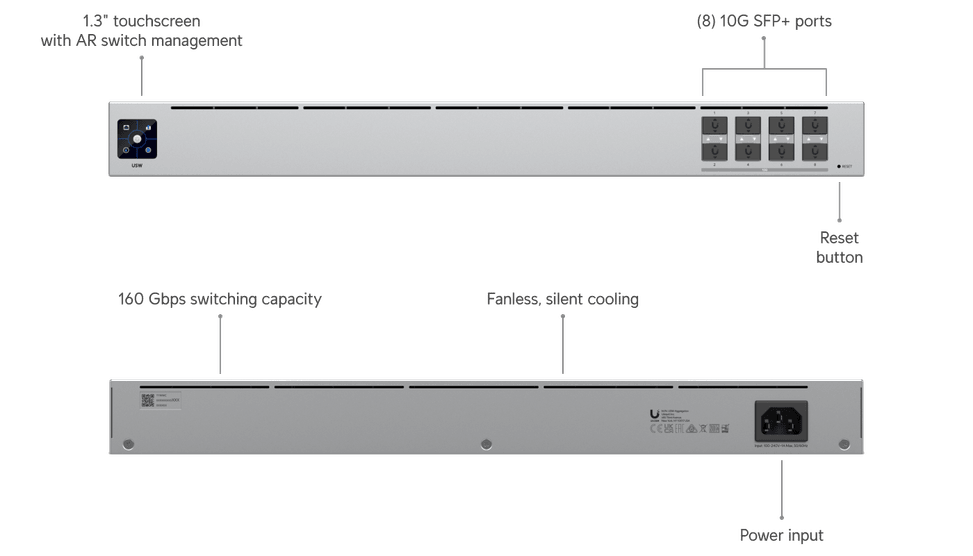

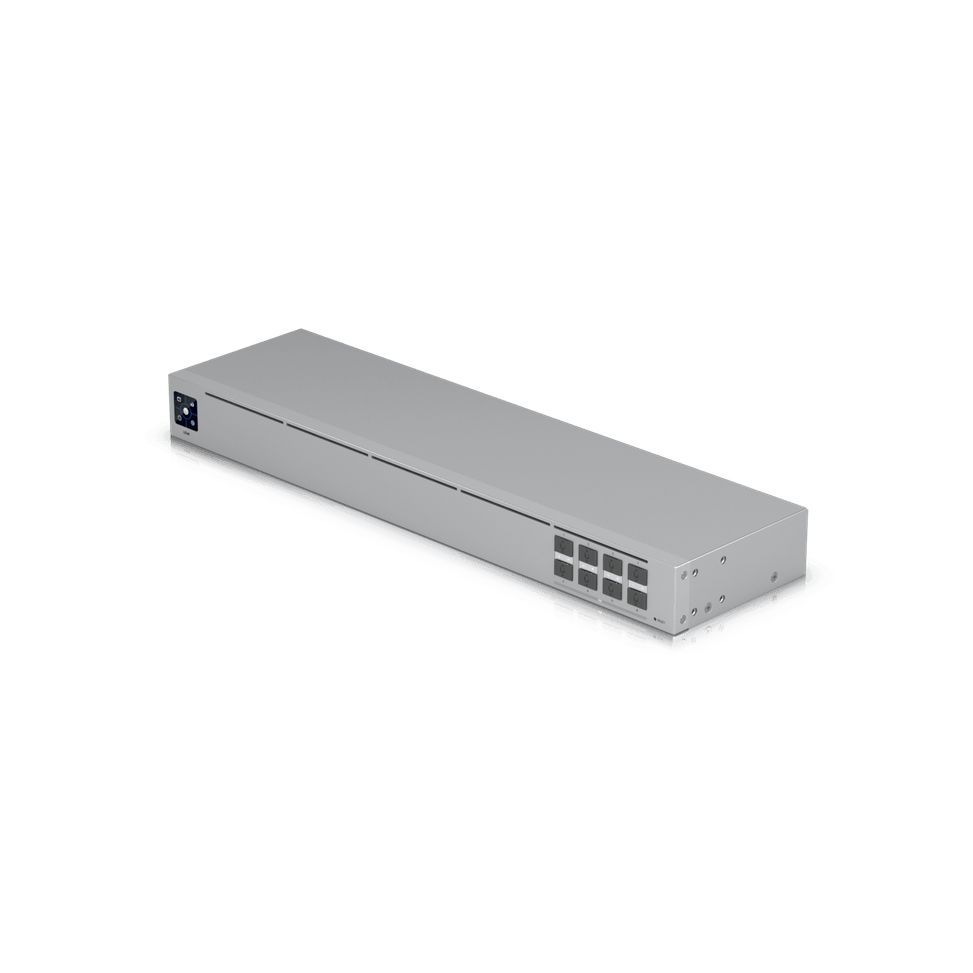

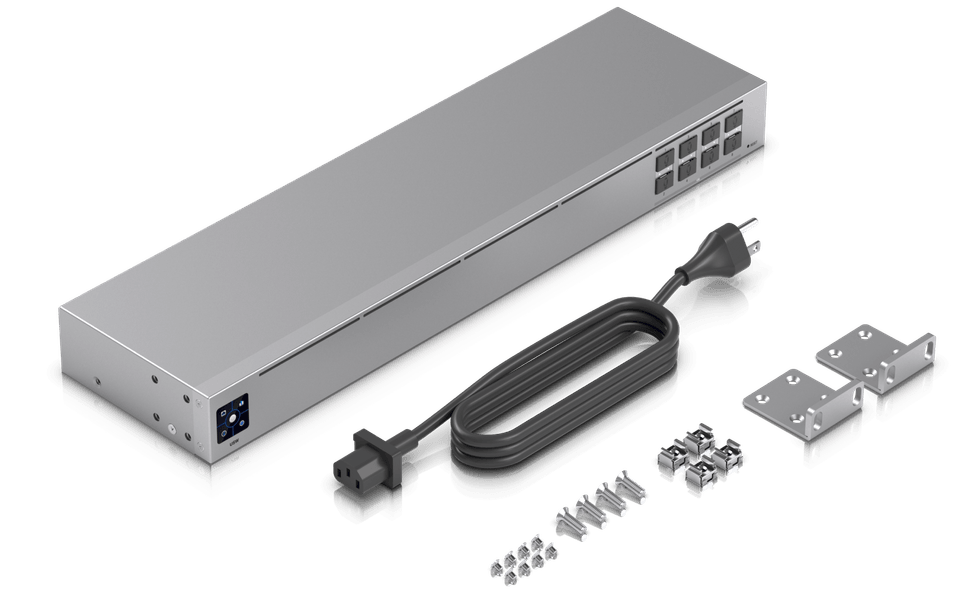

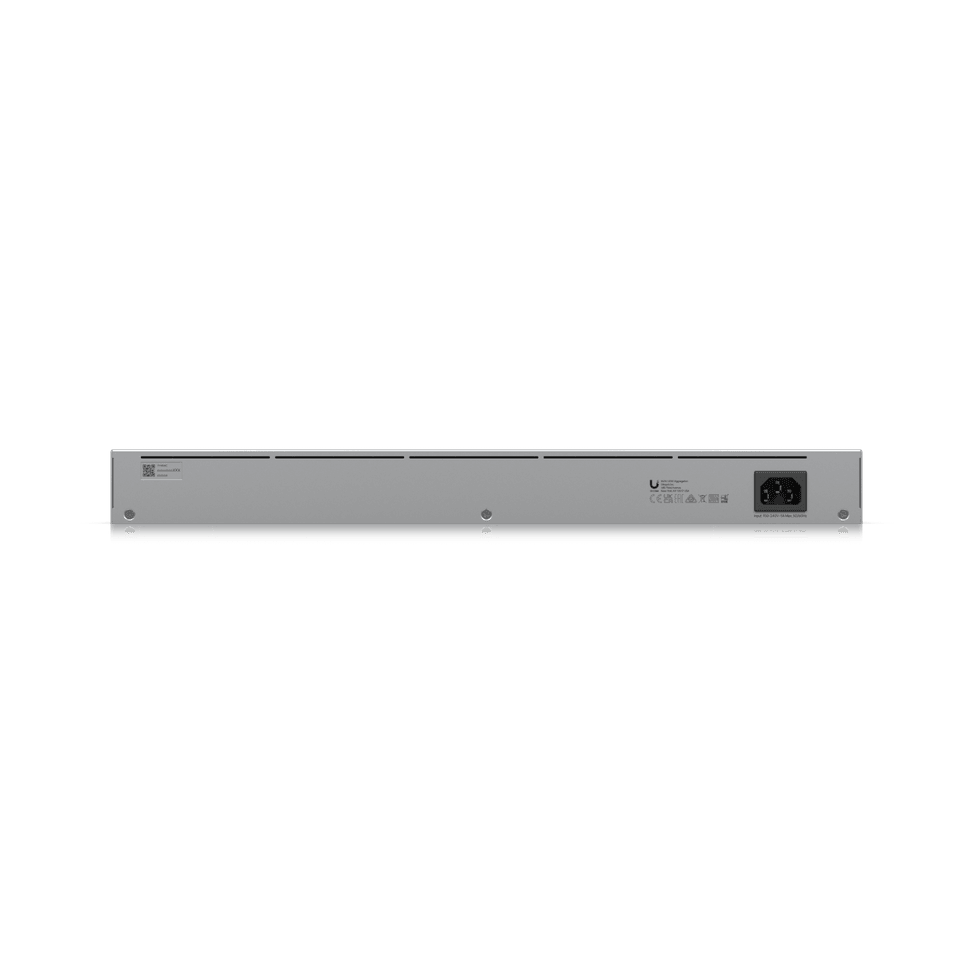

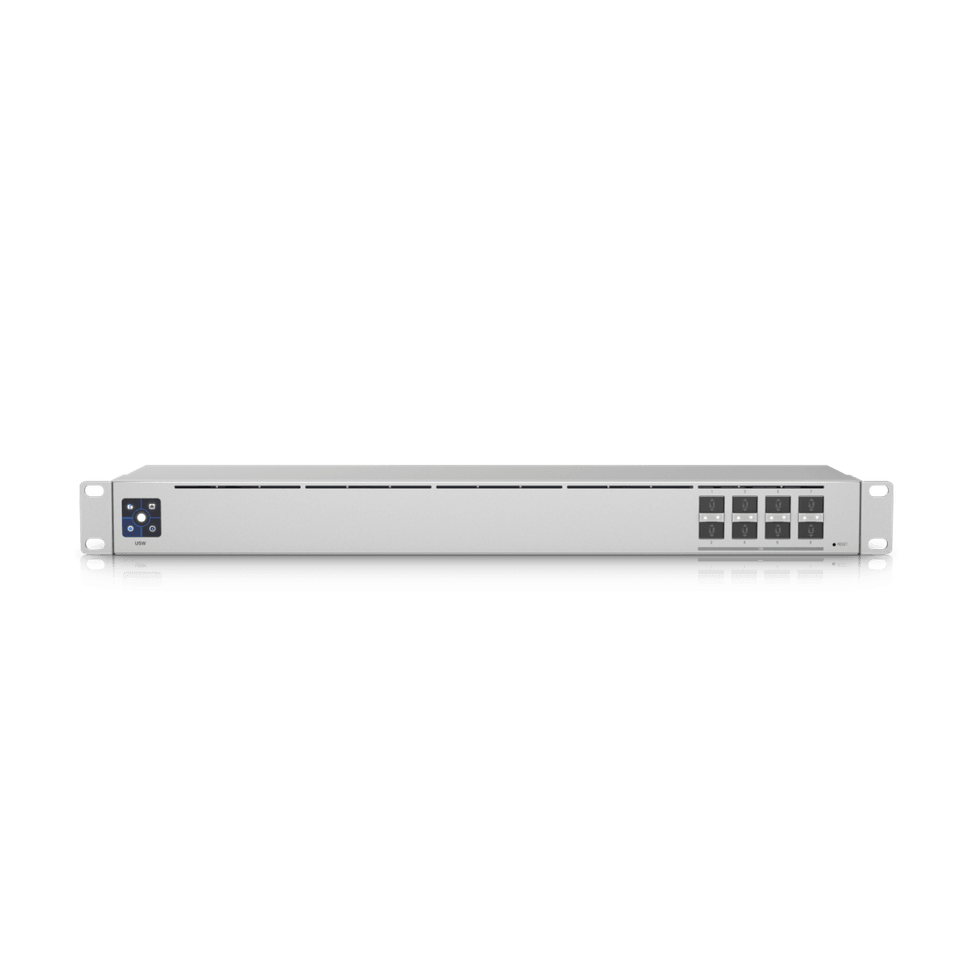

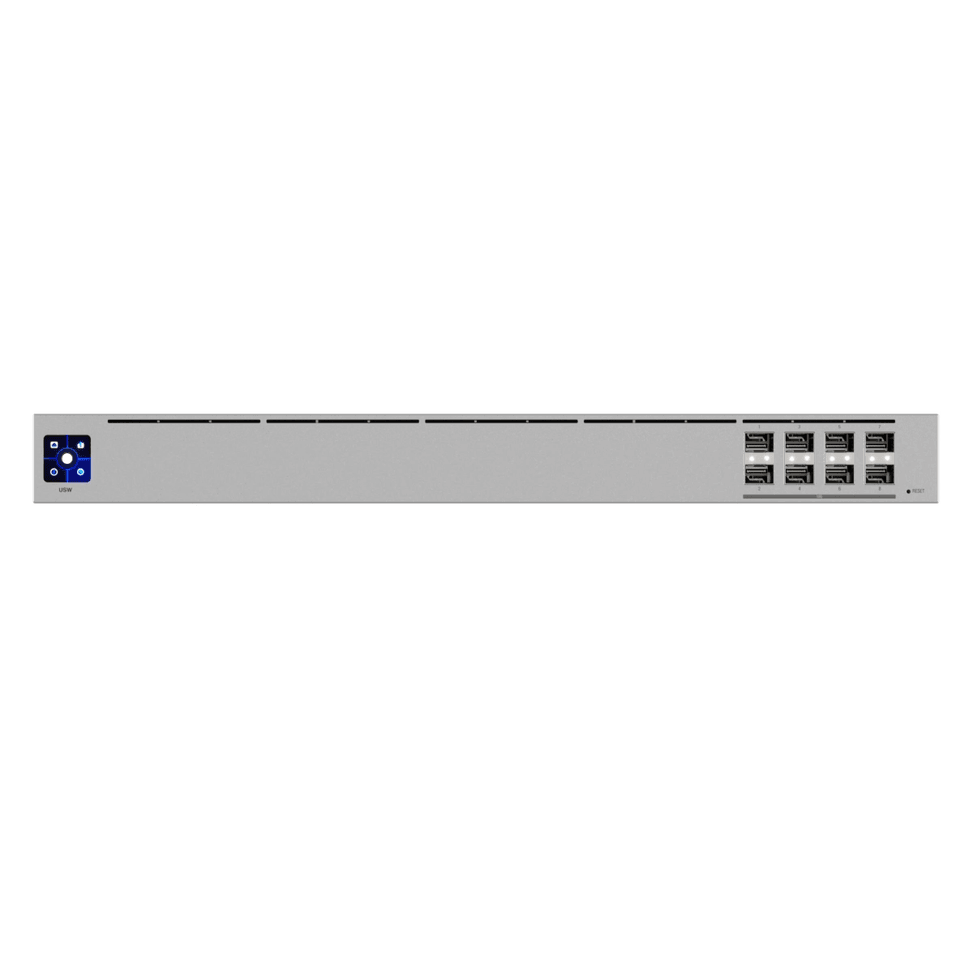

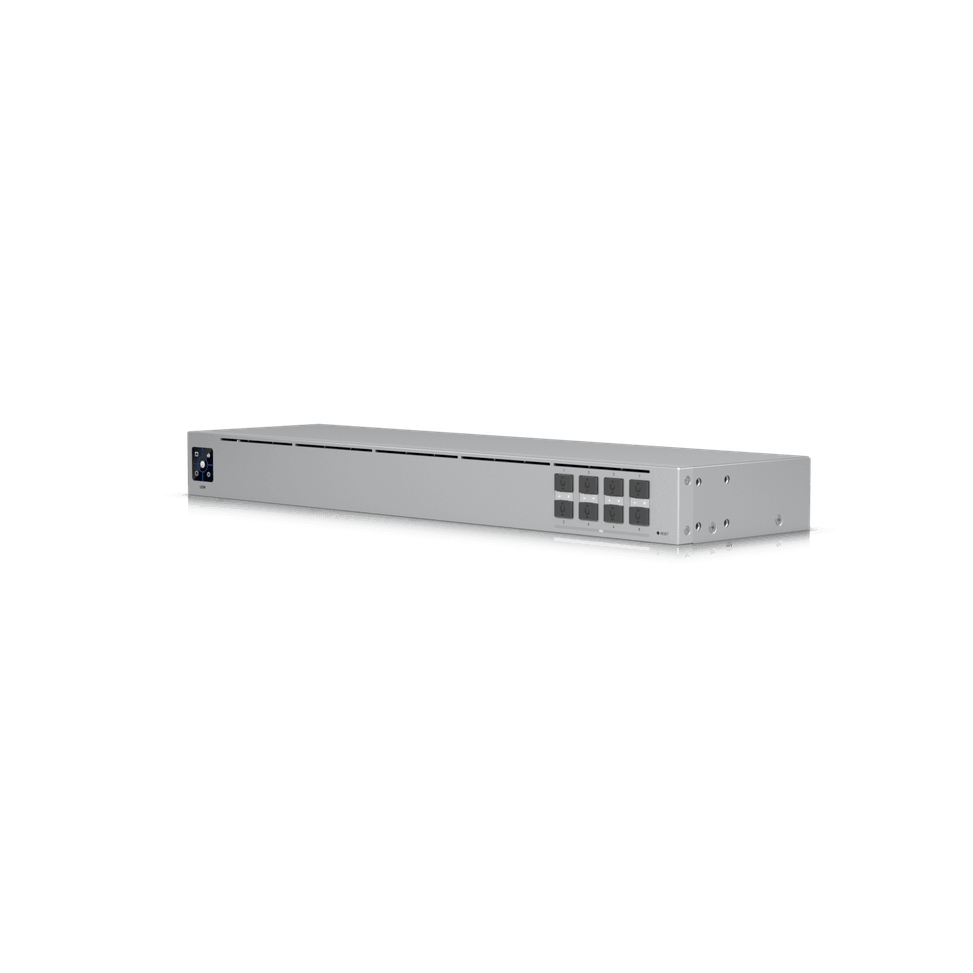

Ubiquiti UniFi USW-Aggregation all-fibre aggregation switch: 8 SFP+ 10G slots to link your switches, servers and storage at very high speed, fanless and completely quiet. Ports:8 SFP+ 10G ports (compatible with 10G and 1G modules) — designed for ultra-fast uplinks at the heart of your network. Management: fully managed through UniFi Network (web interface and mobile app); LACP, STP/RSTP, IGMP snooping, 802.1X control, MAC and IP ACLs, DHCP snooping, port isolation, port mirroring, storm control, 1,000 VLANs. Form factor:1U rack-mount (442 x 120 x 43.7 mm), SGCC steel enclosure, 1.3'' LCM touchscreen, completely silent fanless operation. Also:160 Gbps switching capacity, 80 Gbps non-blocking throughput, 119 Mpps, 16,000-entry MAC table, 1.5 MB buffer, 36 W max. power consumption, CE/FCC certified.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Why does this switch have no RJ45 ports?

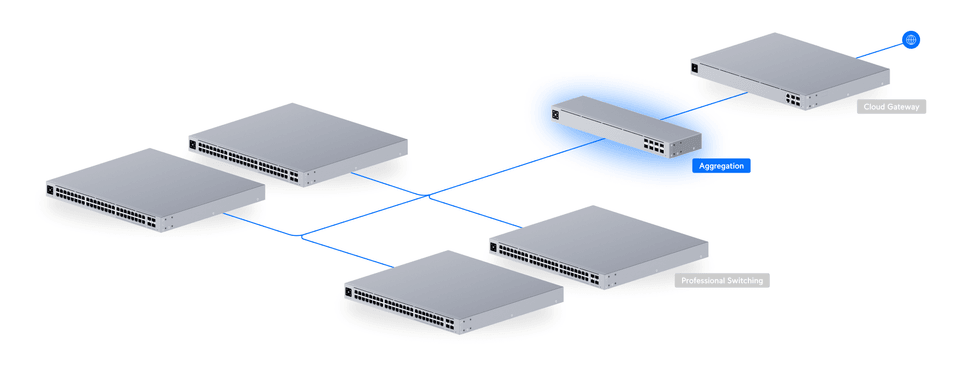

It is an all-fibre aggregation switch: its 8 SFP+ slots bring together the uplinks of several access switches, servers or storage arrays. Each slot accepts a 10G or 1G module.
Can a 10 Gigabit switch do without a fan?

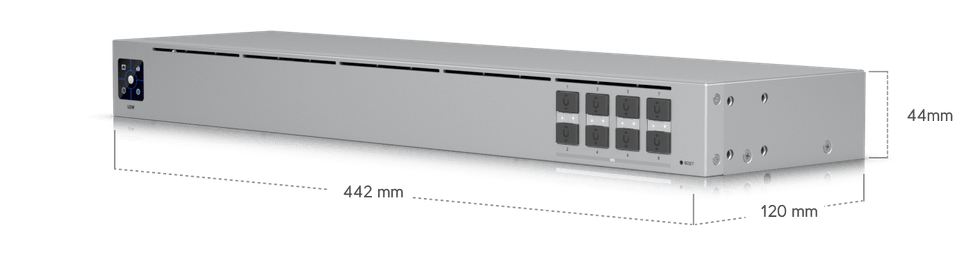

Yes, this one can: its fanless design makes it completely silent, in a 442 × 120 × 43.7 mm SGCC steel chassis in 1U format. That is rare on aggregation equipment, and it means it can be installed outside a comms room.
What internal performance does this switch claim?
160 Gbps switching capacity and 80 Gbps of non-blocking throughput, with a 16,000-entry MAC address table. Enough to aggregate eight 10 Gigabit links without creating a bottleneck.
What management features does this model offer?
Layer 2: up to 1,000 VLANs, LACP link aggregation, IGMP snooping and 802.1X access control, with STP and RSTP spanning tree against loops. It is managed through the UniFi Network application.
How can you check this switch's status without a computer?
With the 1.3-inch touchscreen built into the front panel, which shows the device status and allows local monitoring. Configuration, however, is done through UniFi Network.
Is the switch new, and where can I view its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the USW-Aggregation, its ports and its specifications: datasheet (PDF).
