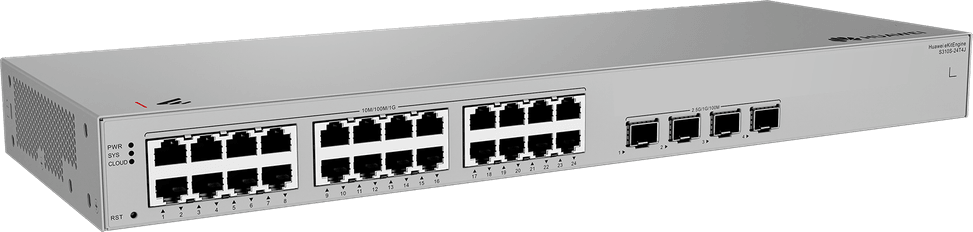

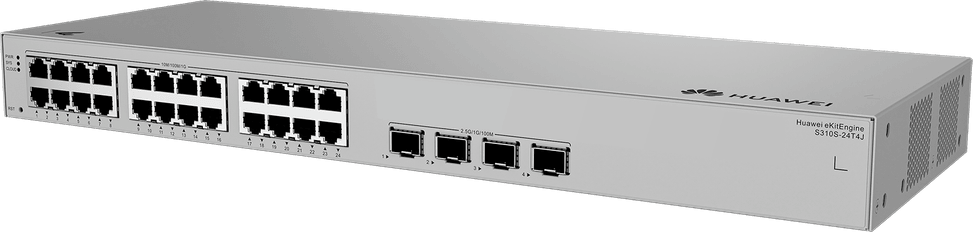

Huawei eKitEngine S310S-24T4J 24-Port Switch (98012506)
For SMEs, hotels, schools or industrial sites: 4 fibre links beyond standard Gigabit to connect your aggregation switches. Completely silent 1U casing, managed locally or from the cloud.
- 24 Gigabit ports (10/100/1000BASE-T)
- 4 SFP 2.5 Gbps fibre ports for uplink
- L2 managed (fully managed)
- Management through the eKit cloud app, web interface or SNC
- 1U rack-mountable, fanless, silent
- Switching capacity 68 Gbps
- Reinforced security: 802.1X, anti-DoS, DHCP snooping
Ref.: 98012506
1 949,00 DHincl. VAT
Configuration · Huawei eKitEngine S310S
- 24 × RJ45 2 × SFP + 2 × SFP+
- Configuration shown: 24 × RJ45 4 × SFP
- 24 × RJ45 4 × SFP PoE+ 400 W
In stock
Earn 20 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Huawei eKitEngine S310S-24T4J managed switch: 24 Gigabit ports and 4 x 2.5GE SFP fibre ports for stable, managed network connectivity, in a silent form factor built for SMEs, hotels, schools and industrial sites.
Ports: 24 x 10/100/1000BASE-T ports to connect workstations and network devices; 4 x 2.5GE SFP ports (fibre) as uplinks beyond standard Gigabit, to reach aggregation switches over optical fibre.
Form factor: completely silent fanless operation, 1U rack-mount chassis — perfect for offices, classrooms and noise-sensitive spaces.
Management: L2 managed (fully managed S310S range), via the HUAWEI eKit App, web interface or SNC; VLAN, QoS, static routing, LACP, security (802.1X, DHCP snooping, anti-DoS).
Also: capacity 68 Gbps, throughput 51 Mpps, 16K MAC table, ERPS, IGMP snooping.
Request a quoteShare:
Technical specifications
| MAC table size | 16,000 entries |
|---|---|
| Number of VLANs | 4,094 VLANs |
| Interfaces | 24 x 10/100/1000BASE-T ports, 4 SFP 2.5GE ports |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.1d, 802.1w, 802.1s, 802.3az, ITU-T G.8032 |
| Switching capacity | 68 Gbps |
| Forwarding rate | 51 Mpps |
| Management modes | Web interface, SSH v2.0, HTTPS, LLDP, port mirroring |
| Cloud management platform | HUAWEI eKit (cloud management) |
| Layer 2 features | LACP aggregation, IGMP snooping, LLDP, Energy Efficient Ethernet 802.3az |
| IP routing | Static routes and policy-based routing |
| Quality of service (QoS) | Per-interface rate limiting, IPv4 ACLs, 8 queues per interface, packet filtering |
| Dimensions (W x D x H) | 442 x 160 x 43.6 mm |
| Number of ports | 19 to 28 ports |
|---|---|
| Managed | Yes |
| Security features | DoS/ARP/ICMP defence, secure boot, port isolation, AAA authentication, DHCP snooping |
| Power supply | Internal 100-240 V AC power supply, 50/60 Hz |
| Cooling system | Fanless |
| Operating temperature | -5 to 40 °C from 0 to 1,800 m altitude |
| Operating humidity | 5 to 95% RH, non-condensing |
| PoE power | No |
| Port speed | 2.5 Gbps (Multi-Gig) |
| Management level | Layer 2 |
| Fibre slots (SFP) | Yes |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is this switch noisy if installed in an office or a classroom?
No. The S310S-24T4J runs without any fan: heat dissipates naturally, so in complete silence, which allows it to be placed in a classroom, at reception or in an open-plan office. The only constraint is that it needs air: its continuous operating range runs from -5 °C to +40 °C up to an altitude of 1,800 m, with 5 to 95 % humidity, non-condensing.
Can it power IP cameras or Wi-Fi access points directly over the network cable?
No, this model has no PoE ports: each camera or access point keeps its own power adapter, which must be allowed for in the installation. In the same series, it is the S310S-24P4J and S310S-24P4JX models that provide 24 PoE+ ports with a 400 W budget.
What speed do the 4 SFP ports run at, and can they take 10 Gbps fibre?
The four SFP uplink ports run at 2.5 Gbps: faster than Gigabit, but not 10 G. They are used to connect to an aggregation switch over fibre optics without limiting the link to 1 Gbps. If your network core requires 10 Gbps optical links, it is the S310S-24T4JX in the same series that offers 2 × 10GE SFP+ ports in addition to 2 × 2.5GE SFP ports.
Is the 68 Gbps capacity enough if all 24 ports are busy at the same time?
Yes: switching capacity reaches 68 Gbps with a forwarding rate of 51 Mpps, enough to handle the 24 Gigabit ports and the 4 × 2.5G SFP ports simultaneously. Eight queues per interface also let you prioritise voice or video conferencing, and rate limiting is applied port by port.
Do you have to go through the cloud to configure this switch?
No. It can be managed just as well locally — web interface, SSH v2.0, HTTPS, SNC — as in the cloud via the HUAWEI eKit app, and you can switch between the two modes whenever you like, without changing hardware. Initial deployment can also go through the registration centre, and LLDP makes it easier to discover neighbouring devices.
How many devices and VLANs can it handle before reaching its limits?
Its MAC address table goes up to 16,000 entries, with automatic learning and ageing, and it handles up to 4,094 VLANs: enough to separate offices, guest Wi-Fi and video surveillance on the same site without coming close to its limits. Multicast traffic, for its part, is kept under control by IGMP snooping v1/v2/v3, useful as soon as video is streamed.
What happens if someone creates a loop by plugging a cable back in at random?
The switch neutralises it: it supports STP, RSTP and MSTP, backed by broadcast storm control, which limits the packet rate on an interface. For a dual link to the network core, it also supports ERPS (G.8032) rings, which fail over within a few milliseconds, and LACP aggregation.
How does it protect itself against a rogue DHCP server or a malicious computer on the network?
It maintains a DHCP snooping table and drops packets that do not match it, only accepting the DHCP server on a port declared as trusted. On top of that come defence against DoS, ARP and ICMP attacks, port isolation, blackhole MAC addresses and Secure Boot. Access to management is filtered by AAA authentication.
Does it fit in a 19-inch rack or a shallow wall-mount cabinet?
Yes: 43.6 × 442 × 160 mm, a 1U chassis at standard rack width and only 16 cm deep. Its passive cooling also makes wall-mount cabinets an option, provided air can circulate. The mains power supply is built into the chassis: no external transformer to find room for in the rack.
Can it cope with voltage fluctuations on the power grid?
It accepts 100 to 240 V AC at 50/60 Hz, with an extended input range of 90 to 264 V, 45 to 65 Hz: common mains fluctuations therefore do not disrupt its operation. It also applies IEEE 802.3az (Energy Efficient Ethernet), which lowers the power consumption of lightly used ports.
Are firmware updates complicated to do yourself?
No: the S310S series updates in one click from the HOUP online repository, which provides the upgrade path and downloads the version. Preloading greatly shortens service downtime and the set path reduces the risk of failure. System logs and multi-level alarms, for their part, report any incidents.
Is the Huawei S310S-24T4J switch new and under warranty?
Yes: new equipment in its original packaging, supplied with its invoice, which serves as the warranty document for 1 year. You will find the full list of supported protocols — VLAN, ERPS, QoS, DHCP snooping, static routing — and the electrical specifications in the datasheet (PDF).
