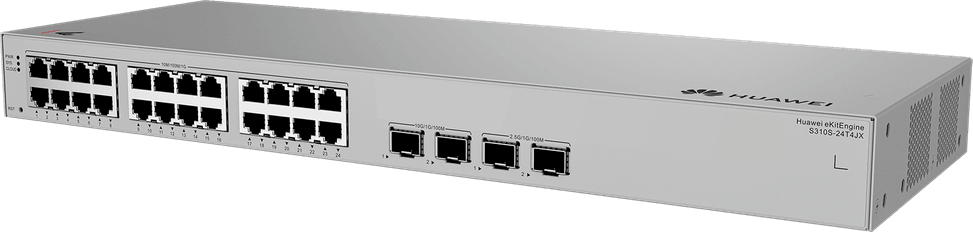

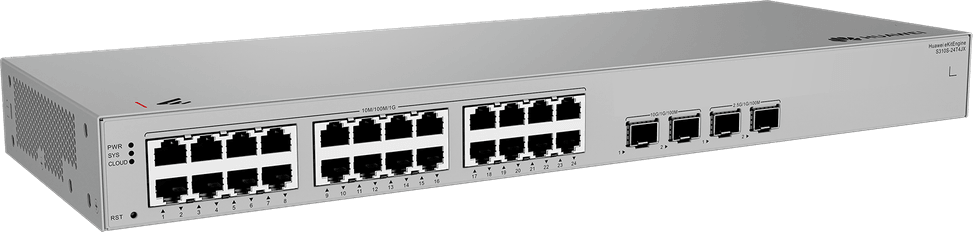

Huawei eKitEngine S310S-24T4JX 24-Port Switch (98012508)
Fully managed and silent switch (fanless), with two 10 Gbps uplinks and two at 2.5 Gbps for a capable SME network core. Management through the HUAWEI eKit App, web interface or SNC.
- 24 Gigabit RJ45 ports (10/100/1000)
- 2 SFP+ 10 Gbps ports for uplinks
- 2 SFP 2.5 Gbps ports
- L2 managed — VLAN, QoS, static routing
- Management through the HUAWEI eKit App, web interface or SNC
- 1U rack-mountable format, fanless (silent)
- Switching capacity 98 Gbps
- MAC table of 16,000 entries
Ref.: 98012508
2 129,00 DHincl. VAT
Configuration · Huawei eKitEngine S310S
- Configuration shown: 24 × RJ45 2 × SFP + 2 × SFP+
- 24 × RJ45 4 × SFP
- 24 × RJ45 4 × SFP PoE+ 400 W
In stock
Earn 22 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 320 DH by card or bank transfer) · Certified cheque
Product overview
Huawei eKitEngine S310S-24T4JX managed switch: 24 Gigabit ports, 2 × 2.5GE SFP ports and 2 × 10 Gbit/s SFP+ ports for a high-performance, completely silent SMB network infrastructure.
Ports: 24 × 10/100/1000BASE-T ports for the local network; 2 × 2.5GE SFP ports and 2 × 10GE SFP+ ports (fibre) as multi-speed uplinks — the 10GE ports provide ultra-fast links to aggregation switches and servers.
Form factor: completely silent, fanless operation, 1U rack-mountable chassis — suited to offices, hotels and industrial environments.
Management: L2 managed (fully managed S310S series), manageable through the HUAWEI eKit App, web interface or SNC; VLAN, QoS, static routing, LACP, advanced security (802.1X, DHCP snooping, anti-DoS).
Also: 98 Gbit/s capacity, 73 Mpps throughput, 16K MAC table, ERPS, IGMP snooping.
Request a quoteShare:
Technical specifications
| MAC table size | 16,000 entries |
|---|---|
| Number of VLANs | 4,094 VLANs |
| Interfaces | 24 x 10/100/1000BASE-T ports, 2 SFP+ 10GE ports, 2 SFP 2.5GE ports |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.1d, 802.1w, 802.1s, 802.3az, ITU-T G.8032 |
| Switching capacity | 98 Gbps |
| Forwarding rate | 73 Mpps |
| Management modes | Web interface, SSH v2.0, HTTPS, LLDP, port mirroring |
| Cloud management platform | HUAWEI eKit (cloud management) |
| Layer 2 features | LACP aggregation, IGMP snooping, LLDP, Energy Efficient Ethernet 802.3az |
| IP routing | Static routes and policy-based routing |
| Quality of service (QoS) | Per-interface rate limiting, IPv4 ACLs, 8 queues per interface, packet filtering |
| Dimensions (W x D x H) | 320 x 210 x 43.6 mm |
| Number of ports | 19 to 28 ports |
|---|---|
| Managed | Yes |
| Security features | DoS/ARP/ICMP defence, secure boot, port isolation, AAA authentication, DHCP snooping |
| Power supply | Internal 100-240 V AC power supply, 50/60 Hz |
| Cooling system | Fanless |
| Operating temperature | -5 to 40 °C from 0 to 1,800 m altitude |
| Operating humidity | 5 to 95% RH, non-condensing |
| PoE power | No |
| Port speed | 2.5 Gbps (Multi-Gig) |
| Management level | Layer 2 |
| Fibre slots (SFP) | Yes |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is this managed switch noisy?
No, not at all: the S310S-24T4JX is passively cooled, with no fan, unlike the PoE models in the same series. This is what allows it to be installed in an office, a meeting room or an area open to the public without any disturbance.
What is the difference between the SFP+ ports and the SFP ports on this model?
The two SFP+ ports run at up to 10 Gbps and serve as the uplink to the network core; the two SFP ports run at 2.5 Gbps, an intermediate speed intended for recent Wi-Fi access points or a link between floors.
Does this model supply PoE power to devices?
No: the S310S-24T4JX is the non-PoE version. Its 24 Gigabit ports carry data only. Cameras and access points that need power require an injector, or the S310S-24P4JX model from the same series with its 400 W budget.
How many VLANs and MAC addresses does this switch handle?
4,094 VLANs and 16,000 MAC addresses maximum, as static, dynamic or blackhole entries to block a specific machine. Address learning and ageing follow the IEEE 802.1d standard.
Can this switch route between several subnets?
Yes: it handles static routes and policy-based routing, as well as DHCP client, DNS client, ARP and NTP synchronisation. Two VLANs can therefore communicate without going all the way up to the site router.
What does this switch offer against a link failure in a ring?
The ERPS protocol, defined by ITU-T G.8032, restores traffic within a few milliseconds when a link in the ring goes down. STP, RSTP and MSTP remain available for conventional topologies, and LACP aggregation balances the load.
What protection does this switch provide against internal attacks?
Defence against denial-of-service, ARP and ICMP attacks, secure boot, port isolation, blackhole MAC addresses, AAA authentication, CPU protection and DHCP snooping, with a binding table and discarding of non-compliant packets.
How can this switch be updated safely?
Smart upgrade relies on Huawei's online repository: the switch retrieves the recommended upgrade path on its own, downloads the version and applies it with a single command. Preloading reduces both the downtime and the risk of failure.
How is this switch managed?
Through the HUAWEI eKit app, in cloud or local mode, through the web interface, over SSH v2.0 or HTTPS, with system logs and prioritised alarms. The LLDP protocol discovers neighbouring devices, and port mirroring feeds traffic to an analyser.
Is the switch new, and where can I view its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the entire eKitEngine S310S series, model by model, with the ports, features and environmental conditions: datasheet (PDF).
