ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS)

A dedicated DRAM cache and a built-in heatsink to hold 7,400 MB/s read and 6,000 MB/s write under load. 256-bit AES encryption, 780 TB written of endurance and PlayStation 5 compatibility as expanded storage.

  • Sequential read up to 7,400 MB/s
  • Sequential write up to 6,000 MB/s
  • NVMe 1.4 standard
  • 730 K IOPS in 4 KB random read, 610 K in write
  • Endurance 780 TB written (TBW)
  • Dedicated DRAM cache and SLC caching
  • SMI SM2264 controller
  • 256-bit AES encryption
  • Hardware LDPC error correction
  • Compatible with PlayStation 5 as expanded storage
  • Built-in heatsink, 4.68 mm thick
  • Backward compatible with PCIe 3.0 (3,400 / 3,000 MB/s)
  • Mean time between failures 2,000,000 hours
  • SSD Toolbox software for S.M.A.R.T. monitoring
Ref.: ALEG-960-1TCS

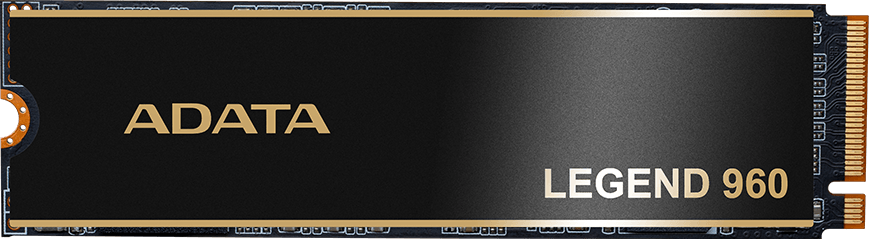

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS) — image 1

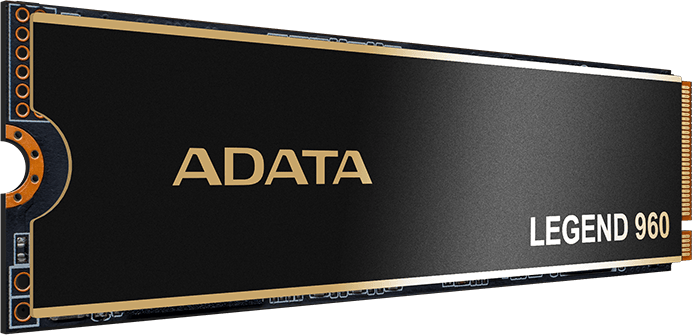

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS) — image 2

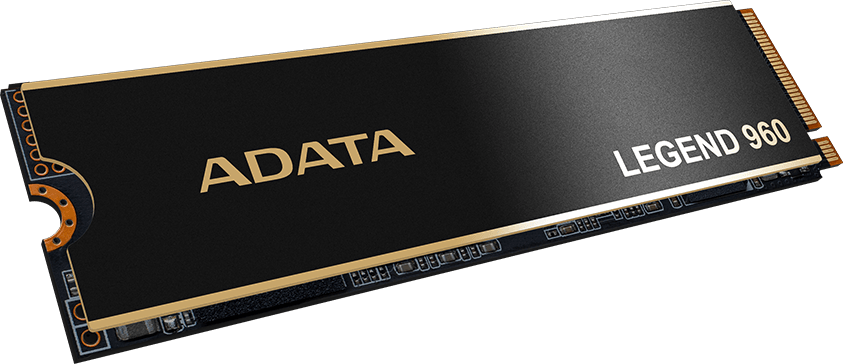

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS) — image 3

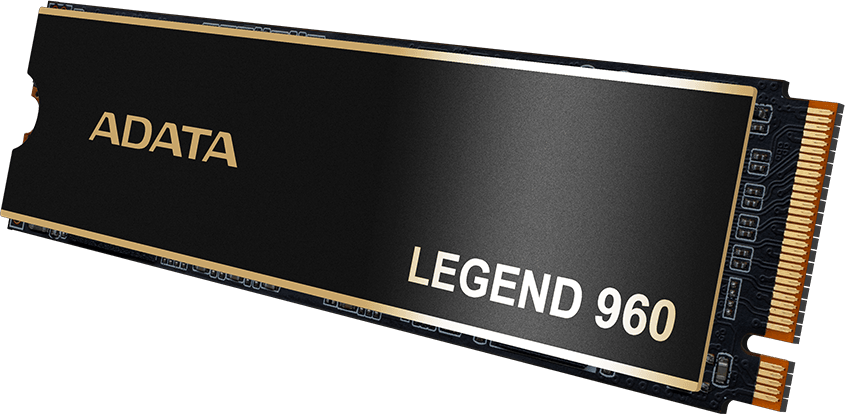

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS) — image 4

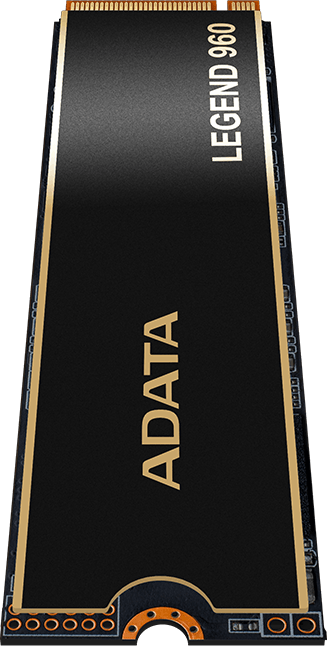

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS) — image 5

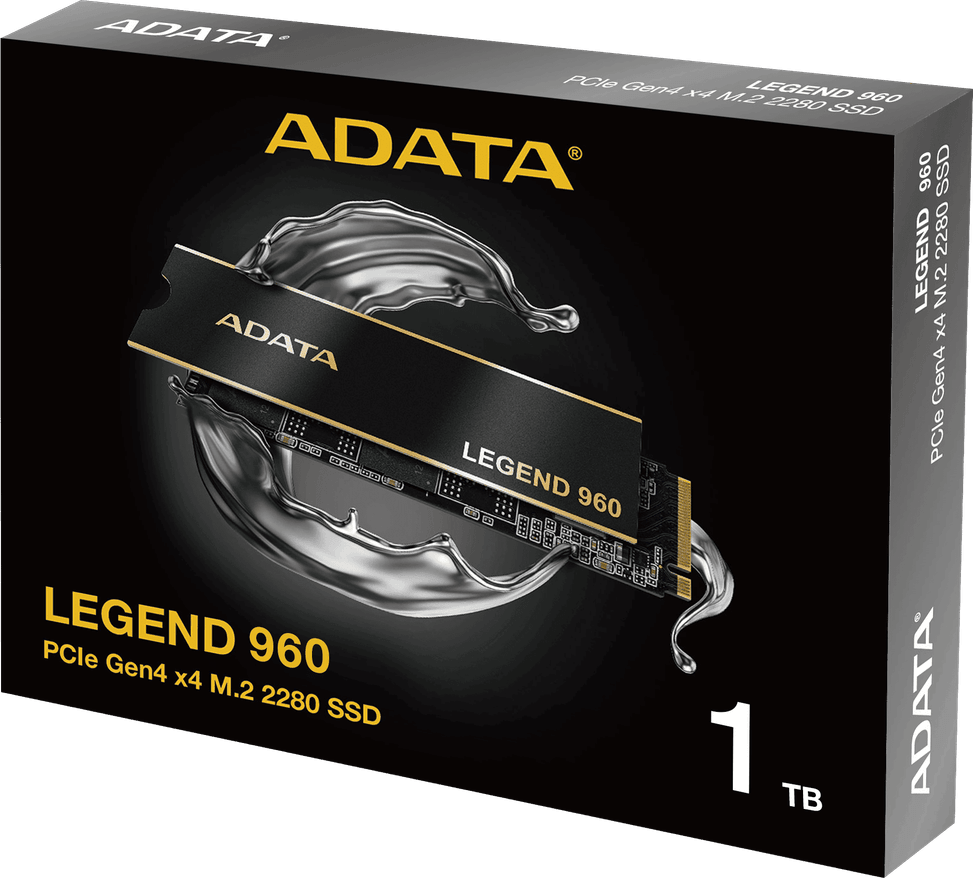

ADATA LEGEND 960 PCIe Gen4 x4 M.2 2280 Internal SSD - 1TB (ALEG-960-1TCS) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Capacity : the capacity printed on the product photographed illustrates the range; the one sold is that of the title and the specifications.
  • Format and interface : 2.5 or 3.5 inch, SATA, NVMe M.2, with or without a heatsink: the photo is not enough to tell.
  • Drives not supplied : external enclosures, docking stations and NAS servers ship without a drive, unless explicitly stated.
  • Accessories : cables, adapters, caddies and screws are supplied only if the specifications say so.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
909,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 855 Ko — downloadable

Product overview

ADATA LEGEND 960 1 TB SSD, M.2 2280, PCIe Gen4 x4 NVMe: built for the creative workstation, it unleashes the power of your 3D, video and gaming projects.
Compatibility: M.2 2280 form factor, PCIe Gen4 x4 NVMe 1.4 interface, backward compatible with PCIe 3.0, Intel and AMD platforms, Windows and Linux; PS5 compatible for expanded storage.
Technology: 3D NAND memory, dedicated DRAM cache, SLC caching, SMI SM2264 controller, LDPC ECC, 256-bit AES encryption, built-in heatsink.
Performance: reads up to 7,400 MB/s, writes up to 6,000 MB/s, 4K IOPS up to 730K read and 610K write.
Endurance: TBW 780 TB, MTBF 2,000,000 h.
Highlights: Gen4 and a DRAM cache for consistent performance under load, built-in heatsink to sustain speed continuously.
Ideal for desktop or laptop upgrades, creative workstations, 4K video editing, 3D, gaming PCs and the PS5 console.
The durable companion for demanding creators and gamers.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Hardware encryptionYes, 256-bit AES
Dimensions (W x D x H)80 x 22 x 3.38 mm without heatsink, 80 x 22 x 4.68 mm with
Net weight8 g without heatsink, 11 g with
Read speedUp to 7,400 MB/s sequential read
Write speedUp to 6,000 MB/s sequential write
Random performance (IOPS)730,000 IOPS 4 KB read, 610,000 IOPS 4 KB write
Endurance780 TB written (TBW)
MTBF2 million hours
Operating temperature0 °C to 70 °C
Storage temperature-40 °C to 85 °C
Shock resistance1,500 G for 0.5 ms
Technical specifications (continued)
Storage capacity1 TB
Cache sizeDedicated DRAM cache, with SLC cache
InterfacePCIe Gen4 x4 (NVMe 1.4), backward compatible with PCIe 3.0
CertificationsCE, FCC, BSMI, KC, EAC, RCM, Morocco, UKCA, RoHS
Storage typeSSD, 3D NAND flash memory
SSD controllerSMI SM2264
Drive form factorM.2 2280
Heatsink4.68 mm built-in heatsink
PlayStation 5 compatibilityYes, storage expansion stated by the manufacturer
UseGaming, Creative & Multimedia
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How thick is the LEGEND 960 with its heatsink?
4.68 mm, built-in heatsink included. That is much less than the LEGEND 960 MAX from the same family, which reaches 10.65 mm with its fins: this version therefore fits under a motherboard M.2 cover where the MAX version does not.
What speeds does this 1 TB version deliver?
7,400 MB/s read and 6,000 MB/s write, with 730,000 IOPS in 4 KB random read and 610,000 in write. The interface is PCIe Gen4 x4, compliant with the NVMe 1.4 standard.
Can this SSD encrypt the data it stores?
Yes, it supports 256-bit AES hardware encryption, performed by the drive itself. Hardware LDPC error correction also ensures the accuracy of transferred data, and the controller that runs it all is an SMI SM2264.
Does this SSD have its own cache memory?
Yes, a dedicated DRAM cache, supplemented by SLC caching. The mapping table stays on the drive instead of borrowing the PC's RAM, which helps it keep pace when multitasking and during long transfers.
Can it be installed in a PlayStation 5 as expanded storage?
Yes, ADATA rates the LEGEND 960 as compatible with the console's M.2 expansion slot. Its 4.68 mm built-in heatsink stays within a size that fits the bay, unlike models topped with tall fins.
Does it work on a motherboard that only supports PCIe 3.0?
Yes, it is backward compatible with PCIe 3.0: speeds then drop to 3,400 MB/s read and 3,000 MB/s write, with the bus becoming the limiting factor. A PCIe 4.0 motherboard is needed to get the advertised 7,400 and 6,000 MB/s.
What is the write endurance of this 1 TB version?
780 TB, or 780 full drive writes. The advertised mean time between failures is 2,000,000 hours. ADATA's SSD Toolbox software shows at any time how much of this allowance has already been used and the remaining lifespan.
Is the drive new and under warranty?
It is new and your invoice serves as the warranty document. It carries the reference ALEG-960-1TCS, to be quoted for any return. The full datasheet lists all the values for this capacity.
