TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point

The Ultra-Range version: high-power internal antennas to cover up to 185 m² and get through walls better. More than 250 devices at once, a PoE+ powered Gigabit port, one-click setup with Omada SDN.

Coverage up to 185 m²
250+ simultaneous clients
574 Mbps (2.4 GHz) + 2,402 Mbps (5 GHz)
2×2 MU-MIMO, OFDMA, 160 MHz channels
Gigabit Ethernet port
802.3at PoE+, 48 V passive PoE or 12 V DC (adapter not included)
Omada SDN management: cloud, controller or app
16 SSIDs, WPA3, captive portal
Ceiling, wall or suspended ceiling mounting (kits included)

Ref.: EAP653 UR

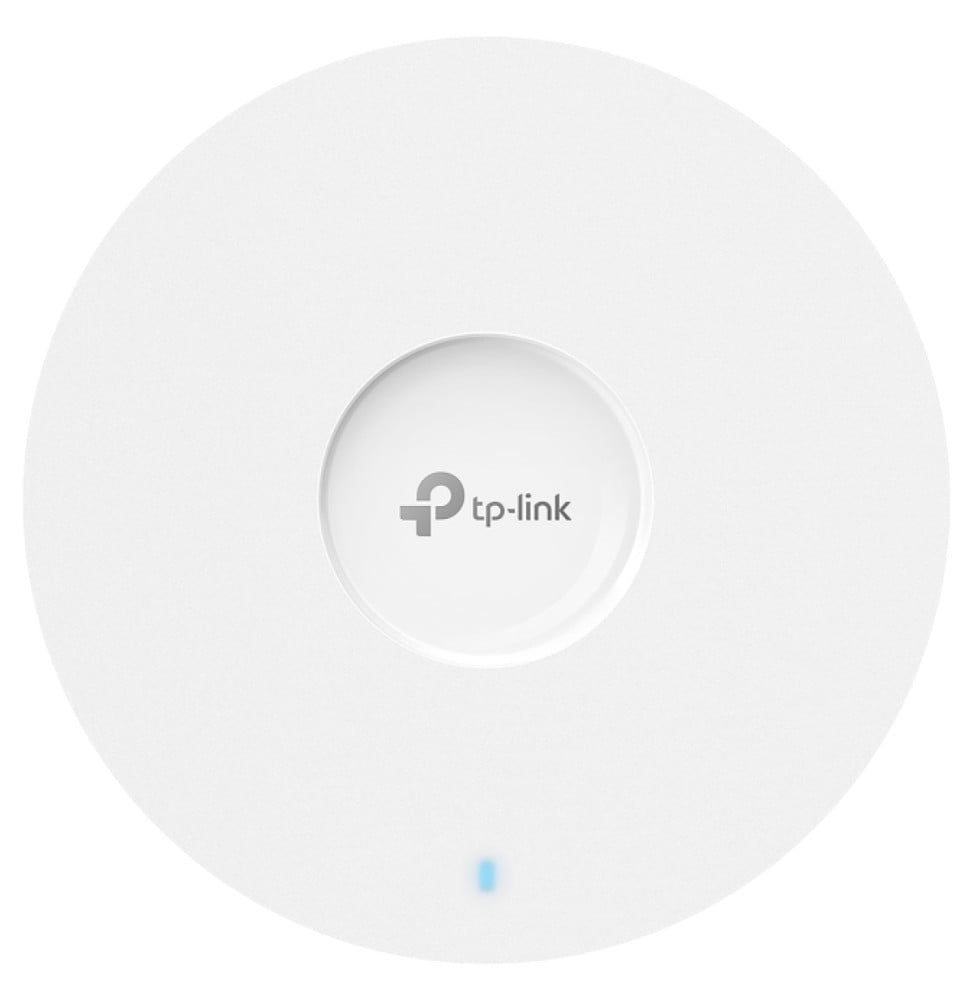

TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point — image 1

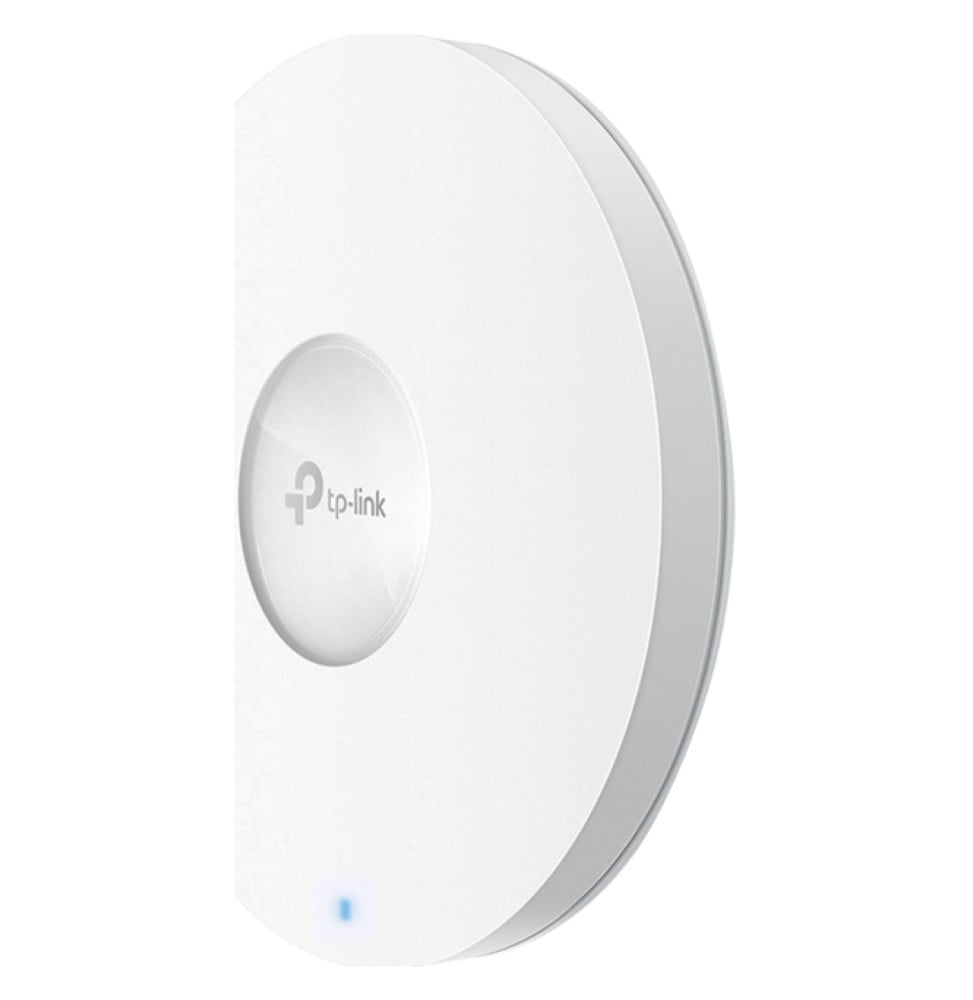

TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point — image 2

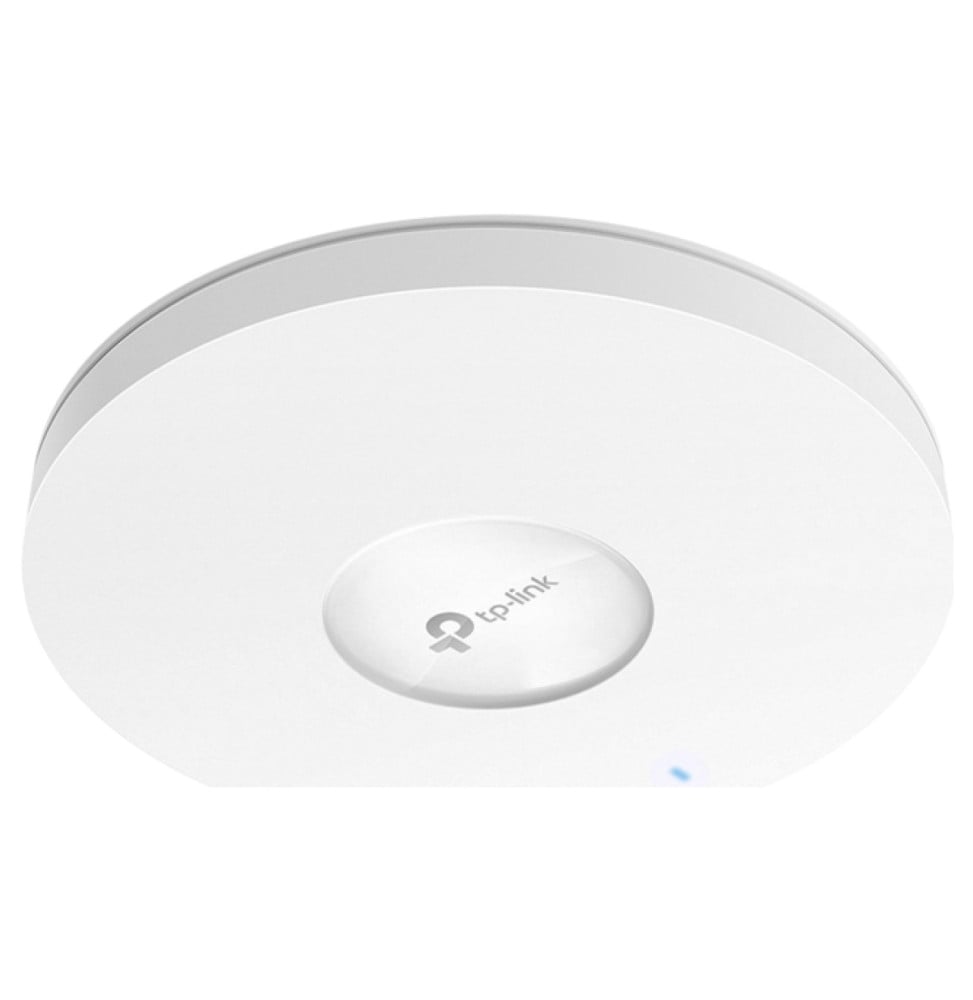

TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point — image 3

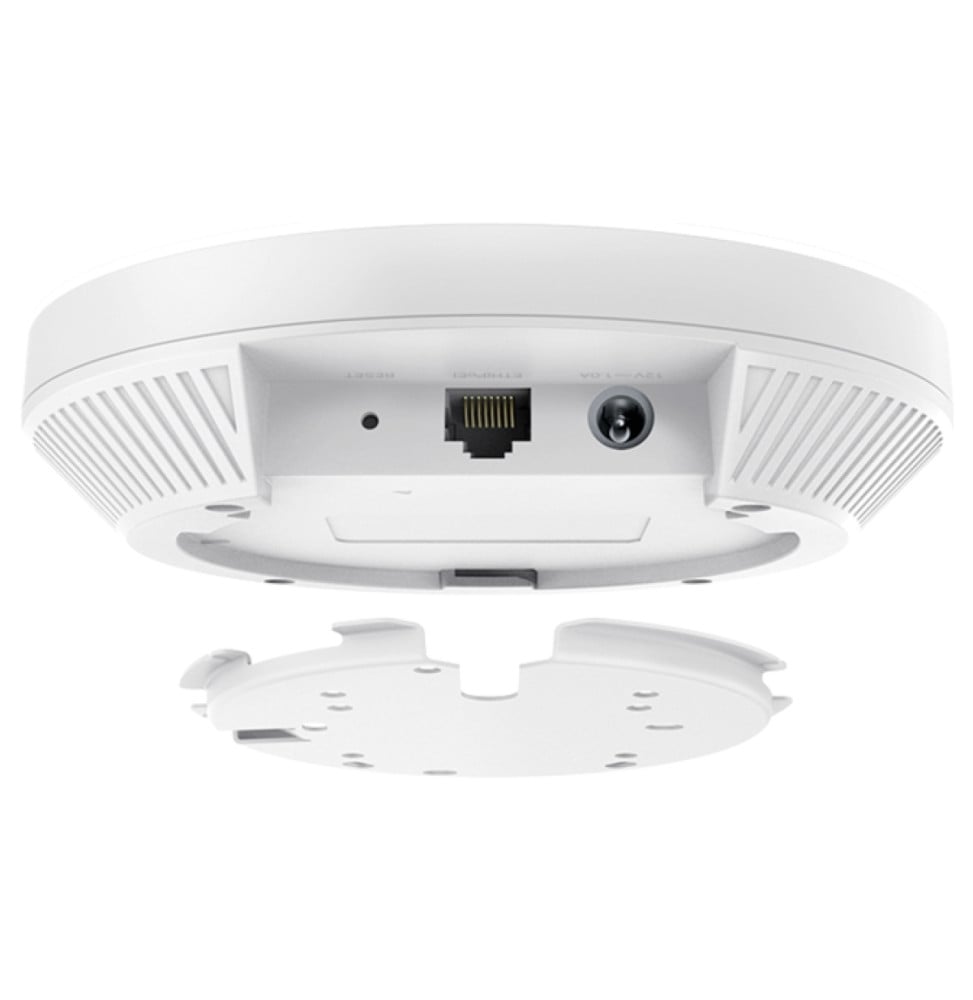

TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point — image 4

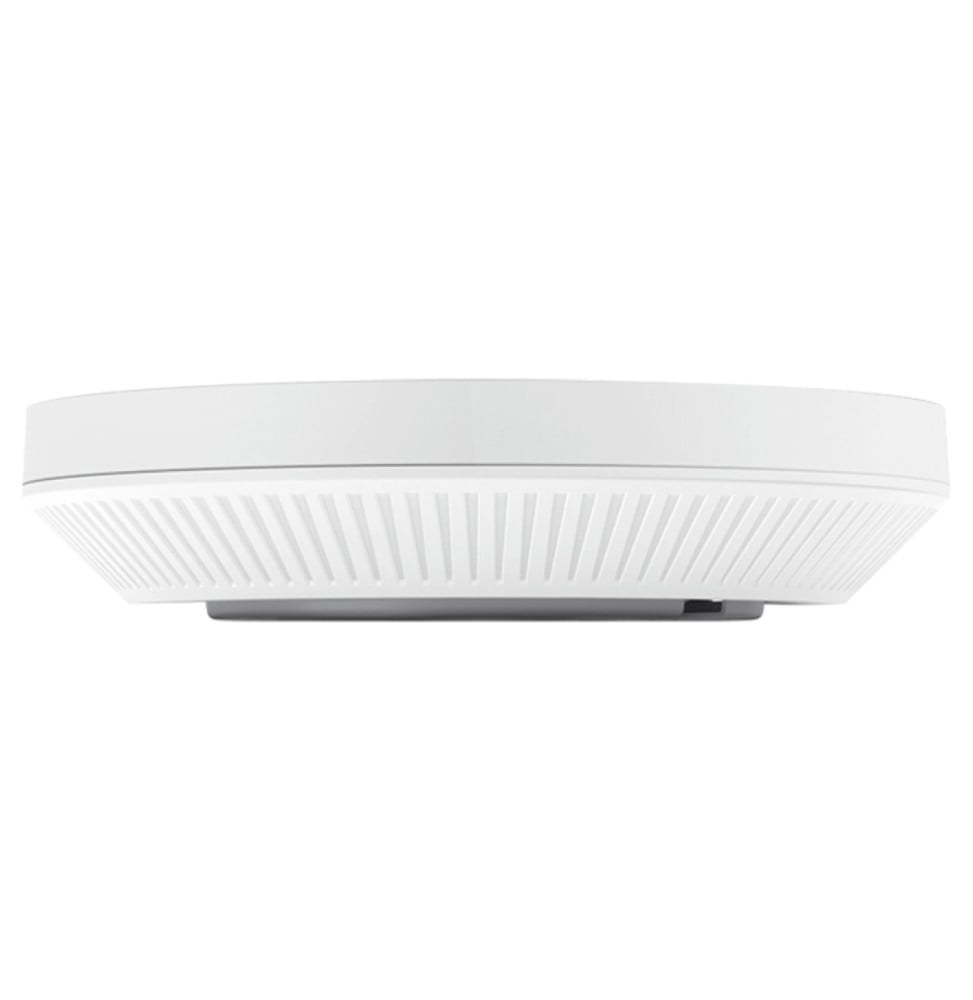

TP-Link EAP653 UR AX3000 Ceiling Mount Wi-Fi 6 Access Point — image 5

1 140,00 DHincl. VAT

In stock

Quantity

Earn 12 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

3 ways to get it

Delivery anywhere in Morocco

40 DH incl. VAT

In stockReceive it between Fri 9 Oct and Mon 12 Oct ·

Casablanca store

Free pickup

Available within 24 hWe bring it there and call you when it arrives

Témara pickup point

Free pickup

Available within 48 hWe bring it there and call you when it arrives

1 year warranty — free repair in Morocco if it breaks down during the warranty period

100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque

Manufacturer's datasheetView the PDF · 1017 Ko — downloadable

Product overview

Dual-band ceiling mount Wi-Fi 6 AX3000 access point TP-Link EAP653 UR: fast, stable Wi-Fi for offices, shops, hotels and large homes.
Wi-Fi & speed: Wi-Fi 6 (802.11ax) — 574 Mbps on 2.4 GHz + 2,402 Mbps on 5 GHz.
Capacity & performance: 2×2 MU-MIMO on both bands, OFDMA, 1024-QAM, 160 MHz channels — 250+ devices at once.
Coverage: up to 185 m².
Installation: indoor; ceiling, wall or junction box mounting, kit included.
Ports & power: Gigabit Ethernet port — PoE+ (802.3at), 48 V passive PoE or 12 V DC, adapter not included.
Management: Omada SDN platform — cloud, OC200/OC300 or software controller, Omada app; mesh, roaming, WPA3, captive portal, 16 SSIDs.
Professional Wi-Fi 6, simple to deploy and manage remotely.

See all the specifications ↓

Request a quoteShare:

Technical specifications

Technical specifications
Package contents	Borne EAP653 UR, kit de montage plafond et mur, guide d'installation ; bloc secteur NON fourni
Number of SSIDs	16 SSID au total, 8 par bande
Interfaces	1 port Ethernet Gigabit (RJ45) PoE+, 1 bouton de réinitialisation
Network standards	IEEE 802.11ax/ac/n/g/b/a
Advanced Wi-Fi technologies	1024-QAM, OFDMA, symboles OFDM 4× plus longs, formation de faisceaux, orientation de bande, équilibrage de charge, équité du temps d'antenne
Maximum channel width	160 MHz (HE160)
Spatial streams and MU-MIMO	MU-MIMO 2×2 en réception et en émission sur les deux bandes
Maximum Wi-Fi throughput per band	574 Mbit/s en 2,4 GHz, 2 402 Mbit/s en 5 GHz (AX3000)
Management modes	Interface web HTTP/HTTPS, SSH, SNMP v1/v2c/v3, alertes e-mail, journal local et distant, application Omada, déploiement zero-touch
Cloud management platform	Omada SDN (contrôleur cloud, OC200, OC300 ou logiciel)
Roaming and mesh	Maillage Omada Mesh et itinérance transparente 802.11k/v/r
Power consumption	14,2 W (version européenne)
Weight	410 g
Dimensions (W x D x H)	160 x 160 x 33,6 mm

Technical specifications (continued)
Antennas	Antennes internes omnidirectionnelles : 2 de 5 dBi en 2,4 GHz, 3 de 5 dBi en 5 GHz
Advertised coverage area	185 m²
Security features	WPA/WPA2/WPA3 Personal et Enterprise, 802.1X, portail captif, contrôle d'accès, filtrage MAC, isolation des clients, association SSID-VLAN, détection des points d'accès non autorisés
Power supply	PoE+ 802.3at, PoE passif 48 V ou bloc secteur 12 V 1,5 A NON fourni
Operating temperature	0 à 40 °C
Operating humidity	10 à 90 % sans condensation
Wi-Fi standard	Wi-Fi 6
Location	Indoor
Mounting type	Ceiling mount
Bands	Dual-band
PoE power	PoE+ (802.3at)
Simultaneously connected devices	250 clients simultanés et plus
Warranty	1 year
