Backwards compatible with Gen3, Gen2 and Gen1, it fits almost any motherboard and reads at 3,400 MB/s, writes at 2,400 MB/s. Phison E19T controller and 350 TB written supported.
Sequential read up to 3,400 MB/s
Sequential write up to 2,400 MB/s
Random 4K IOPS: 500 K read, 550 K write
Endurance: 350 TB written (TBW)
MTBF 1,500,000 hours
Phison E19T controller
3D NAND memory
Backwards compatible with PCIe Gen3, Gen2 and Gen1

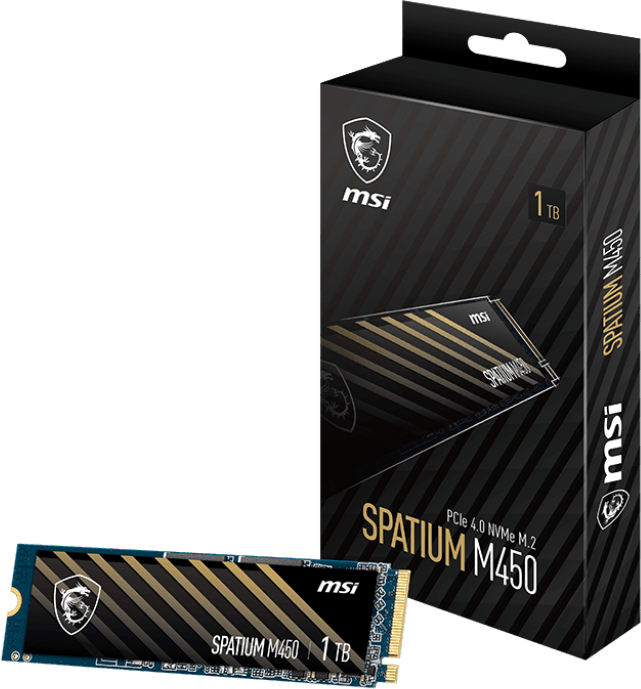

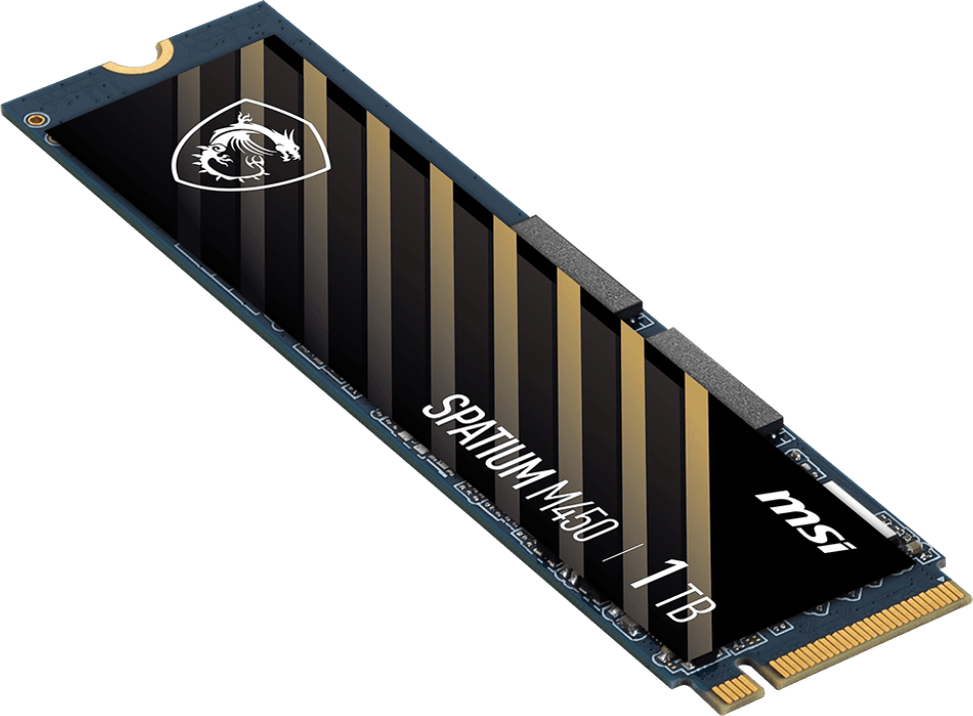

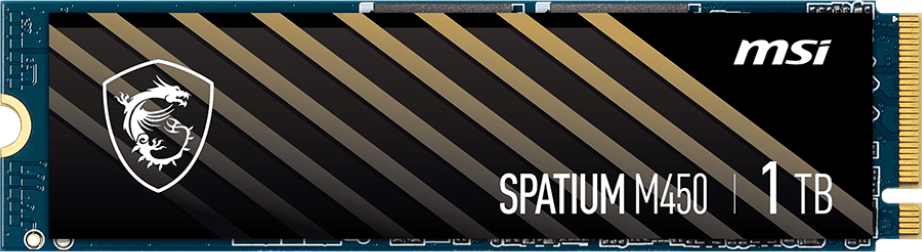

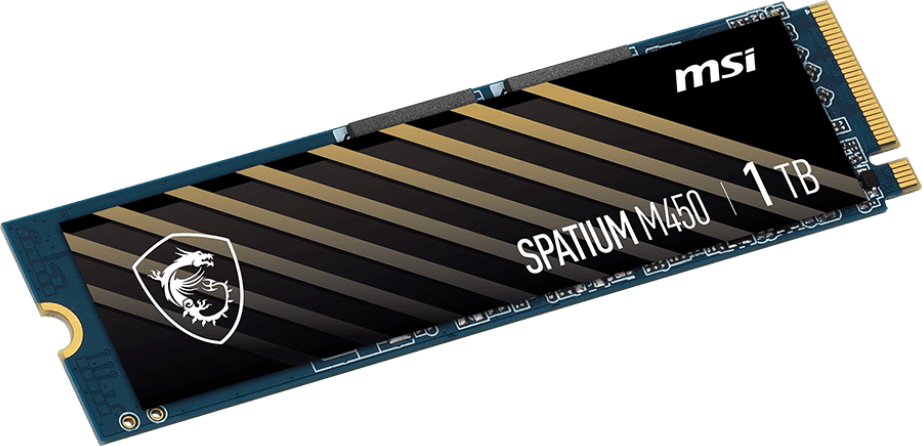

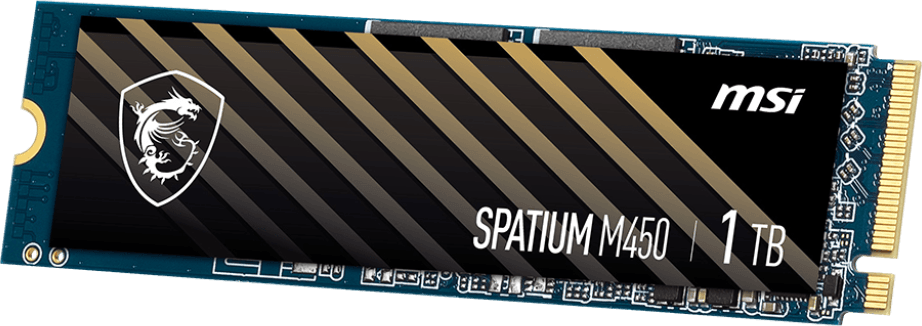

MSI Spatium M450 1 TB SSD, M.2 2280, PCIe Gen4 x4 NVMe: load your games in seconds and boost your setup with a Gen4 drive built for gaming. Compatibility: M.2 2280 form factor, PCIe Gen4 x4 NVMe 1.4 interface, backward compatible with PCIe Gen3 / Gen2 / Gen1, ideal for laptops or desktops; Windows 11 validated. Technology: 3D NAND flash memory, Phison E19T controller, TRIM, SMART, LDPC ECC, end-to-end data path protection, Pyrite encryption. Performance: sequential reads up to 3,400 MB/s, writes up to 2,400 MB/s, 4K random IOPS up to 500K read and 550K write. Endurance:TBW 350 TB, MTBF 1,500,000 h. Ideal for gaming PCs, laptop upgrades, a responsive office workstation, light video editing and lightning-fast loading of creative applications. Everything you need to supercharge your PC without breaking the bank.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Does this Gen4 SSD work on an older motherboard?
Yes. The Spatium M450 is stated to be backward compatible with PCIe Gen3, Gen2 and Gen1: it can be installed on virtually any motherboard with an M.2 NVMe slot. It is then the bus that caps the speed, not the drive, and the drive will move with you to your next computer.
What speeds are quoted for the 1 TB version of the M450?
3,400 MB/s read and 2,400 MB/s write, with 500,000 IOPS in 4 KB random read and 550,000 in write. In this range, the 2 TB version reads slightly more slowly, at 3,300 MB/s, but writes at 2,500: in practice, the two capacities are on a par.
How thick is the drive?
2.15 mm, at 80 by 22 mm. This is one of the flattest profiles in the M.2 2280 form factor, with no heatsink adding height: it fits under a laptop cover as well as under a motherboard's M.2 shield, without having to remove anything.
How much power does this SSD draw?
3.7 W maximum in operation, 35 mW at idle and only 5 mW in the deep sleep state. On a laptop, it is these last two figures that count, as the computer spends most of its time asking nothing of the drive.
How does this drive protect data?
Through LDPC error correction, end-to-end protection of the data path and support for the TCG Pyrite standard for data security. TRIM and S.M.A.R.T. monitoring are also supported, provided the operating system supports them.
What write endurance does this 1 TB version offer?
350 TB, or 350 full drive writes, compared with 700 TB on the 2 TB version. The mean time between failures is rated at up to 1,500,000 hours, the operating range is 0 to 70 °C and the storage range -40 to 85 °C.
Is the drive new and under warranty?
It is new and your invoice serves as the warranty document. Cover ends at the end of the period or when the rated write endurance is used up, whichever comes first. The datasheet gives the details.
