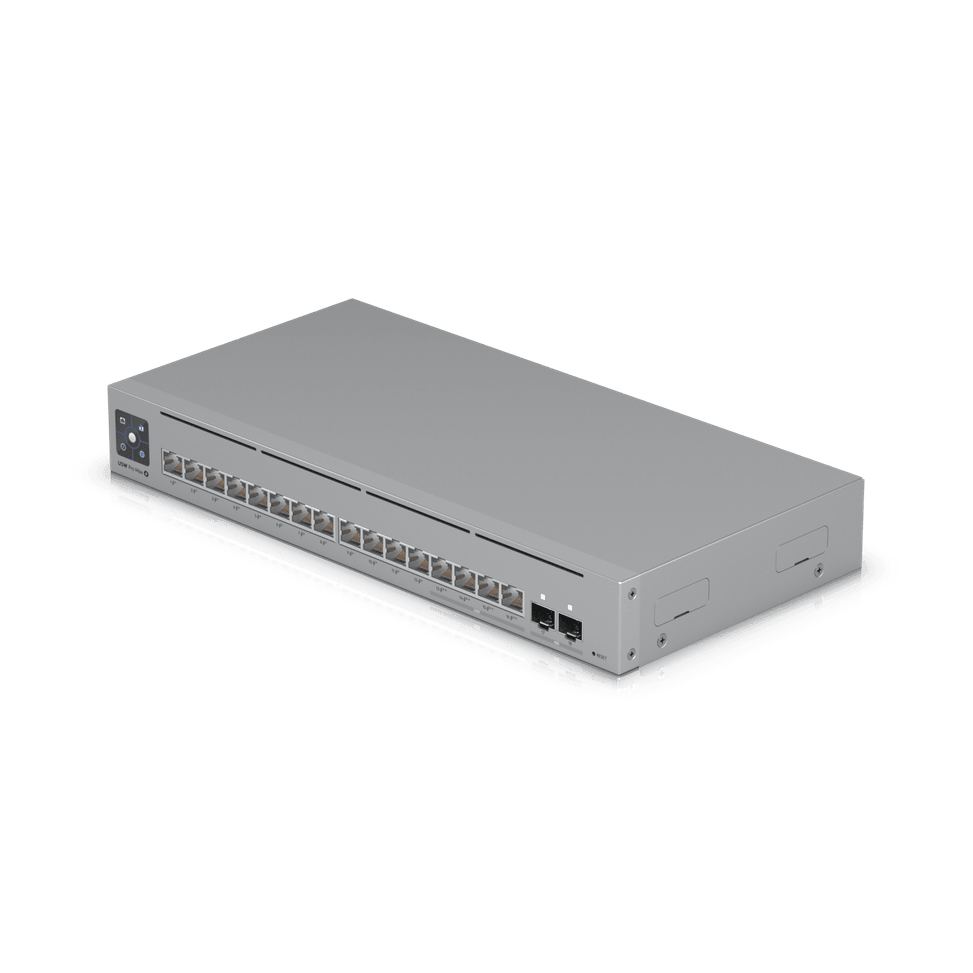

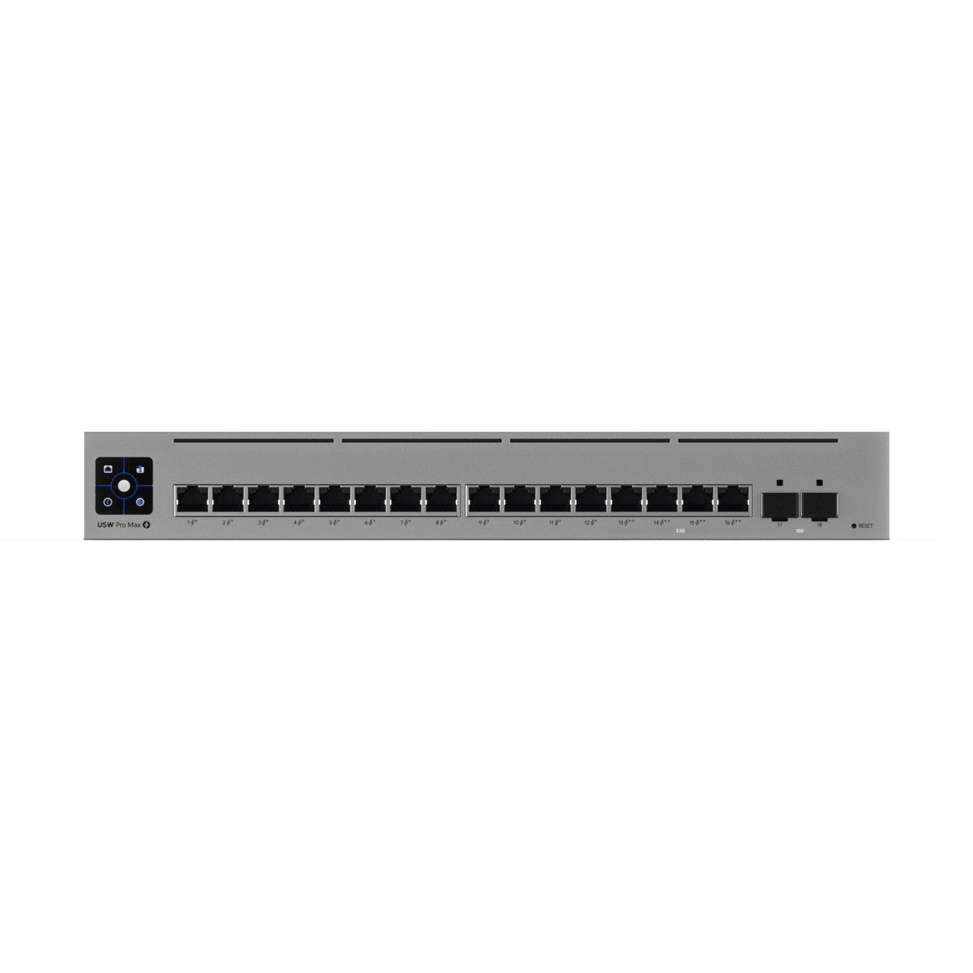

Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU)

Compact layer 3 enterprise switch combining Gigabit, 2.5G Multi-Gigabit and 10G SFP+ links. 180 W PoE++ budget, mountable in a rack, on a wall or on a desk, silent fanless operation.

  • 12 Gigabit RJ45 ports, all PoE+ (802.3at)
  • 4 Multi-Gigabit 2.5G RJ45 ports, all PoE++
  • 2 SFP+ 10 Gbps ports (uplinks)
  • Total PoE++ budget of 180 W (up to 64 W/port)
  • Layer 3 managed — inter-VLAN routing, DSCP QoS
  • Versatile format: 1U rack, desk or wall
  • Fanless — silent operation
  • Managed through UniFi Network, 1.3'' LCM touchscreen
  • 84 Gbps switching capacity
Ref.: USW-Pro-Max-16-PoE-EU
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 1
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 2
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 3
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 4
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 5
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 6
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 7
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 8
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 9
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 10
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 11
Ubiquiti Pro Max 16 PoE – Managed PoE Switch (USW-Pro-Max-16-PoE-EU) — image 12

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/12
6 899,00 DHincl. VAT

Availability to be checked

We cannot guarantee this product's availability online. Write to us or call us: we reply quickly.

Check availabilityQuick reply
Call us — (+212) 05 30 31 64 21

Earn 69 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

See the available alternatives
Delivery free all over Morocco

Delivery to your address

The estimate is refined using actual delivery rounds to your city.

  • Free delivery from 3 000 DH of purchases, all over Morocco.
  • Below that, the same rate in every city for parcels up to 30 kg (delivery to your home or workplace) — the exact amount is shown above, then in the basket.
  • Above 30 kg, the rate follows the parcel's weight. In Casablanca, the flat rate holds up to 120 kg.
  • You are notified by SMS, then called by the courier before your parcel is handed over (delivered by Sapress).
  • Observed delivery time: 1 to 5 working days depending on the city.

1 year warranty — free repair in Morocco if it breaks down during the warranty period

1 year manufacturer's warranty

This product is covered for 1 year by a manufacturer's warranty (the brand's official warranty). Your iris.ma invoice serves as the warranty document: keep it safe.

A problem with your product? Don't worry: contact us by phone, WhatsApp or e-mail. Depending on the brand, we direct you either straight to the repairer appointed by the brand to fix your product, or to us — and we take care of the rest.

  • If a repair is possible, it is carried out free of charge.
  • If the product cannot be repaired, the brand offers an exchange for another product.
  • If no product is available, a refund is issued as soon as the brand confirms it.

Faulty straight out of the box? Some brands offer an immediate exchange, others a repair. Contact us to find out what applies to your product.

The warranty covers breakdowns occurring under normal use, as defined by the brand's terms. Product breakage (drop, impact, liquid…) is not covered, nor are certain consumable parts.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

New, never opened — our commitment

All our products are new, delivered in their sealed original packaging.

We commit to never sending you a product that has been opened, unboxed or returned by another customer — even one “just opened for checking”.

Any doubt on delivery (damaged box, seal already opened)? Point it out to the courier or contact us immediately: we take the product back and send you another one.

Sales invoice

Every order comes with its sales invoice, included with the parcel (handed over in person for a store collection).

Ordering for a company? Using the details you give at checkout (company name and ICE), the invoice is issued in your company's name, with its ICE.

Need a quote? Request a free quote — reply within 24 working hours.

100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 1 030 DH by card or bank transfer) · Certified cheque

Accepted payment methods

Bank transfer

Simply transfer the amount shown to account 007 826 0002684000000426 89 — SGM2I, Attijariwafa bank. The rest (the reference to quote, sending us the proof, tracking) is explained right after confirmation and by email. An instant transfer is recommended: it saves you 24 hours on the delivery time.

Bank card

Your everyday Moroccan bank card is enough — Visa, Mastercard or CMI, no special card required. Foreign cards are accepted too. Secure payment by Attijari Payment.

Cash on delivery (deposit of 1 030 DH by card or bank transfer)

Pay 1 030 MAD up front by card, then 5 869 MAD in cash on delivery. The deposit is not refunded if you cancel your order.

Certified cheque

Certified cheque payable to “sgm2i”. Have your bank certify the cheque, then send us a copy on WhatsApp (+212 6 64 10 46 24) or to service.client@iris.ma — we dispatch as soon as we receive it.

Cash at a bank branch

Pay the cash in at any of the 3,400 Attijariwafa Bank branches in Morocco, to the SGM2I account no. 0268 D 000 000 426. You do not need an account there: your ID and the cash are enough.

The methods offered depend on the order total and the carrier — checkout shows the final list.

Google reviews4.7(553 reviews)

Product overview

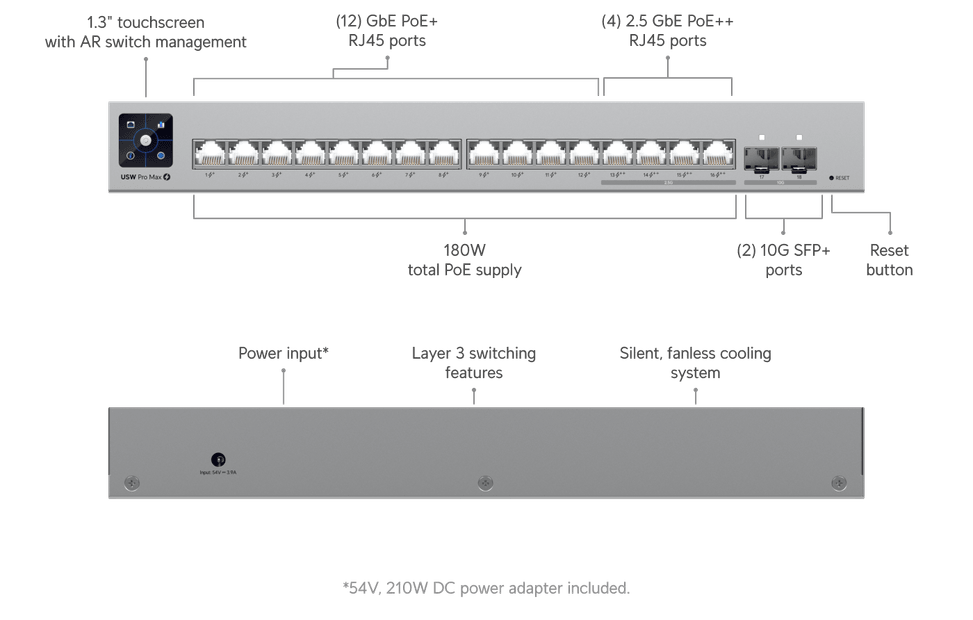

Ubiquiti UniFi Pro Max 16 PoE Layer 3 managed switch: 18 ports, with 4 × 2.5G Multi-Gigabit PoE++ ports and 2 × 10G SFP+ uplinks, in a compact format (desktop, wall or rack), completely silent.
Ports: 12 Gigabit RJ45 ports (all PoE+, 802.3at) + 4 × 2.5 GbE RJ45 ports (all PoE++) + 2 × 10G SFP+ ports — up to 64 W per PoE++ port.
PoE: 180 W total budget, up to PoE++ (802.3bt), to power Wi-Fi 6 access points, IP cameras and power-hungry devices without a separate mains cable.
Management: Layer 3 (L3) — inter-VLAN routing, DHCP, DSCP QoS, 802.1X, LACP, IGMP snooping, AV Pro profiles; UniFi Network platform, 1.3-inch LCM touchscreen, Etherlighting™.
Form factor: 1U rack-mountable, desktop or wall-mounted (325 x 160 x 44 mm), SGCC steel, fanless.
Also: 84 Gbps switching capacity, 42 Gbps non-blocking, 62 Mpps, 16,000-entry MAC table, 1,000 VLANs, CE/FCC certified.

See all the specifications ↓
Request a quote

Be notified of a price drop

Share:

Technical specifications

Technical specifications
MAC table size16,000 entries
Number of VLANs1,000 VLANs
Interfaces12 RJ45 1G PoE+ ports, 4 RJ45 2.5G PoE++ ports, 2 SFP+ 10G ports
PoE ports12 PoE+ ports (32 W) and 4 PoE++ ports (64 W)
Total PoE budget180 W
Network standardsIEEE 802.3at (PoE+, 30 W per port)
Switching capacity84 Gbps
Forwarding rate62 Mpps
Packet buffer1.5 MB
Management modesUniFi Network app and interface
Cloud management platformUniFi Network
Layer 2 featuresLACP aggregation, STP and RSTP, advanced IGMP snooping, LLDP-MED, voice VLAN, jumbo frames, loop protection, port mirroring
IP routingInter-VLAN routing and static routing, DHCP server and relay
Quality of service (QoS)QoS via DSCP marking
Power consumption210 W maximum with PoE load, 25 W excluding PoE
Weight2.1 kg
Technical specifications (continued)
Dimensions (W x D x H)325.1 x 160 x 43.7 mm
Number of ports11 to 18 ports
ManagedYes
Security features802.1X, MAC- and IP-based ACL, port isolation, DHCP snooping, MAC address blocking, storm control
Power supplyExternal 210 W AC adapter, 50-54 V DC
Cooling systemFanless
Operating temperature-5 to 40 °C
Operating humidity10 to 90%, non-condensing
PoE powerYes
Port speed2.5 Gbps (Multi-Gig)
Management levelLayer 3 (inter-VLAN routing)
PoE standardPoE++ (802.3bt, up to 60 W/port)
PoE budget131 to 250 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How many PoE devices can I actually power with this switch?
The PoE budget is 180 W in total, shared across the ports — not 180 W per port. The per-port limits are 64 W in PoE++, 32 W in PoE+ and 15.4 W in PoE: two devices drawing 64 W already use 128 W of the budget. Think in cumulative watts, not in number of ports.
Do all the RJ45 ports deliver PoE?
Yes, the 16 RJ45 ports are all powered: 12 Gigabit PoE+ (802.3at) ports and 4 2.5 GbE PoE++ (802.3bt) ports. The two additional SFP+ ports accept 10G or 1G and serve as uplinks, bringing the total to 18 ports.
Does it make any noise in an office or a shared room?
No: cooling is fully passive, fanless, so it is completely silent. The SGCC steel housing dissipates 68 BTU/h excluding PoE output and handles ambient temperatures of -5 to 40 °C, at 10 to 90% non-condensing humidity.
Can it be placed on a desk, or does it have to go in a rack?

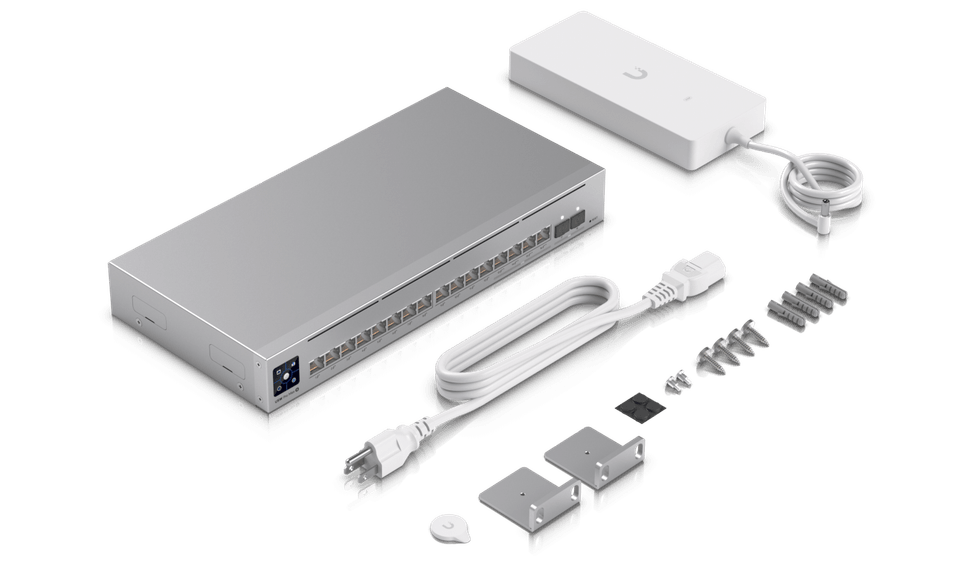

All three mounting options are provided: 1U rack, desktop or wall. It measures 325.1 × 160 × 43.7 mm and weighs 2.1 kg, and fits racks 400 to 1,200 mm deep. The housing and mounting hardware are made of SGCC steel.
Is the power supply internal, or do you need an external power brick?
It is external: a 210 W AC/DC power brick (50–54 V DC) that has to be housed in the rack or under the desk. The switch itself consumes only 25 W excluding PoE output, and up to 210 W once PoE is fully loaded.
Can it route between several VLANs without going through a router?
Yes, it is a Layer 3 switch: inter-VLAN routing, static routing, DHCP server and DHCP relay are handled by the switch itself. It supports up to 1,000 VLANs, 512 IPv4 routes and 6,000 ARP entries.
How is it configured, and which software version is required?
Management is done through the UniFi Network platform, version 8.1.127 or later. This is where VLANs, routing, security rules and per-port monitoring are managed. Check the version of your console before installation.
What are the two 10G SFP+ ports for?
They are the uplinks: two 10G ports, backward compatible with 1G, designed to connect the switch to the network core.
Is it suitable for audio and video over IP?
Yes, it is one of its strengths: ready-to-use Pro AV profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67 and Crestron, advanced IGMP configuration (querier, fast leave, router port) and support for jumbo frames.
How can you prevent just any device from being plugged into a network socket?
The switch supports 802.1X (port-based authentication), MAC- and IP-based access control lists — 128 entries each —, MAC address restriction, port isolation and DHCP snooping.
Will it handle the load with all ports in use at the same time?
Yes: its 42 Gbps non-blocking throughput matches exactly the sum of its ports (12 × 1G + 4 × 2.5G + 2 × 10G). On top of that come 84 Gbps of switching capacity, 62 Mpps, a 16,000-address MAC table and a 1.5 MB packet buffer.
What are the touchscreen and the port lighting for in everyday use?

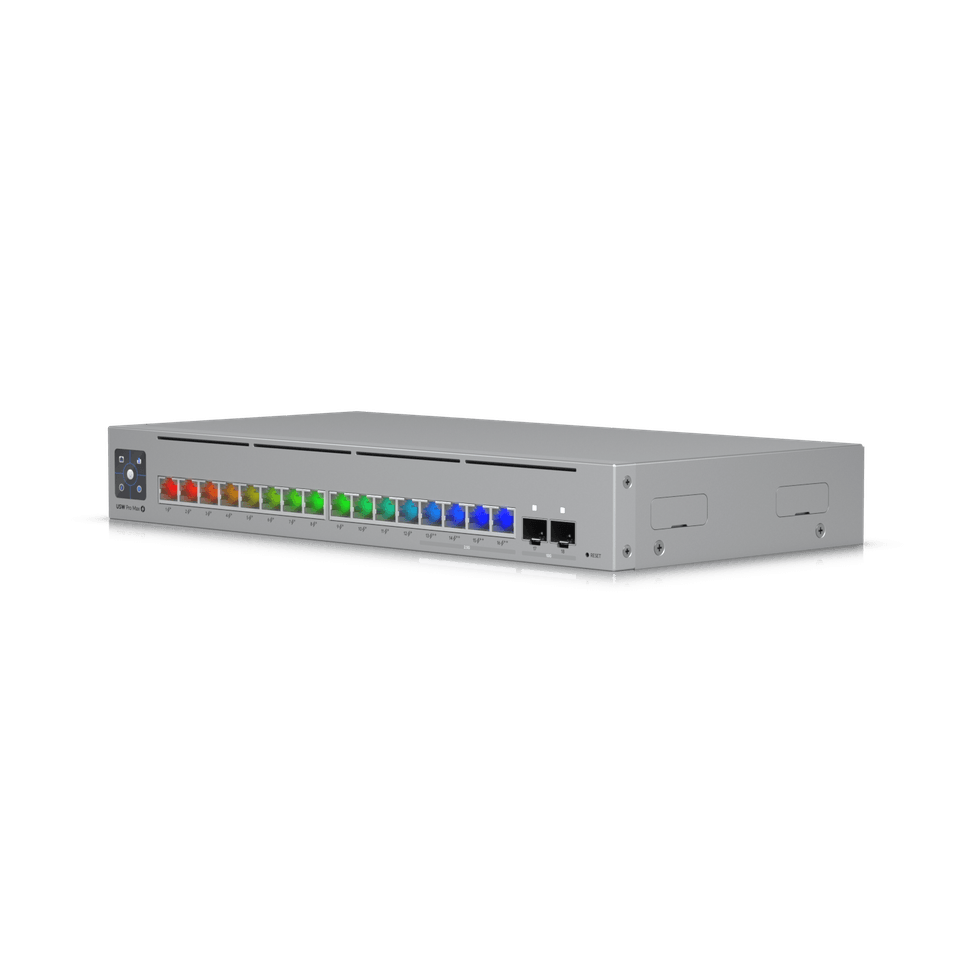

The 1.3-inch LCM touchscreen shows the switch status on the front, without opening the interface. Etherlighting™, available on both the Ethernet and SFP+ ports, lights up each port according to its status and link speed.
Is the switch new, certified and under warranty?
Yes: new, genuine and sealed, supplied with its invoice, which serves as the 1-year warranty document. It is CE, FCC, IC and Anatel certified and declared NDAA compliant. Its operating range is -5 to 40 °C, with a tolerated humidity of 10 to 90% non-condensing.
