TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772)

380 devices connected at the same time across 140 m² of coverage, with a 6 GHz band widened by AFC for a stronger, steadier signal. 2.5 Gbps port and power over the network cable.

  • 380 devices connected simultaneously
  • Up to 5,765 Mbps on 6 GHz, 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
  • Coverage of up to 140 m²
  • AFC: widened access to the 6 GHz spectrum for a stronger signal
  • MLO: one device uses several bands at the same time
  • MU-MIMO and OFDMA to serve several devices at once
  • Multi-Gigabit port at 2.5 Gbps
  • Powered by PoE+ (802.3at) or by a 12 V power supply
  • Centralised Omada SDN management: mobile app, browser or cloud
  • Omada Mesh to extend coverage
  • Seamless roaming from one access point to another
  • WPA3 encryption and rogue access point detection
  • Captive portal and guest network, up to 24 SSIDs
  • Bluetooth BLE 5.2 for IoT uses
  • Ceiling, wall, junction box and T-rail mounting kits included
Ref.: EAP772

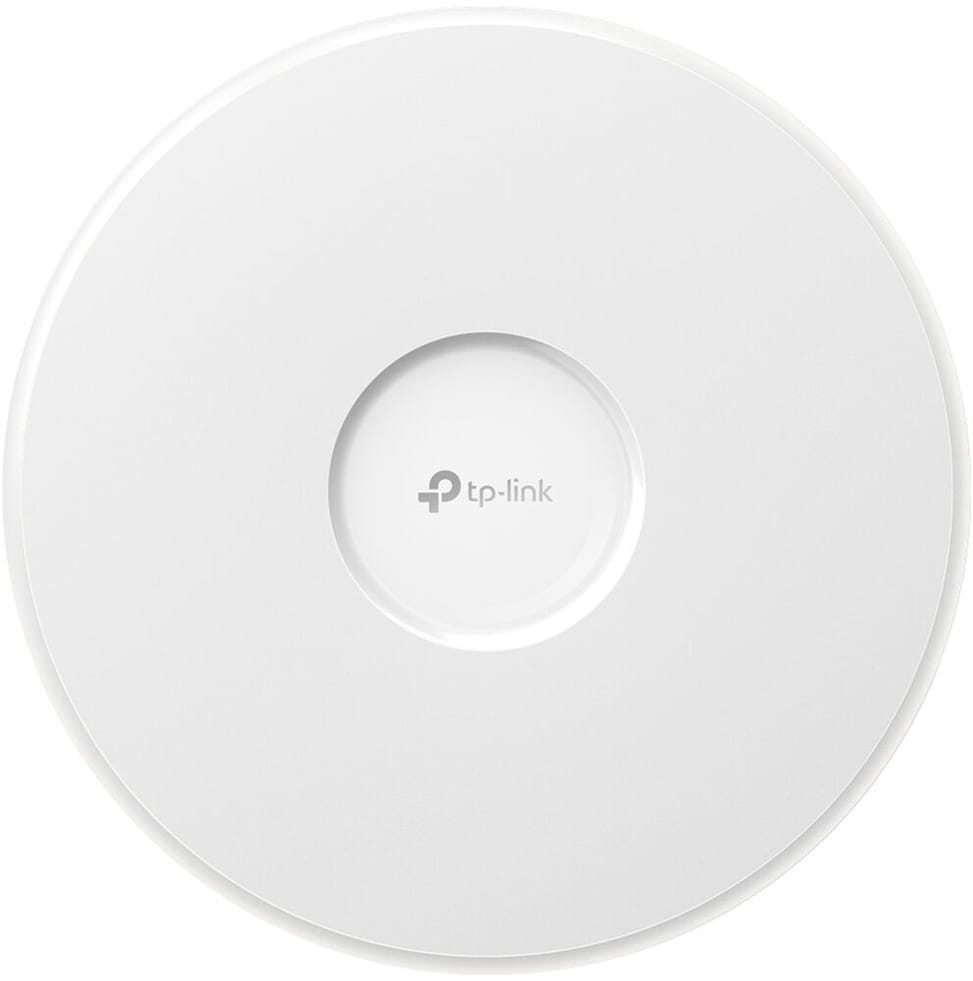

TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772) — image 1

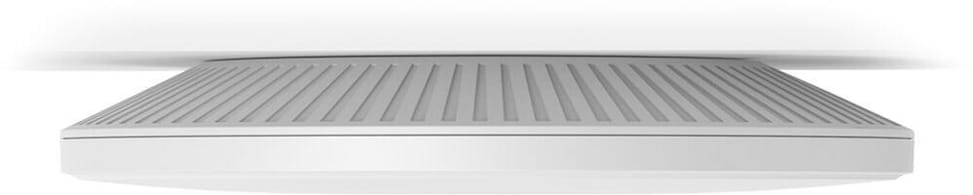

TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772) — image 2

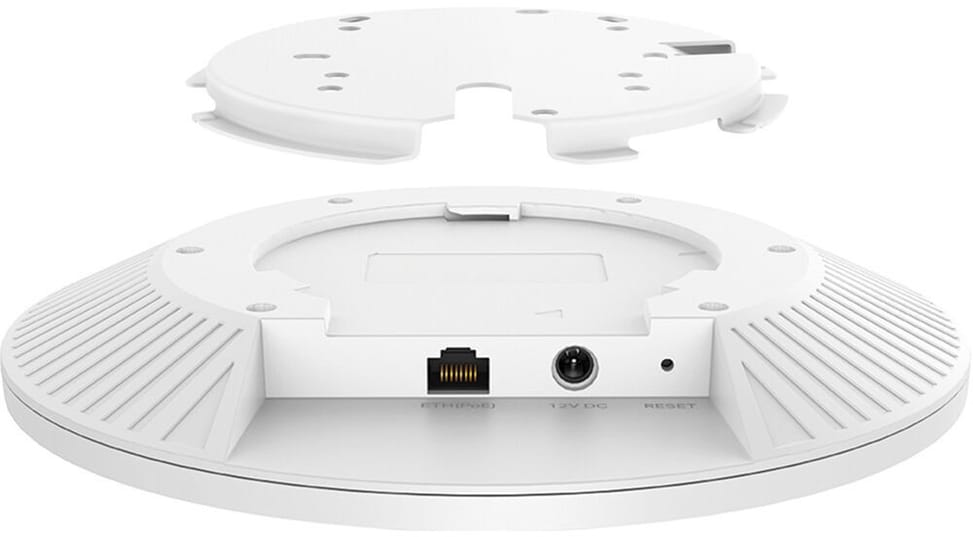

TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772) — image 3

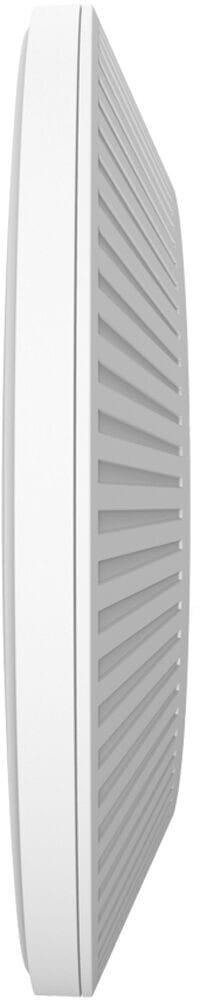

TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772) — image 4
TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772) — image 5

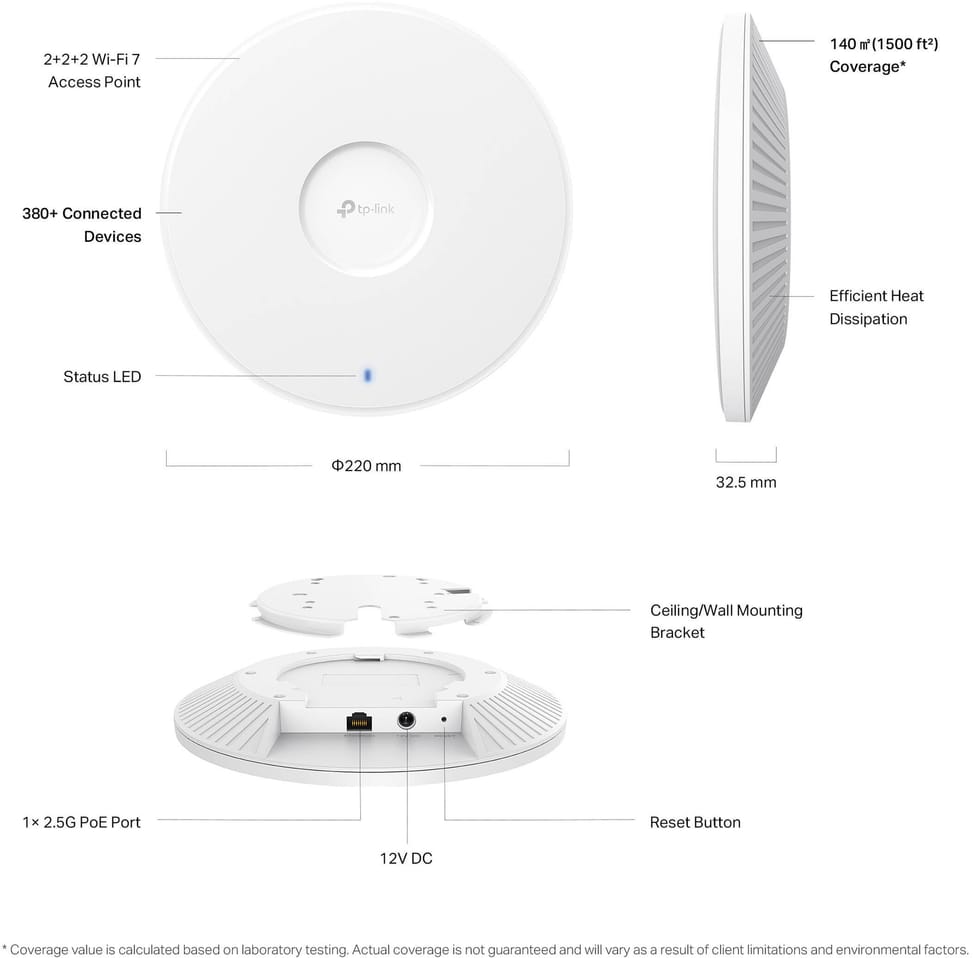

TP-Link Omada BE9300 Tri-Band Ceiling Mount WiFi 7 Access Point (EAP772) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
3 549,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 2,0 Mo — downloadable

Product overview

Tri-band Wi-Fi 7 ceiling access point for a fast, stable and scalable network across your premises.
Wi-Fi & speed: Wi-Fi 7 (802.11be), BE9300 class, tri-band 2.4 + 5 + 6 GHz, 2x2 streams per band; up to 9.3 Gbps combined.
Capacity: MU-MIMO + OFDMA + MLO (simultaneous transmission across several bands), up to 380 concurrent devices, coverage up to 140 m².
Installation: indoor; ceiling, wall or T-bar mounting, kits included.
Ports & power: 2.5 GbE Multi-Gigabit port; PoE+ (802.3at) or 12 V power adapter.
Management: Omada SDN platform — one-click setup, mobile app, centralised cloud. Mesh and seamless roaming (802.11r/k/v) with no drop-outs between access points.
WPA3, captive portal, 24 SSIDs, IoT Bluetooth BLE 5.2.
Use cases: offices, SMEs, hotels, shops, schools, meeting rooms, residences.
Tri-band Wi-Fi 7 keeps your network smooth even when every device connects at once.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Package contentsEAP772 access point, setup guide, mounting kit and cable compartment cover
Number of SSIDs24 SSIDs in total, 8 per band
Internal memory8,192 Mbit DRAM, 1,024 Mbit flash memory
Interfaces1 x 10/100/1000/2,500 Mbps multi-gigabit Ethernet port (RJ45) with PoE input, 1 x 12 V power input, 1 reset button
Network standardsIEEE 802.11a/b/g/n/ac/ax/be
Advanced Wi-Fi technologiesMLO, 4K-QAM, OFDMA, MU-MIMO, BSS Coloring, HE320, beamforming, band steering, airtime fairness
Maximum channel width320 MHz on 6 GHz, 240 MHz on 5 GHz, 40 MHz on 2.4 GHz
Spatial streams and MU-MIMO2×2 uplink and downlink at 5 GHz and at 6 GHz, 2 spatial streams per band, MU-MIMO
Maximum Wi-Fi throughput per bandUp to 9.3 Gbps combined in the EU version (11.0 Gbps in the US version); EU per-band breakdown not published by the manufacturer
Management modesOmada app, Omada hardware (OC200, OC300), software or cloud controller
Cloud management platformOmada SDN
Layer 2 featuresVLAN, client isolation, MAC filtering (4,000 entries), access control lists, rate limiting per SSID and per client, WMM and DSCP quality of service, multicast-to-unicast conversion
Roaming and mesh802.11k/v/r Layer 2 roaming, AI-assisted roaming, ping-pong suppression; mesh
Power consumption25.4 W on PoE+ 802.3at, 9.4 W idle
Weight0.7 kg
Technical specifications (continued)
Dimensions (W x D x H)220 x 220 x 32.5 mm
Antennas2 × 4 dBi antennas at 2.4 GHz, 2 × 5 dBi at 5 GHz and 2 × 5 dBi at 6 GHz (peak gain per antenna); plus 1 × 4 dBi Bluetooth antenna
Advertised coverage area140 m²
Maximum transmit powerCE: 20 dBm on 2.4 GHz, 23 dBm on U-NII-1 and U-NII-2A, 28 dBm on U-NII-2C, 23 dBm on 6 GHz, EIRP
Security featuresWPA/WPA2/WPA3 Personal and Enterprise, Enhanced Open (OWE), 802.1X, PPSK with or without RADIUS, captive portal, rogue AP detection
Power supplyPoE+ 802.3at (42.5 to 57 V, 0.6 A) or 12 V 2.5 A power adapter
Operating temperature0 to 40 °C
Operating humidity10 to 90% non-condensing
Wi-Fi standardWi-Fi 7
LocationIndoor
Mounting typeMultiple
BandsTri-band
PoE powerPoE+ (802.3at)
Simultaneously connected devices380+ associated clients
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What does AFC bring to the EAP772's 6 GHz band?
AFC — Automated Frequency Coordination — gives access to a wider 6 GHz spectrum and higher transmit power, by selecting free channels. The signal travels further and stays more stable. Its availability depends on the country, however: check that it is permitted where you are installing.
Does the EAP772 really broadcast on all three bands?
Yes, with two spatial streams per band: 5,765 Mbps on 6 GHz, 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, i.e. 9.3 Gbps combined. Channels go up to 320 MHz, the maximum width in Wi-Fi 7.
What power supply does the EAP772 need?
A PoE+ 802.3at port (42.5 to 57 V, 0.6 A) or a 12 V / 2.5 A power supply. Consumption reaches 25.4 W when all three radios are working and the wired link runs at 2.5 Gbps, versus 9.4 W at idle.
Why is the EAP772's network port 2.5 Gbps?
Because its three radios add up to 9.3 Gbps: a Gigabit port would become the bottleneck. The 2.5 Gbps port also negotiates 10, 100 and 1000 Mbps depending on the switch at the other end, and it is also the port that receives PoE.
How many devices can the EAP772 serve at the same time?
More than 380 associated devices, over a stated coverage of 140 m². Density matters more than area here: this is an access point for a busy office floor or a meeting room, not for a large open space.
How many Wi-Fi networks can be created on the EAP772?
24 SSIDs, eight per band, including a secure guest network. Each network can be given its own bandwidth cap, and a per-client cap can also be set.
How can visitors be authenticated on the EAP772?
Through a guest network with a captive portal, and SMS login for establishments that want an identifiable contact. WPA3 also encrypts open public access, and rogue access point detection flags any unauthorised access point.
Can the EAP772 filter the websites visited by guests?
Yes, it provides URL filtering, in addition to automatic channel selection, airtime fairness and band steering. This is useful on a network open to the public, to block certain categories of websites.

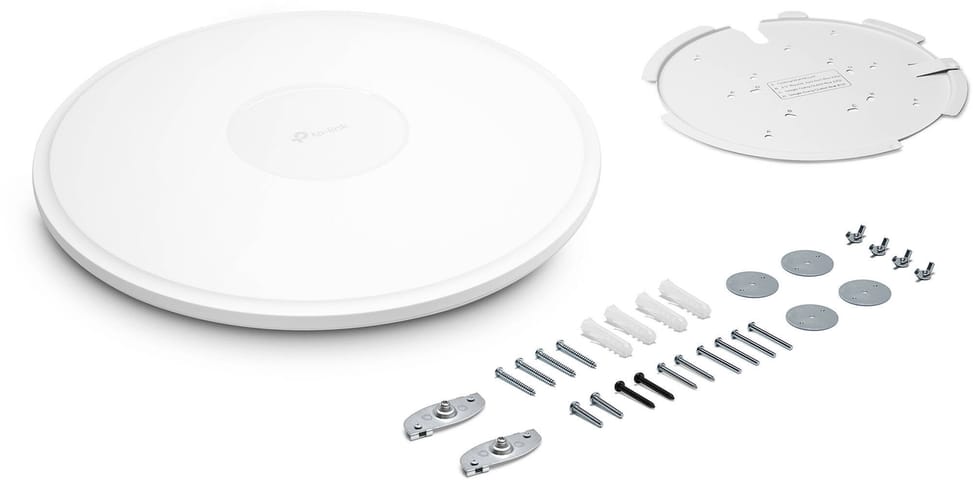

What can the EAP772 be mounted on?
Four options, with all kits supplied: ceiling, wall, junction box and false-ceiling T-rail. The enclosure measures 220 × 220 × 32.5 mm and weighs 700 g, one of the slimmest in the category despite its three radios.
Does the EAP772 also act as a Bluetooth gateway?
Yes, it has a built-in omnidirectional 4 dBi Bluetooth 5.2 antenna, designed for IoT uses — compatible sensors, beacons or locks communicate with it without an additional gateway.
Is the EAP772 protected against power surges?
Yes, its Ethernet ports withstand surges of ±4 kV. It operates at 10 to 90 % non-condensing humidity, at altitudes of up to 2,000 m.
How can several EAP772 units be deployed quickly?
Through the Omada SDN platform: the app or the browser detects the access point automatically and adopts it in one click. The configuration is then pushed to all your devices, from the cloud or a local controller.
Is the equipment new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document for 1 year. The manufacturer's full specifications are in this document: EAP772 (PDF).
