TP-Link TL-SG108E 8-Port Gigabit Desktop Switch

Easy Smart switch for small businesses that want to segment and prioritise their traffic without the complexity of a fully managed switch, through a simple web interface and configuration utility.

  • "Easy Smart" management through a web interface and configuration utility
  • 802.1Q, port-based and MTU VLAN (up to 32 simultaneous VLANs)
  • Port-based QoS and 802.1p/DSCP to prioritise voice and video
  • IGMP Snooping, port mirroring, cable diagnostics, loop prevention
  • Static link aggregation (up to 4 groups)
  • Fanless
  • Switching capacity 16 Gbps
Ref.: TL-SG108E

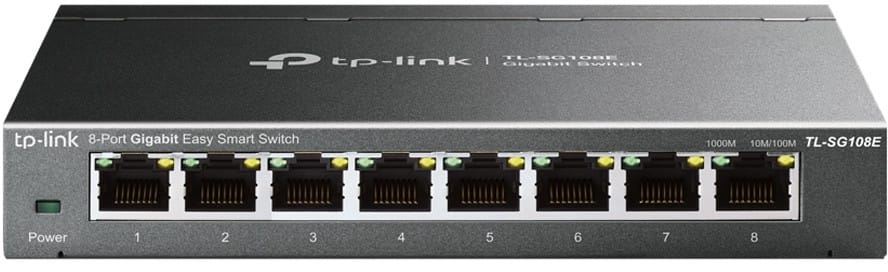

TP-Link TL-SG108E 8-Port Gigabit Desktop Switch — image 1

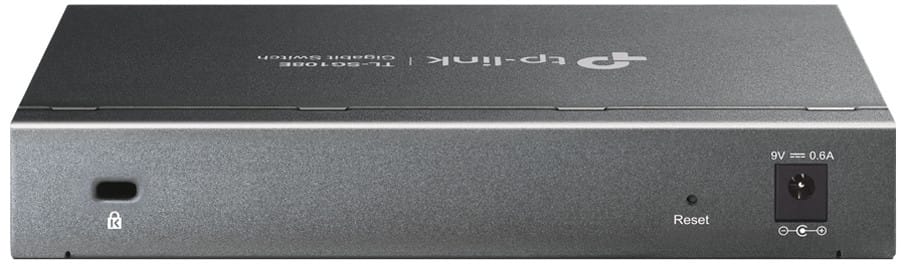

TP-Link TL-SG108E 8-Port Gigabit Desktop Switch — image 2
TP-Link TL-SG108E 8-Port Gigabit Desktop Switch — image 3

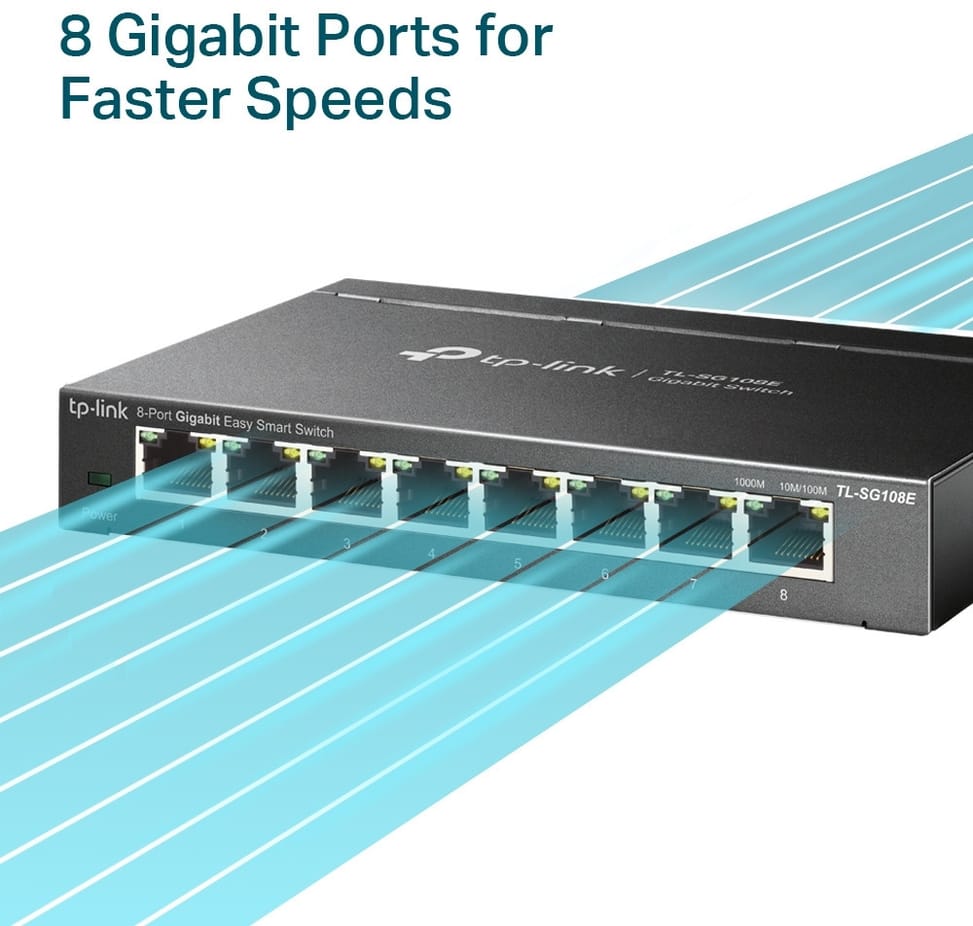

TP-Link TL-SG108E 8-Port Gigabit Desktop Switch — image 4

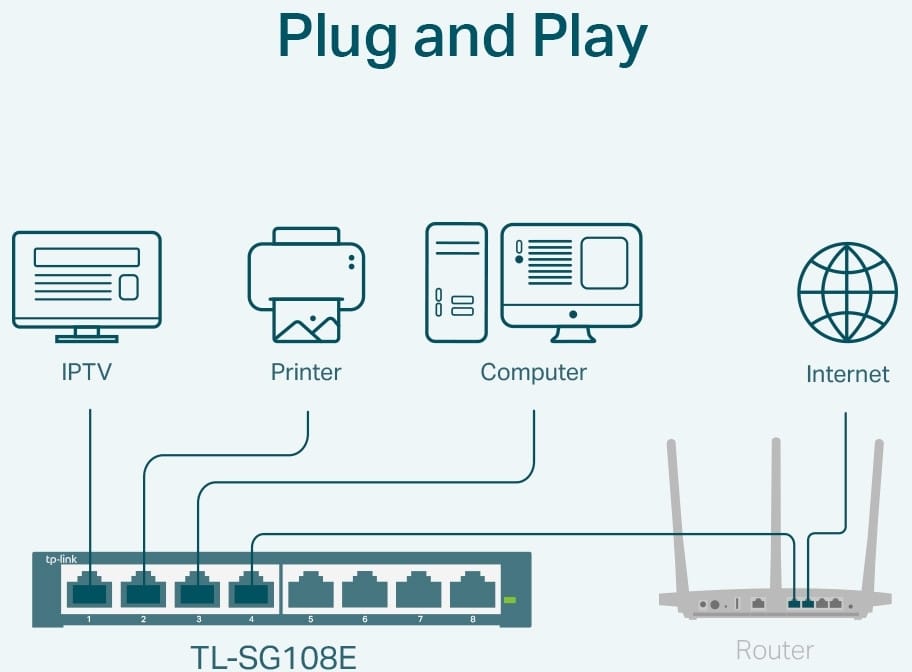

TP-Link TL-SG108E 8-Port Gigabit Desktop Switch — image 5
TP-Link TL-SG108E 8-Port Gigabit Desktop Switch — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
509,00 DHincl. VAT

Configuration · TP-Link Easy Smart TL-SG105E / 108E / 116E

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 9,3 Mo — downloadable

Product overview

TP-Link TL-SG108E Easy Smart switch: 8 configurable Gigabit ports for small and medium-sized businesses that want more than plug-and-play, without the complexity of a fully managed switch.
Ports: 8 × 10/100/1000 Mbps RJ45 ports, Auto MDI/MDIX, fanless operation — ideal for a quiet office.
Management: web interface and centralised configuration utility; port mirroring, loop prevention, cable diagnostics, 802.1Q/port/MTU VLAN, port-based and 802.1p/DSCP QoS to prioritise voice and video, IGMP snooping, static link aggregation.
Performance: 16 Gbit/s switching capacity, 11.9 Mpps throughput, 4K MAC table, 1.5 MB buffer memory.
Also: compact desktop case, Green Technology (up to 80% energy saving), 802.3x flow control, 15 KB jumbo frames.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size4,000 entries
Number of VLANs32 simultaneous VLAN groups (802.1Q, port-based, MTU)
Interfaces8 RJ45 10/100/1000 Mbps ports, auto-negotiation and Auto MDI/MDIX
PoE portsNone
Total PoE budgetNone
Network standardsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
Switching capacity16 Gbps
Forwarding rate11.9 Mpps
Packet buffer1.5 Mbit
Management modesWeb interface and Easy Smart Configuration Utility (Windows)
Cloud management platformNone
Layer 2 featuresIGMP snooping (128 groups), static link aggregation (4 groups of 4 ports), port mirroring, cable test, loop prevention
IP routingNone
Technical specifications (continued)
Quality of service (QoS)Port-based priority, 802.1p and DSCP, 4 queues, rate limiting, storm control
Dimensions (W x D x H)158 x 101 x 25 mm
Number of ports6 to 10 ports
ManagedYes
Security featuresNone
Power supplyInternal 100-240 V AC power supply, 50/60 Hz
Cooling systemFanless
PoE powerNo
Port speed1 Gbps (Gigabit)
Management levelWeb interface (Smart)
Fibre slots (SFP)No
MountingDesktop
Warranty1 year

Specific references

EAN6935364021856

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How many VLANs can be created on the TL-SG108E?
32 simultaneous VLANs, with 802.1Q tagging, port-based or MTU VLAN. This is what sets this “Easy Smart” model apart from an unmanaged switch: you can isolate a guest workstation, a camera or a department on a simple eight-port unit.
How is this Easy Smart switch configured?
Through a web interface or the Easy Smart configuration utility, which manages several switches in the range from a Windows PC. It provides traffic monitoring, port mirroring and Ethernet link diagnostics.
Can voice and video be prioritised on this model?
Yes, by port or by 802.1p tag and DSCP marking: latency-sensitive traffic goes ahead of file transfers. IGMP snooping also directs multicast streams only to the ports that request them.
What diagnostic tools does this switch offer?
Port mirroring to analyse traffic, Ethernet link diagnostics to locate a break, and loop prevention. The manufacturer presents them as the way to identify and locate a connection problem within the company.
Can several ports be aggregated towards a server?
Yes, through static aggregation, up to four groups: several ports form a single link to a server or another switch, which multiplies the bandwidth available on that link.
How much power does this switch use, and does it make any noise?
4.48 W maximum at 220 V/50 Hz, from an external 9 V / 0.6 A power adapter. Cooling is passive — no fan, so no noise — in a 158 × 101 × 25 mm case that sits on a desk.
Is the switch new, and where can I find its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the TL-SG108E, its VLAN features and its power consumption: datasheet (PDF).
