TP-Link EAP650-Wall WiFi 6 3000 Mbps White Ethernet connection, Power over Ethernet (PoE) support (EAP650-WALL)

Two Gigabit ports and up to 2,402 Mbps on the 5 GHz band, in a casing that mounts on a junction box. RADIUS authentication and WPA2-Enterprise make it suitable for business networks.

  • Up to 2,402 Mbps on the 5 GHz band
  • 2 Gigabit Ethernet ports (RJ-45)
  • Powered by 802.3at PoE+: no mains socket needed
  • Mounts on a standard junction box
  • Casing of 86 × 86 × 42.6 mm
  • Up to 16 Wi-Fi networks (SSIDs)
  • WPA2-Enterprise and RADIUS authentication
  • VLAN segmentation and traffic prioritisation (QoS)
  • Automatic band steering and airtime fairness
  • Typical power draw of 11.5 W
Ref.: EAP650-WALL
TP-Link EAP650-Wall WiFi 6 3000 Mbps White Ethernet connection, Power over Ethernet (PoE) support (EAP650-WALL) — image 1
TP-Link EAP650-Wall WiFi 6 3000 Mbps White Ethernet connection, Power over Ethernet (PoE) support (EAP650-WALL) — image 2
TP-Link EAP650-Wall WiFi 6 3000 Mbps White Ethernet connection, Power over Ethernet (PoE) support (EAP650-WALL) — image 3
TP-Link EAP650-Wall WiFi 6 3000 Mbps White Ethernet connection, Power over Ethernet (PoE) support (EAP650-WALL) — image 4
TP-Link EAP650-Wall WiFi 6 3000 Mbps White Ethernet connection, Power over Ethernet (PoE) support (EAP650-WALL) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
1 499,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

Wall-plate Wi-Fi 6 access point TP-Link EAP650-Wall: give every room or office high-performance dual-band AX3000 Wi-Fi.
Wi-Fi & speed: Wi-Fi 6 (802.11ax), AX3000 class, dual-band 2.4 GHz and 5 GHz — up to 2,402 Mbps on 5 GHz.
Capacity: 16 SSIDs, VLAN segmentation, QoS and bandwidth control to handle many users in parallel.
Installation: indoor unit, wall mounting on a standard junction box (86 × 86 × 42 mm), compact and discreet white design.
Ports & power: 2 Gigabit Ethernet ports (RJ-45); powered by PoE+ (802.3at) — a single network cable is all it takes.
Security: WPA2-Enterprise, RADIUS authentication, SSH and SNMP for secure, professional management.
Use cases: hotel rooms, flats, offices, residences, shops or meeting rooms that need powerful Wi-Fi 6 in every space.
Top-tier Wi-Fi 6 speed in an ultra-discreet wall-plate format.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Package contentsEAP650-Wall access point, setup guide and mounting kits
Number of SSIDs16 SSIDs in total, 8 per band
Interfaces1 Gigabit Ethernet uplink port, 1 Gigabit downlink port, reset button, LED button; no physical lock
Network standardsIEEE 802.11a/b/g/n/ac/ax
Advanced Wi-Fi technologies1024-QAM, beamforming, band steering, airtime fairness
Maximum channel width160 MHz on 5 GHz, 40 MHz on 2.4 GHz
Spatial streams and MU-MIMONo MU-MIMO
Maximum Wi-Fi throughput per band574 Mbps at 2.4 GHz, 2,402 Mbps at 5 GHz
Management modesHTTP/HTTPS web interface, SSH, SNMP v1/v2c/v3, Omada app, Omada hardware (OC200, OC300), software or cloud controller
Cloud management platformOmada SDN
Layer 2 featuresVLAN, client isolation, MAC filtering, access control, rate limiting, load balancing
Roaming and meshSeamless roaming (Omada SDN controller required); no mesh
Power consumption11.5 W maximum (EU version)
Dimensions (W x D x H)86 x 86 x 42.6 mm
Technical specifications (continued)
Antennas2 internal dual-band antennas, gain 3 dBi at 2.4 GHz and 5 dBi at 5 GHz
Advertised coverage area40 m²
Maximum transmit powerCE: < 20 dBm on 2.4 GHz, < 22 dBm on 5 GHz, EIRP
Security featuresWPA/WPA2/WPA3 Personal and Enterprise, 802.1X, captive portal, rogue AP detection
Power supplyPoE 802.3af
Operating temperature0 to 40 °C
Operating humidity10 to 90% non-condensing
Wi-Fi standardWi-Fi 6
LocationIndoor
Mounting typeWall mount
BandsDual-band
PoE powerPoE+ (802.3at)
Simultaneously connected devices100+ concurrent clients
Warranty1 year

Specific references

EAN4897098683569

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

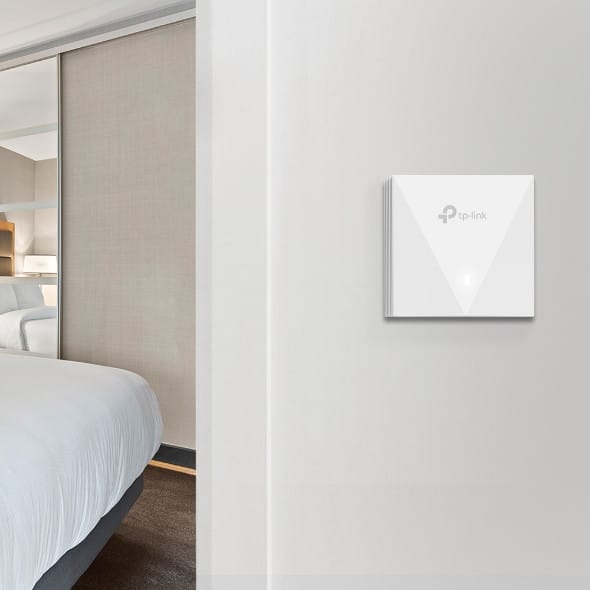

Can the EAP650-Wall be mounted on an existing flush-mounting box?
Yes, it fits on a standard junction box, in place of a wall socket. Its square format — 86 × 86 mm by 42.6 mm thick — keeps it discreet in a bedroom, an office or a corridor.
What power supply do you need for the EAP650-Wall?
A PoE+ 802.3at port — the access point also accepts 802.3af — for a typical power consumption of 11.5 W. A single network cable carries power and data all the way to the wall, with no power outlet needed nearby.

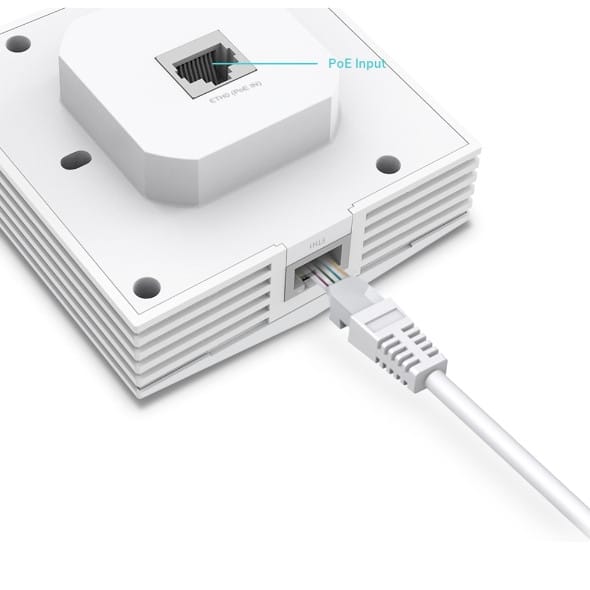

How many network sockets does the EAP650-Wall provide?
Two Gigabit Ethernet ports: one takes the incoming network connection and PoE, the other serves a wired device in the room — desktop computer, TV or phone. A room is thus covered and wired from a single point.
What throughput does the EAP650-Wall deliver?
2,402 Mbps on the 5 GHz band, for a stated total of 3,000 Mbps in dual-band Wi-Fi 6. That is the AX3000 class, rare in such a compact wall-mounted format.
How many Wi-Fi networks can you create on the EAP650-Wall?
16 SSIDs, with VLAN segmentation, rate limiting and quality of service. A room or a department can thus get its own network, separate from the staff network.
Does the EAP650-Wall support server-based authentication?
Yes, it supports WPA2-Enterprise and a RADIUS server: each user authenticates with their own credentials rather than a shared key — the mode expected in a business or a managed residence.
Does the EAP650-Wall spread devices across its two bands?
Yes, band steering directs compatible devices to the 5 GHz band, and airtime fairness prevents a slow device from slowing down all the others connected to the same access point.
How does an administrator monitor the EAP650-Wall?
Via SNMP and SSH access, in addition to the Omada platform, which centralises management of the whole network. The LEDs show the access point's status, and a reset button remains accessible on the front.
Are the EAP650-Wall's antennas visible?
No, they are internal, fully housed in the white casing. Nothing sticks out from the wall, which is what makes a discreet installation possible in a hotel room or a meeting room.
Is the equipment new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document for one year. The access point is CE and RoHS certified and is managed from the Omada platform alongside the range's other equipment.
