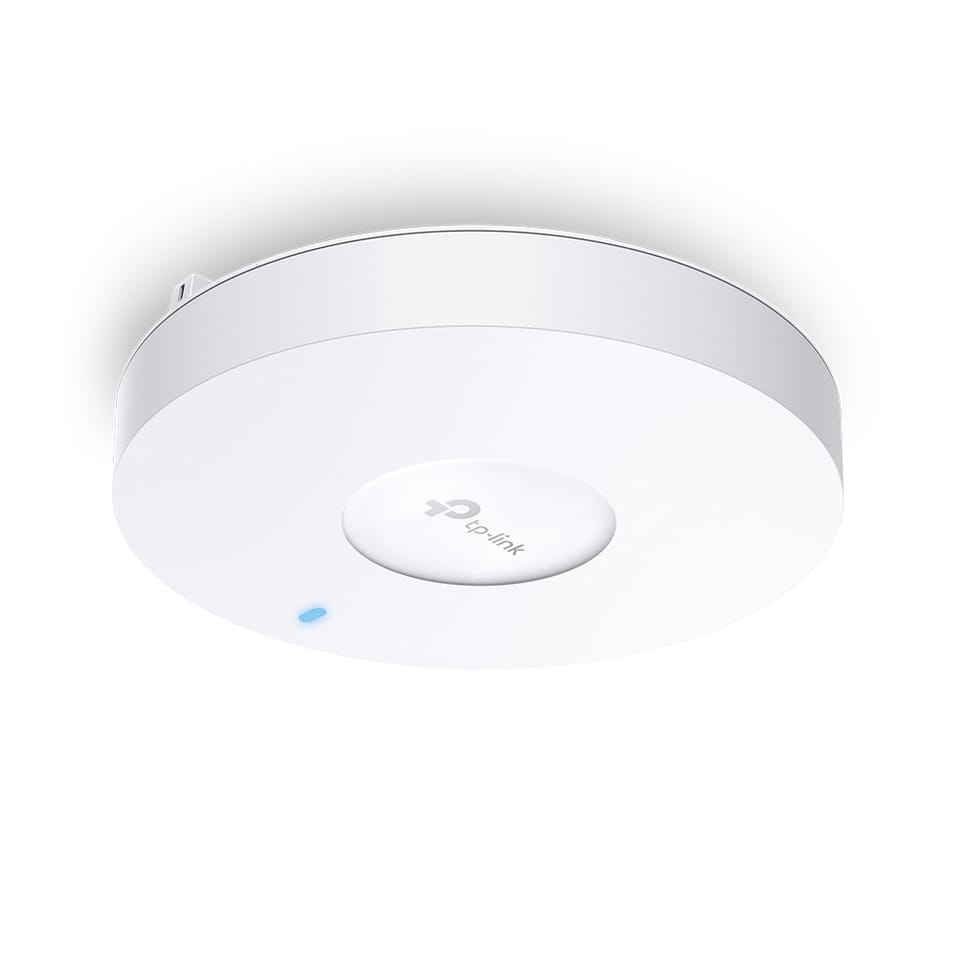

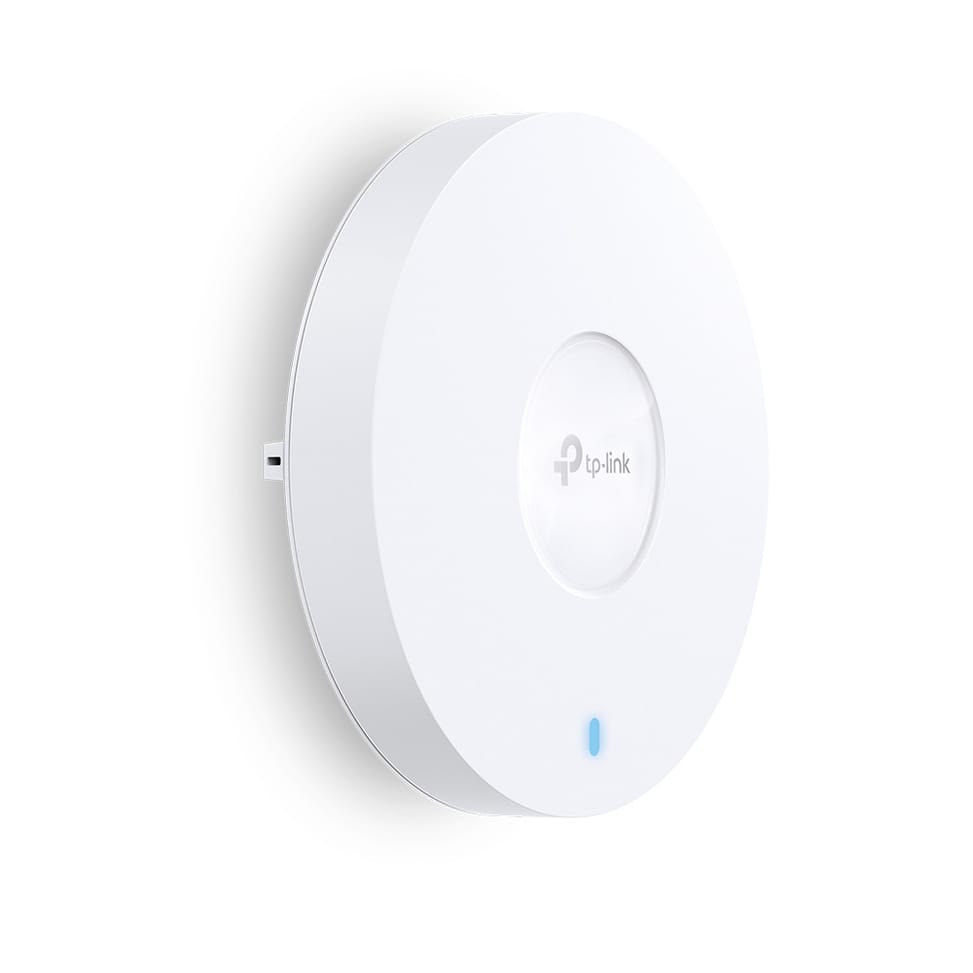

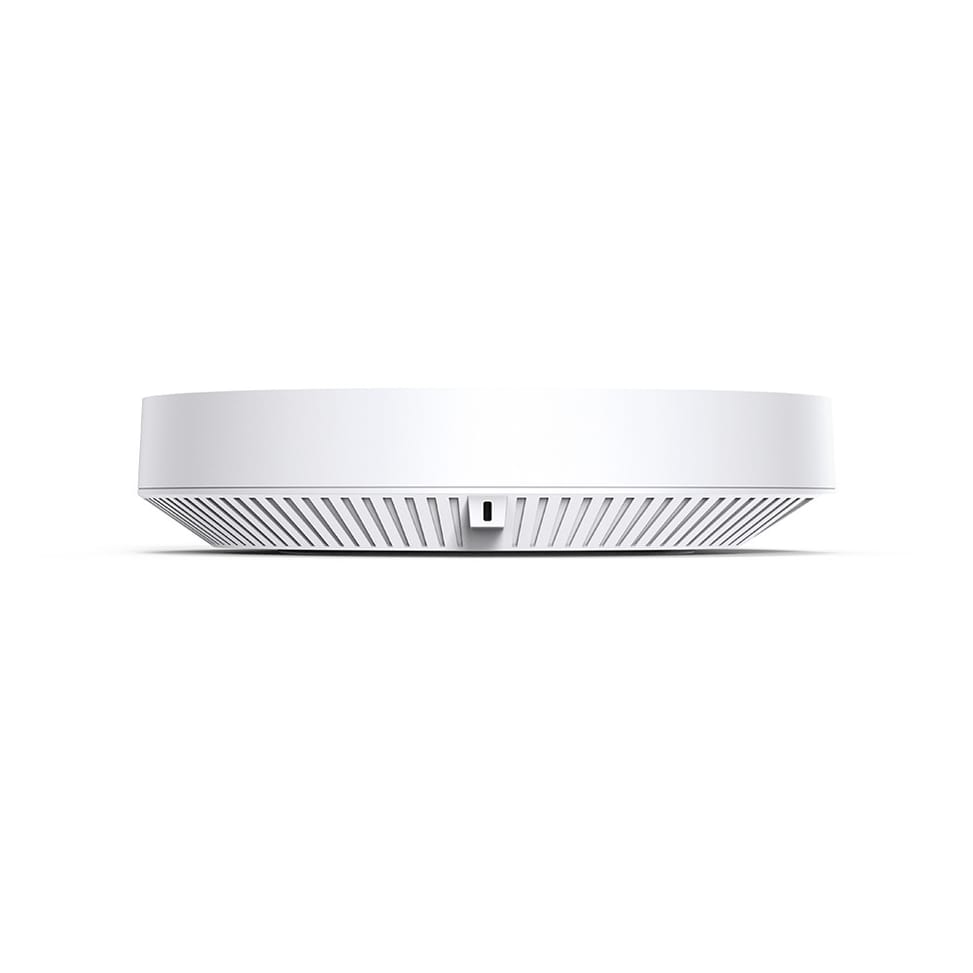

TP-Link EAP690E HD Wireless LAN Access Point 11000 Mbps White Ethernet connection, supporting power via

Four frequency bands, including the still uncrowded 6 GHz, and a 10 Gbps port to carry the throughput. An access point designed for places where hundreds of devices connect at the same time.

Wi-Fi 6E with a dedicated, less crowded 6 GHz band
Up to 4,804 Mbps on 6 GHz and 2,402 Mbps on 5 GHz
Up to 1,148 Mbps on the 2.4 GHz band
10 Gbps Ethernet port (Multi-Gigabit)
802.3bt PoE++ or 12 V mains power
MU-MIMO and OFDMA to serve several devices at once
WPA3-Enterprise encryption
Centralised Omada management with zero-touch provisioning
Wall or pole mounting
Internal antennas, casing of 280 × 280 × 59.1 mm

Ref.: EAP690E HD

TP-Link EAP690E HD Wireless LAN Access Point 11000 Mbps White Ethernet connection, supporting power via — image 1

TP-Link EAP690E HD Wireless LAN Access Point 11000 Mbps White Ethernet connection, supporting power via — image 2

TP-Link EAP690E HD Wireless LAN Access Point 11000 Mbps White Ethernet connection, supporting power via — image 3

TP-Link EAP690E HD Wireless LAN Access Point 11000 Mbps White Ethernet connection, supporting power via — image 4

TP-Link EAP690E HD Wireless LAN Access Point 11000 Mbps White Ethernet connection, supporting power via — image 5

11 099,00 DHincl. VAT

Out of stock

Available right now

Our in-stock alternatives, in a similar range.

See the 10 available alternatives

Product overview

Quad-band Wi-Fi 6E access point TP-Link EAP690E HD: a high-density access point with a 10 Gbps port for the busiest environments.
Wi-Fi & speed: quad-band Wi-Fi 6E (2.4 GHz + dual 5 GHz + 6 GHz) — up to 1,148 Mbps on 2.4 GHz, 2,402 Mbps on 5 GHz, 4,804 Mbps on 6 GHz — 11,000 Mbps combined.
Capacity: MU-MIMO, OFDMA, up to 2,000 concurrent devices.

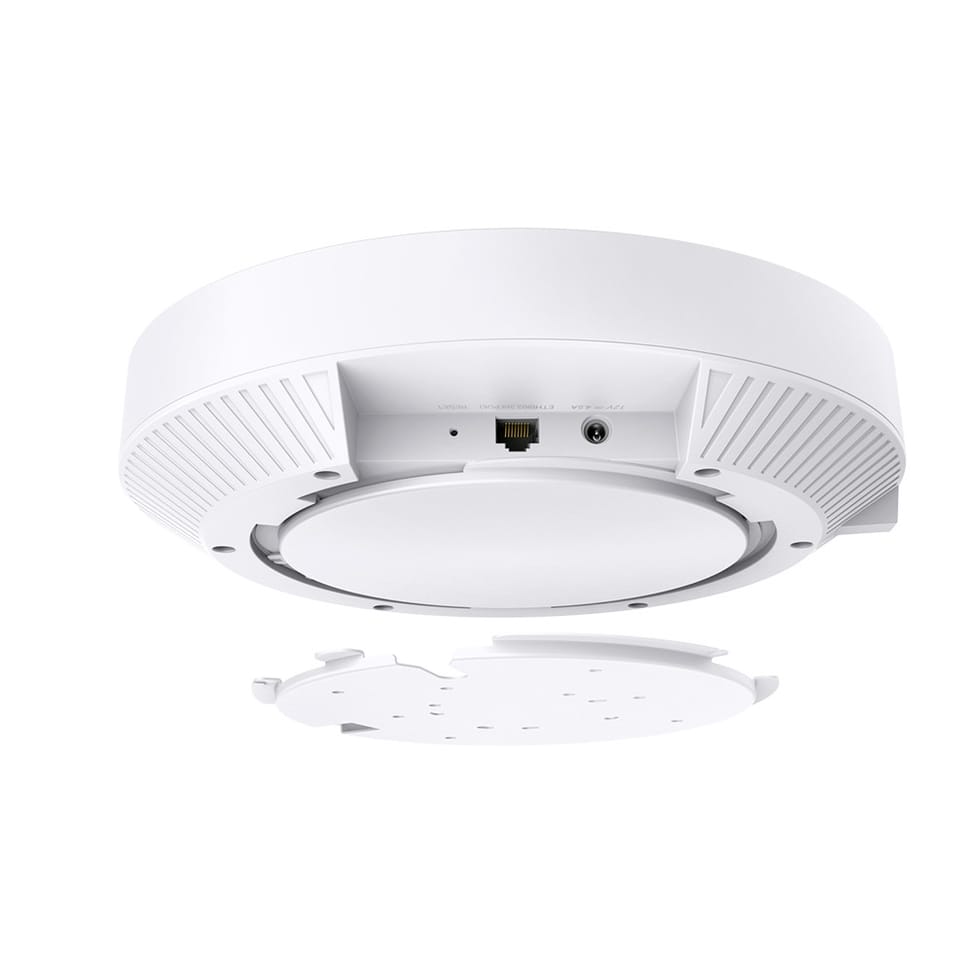

Installation: ceiling or wall mounting (kit included), internal antennas, compact 280 × 280 mm design.
Ports & power: 1 × 10 Gbps port (Multi-Gigabit); PoE++ (802.3bt) or power adapter.
Management: Omada controller (cloud, hardware or software), Zero-Touch Provisioning.
Security: WPA3-Enterprise, WPA2-Enterprise — protection for business networks.
Use cases: high-density open-plan offices, hotels, conference centres, airports, conference rooms, coworking spaces.
Wi-Fi 6E, a 10 Gbps port and an interference-free 6 GHz band: the power that busy sites need.

See all the specifications ↓

Request a quoteShare:

Available alternatives

Models available from 2 999 DH incl. VAT, in a similar range.

Ruijie

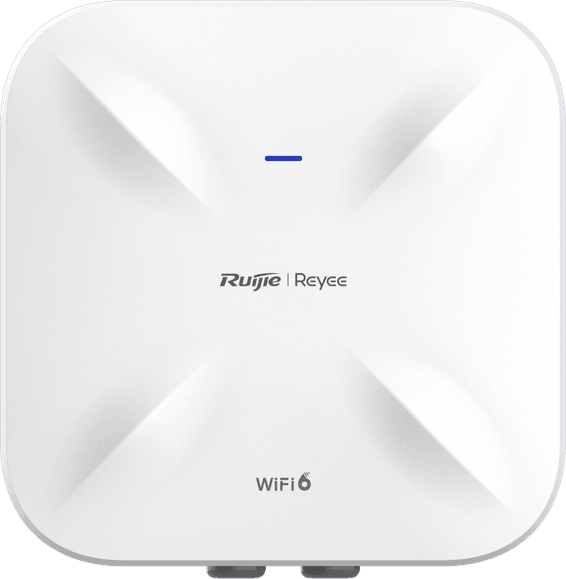

Reyee RG-RAP6260(G) AX1800 Outdoor WiFi 6 Access Point
Optical fibre for up to 20 km through its SFP port: enough to cover a car park, a stadium or an isolated building. IP68 housing holding from −40 °C to +65 °C and up to 512 devices accepted.
- 100/1000 SFP port: single-mode fibre link up to 20 km
- Up to 1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Up to 512 connected devices, 100 recommended
In stock
5 879 DHincl. VAT5 879,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Aruba
Aruba AP-515 (RW) WiFi 6 Access Point (Q9H62A)
2.69 Gbps combined and four simultaneous streams for rooms where everyone connects at the same time. A 2.5 Gbps port avoids the bottleneck, and a built-in Bluetooth and Zigbee radio opens the door to connected devices.
- Combined throughput up to 2.69 Gbps on 2.4 and 5 GHz
- 4x4 MIMO: four spatial streams to serve more devices, faster
HP
HP Aruba AP-505 WiFi 6 (RW) - Wireless Access Point (R2H28A)
Designed for campuses, schools and medium-sized offices, it takes up to 256 devices per radio and reaches 1,201 Mbps on the 5 GHz band. Bluetooth 5 and Zigbee are built in for connected objects.
- Up to 1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Up to 256 devices associated per radio, i.e. 512 in total
Ubiquiti
Ubiquiti UAP-AC-HD WiFi 5 Access Point
Designed for full rooms: 4x4 MU-MIMO on both bands serves several devices at once instead of making them wait, and it holds more than 500 clients over 140 m². Powered over the network cable, adapter included.
- Up to 1,733 Mbps on the 5 GHz band
- Up to 800 Mbps on the 2.4 GHz band
- 4x4 MU-MIMO on each band, 8 spatial streams
In stock
Ruijie
Reyee RG-RAP6262(G) AX1800 WiFi 6 Access Point - Outdoor
Protected by an IP68 housing and a 4 kV surge arrester, it works from −30 °C to +65 °C. Up to 1,201 Mbps on the 5 GHz band, 512 devices accepted and a stated range of up to 300 m.
- Up to 1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Up to 512 connected devices, 100 recommended
Aruba
HPE Aruba Networking AP-503 Dual Radio WiFi 6 Access Point (R8M98A)
Combined throughput of 1.49 Gbps, OFDMA and bidirectional MU-MIMO: the essentials for medium-density venues, without paying for high capacity. Aruba Central cloud management, WPA3 and a TPM module, in a housing 14.5 cm on each side.
- Maximum combined throughput of 1.49 Gbps, on 80 MHz channels
Ruijie
Reyee RG-RAP6202(G) AC1300 Omnidirectional WiFi 5 Access Point - Outdoor
IP68 sealed and rated from −30 °C to +65 °C, it holds up in rain, wind and dust. Its 4 built-in antennas reach up to 300 m on 5 GHz, and a single network cable powers and connects it.
- Up to 867 Mbps on 5 GHz and 400 Mbps on 2.4 GHz
Best seller-170 DH
Ubiquiti
Ubiquiti U7 Outdoor – Outdoor WiFi 7 Access Point U7-Outdoor
465 m² covered outdoors, in an IPX6 housing built for rain. One built-in directional antenna, two external omnidirectional antennas included, and wall and pole mounts in the box; up to 250 devices served.
HPE
HPE Instant On AP25 4x4(RW) Indoor WiFi 6 Access Point (R9B28A)
Up to 4,800 Mbps on the 5 GHz band alone and a 2.5 Gbps port to keep up. Everything is driven from the HPE Networking Instant On app or a browser, with no controller to install.
- Up to 4,800 Mbps on 5 GHz (160 MHz channels) and 574 Mbps on 2.4 GHz
Ruijie
Reyee RG-RAP6262 AX3000 WiFi 6 Access Point - Outdoor
The Gigabit SFP port lets it be linked over single-mode fibre for up to 20 km: useful where copper cable no longer reaches. IP68 housing, 4 kV surge arrester, and up to 2,402 Mbps on the 5 GHz band.
- Gigabit SFP port: single-mode fibre link up to 20 km
- Up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz

Technical specifications

Technical specifications
Package contents	Access point and ceiling and wall mounting kits included
Number of SSIDs	32 SSIDs in total, 8 per band
Interfaces	1 x 10 Gbps Ethernet port, 1 x 12 V power input, 1 reset button
Network standards	IEEE 802.11a/b/g/n/ac/ax
Advanced Wi-Fi technologies	MU-MIMO, beamforming, band steering, airtime fairness, smart antennas on 5 GHz
Maximum channel width	160 MHz on 6 GHz, 80 MHz on 5 GHz, 40 MHz on 2.4 GHz
Spatial streams and MU-MIMO	4 spatial streams per band (NSS 1 to 4), MU-MIMO
Maximum Wi-Fi throughput per band	1,148 Mbps at 2.4 GHz, 2,402 Mbps on each of the two 5 GHz radios, 4,804 Mbps at 6 GHz
Management modes	Web interface, SSH, SNMP v1/v2c/v3, Omada app, Omada hardware or software controller
Cloud management platform	Omada SDN
Layer 2 features	VLAN, client isolation, MAC filtering (4,000 entries), access control, rate limiting per SSID or per client, guest network, WMM quality of service
Roaming and mesh	Omada Mesh and seamless roaming
Power consumption	44.9 W on 802.3bt, 40.6 W on power adapter, 25.5 W on 802.3at, 12.95 W on 802.3af (EU values)

Technical specifications (continued)
Dimensions (W x D x H)	280 x 280 x 59.1 mm
Antennas	4 antennas per band: 4 dBi at 2.4 GHz, 5 dBi at 5 GHz-1 and 5.5 dBi at 5 GHz-2 (smart antennas), 5 dBi at 6 GHz; plus 1 × 4 dBi Bluetooth antenna
Maximum transmit power	CE: < 20 dBm on 2.4 GHz, < 23 dBm on 5 GHz (bands 1 and 2), < 30 dBm (band 3), < 23 dBm on 6 GHz, EIRP
Security features	WPA/WPA2/WPA3 Personal and Enterprise, Enhanced Open (OWE), 802.1X, captive portal, rogue AP detection
Power supply	PoE++ 802.3bt or 12 V 4.5 A power adapter; fallback possible to 802.3at (5 GHz-2 and 6 GHz radios off) or 802.3af (radios off)
Operating temperature	0 to 40 °C
Operating humidity	10 to 90% non-condensing
Wi-Fi standard	Wi-Fi 6E
Mounting type	Multiple
Bands	Quad-band
PoE power	PoE++ (802.3bt)
Simultaneously connected devices	2,000+ clients
Warranty	1 year

Specific references

EAN	4897098688359

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions about this product

Is the EAP690E HD really quad-band?

Yes: one radio on 2.4 GHz, two separate radios on 5 GHz and one on 6 GHz. Speeds reach 1,148 Mbps, 2,402 Mbps and 4,804 Mbps, for 11,000 Mbps combined — the fastest access point in the category.

Why does the EAP690E HD have a 10 Gbps port?

Because its four radios add up to 11 Gbps: even a 2.5 Gbps port would be overwhelmed. The 10 Gbps port removes this ceiling entirely, provided you have a switch that can keep up — a cost to factor into the budget.

What power supply do you need for the EAP690E HD?

PoE++ 802.3bt, or a 12 V / 4.5 A DC power supply on its dedicated input. A standard PoE+ port is not enough for an access point of this calibre: check that your switch really delivers 802.3bt before ordering.

How many devices can the EAP690E HD serve?

Up to 2,000 simultaneous devices — the highest figure in the category. That is what makes it suited to convention centres, airports and large halls, where several thousand devices move around.

What does the EAP690E HD's 6 GHz band bring?

4,804 Mbps on a spectrum reserved for Wi-Fi 6E-compatible devices, and therefore free from interference from older equipment and neighbouring networks. Meanwhile, the two 5 GHz radios let you spread older devices across two separate channels.

Does the EAP690E HD support enterprise authentication?

Yes, in WPA3-Enterprise as well as WPA2-Enterprise: each user authenticates with a server using their own credentials, with no shared key. That is the mode expected at a site open to the public around the clock.

Where can the EAP690E HD be mounted?

On a wall or a pole, kit included. The housing is imposing — 280 × 280 × 59.1 mm — with internal antennas: choose a clear, high position in the centre of the area to be covered.

Can the EAP690E HD be deployed without a technician on site?

Yes, Omada's zero-touch provisioning lets you ship the access point to the site, have it plugged in by a non-specialist, then configure it remotely as soon as it appears on the controller — cloud, hardware or software.

Under what conditions does the EAP690E HD operate?

Indoors, between 0 and 40 °C, with 10 to 90% humidity. Given the power it draws, choose a ventilated location rather than an enclosed space with no airflow.

Is the equipment new and under warranty?

Yes, new equipment, with the invoice serving as the warranty document for one year. The access point is CE, FCC, RoHS and IC certified, and fits into the Omada ecosystem alongside the range's switches and gateways.
