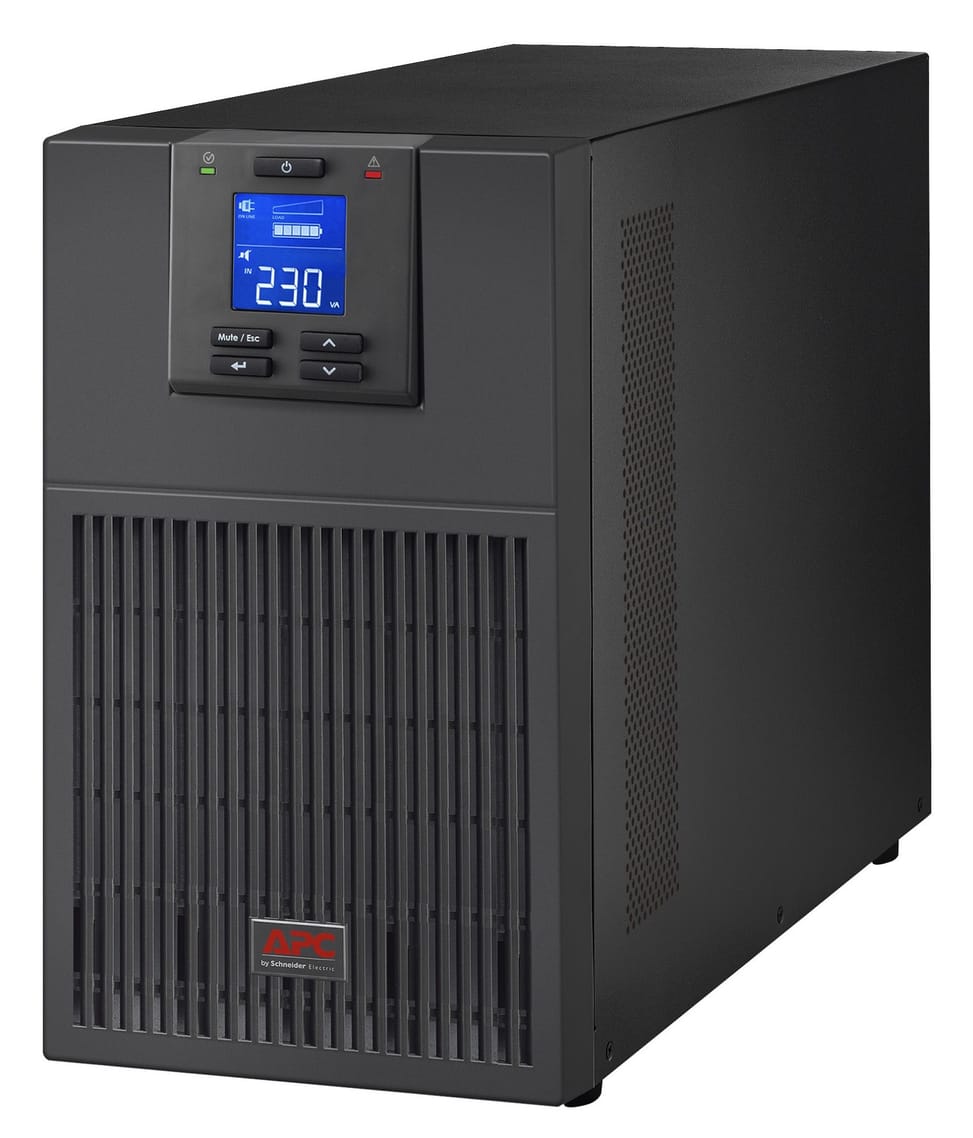

APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL)

A tower format to stand on the floor, with its external battery pack to ride out long outages. Terminal block connection, LCD display and an internal bypass that keeps the service running in the event of a failure.

  • External battery pack supplied for extended runtime
  • Tower format, to stand on the floor
  • 3-wire terminal block connection: fixed wiring, to be installed by an electrician
  • Sine wave output
  • Efficiency 94 % at full load
  • Automatic and manual internal bypass

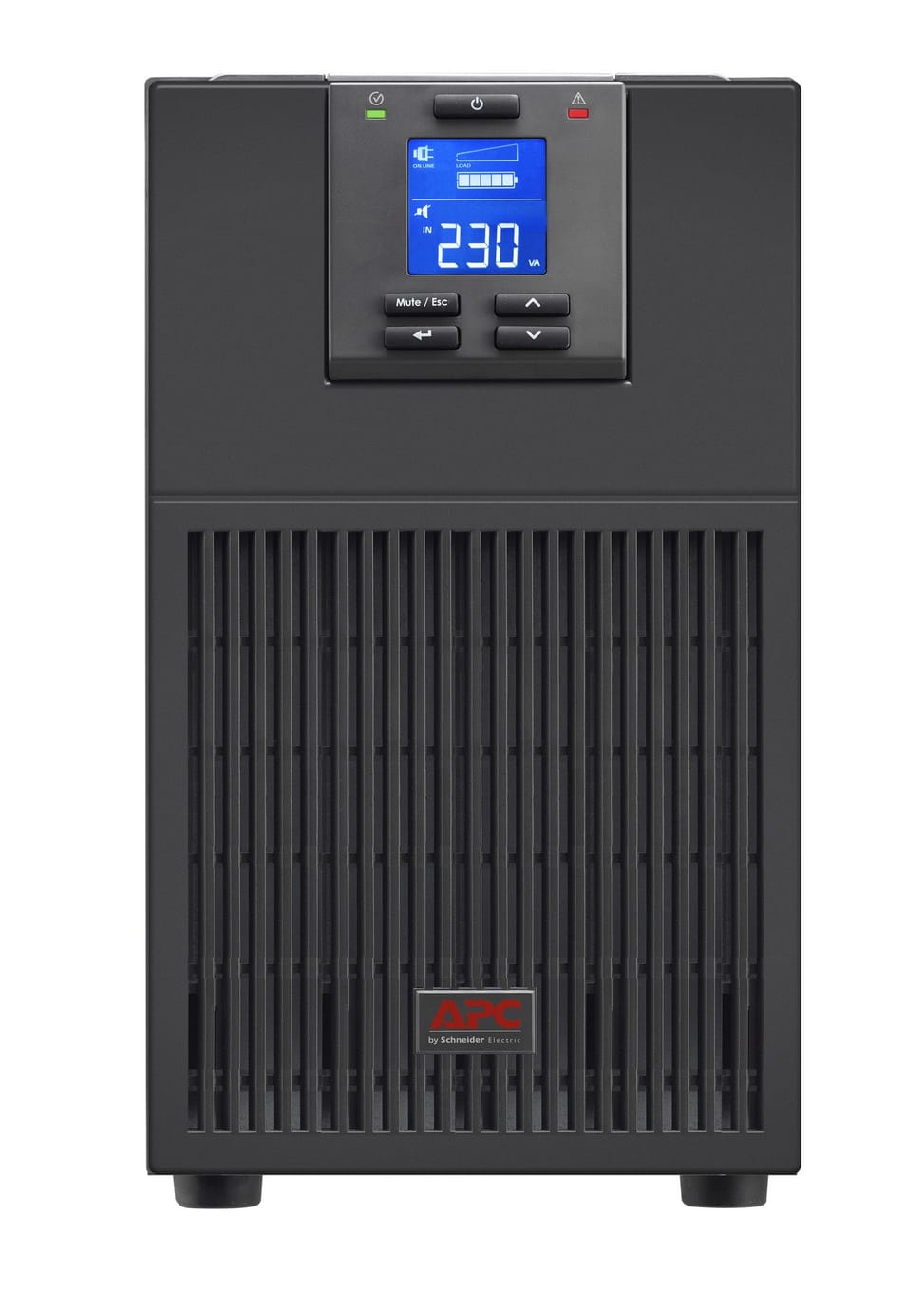

  • LCD status and control display
  • Free slot for a network monitoring card
  • Emergency power off button (EPO)
  • Full battery recharge in 5 hours
  • Accepts an input from 176 to 300 V at full load
  • Harmonic distortion of 1 % at the output
  • USB and RS-232 cables supplied for automatic server shutdown
  • Noise level 55 dB: to be installed in a technical room
  • Weight 73 kg
Ref.: SRV6KIL
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 1
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 2
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 3
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 4
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 5
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 6
APC SRV6KIL Double-Conversion Online UPS 6 kVA 6000 W (SRV6KIL) — image 7

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.

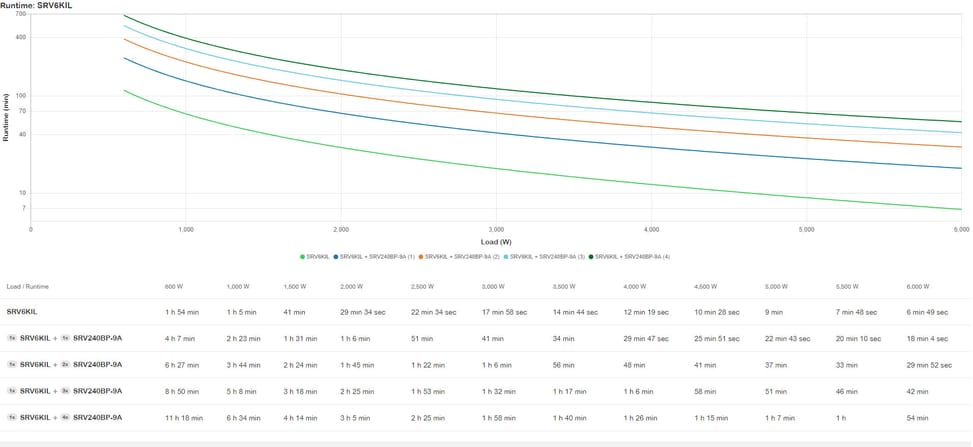

  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/7
35 399,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 146 Ko — downloadable

Product overview

A high-power online UPS for critical infrastructure: online double conversion, 6000 VA / 6000 W, tower format.
Technology & protection: power is fully and continuously regenerated — your equipment never touches the mains, with no transfer time. Maximum protection against outages, surges, voltage fluctuations and electrical noise, even in harsh environments.
Power: 6000 VA for 6000 W of real power — enough to run several servers and network equipment.
Pure sine wave; extended runtime to ride out prolonged outages.
Supplied with management software and a USB cable for automatic system shutdown.
Designed, for example, for servers and critical business infrastructure.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230 V (220 / 240 V)
Waveform typeSine wave
Output harmonic distortion1 %
Output connections1 hardwired connection on 3-wire terminal block (1 phase + neutral + earth)
Input voltage230 V (220 / 240 V)
Input frequency40 - 70 Hz auto-sensing
Input connectionsTerminal block
Voltage range176 - 300 V at full load; 110 - 300 V at 60% load
Battery typeSealed lead-acid battery, 220 V bus
Typical recharge time5 hours

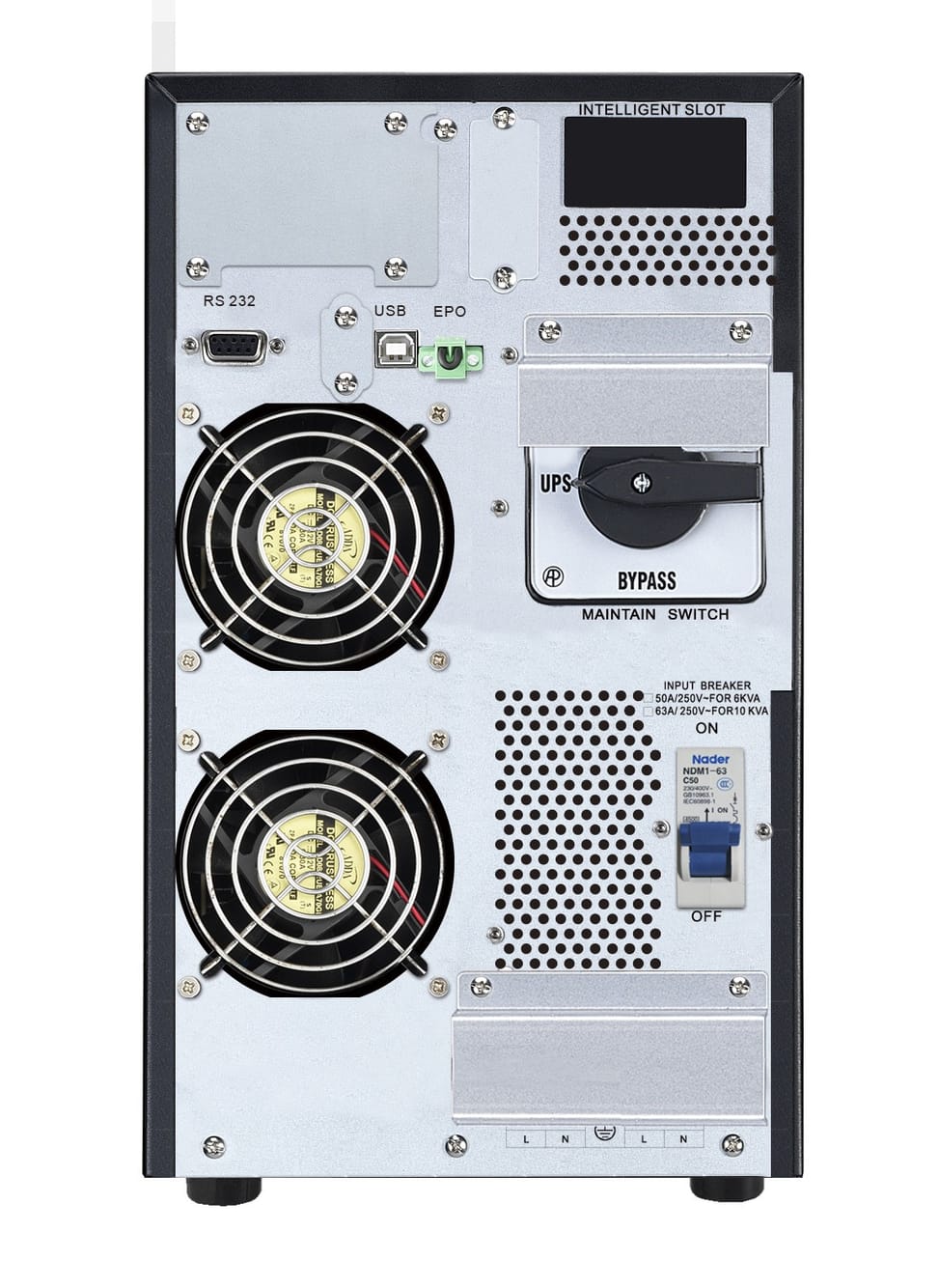

Interface port1 USB port, 1 RS-232 serial port (DB-9 connector)
User interfaceMultifunction LCD status and control console
Audible alarmAlarm when switching to battery, distinct low-battery alarm, continuous alarm on overload
Weight (kg)73 kg (79 kg with packaging)
Dimensions (W x D x H) (mm)380 x 485 x 368 mm
Estimated battery service life (years)3 to 5 years
TechnologyOn-line
Power (VA)6,000 VA
Technical specifications (continued)
Voltage stabiliserYes
Box contentsUSB cable · RS-232 configuration cable · 1 external battery pack · 1 battery cable · User manual
Communication card slot1 slot available for a communication card
Surge protection and filtering600 J
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass (automatic and manual)
Audible noise55 dBA
Crest factor3:1
Output frequency50/60 Hz +/- 3 Hz, synchronised to mains
Phase (output/input)Single-phase / Single-phase
Double-conversion efficiency94% at full load
Output typeTerminal block
Power (W)6,000 W

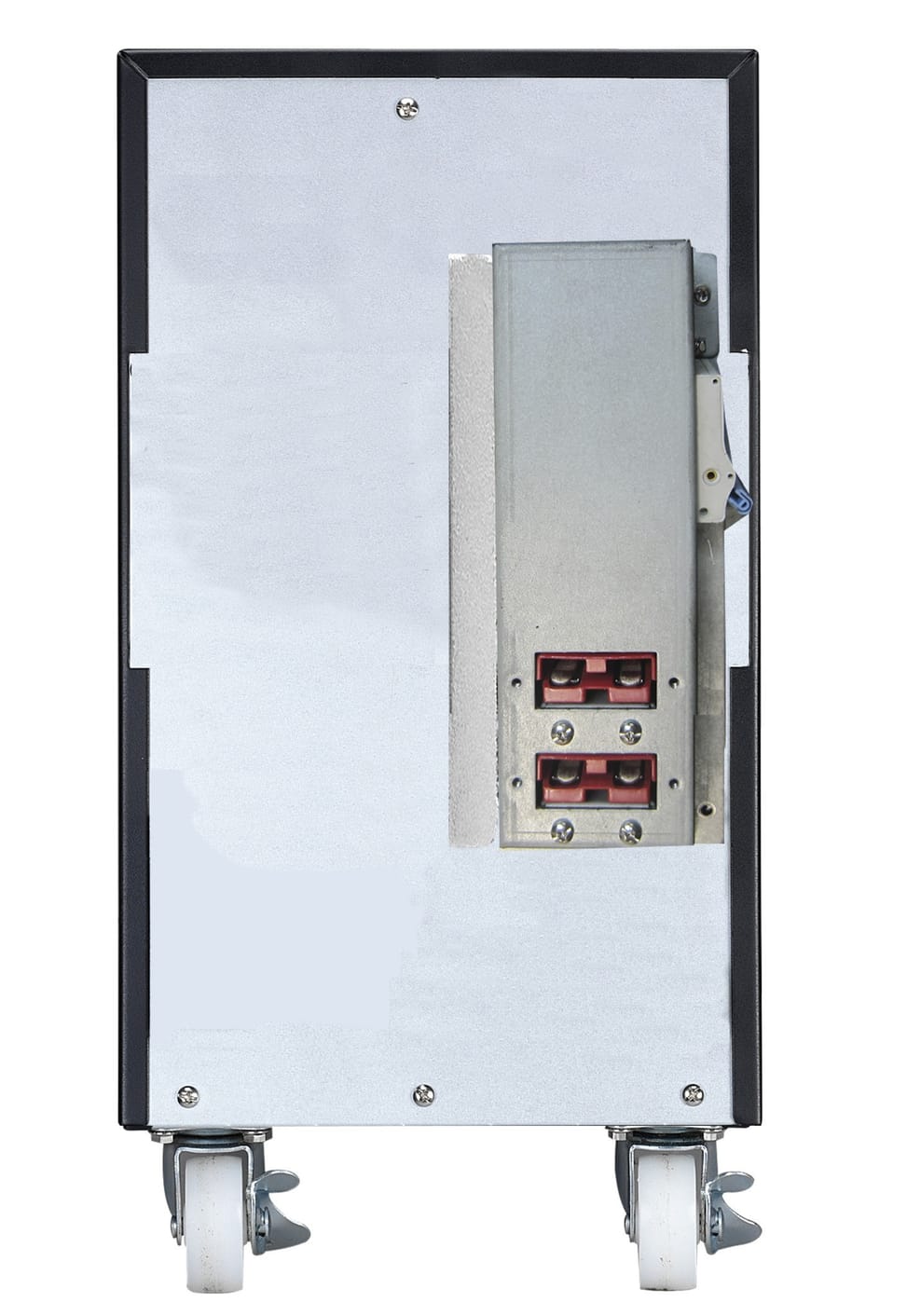

External battery packsExternal battery pack supplied (extended runtime)
Form factorTower
Control & communicationUSB, RS232 serial port
Warranty1 year

Specific references

EAN731304338024

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is the battery pack supplied with the SRV6KIL?
Yes, an external battery pack and its cable are delivered with the UPS: that is what the “L” in the reference stands for, meaning extended runtime. The box also contains a USB cable, an RS-232 cable and the manual.
How is the SRV6KIL connected to the electrical installation?
To a 3-wire terminal block — phase, neutral, earth: there is no outlet on the unit. It is fixed wiring, to be entrusted to an electrician, with a dedicated circuit to prepare at the distribution board before delivery.
Does this 6 kVA unit really deliver 6000 W?
Yes: the 6000 VA correspond to 6000 W, i.e. a power factor of 1. All of the apparent power is available in watts, which is not the case with UPS units where the gap reaches 40%.
What quality of power does the SRV6KIL deliver?
A pure sine wave with 1% harmonic distortion, continuously regenerated by double conversion, with an efficiency of 94% at full load.
What input voltage range does the UPS accept?
176 to 300 V at full load, on a nominal voltage of 230 V. This wide range lets it ride through a very degraded grid without drawing on the batteries at every voltage dip.
Can the UPS be serviced without powering down the equipment?
Yes, an automatic and manual internal bypass keeps power flowing: the automatic one in the event of a fault, the manual one for scheduled servicing. Conversely, an emergency power-off button cuts everything in a single action.
How long does it take to recharge the SRV6KIL batteries?
5 hours for a full recharge, on 220 V VRLA sealed lead-acid batteries. Until recharging is complete, the available runtime remains below the rated value.
Where should the SRV6KIL be installed, and how much does it weigh?
73 kg in a floor-standing tower format, with a noise level of 55 dB: it is a fan-cooled unit, best kept to a technical room. It takes several people to handle, and the floor must bear the load.
Is the APC Easy UPS SRV6KIL new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. USB and RS-232 cables are included for automatic server shutdown, and a free slot lets you add a network management card. The datasheet covers the rest.
