APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK)

External battery pack and rail kit included: everything is there to install it in a rack, over 5U. Terminal block connection, LCD monitoring display and 94% efficiency at full load.

  • External battery pack included for extended runtime
  • Rail kit and rack mounting brackets included
  • 5U high in the rack
  • 3-wire terminal block connection: fixed wiring, to be installed by an electrician
  • Sinusoidal output waveform
  • 94% efficiency at full load
  • Automatic and manual internal bypass
  • LCD status and control display
  • Free slot for a network management card
  • Emergency power off button (EPO)
  • Full battery recharge in 5 hours
  • Accepts an input from 176 to 300 V at full load
  • Harmonic distortion of 1% at the output
  • Noise level 58 dB: to be installed in a rack or a technical room
  • Weight 78 kg
Ref.: SRV10KRILRK

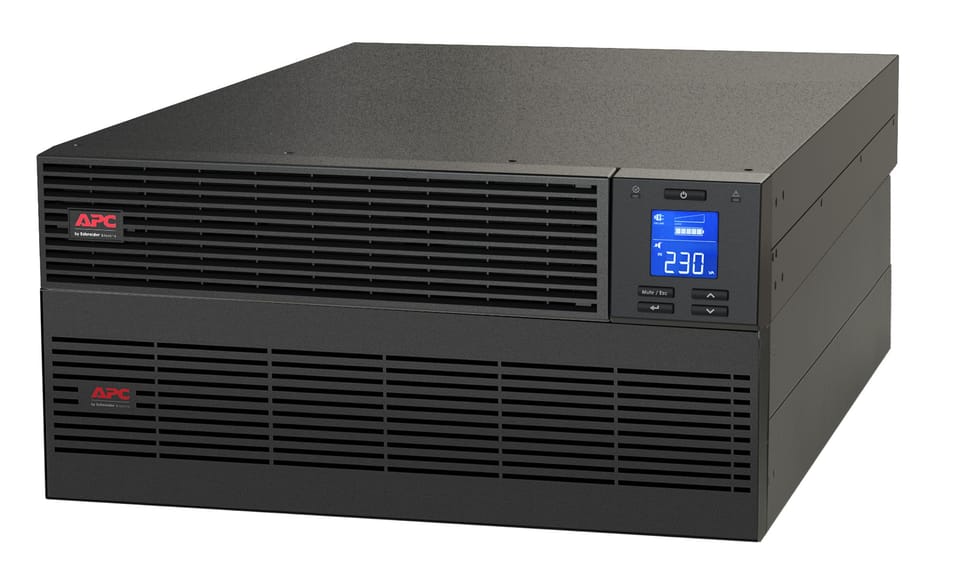

APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK) — image 1

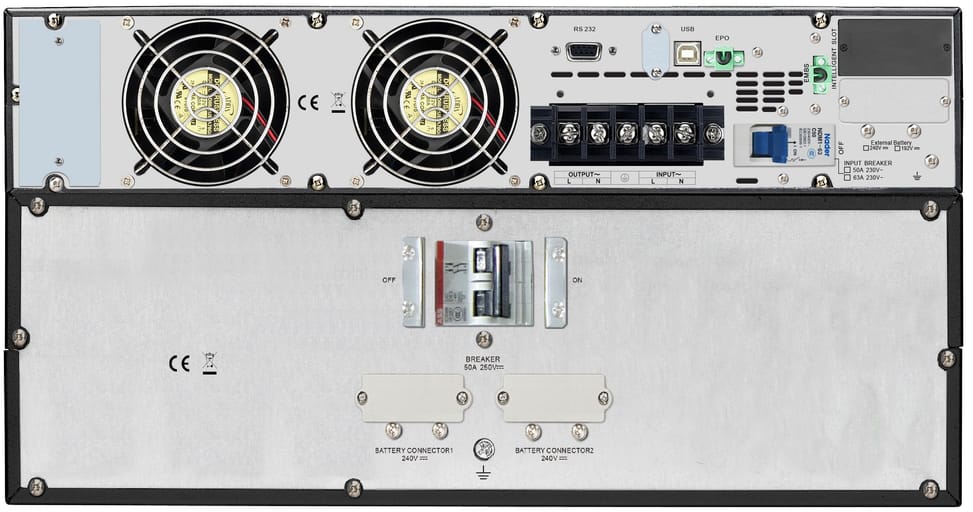

APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK) — image 2
APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK) — image 3

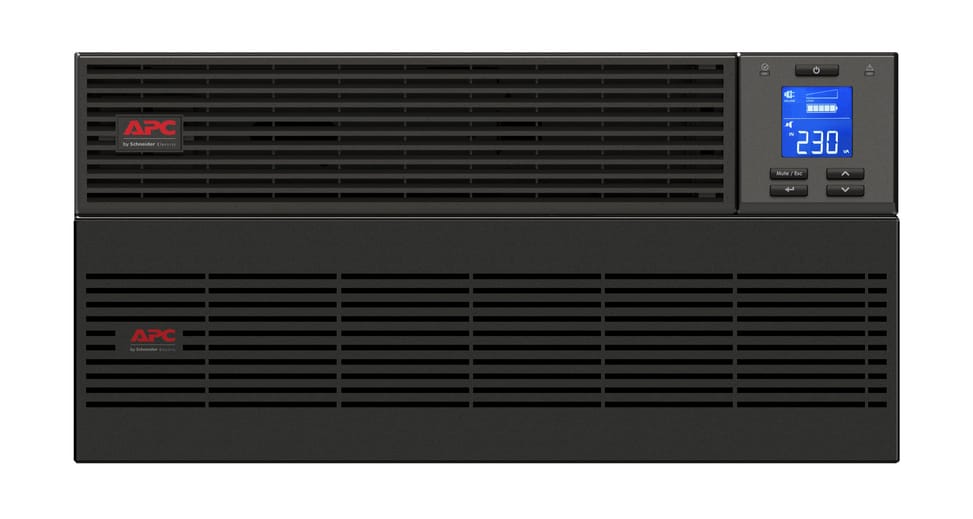

APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK) — image 4
APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK) — image 5

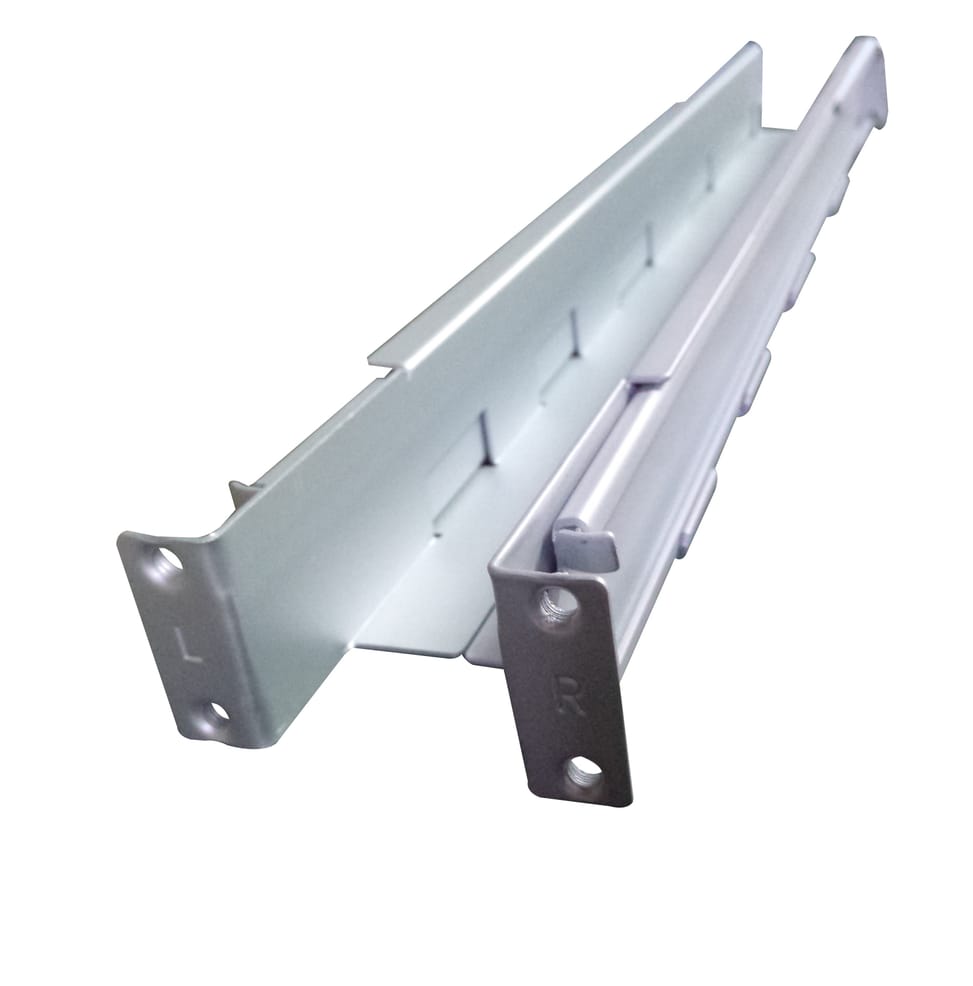

APC SRV10KRI Online UPS 10 kVA / 10000 W with external battery pack and rail kit (SRV10KRILRK) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
45 999,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 151 Ko — downloadable

Product overview

A very high-power online UPS for server rooms: online double conversion, 10 kW / 10 kVA, rack-mount.
Technology & protection: power is continuously rebuilt — your equipment receives perfectly clean power without ever touching the mains, with zero transfer time. Maximum protection against outages, surges, voltage fluctuations and electrical noise.
Power: 10 kVA for 10 kW of real power — sized for a full server rack.

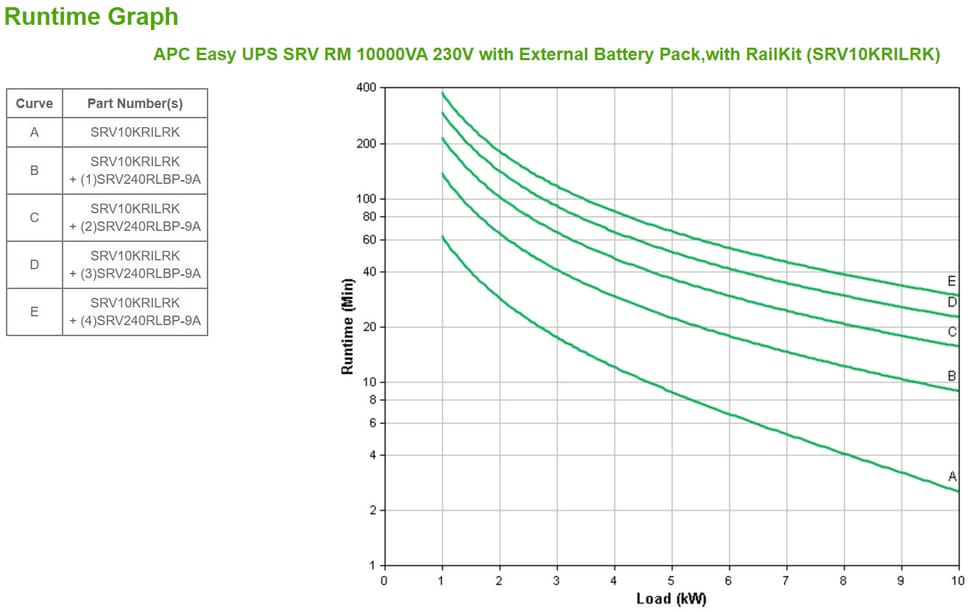

Runtime: about 8 minutes at half load (5000 W), 5 minutes at 70%.
Ports: terminal block connection (hard-wired by an electrician).
Rack-mount; active cooling (≈ 58 dB), to be installed in a rack or technical room.
Designed, for example, for server racks and data centres.
LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230 V (220 / 240 V)
Waveform typeSine wave
Output harmonic distortion1 %
Output connections1 hardwired connection on 3-wire terminal block (1 phase + neutral + earth)
Input voltage230 V (220 / 240 V)
Input frequency40 - 70 Hz auto-sensing
Input connectionsTerminal block
Voltage range176 - 300 V at full load; 110 - 300 V at 60% load
Battery typeSealed lead-acid battery, 220 V bus
Typical recharge time5 hours
Interface port1 USB port, 1 RS-232 serial port (DB-9 connector)
User interfaceMultifunction LCD status and control console
Audible alarmAlarm when switching to battery, distinct low-battery alarm, continuous alarm on overload
Weight (kg)78 kg (88 kg with packaging)
Dimensions (W x D x H) (mm)438 x 615 x 220 mm
Estimated battery service life (years)3 to 5 years
TechnologyOn-line
Power (VA)10,000 VA
Voltage stabiliserYes
Technical specifications (continued)
Box contentsUSB cable · RS-232 configuration cable · 2 rack-mount brackets · 2 rack-mount support rails · 1 external battery pack · 1 battery cable · User manual
Communication card slot1 slot available for a communication card
Rack height5U
Surge protection and filtering600 J
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass (automatic and manual)
Audible noise58 dBA
Crest factor3:1
Output frequency50/60 Hz +/- 3 Hz, synchronised to mains
Phase (output/input)Single-phase / Single-phase
Double-conversion efficiency94% at full load
Output typeTerminal block
Power (W)10,000 W
Runtime50% load (5,000 Watts): 8 minutes / 70% load (7,000 Watts): 5 minutes
External battery packsExternal battery pack supplied (extended runtime)
Form factorRack
Control & communicationUSB
Warranty1 year

Specific references

EAN731304346180

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the SRV10KRILRK run on battery?
8 minutes at 50% load, i.e. 5000 W, and 5 minutes at 70%, i.e. 7000 W. A full recharge then takes 5 hours, on batteries rated for 3 to 5 years of service.
What exactly is in the SRV10KRILRK box?
An external battery pack and its cable, two rails and two rack-mounting brackets, a USB cable, an RS-232 configuration cable and the manual. That is what the letters “LRK” stand for: everything is there to install it.
How is the SRV10KRILRK connected to the power supply?
Through fixed wiring to a 3-wire terminal block — phase, neutral and earth — at the input as well as the output. There is therefore no plug: installation requires an electrician, to be arranged before commissioning.
Does this 10 kVA unit really deliver 10,000 W?
Yes: 10 kVA corresponds here to 10,000 W, with all of the apparent power available in watts. Efficiency reaches 94% at full load, which matters on a unit that runs around the clock.
How much rack space does the SRV10KRILRK take up?
5U in height, 61.5 cm deep and 78 kg — with the battery pack on top of that. It goes at the bottom of the cabinet, on a floor able to bear that load.
Is the output of the SRV10KRILRK a pure sine wave?
Yes, the output is a sine wave, with 1% harmonic distortion and a crest factor of 3:1. Double conversion continuously regenerates the power, with no transfer time.
What input voltage does the SRV10KRILRK accept?
From 176 to 300 V at full load, and from as low as 110 V if the load does not exceed 60%. The accepted frequency ranges from 40 to 70 Hz with auto-sensing: a wide range, designed for an unstable grid.
Can the SRV10KRILRK be serviced without powering down the rack?
Yes, an automatic and manual internal bypass lets mains power flow through to the equipment. Conversely, an emergency power-off switch cuts everything in a single action.
Where should the SRV10KRILRK be installed?
In a rack or a technical room: it is rated at 58 dBA and dissipates 2128 BTU/h. That heat must be able to escape; an office or a closed cupboard is not suitable.
How can the SRV10KRILRK be monitored?
Through the USB port and the RS-232 serial port, both with their cable, and through a free slot that accepts a network management card. A multifunction LCD console shows the status on the front panel.
Is the APC Easy UPS SRV10KRILRK new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. Its output voltage can be set to 220, 230 or 240 V and its surge protection reaches 600 joules. The datasheet covers the rest.
