Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB)

IP68 sealed, protected against 6 kA surges and operational from -40 to +65 °C. Up to 1,200 Mbps on 5 GHz, 1,024 devices connected at the same time and an SFP optical port alongside the Gigabit port.

Up to 1,200 Mbps on 5 GHz and 575 Mbps on 2.4 GHz, giving 1,775 Mbps combined
Up to 1,024 simultaneous clients, 512 per radio
IP68 rating: resists dust and water
MU-MIMO 2x2:2 to serve several devices at once
6 kA surge protection
Operates from -40 °C to +65 °C

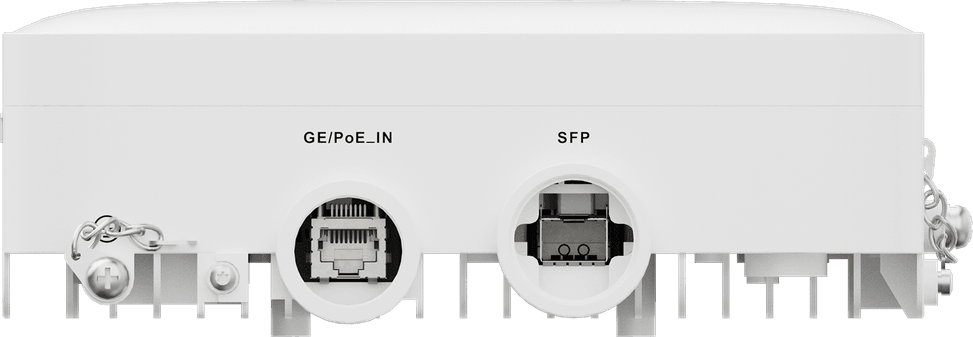

1 Gigabit Ethernet port and 1 SFP optical port
Powered by PoE+ (802.3at), 17.7 W at most
Built-in directional antennas
Management through the HUAWEI eKit app, the SNC cloud or the web interface
For stadiums, parks, car parks, terraces, campuses and retail areas

Ref.: 02355VFB

Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB) — image 1

Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB) — image 2

Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB) — image 3

Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB) — image 4

Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB) — image 5

Huawei AP761 Outdoor WiFi 6 Access Point (02355VFB) — image 6

2 949,00 DHincl. VAT

Out of stock

Available right now

Our in-stock alternatives, in a similar range.

See the 10 available alternatives

Product overview

Huawei AP761 outdoor Wi-Fi 6 access point: a weatherproof unit for stadiums, parks and high-density spaces.
Wi-Fi & speed: Wi-Fi 6 (802.11ax), dual-band 2.4 GHz + 5 GHz, 1,775 Mbps aggregate throughput (575 Mbps on 2.4 GHz, 1,200 Mbps on 5 GHz).
Capacity & performance: 2x2:2 MU-MIMO; up to 1,024 concurrent clients (512 per radio); built-in directional antennas.
Installation: outdoor, IP68 (waterproof and dustproof); pole or mast mounting; 6 kA surge protection; −40 °C to +65 °C.
Ports & power: 1 Gigabit Ethernet port + 1 optical SFP port; PoE+ (802.3at), 17.7 W max. power consumption.
Management: HUAWEI eKit app, HUAWEI SNC cloud and web interface.
Use cases: stadiums, parks, outdoor campuses, shopping areas, terraces, car parks, building sites.
Rugged and connected: AX1800 Wi-Fi 6 for the most demanding outdoor deployments.

See all the specifications ↓

Request a quoteShare:

Available smartphones

Models available from 2 290 DH incl. VAT, in a similar range.

Best seller
Ubiquiti
Ubiquiti U7 Pro – WiFi 7 Access Point U7-Pro
Covers 140 m² and more than 300 devices, with 5.8 Gbps on the 6 GHz band and a 2.5 Gbps port so the throughput is not held back. Ceiling and wall mount included in the box.
- Up to 5.8 Gbps on 6 GHz, 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz
- More than 300 devices connected simultaneously
- 6 spatial streams, 2x2 MU-MIMO on each of the three bands
In stock
2 939 DHincl. VAT2 939,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
HPE
HPE Instant On AP25 4x4(RW) Indoor WiFi 6 Access Point (R9B28A)
Up to 4,800 Mbps on the 5 GHz band alone and a 2.5 Gbps port to keep up. Everything is driven from the HPE Networking Instant On app or a browser, with no controller to install.
- Up to 4,800 Mbps on 5 GHz (160 MHz channels) and 574 Mbps on 2.4 GHz
Ruijie
Reyee RG-RAP6262 AX3000 WiFi 6 Access Point - Outdoor
The Gigabit SFP port lets it be linked over single-mode fibre for up to 20 km: useful where copper cable no longer reaches. IP68 housing, 4 kV surge arrester, and up to 2,402 Mbps on the 5 GHz band.
- Gigabit SFP port: single-mode fibre link up to 20 km
- Up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
Ruijie
Reyee BE5040 Indoor WiFi 7 Access Point (RG-RAP72PRO)
Up to 4,323 Mbps on the 5 GHz band and a 2.5 Gbps port so the wired side is not held back. MLO moves data over several links at once, for 8K streaming and video calls.
- Up to 4,323 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
- 2.5 Gbps Ethernet port, plus a Gigabit port
-130 DH
Ubiquiti
Ubiquiti U6 Pro – WiFi 6 Access Point U6-Pro
More than 350 devices over 140 m², and up to 4.8 Gbps on the 5 GHz band thanks to four dedicated streams. IP54-rated housing, ceiling and wall mounts included, powered by the network cable alone.
- Up to 4.8 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz
- More than 350 devices connected at the same time
Best seller-170 DH
Ubiquiti
Ubiquiti U7 Outdoor – Outdoor WiFi 7 Access Point U7-Outdoor
465 m² covered outdoors, in an IPX6 housing built for rain. One built-in directional antenna, two external omnidirectional antennas included, and wall and pole mounts in the box; up to 250 devices served.
Ruijie
Reyee RG-RAP6202(G) AC1300 Omnidirectional WiFi 5 Access Point - Outdoor
IP68 sealed and rated from −30 °C to +65 °C, it holds up in rain, wind and dust. Its 4 built-in antennas reach up to 300 m on 5 GHz, and a single network cable powers and connects it.
- Up to 867 Mbps on 5 GHz and 400 Mbps on 2.4 GHz
Aruba
HPE Aruba Networking AP-503 Dual Radio WiFi 6 Access Point (R8M98A)
Combined throughput of 1.49 Gbps, OFDMA and bidirectional MU-MIMO: the essentials for medium-density venues, without paying for high capacity. Aruba Central cloud management, WPA3 and a TPM module, in a housing 14.5 cm on each side.
- Maximum combined throughput of 1.49 Gbps, on 80 MHz channels
Ruijie
Reyee RG-RAP6262(G) AX1800 WiFi 6 Access Point - Outdoor
Protected by an IP68 housing and a 4 kV surge arrester, it works from −30 °C to +65 °C. Up to 1,201 Mbps on the 5 GHz band, 512 devices accepted and a stated range of up to 300 m.
- Up to 1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Up to 512 connected devices, 100 recommended
Ruijie
Reyee RG-RAP62-OD AX3000 WiFi 6 Access Point - Indoor/Outdoor
Indoors as well as out: IP65 housing, operation from -30 to +65 °C and 4 kV lightning protection. Up to 2,401 Mbps on the 5 GHz band, 110 recommended clients and around 150 m² covered, wall or pole mounted.
- Up to 2,401 Mbps on 5 GHz (160 MHz channels) and 573 Mbps on 2.4 GHz

Technical specifications

Technical specifications
IP protection rating	IP68, 6 kA surge protection
Interfaces	1 Gigabit Ethernet port and 1 optical SFP port
Network standards	IEEE 802.11ax (Wi-Fi 6)
Spatial streams and MU-MIMO	2×2:2 MU-MIMO
Maximum Wi-Fi throughput per band	575 Mbps at 2.4 GHz, 1,200 Mbps at 5 GHz, 1,775 Mbps combined
Management modes	HUAWEI eKit app, SNC cloud platform and web interface
Cloud management platform	HUAWEI eKit (cloud management)
Power consumption	17.7 W maximum
Antennas	Integrated directional antennas; gain not published by the manufacturer

Technical specifications (continued)
Power supply	PoE+ 802.3at
Operating temperature	-40 to 65 °C
Wi-Fi standard	Wi-Fi 6
Location	Outdoor
Mounting type	Pole/Mast
Bands	Dual-band
PoE power	PoE+ (802.3at)
Simultaneously connected devices	1,024 clients maximum, 512 per radio
Warranty	1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions about this product

Can the AP761 withstand permanent exposure to the weather?

Yes, its housing is rated IP68 — dust-tight and protected against immersion — and it operates from -40 to +65 °C. 6 kA surge protection completes the package, which matters on a mast exposed to lightning.

Why does the AP761 have directional antennas?

Because outdoors, concentrating the signal towards the area to be covered is better than spreading it around the mast. Its built-in directional antennas are designed for high-traffic spaces — stadiums, parks, shopping areas — where device density is very uneven.

How many devices can the AP761 serve at the same time?

Up to 1,024 clients, i.e. 512 per radio — one of the highest figures in the category. That is what makes it suited to stadiums and large gatherings, where several hundred devices connect at the same moment.

What is the AP761's SFP port for?

For connecting the access point over fibre optics rather than copper: on a large site — stadium, park, campus — fibre covers distances where copper stops at 100 m. A standard Gigabit Ethernet port remains available for a copper PoE connection.

What power supply do you need for the AP761?

A PoE+ 802.3at port, for a maximum power consumption of 17.7 W — more than the 15.4 W of an 802.3af port. As the fibre link does not carry power, the Ethernet cable is still needed if you power the access point over the network.

What throughput does the AP761 deliver?

1,200 Mbps on the 5 GHz band and 575 Mbps on 2.4 GHz, i.e. 1,775 Mbps combined, with 2x2:2 MU-MIMO. Here, Wi-Fi 6 above all brings efficiency in dense environments: serving many devices without making them wait.

How do you manage the AP761 once it is installed up high?

Without climbing up to it: via the HUAWEI eKit app, the SNC cloud platform or a web interface. Configuration, monitoring and updates are done remotely, which limits interventions on a mast or a façade.

Where can the AP761 be mounted?

On a pole or a mast, outdoors. That is the intended installation for this type of long-range access point: it sits up high, pointed at the area to be covered, which requires a solid mounting point.

Is the equipment new and under warranty?

Yes, new equipment, with the invoice serving as the warranty document for one year. Its waterproof design and surge protection are intended for continuous outdoor operation, without regular maintenance.
