HP 1810-48G Managed Switch (J9660A)

48-port Gigabit managed switch + 4 fibre SFP, driven from a simple web browser: VLAN, link aggregation, DHCP. Switching capacity 104 Gbps for a dense network.

  • 48 Gigabit RJ-45 ports + 4 SFP 100/1000 Mbps ports (fibre)
  • Web browser management: VLAN, link aggregation, traffic prioritisation
  • Switching capacity 104 Gbps, throughput up to 77.4 Mpps
  • 16,000-entry MAC address table
  • Broadcast storm control
  • Built-in DHCP client and server
  • Jumbo frames supported
  • Weight 2.86 kg
Ref.: J9660A

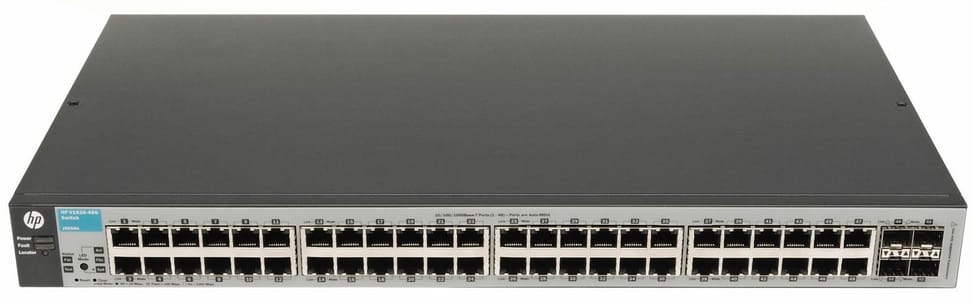

HP 1810-48G Managed Switch (J9660A) — image 1

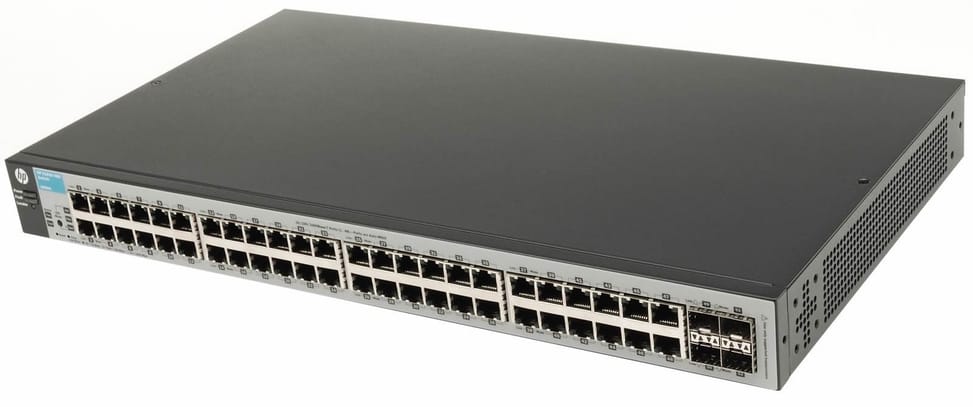

HP 1810-48G Managed Switch (J9660A) — image 2

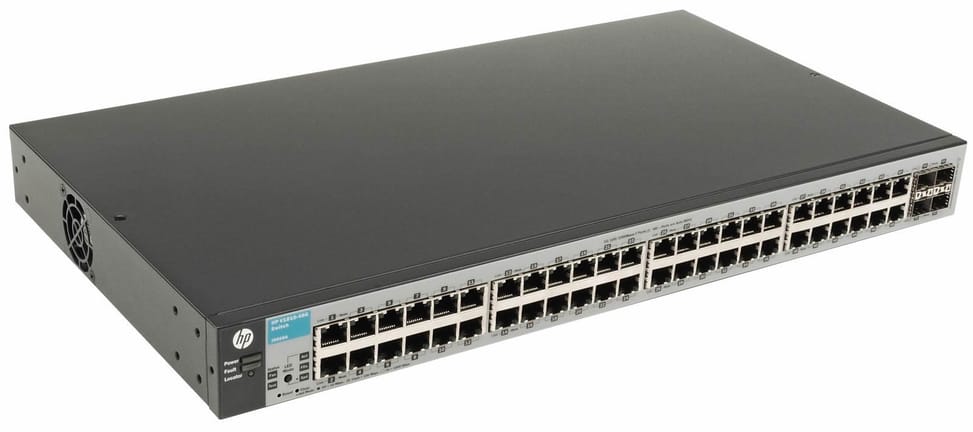

HP 1810-48G Managed Switch (J9660A) — image 3

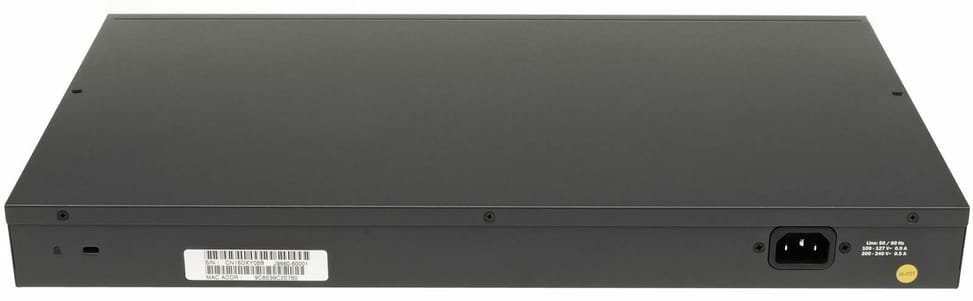

HP 1810-48G Managed Switch (J9660A) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
469,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

HP 1810-48G managed switch - Switching capacity: 104 Gbit/s - Forwarding rate: 77.4 Mpps - 48 × 10/100/1000 RJ-45 ports, 4 × 100/1000 SFP ports - MAC table size: 16,000 entries - Layer 2, jumbo frames, broadcast storm control, DHCP - Internal memory: 64 MB - Flash memory: 8 MB - 100 Mb latency under 8.4 µs, 1000 Mb latency under 3.2

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size16,000 entries
Number of VLANs64 VLANs per port (IEEE 802.1Q tagging)
Internal memory64 MB RAM, 8 MB flash memory
Interfaces48 auto-sensing RJ-45 10/100/1000 ports (10BASE-T IEEE 802.3 type, 100BASE-TX IEEE 802.3u type, 1000BASE-T IEEE 802.3ab type), Duplex: 10BASE-T/100BASE-TX: half or full, 1000BASE-T: full only, 4 auto-sensing 100/1000 SFP ports (100BASE-TX IEEE 802.3u type, 1000BASE-T IEEE 802.3ab type), duplex: 100BASE-TX: half or full, 1000BASE-T: full only, Supports up to 48 auto-sensing 10/100/1000 ports and 4 SFP ports
PoE portsNone
Total PoE budgetNone
Network standardsIEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.1Q, 802.1p
Switching capacity104 Gbps
Forwarding rate77.4 Mpps
Packet buffer1.5 MB
Management modesSecure web interface (HTTPS), SNMP v1 and v2c, LLDP 802.1AB, port mirroring
Cloud management platformNone
Layer 2 features802.1Q VLAN (64 VLANs per port), LACP link aggregation (16 groups of 8 links), jumbo frames up to 9,220 bytes, port mirroring, storm protection, auto MDI/MDI-X, DHCP client and server
IP routingNone
Quality of service (QoS)802.1p prioritisation (8 levels to 4 queues), broadcast control
Technical specifications (continued)
Power consumption60 W
Weight2.86 kg
Dimensions (W x D x H)442 x 247.7 x 44.5 mm
Latency100 Mb latency below 8.4 µs (64-byte packets), 1000 Mb latency below 3.2 µs (64-byte packets)
Number of ports29 ports or more
ManagedYes
Security featuresSSL on the web interface, automatic denial-of-service protection, administrator password, Kensington security slot
Power supplyInternal 100-127 V AC / 200-240 V AC power supply
Cooling system1 fan
PoE powerNo
Port speed1 Gbps (Gigabit)
Management levelLayer 2
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How is this 48-port switch managed?
From a web browser: VLANs, link aggregation and traffic prioritisation are configured without a command line. The switch also has a built-in DHCP client and server, so it can hand out addresses without any additional equipment.
What latency does this switch offer?
Less than 3.2 µs at Gigabit and less than 8.4 µs at 100 Mbps, on 64-byte packets. Switching capacity reaches 104 Gbps at 77.4 Mpps, with a 16,000-entry MAC address table.
What are the 4 SFP slots on this model for?
For a fibre uplink, at 100 or 1,000 Mbps with auto-detection. With 48 access ports, it is wise to aggregate several of them to avoid a bottleneck towards the network core.
Which duplex modes do the ports on this switch support?
Gigabit runs in full duplex only; 10 and 100 Mbps support both half and full duplex. This is what the standard requires, and worth knowing when an older device forces a particular mode.
What protections does this switch provide?
Broadcast storm control, flow control and link aggregation, with support for jumbo frames. Power consumption stays limited to 60 W for 48 Gigabit ports.
How much rack space does this switch take up?
442 × 249 × 46 mm and 2.86 kg: 1U high and 25 cm deep, which fits in a deep wall-mount cabinet. It is designed for 19-inch rack mounting.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is the HP 1810-48G, part number J9660A, a web-managed switch with 64 MB of internal memory.
