Zyxel XMG1930-30HP Lite-L3 24-port Managed Switch with 6 Uplinks 10G PoE++/PoE+ (XMG1930-30HP-ZZ0101F)

Ref.: XMG1930-30HP-ZZ0101F

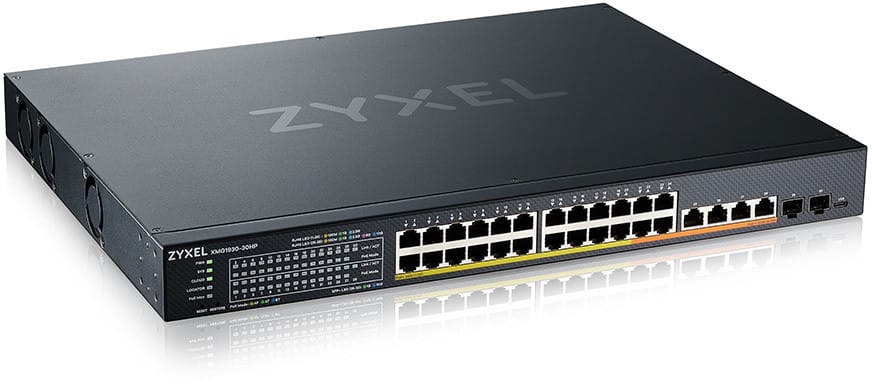

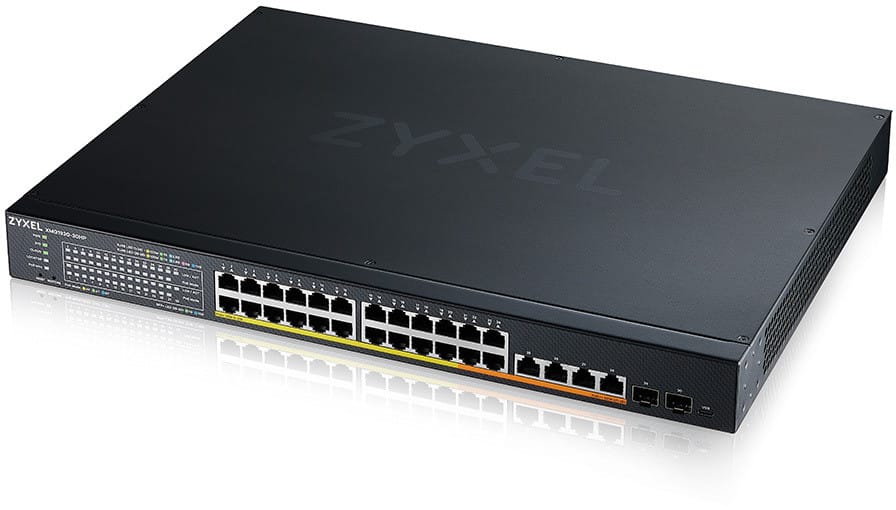

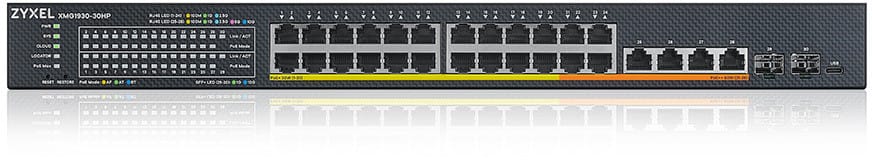

Zyxel XMG1930-30HP Lite-L3 24-port Managed Switch with 6 Uplinks 10G PoE++/PoE+ (XMG1930-30HP-ZZ0101F) — image 1
Zyxel XMG1930-30HP Lite-L3 24-port Managed Switch with 6 Uplinks 10G PoE++/PoE+ (XMG1930-30HP-ZZ0101F) — image 2
Zyxel XMG1930-30HP Lite-L3 24-port Managed Switch with 6 Uplinks 10G PoE++/PoE+ (XMG1930-30HP-ZZ0101F) — image 3
Zyxel XMG1930-30HP Lite-L3 24-port Managed Switch with 6 Uplinks 10G PoE++/PoE+ (XMG1930-30HP-ZZ0101F) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
21 499,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 2,2 Mo — downloadable

Product overview

Zyxel XMG1930-30HP Multi-Gigabit switch: 24 × 2.5G ports and 6 × 10G links with a 700 W PoE budget — built for high-speed Wi-Fi 6/6E and Wi-Fi 7 deployments.
Multi-Gig PoE: 20 × 2.5G PoE+ ports (30 W, 802.3at) + 4 × 2.5G PoE++ ports (60 W, 802.3bt) + 4 × 10G PoE++ ports (60 W) — all over existing Cat 5e cabling. 700 W budget to power Wi-Fi access points, PTZ cameras and IoT devices simultaneously, with no re-cabling.
10G uplinks: 4 Multi-Gig copper ports (1G/2.5G/5G/10G) + 2 × 10G SFP+ slots for fibre links to the network core or a server.
Lite-L3 management: VLAN, QoS, IGMP snooping, static routing, LACP; managed via Nebula cloud or the local web interface.
Form factor: 1U rack-mountable (441 × 330 × 44 mm).
Key specs: 240 Gbit/s switching, 178.5 Mpps forwarding rate, 16K MAC table, STP/RSTP/MSTP, IPv6.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size16,000 entries
Number of VLANsStatic and dynamic 802.1Q VLANs: 1 K / 4 K, up to 4 K IDs, port-based VLAN, voice VLAN and VLAN trunking
Internal memory256 MB RAM, 32 MB flash memory
Interfaces20 RJ45 multi-gigabit 100 Mbps/1/2.5 Gbps PoE+ ports, 4 RJ45 multi-gigabit 100 Mbps/1/2.5 Gbps PoE++ ports, 4 RJ45 1/2.5/5/10 Gbps PoE++ ports, 2 slots for 1 Gbps SFP or 10 Gbps SFP+
PoE ports28 powered ports: 20 PoE+ (802.3at) and 8 PoE++ (802.3bt), up to 60 W per port
Total PoE budget700 W
Network standardsIEEE 802.3z, 802.3ab, 802.3an, 802.3bz, 802.3ae, 802.3af, 802.3at, 802.3bt, 802.3x, 802.3ad, 802.1D, 802.1w, 802.1s, 802.1p, 802.1X
Switching capacity240 Gbps
Forwarding rate178.5 Mpps
Packet buffer2 MB
Management modesWeb interface, Cisco-like CLI, Telnet, Nebula Control Center, SNMP v1/v2c/v3, RMON (1, 2, 3, 9), syslog, LLDP
Cloud management platformZyxel Nebula (NebulaFlex)
Layer 2 features802.1Q VLAN (up to 4 K IDs), voice VLAN, VLAN trunking, GVRP, L2PT, STP/RSTP/MSTP, LACP aggregation (15 groups of 8 links), IGMP snooping v1/v2/v3, loop guard
IP routingStatic and inter-VLAN routing, 32 routes, 32 IP interfaces, table of 512 IPv4 and 512 IPv6 entries, DHCP relay
Stacking and expansionZyxel iStacking management stacking
Quality of service (QoS)8 hardware queues per port, WFQ scheduling, storm control, per-port and policy-based rate limiting
Power consumption864.1 W maximum, 47.8 W idle
Technical specifications (continued)
Weight4.85 kg
Dimensions (W x D x H)441 x 330 x 44 mm
Package contentsPower cord, rack-mount kit
Number of ports19 to 28 ports
ManagedYes
Security features802.1X, MAC-based and per-VLAN MAC-based authentication, port security, static MAC, SSL, policy-based filtering, port isolation, RADIUS (authentication, authorisation, VLAN and bandwidth), CPU protection
Power supplyInternal 100-240 V AC power supply, 50/60 Hz
Cooling systemVariable-speed fan
PoE powerYes
Port speed10 Gbps (10G)
Management levelLayer 3 (inter-VLAN routing)
PoE standardPoE++ (802.3bt, up to 60 W/port)
PoE budgetOver 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How is PoE distributed on the Zyxel XMG1930-30HP?
20 ports at 2.5G in PoE+ at 30 W, 4 ports at 2.5G in PoE++ at 60 W and 4 ports at 10G, also in PoE++, for a total budget of 700 W. Twenty-eight powered ports in all, eight of them for the most power-hungry devices.
Does taking advantage of 2.5 Gbps require recabling?
No: 2.5 Gbps runs over the Cat 5e cabling already in place. That is what makes this switch attractive in a refurbishment: Wi-Fi 6, 6E or 7 access points are no longer held back, without a single cable being removed.
What uplinks does this switch provide?
4 copper Multi-Gigabit ports — 1, 2.5, 5 or 10 Gbps — and 2 SFP+ fibre slots at 10 Gbps. Six high-speed links to the network core or a server, four of them PoE++ powered.
Does this switch route between VLANs?
Yes, in Lite-L3: static routing, with VLANs, quality of service, IGMP snooping and LACP aggregation. This is the level that lets several internal VLANs communicate without installing a dedicated router.
What performance does this switch offer?
240 Gbps of switching capacity and 178.5 Mpps, with a 16,000-entry MAC address table, IPv6 support and STP, RSTP and MSTP spanning tree.
Can this switch be managed from the cloud?
Yes, through the Nebula platform, or locally from the web interface. For devices spread across several buildings, the cloud console saves you from connecting to each switch in turn.
How much rack space does this switch take up?
441 × 330 × 44 mm: 1U high, 33 cm deep, in a 19-inch rack. With 700 W of PoE to distribute, airflow at the front and rear is not optional.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. Full technical details are in the XMG1930-30HP datasheet.
