APC Easy UPS Smart SRV Online UPS, rack-mount, 1600 W / 2000 VA (SRV2KRI)

Only two U in the rack, 18.2 kg, and 11 minutes of runtime at half load (800 W). The connection cords and the rack fixings are included: all that is left is to slide it in and plug it in.

  • Runtime 11 minutes at half load (800 W)
  • Runtime 7 minutes at 70% load (1120 W)
  • 2U height in the rack
  • 4 C13 outlets, the format used by computer and server cords
  • Mains cord with Schuko plug included to connect the UPS to a wall socket
  • Rack mounting fixings included
  • LCD status and control screen
  • USB and RS-232 cables included for automatic server shutdown
  • Free slot for a network management card
  • Sine wave output
  • Automatic and manual internal bypass
  • Full battery recharge in 4 hours
  • Replacement battery APCRBCV201
  • Noise level 50 dB
  • Weight 18.2 kg
Ref.: SRV2KRI

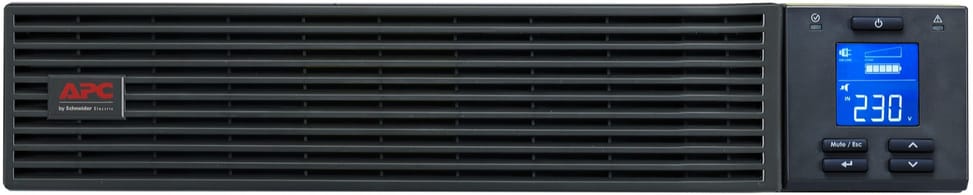

APC Easy UPS Smart SRV Online UPS, rack-mount, 1600 W / 2000 VA (SRV2KRI) — image 1

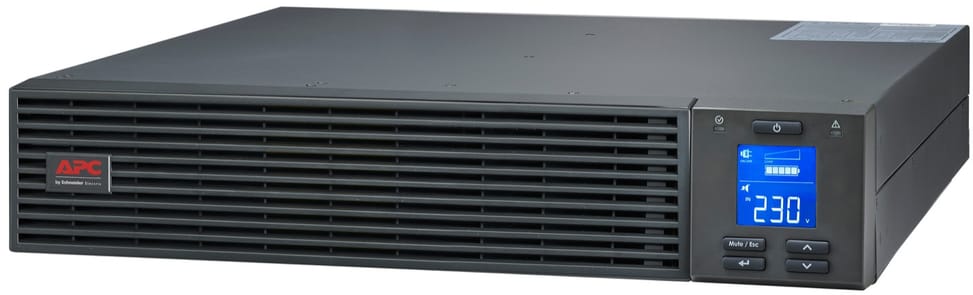

APC Easy UPS Smart SRV Online UPS, rack-mount, 1600 W / 2000 VA (SRV2KRI) — image 2

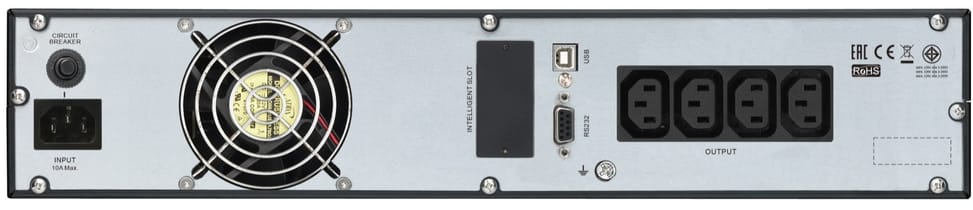

APC Easy UPS Smart SRV Online UPS, rack-mount, 1600 W / 2000 VA (SRV2KRI) — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
11 499,00 DHincl. VAT

Configuration · APC Easy UPS SRV Rack

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 100 Ko — downloadable

Product overview

An online UPS for servers and network racks: online double conversion, 2000 VA / 1600 W, rack-mount.
Technology & protection: power is continuously rebuilt — your servers are never connected directly to the mains, with no transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise.
Power: 2000 VA for 1600 W of real power — one or more servers.
Runtime: about 11 minutes at half load (800 W), 7 minutes at 70%.
Outlets: 4 C13 outlets (computer and server power cords).
Active cooling (≈ 50 dB), to be installed in a rack or technical room.
LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Ideal, for example, for servers, a switch or a NAS.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230 V (220 / 240 V)
Waveform typeSine wave
Output harmonic distortion3 %
Output connections4 IEC 60320 C13 outlets
Input voltage230 V (220 / 240 V)
Input frequency40 - 70 Hz auto-sensing
Input connections1 IEC 60320 C14 inlet
Cord length1.50 m
Voltage range160 - 280 V at full load; 110 - 285 V at half load
Battery typeSealed lead-acid battery, 48 V bus
Typical recharge time4 hours
Interface port1 USB port, 1 RS-232 serial port (DB-9 connector)
User interfaceMultifunction LCD status and control console
Audible alarmAlarm when switching to battery, distinct low-battery alarm, continuous alarm on overload
Weight (kg)18.2 kg (20.7 kg with packaging)
Dimensions (W x D x H) (mm)437 x 462 x 86 mm
Estimated battery service life (years)3 to 5 years
TechnologyOn-line
Power (VA)2,000 VA
Voltage stabiliserYes
Technical specifications (continued)
Box contentsIEC C13 to Schuko power cord · IEC C13 to C14 power cord · USB cable · RS-232 configuration cable · Rack-mount brackets · User manual
Replacement batteryAPCRBCV201
Communication card slot1 slot available for a communication card
Rack height2U
Surge protection and filtering600 J
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass (automatic and manual)
Audible noise50 dBA
Crest factor3:1
Output frequency50/60 Hz +/- 3 Hz, synchronised to mains
Phase (output/input)Single-phase / Single-phase
Double-conversion efficiency88% at full load
Output typeC13 outlets
Power (W)1,600 W
Runtime50% load (800 Watts): 11 minutes / 70% load (1,120 Watts): 7 minutes
Form factorRack
Battery-backed outlets3 to 4 outlets
Control & communicationUSB, RS232 serial port
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Can the SRV2KRI be plugged into an ordinary wall socket?
Yes: a C13 to Schuko cord is included, along with a second C13 to C14 cord. Unlike higher-power UPS units wired to a terminal block, no electrician is needed to put it into service.
How long does the SRV2KRI run on battery?
11 minutes at half load, i.e. 800 W, and 7 minutes at 70%, i.e. 1120 W. A full recharge takes 4 hours, on a 48 V battery rated for 3 to 5 years of service.
How much rack space does the SRV2KRI take up?
2U in height (8.6 cm), 43.7 cm wide and 46.2 cm deep, weighing 18.2 kg. The rack-mounting brackets are included: it is a UPS you mount and plug in, with no accessory to order.
Which outlets does the SRV2KRI have?
Four C13 outlets, the format used by computer and server power cords, for 1600 W of usable power out of the stated 2000 VA. Plan on IEC cords for your machines beyond the one included.
Can the UPS be serviced without powering down the servers?
Yes, an automatic and manual internal bypass keeps power flowing: the automatic one takes over in the event of a fault, and the manual one allows a deliberate transfer to direct mains power for servicing.
What quality of power does the SRV2KRI deliver?
A sine wave, continuously regenerated by double conversion, with a crest factor of 3:1 and an output synchronised at 50/60 Hz ± 3 Hz. Input is accepted from 40 to 70 Hz.
How can the servers powered by the SRV2KRI be shut down automatically?
Through the included USB and RS-232 cables, connected to the USB port or the DB-9 serial port. A free slot also lets you add a network management card to control the UPS remotely.
Is the SRV2KRI battery replaceable?
Yes, under reference APCRBCV201. It is the unit's wear part: after three to five years, it is the battery you replace, not the UPS.
Is the APC Easy UPS SRV2KRI new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It is rated at 50 dBA: with active cooling, it belongs in a rack or a technical room rather than next to a workstation. The datasheet covers the rest.
