APC Smart-UPS RT 15kVA RM Double-Conversion Online UPS 230V

12 kW genuinely available, eight reinforced 16 A outputs and a fixed terminal block connection: the sizing for a complete server room. The batteries are replaced without cutting power to the equipment.

  • Usable power of 12 kW
  • 8 C19 outputs, reinforced 16 A outlets for power-hungry equipment
  • Terminal block connection: fixed wiring, to be installed by an electrician
  • Single-phase 230 V or three-phase 400 V input depending on the installation
  • Sine wave output
  • Hot-swappable batteries, without shutting down the connected devices
  • Additional battery modules to extend runtime
  • PowerView LCD display: load, battery level and remaining runtime
  • RS-232 serial port and SmartSlot for monitoring
  • RJ-45 10/100 network port for remote monitoring
  • Emergency power off switch (EPO)
  • Full recharge in 2 h 30
  • Input voltage accepted from 160 to 280 V
  • Sealed lead-acid batteries, maintenance-free
Ref.: SURT15KRMXLI

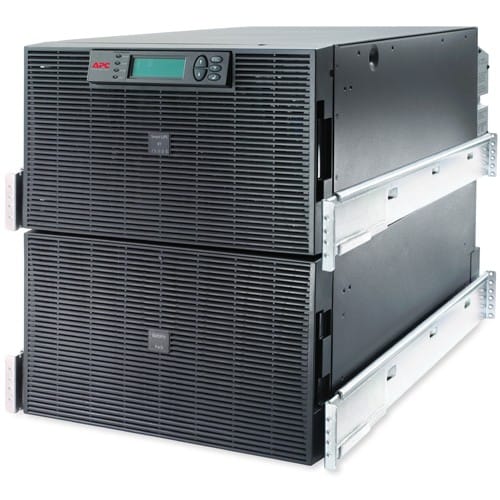

APC Smart-UPS RT 15kVA RM Double-Conversion Online UPS 230V — image 1

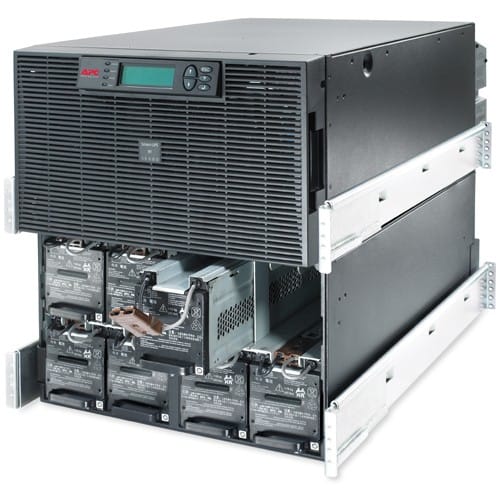

APC Smart-UPS RT 15kVA RM Double-Conversion Online UPS 230V — image 2

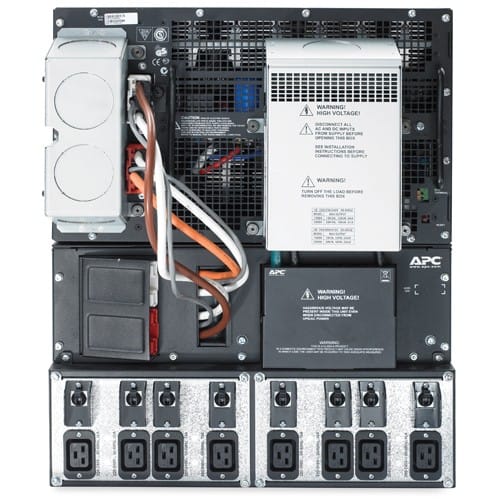

APC Smart-UPS RT 15kVA RM Double-Conversion Online UPS 230V — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
207 699,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 1,7 Mo — downloadable

Product overview

Very high-power online UPS for critical infrastructure: online double-conversion, 12 kW / 15 kVA, 6U stack/rack chassis.
Technology & protection: power is fully regenerated, continuously — the equipment never touches the mains, with no transfer time. Maximum protection against power cuts, surges, voltage fluctuations and electrical noise.
Power: 15 kVA for 12 kW — sized for server racks and industrial equipment.
Ports: terminal-block connection (fixed wiring by an electrician); single-phase or three-phase input depending on the installation.
Management: RS-232 serial port, network management card and a port for network access; emergency power off (EPO) switch.
Additional battery modules and hot-swap batteries, replaceable without switching off your equipment.
LCD display (PowerView module): shows load, battery level and remaining runtime — monitor the UPS without any software.
Designed, for example, for data centres and critical infrastructure.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230V
Waveform typeSine wave
Output connections(1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G), (8) IEC 320 C19, (2) IEC Jumpers
Input voltage230V, 400V 3PH
Input frequency40 - 70 Hz (auto-sensing)
Input connectionsHard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Voltage range160 - 280V
Maximum input current90 A
Input circuit breaker rating100.0 A
Battery typeSealed maintenance-free lead-acid batteries with suspended electrolyte
Typical recharge time2.50 hours
Interface portDB-9 RS-232, RJ-45 10/100 Base-T, SmartSlot
User interfaceMultifunction LCD status and control console
Audible alarmYes
Weight (kg)66 kg (247.73 kg with an XL battery pack)
Dimensions (W x D x H) (mm)432 x 773 x 533
Technical specifications (continued)
TechnologyOn-line
Power (VA)15,000 VA
Voltage stabiliserYes
Communication card slot1 SmartSlot; network management card installed
Rack height6U
Transfer/switching time0 ms (continuous double conversion)
Cold startYes
BypassInternal bypass; optional maintenance bypass
Phase (output/input)Single-phase or three-phase / Single-phase or three-phase (configurable)
Output typeTerminal block
Power (W)12,000 W
External battery packsSURT192RMXLBP2 external battery packs (optional)
Form factorRack
Battery-backed outlets5 to 8 outlets
Control & communicationRS232 serial port, Network (SNMP / monitoring), Card slot
Warranty2 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does the Smart-UPS RT 15 kVA connect via sockets or a terminal block?
Via a terminal block on the input: either 3-wire single-phase or 5-wire three-phase, depending on the installation. It is fixed wiring, to be done by an electrician, with a 100 A input circuit breaker to be provided.
What outputs does the Smart-UPS RT 15 kVA offer?
Eight heavy-duty 16 A C19 outlets, two IEC jumpers, and two terminal block outputs — one 3-wire, the other 5-wire. C19 is the format used by high-current equipment, blade chassis and storage arrays.
How much does the Smart-UPS RT 15 kVA weigh?
247.7 kg, for a 432 × 773 × 533 mm chassis. At this weight, installation requires handling equipment, a floor that has been checked and clear access all the way to the room: this is the first point to sort out.
Can the batteries be changed without shutting down the equipment?
Yes, they are hot-swappable, without switching off the connected devices. Additional battery modules can also extend the runtime, and a full recharge takes 2 h 30.
Why does 15 kVA give only 12 kW?
The power factor is 0.8: 12 kW actually available. Compare this figure in watts with the combined consumption of the server room — it is what determines the load the UPS can carry.
What input voltage range does the UPS accept?
160 to 280 V, with an auto-sensed frequency of 40 to 70 Hz. In double conversion, the output remains a sine wave whatever the quality of the incoming grid.
How is the Smart-UPS RT 15 kVA monitored?
Through a DB-9 RS-232 serial port, a 10/100 RJ-45 network port for remote monitoring, and a SmartSlot. A PowerView LCD screen on the front panel shows the load, battery level and remaining runtime.
Can the UPS be shut off in an emergency?
Yes, an emergency power-off (EPO) switch is provided: in a single action, it cuts power to everything connected. This is a common requirement in a regulated electrical room.
Is the APC Smart-UPS RT 15 kVA new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years. Its batteries are maintenance-free sealed lead-acid, and the UPS accepts a 230 V single-phase or 400 V three-phase input depending on the installation. The datasheet covers the rest.
