Sized for several server racks and industrial equipment: 16 kW genuinely available, eight reinforced 16 A outputs, and a single-phase or three-phase input depending on what you have.
Usable power of 16 kW
8 C19 outputs, reinforced 16 A outlets for power-hungry equipment
Terminal block connection: fixed wiring, to be installed by an electrician
Single-phase 230 V or three-phase 400 V input depending on the installation
Input voltage regulation, useful on an unstable mains supply
Sine wave output
Multifunction LCD status and control console
RS-232 serial port and SmartSlot for monitoring
RJ-45 10/100 network port for remote monitoring
Full recharge in 2 h 30
Input voltage accepted from 160 to 280 V
Sealed lead-acid batteries, maintenance-free
Ref.: SURT20KRMXLI
Out of stock
1/3
223 199,00 DHincl. VAT
Out of stock
Product overview

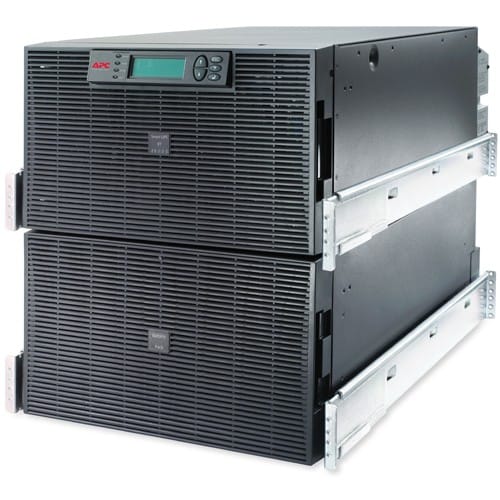

Very high-power online UPS for critical infrastructure: online double-conversion technology, 16 kW / 20 kVA, rack chassis. Technology & protection: power is fully regenerated, continuously — your equipment is never connected directly to the mains, with no transfer time at all. Complete protection against power cuts, surges, voltage fluctuations and electrical noise. Power: 20 kVA for 16 kW — sized to power server cabinets, several racks and industrial equipment. Ports: heavy-duty C19 outputs and terminal-block connection; single-phase or three-phase input depending on the installation. Management: RS-232 serial port and slot for a network management card. Designed, for example, for data centres and technical rooms. Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

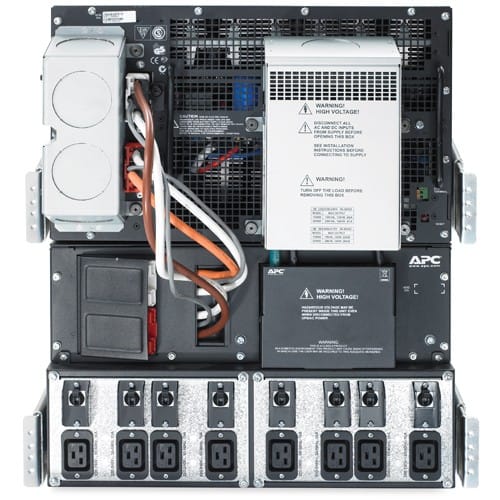

(1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G), (8) IEC 320 C19, (2) IEC Jumpers
Input voltage
230V, 400V 3PH
Input frequency
40 - 70 Hz (auto-sensing)
Input connections
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
Voltage range
160 - 280V
Maximum input current
115 A
Input circuit breaker rating
125.0 A

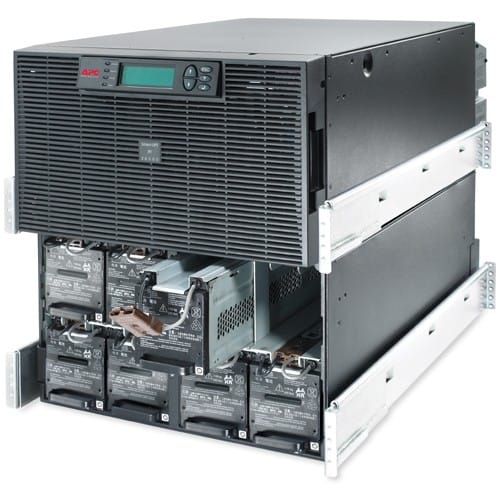

Battery type
Sealed maintenance-free lead-acid batteries with suspended electrolyte
Typical recharge time
2.50 hours
Interface port
DB-9 RS-232, RJ-45 10/100 Base-T, SmartSlot
User interface
Multifunction LCD status and control console
Audible alarm
Yes
Weight (kg)
66 kg (247.73 kg with an XL battery pack)
Dimensions (W x D x H) (mm)
432 x 773 x 533
Technical specifications (continued)
Technology
On-line
Power (VA)
20,000 VA
Voltage stabiliser
Yes
Communication card slot
1 SmartSlot; network management card installed
Rack height
6U
Transfer/switching time
0 ms (continuous double conversion)
Cold start
Yes
Bypass
Internal bypass; optional maintenance bypass
Phase (output/input)
Single-phase or three-phase / Single-phase or three-phase (configurable)
Output type
Terminal block
Power (W)
16,000 W
External battery packs
SURT192RMXLBP2 external battery packs (optional)
Form factor
Rack
Battery-backed outlets
5 to 8 outlets
Control & communication
RS232 serial port, Network (SNMP / monitoring), Card slot
Warranty
1 year
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Does the Smart-UPS RT 20 kVA connect via a terminal block?
Yes, on both input and output: either 3-wire single-phase (230 V) or 5-wire three-phase (400 V), depending on the installation. It is fixed wiring, to be done by an electrician, with a 125 A input circuit breaker.
What outputs does the Smart-UPS RT 20 kVA offer?
Eight heavy-duty 16 A C19 outlets, two IEC jumpers, and two terminal block outputs — one 3-wire, the other 5-wire. C19 is the format used by high-current equipment.
Why does 20 kVA give only 16 kW?
The power factor is 0.8: 16 kW actually available. Compare this figure in watts with the combined consumption of your server racks — it is what determines the load the UPS can carry.
How much does the Smart-UPS RT 20 kVA weigh?
247.7 kg, for a 432 × 773 × 533 mm chassis. At this weight, installation requires handling equipment, a floor that has been checked and clear access all the way to the room — this is the point to sort out even before the wiring.
What input voltage range does the UPS accept?
160 to 280 V, with an auto-sensed frequency of 40 to 70 Hz, and input voltage regulation. In double conversion, the output remains a sine wave whatever the quality of the grid.
How is the Smart-UPS RT 20 kVA monitored?
Through a DB-9 RS-232 serial port, a 10/100 RJ-45 network port for remote monitoring, and a SmartSlot. A multifunction LCD console on the front panel serves as both status display and control station.
How long does it take to recharge the batteries?
2 h 30 for a full recharge, on maintenance-free sealed lead-acid batteries with suspended electrolyte. That is fast for this power rating.
Is the APC Smart-UPS RT 20 kVA new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It accepts a 230 V single-phase or 400 V three-phase input depending on the installation, and delivers 230 V on the output. An audible alarm signals changes of state.
