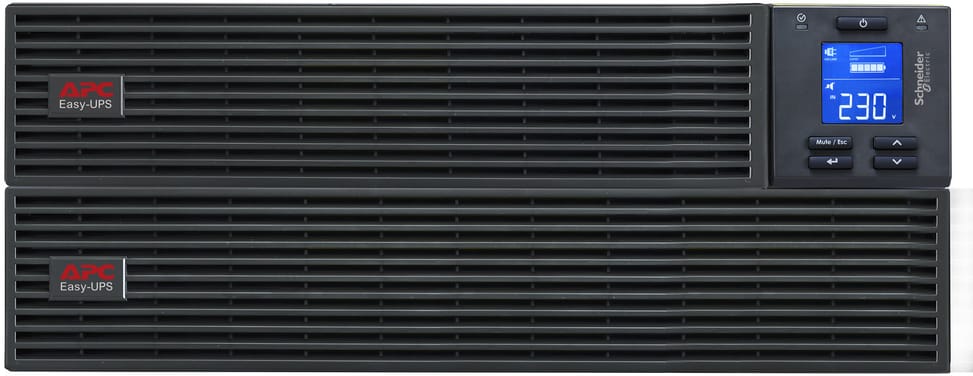

30 minutes of runtime at half load (1200 W) and 20 minutes at 70%: enough to ride out a long power cut or to shut down a rack without rushing. The LCD display shows the load, the battery level and the remaining time.
Runtime: 30 min at 50% load (1200 W), 20 min at 70% (1680 W)
C13 outlets: the format of computer and server cords
C19 outlet: reinforced 16 A outlet for a power-hungry device
An extended-runtime online UPS for servers and network racks: online double conversion, 3000 VA / 2400 W, rack-mount. Technology & protection: power is continuously rebuilt — the servers never touch the mains, with no transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise. Power: 3000 VA for 2400 W of real power. Runtime: about 30 minutes at half load (1200 W), 20 minutes at 70% — long runtime, ideal where outages drag on. Outlets: 6 C13 outlets + 1 heavy-duty C19 outlet. Rack-mount; active cooling (≈ 50 dB). LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software. Ideal, for example, for servers or network equipment. Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How long does the SRV3KRIL run on battery?
30 minutes at half load, i.e. 1200 W, and 20 minutes at 70%, i.e. 1680 W. That is substantial runtime: it lets you ride out a long outage rather than shut down in a hurry.
Can the SRV3KRIL be plugged into a socket?
Yes, input is through an ordinary C14 inlet — no fixed wiring and no electrician, unlike higher-power UPS units wired to a terminal block. The accepted voltage ranges from 160 to 280 V at full load.

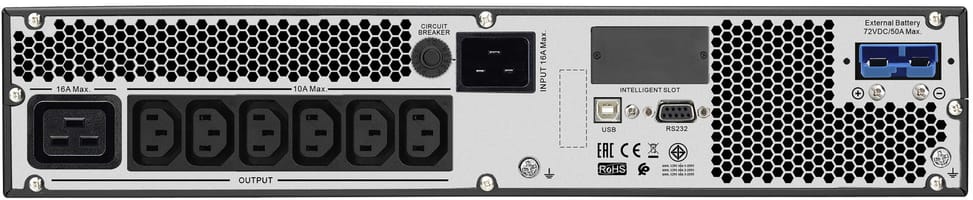

Which outlets does the SRV3KRIL have?
Six C13 outlets and one heavy-duty 16 A C19 outlet, reserved for power-hungry equipment — blade chassis or storage arrays. The output voltage can be set to 220, 230 or 240 V.
How much power can the SRV3KRIL handle?
2400 W, for the stated 3000 VA. It is this wattage that must be compared with the combined consumption of your servers — and the more headroom you leave, the longer the runtime.
Is the output of the SRV3KRIL a pure sine wave?
Yes, the output is a sine wave, with harmonic distortion of 3% and a crest factor of 3:1. Double conversion continuously regenerates the power, with no transfer time.
How much rack space does the SRV3KRIL take up?
17.2 cm high by 43.7 wide, and above all 63.2 cm deep: measure the cabinet before ordering. It weighs 52 kg, goes at the bottom of the rack, and the mounting kit is required.
Can the SRV3KRIL be serviced without powering down the servers?
Yes, an automatic and manual internal bypass lets mains power flow through to the equipment during servicing. Three distinct alarms signal battery mode, low battery and overload.
How long does it take to recharge the SRV3KRIL?
5 hours 30 minutes for a full recharge, on a maintenance-free 72 V sealed lead-acid battery rated for 3 to 5 years of service.
Where should the SRV3KRIL be installed?
In a rack or a technical room: it is rated at 50 dBA, with active cooling, and dissipates 910 BTU/h. Its efficiency of 88% at full load explains this heat, which must be able to escape.
Is the APC Easy UPS SRV3KRIL new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 2 years. The USB cable and the monitoring software CD are included, and surge protection reaches 600 joules. The datasheet covers the rest.
Twenty minutes of runtime at half load (2 400 W), extended to several hours with up to four external battery cabinets. The standard maintenance bypass allows the unit to be swapped without shutting down the equipment.
•Around 20 minutes of runtime at half load (2 400 W)
•Runtime extendable with one to four external battery cabinets
•Internal bypass and maintenance bypass as standard
Every outlet is battery-backed, with around 11 minutes of runtime at half load (990 W). Automatic and manual internal bypass, LCD screen and a detachable 2.44 m cord supplied.
Floor-standing, 68.5 cm high and 54 kg: the tower version, for when there is no rack. Around 11 minutes of runtime at half load (3000 W) and 94% efficiency at full load.
Built-in network card: monitoring and control happen remotely, from the company network. 1980 W genuinely available and ten output sockets, two of them reinforced 16 A, in a chassis meant for the rack.
Four U in a rack and a battery recharged in 3 hours: it is ready to go again quickly after a cut. Around 11 minutes of runtime at half load (3000 W) and 7 minutes at 70%.
Doubling the runtime comes down to one extra battery cabinet: 9 minutes at half load become 23 minutes. The 16 12 V batteries are chosen and ordered separately.
Up to four external battery modules extend the 10.5 minutes of runtime at half load. The 2U rack mounting kit, the output cords and the USB cable are included.
•Runtime: 10.5 min at half load, 3.5 min at full load
•Runtime extendable by up to 4 external battery modules
•C13 outlets: the format of computer and server power cords
A maintenance bypass supplied as standard allows the UPS to be replaced without shutting down the equipment it powers. Around 15 minutes of runtime at half load (4 000 W), extendable with four battery cabinets.
•Around 15 minutes of runtime at half load (4 000 W)
•Runtime extendable with one to four external battery cabinets
Nineteen minutes of runtime at half load, extended to fifty with an additional battery cabinet. The 16 12 V batteries are chosen and ordered separately.
For a whole infrastructure: 9 minutes of runtime at half load (5000 W) and 5 minutes at 70%, the time it takes to switch over to a generator. 94% efficiency at full load and internal bypass.
•Runtime 9 minutes at 50% load (5000 W)
•
•Around 11 minutes of runtime at 50% load (990 W), 7 minutes at 70% (1 386 W)
•All output outlets are battery-backed
•C13 outlets in the format used by computer and server power cords, C19 outlets heavy-duty at 16 A
In stock
19 499 DHincl. VAT19 499,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Runtime 7 minutes at 70% load (4200 W)
•Tower format, floor-standing
In stock
18 599 DHincl. VAT18 599,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
•
Built-in network card to monitor and control the UPS remotely
•1980 W genuinely available
•8 C13 outlets, the format of computer and server power cords
In stock
27 099 DHincl. VAT27 099,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
•
Runtime 7 minutes at 70% load (4200 W)
•Height 4U in a rack
In stock
27 299 DHincl. VAT27 299,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Runtime with the 16 internal batteries: 9 min at 50% load, 23 min at 25%
•With an additional battery cabinet: 23 min at 50% load, 60 min at 25%
•Batteries to be ordered separately: 16 12 V batteries of 7 or 9 Ah
In stock
16 299 DHincl. VAT16 299,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
In stock
14 799 DHincl. VAT14 799,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
•Internal bypass and maintenance bypass as standard
In stock
29 999 DHincl. VAT29 999,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
•Runtime with the 16 internal batteries: 19 min at 50% load, 50 min at 25%, 6 min at full load
•With an additional battery cabinet: 50 min at 50% load, 115 min at 25%
•Batteries to be ordered separately: 16 12 V batteries of 7 or 9 Ah
2400 W genuinely available and 13.5 minutes of battery life at half load (1200 W): time enough to save and shut down cleanly. Under 37 dB, it can stay beside the workstation it protects.
Up to four external battery modules extend the 10.5 minutes of runtime at half load. The 2U rack mounting kit, the output cords and the USB cable are included.
•Runtime: 10.5 min at half load, 3.5 min at full load
•Runtime extendable by up to 4 external battery modules
16 minutes of runtime at half load (800 W), and under 37 dB: it can sit next to a workstation without being heard. Its batteries are replaced without cutting the power.
•16 minutes of runtime at half load (800 W)
•7 minutes of runtime at full load
•6 C13 outlets, the format used by computer and server cords
Every outlet is battery-backed, with around 11 minutes of runtime at half load (990 W). Automatic and manual internal bypass, LCD screen and a detachable 2.44 m cord supplied.
Built-in network card: monitoring and control happen remotely, from the company network. 1980 W genuinely available and ten output sockets, two of them reinforced 16 A, in a chassis meant for the rack.
26 minutes of runtime for 400 W drawn, 12 minutes at half load (800 W): ample time to save and shut down cleanly. The LCD display shows the load and the remaining runtime without any software.
Quiet at under 37 dB, it holds 11.5 minutes at half load (400 W): enough to save and shut down a NAS or a small server without losing anything. Its batteries are replaced without cutting the power.
•11.5 minutes of runtime at half load (400 W)
•5 minutes of runtime at full load
•4 C13 outlets, the format used by computer and server cords
All the power available in watts: 10,000 W usable, as many as the VA. Around 7 minutes of runtime at half load (5000 W) to shut down a full rack cleanly, in only 4U.
Power factor of 1: all 8 000 W stated are available. Ten battery-backed outlets, four of them heavy-duty 16 A, and the Web/SNMP network management card is included.
•8 000 W usable output (power factor of 1)
•6 C13 outlets, the format used by computer and server power cords, all battery-backed
Ten battery-backed outlets, four of them heavy-duty 16 A, for 4 500 W usable and around 11 minutes of runtime at half load (2 250 W). The Web/SNMP management card is included.
•4 500 W usable output (power factor of 0.9)
•Around 11 minutes of runtime at 50% load (2 250 W), 7 minutes at 70% (3 150 W)
