Huawei eKitEngine S310-48P4X 48-Port Switch (98012385)

Densify a business network with no compromise on performance: a generous PoE+ budget for a whole installation of cameras or Wi-Fi access points, and 10 Gbps fibre links to the network core.

  • 48 Gigabit PoE+ ports (10/100/1000BASE-T)
  • 4 SFP+ 10 Gbps ports (fibre)
  • PoE+ budget 380 W
  • Managed switch (VLAN, QoS, security)
  • eKitEngine cloud management
  • 1U rack-mountable metal housing
  • Intelligent heat dissipation, surge protection
  • Typical consumption 49.44 W
Ref.: 98012385

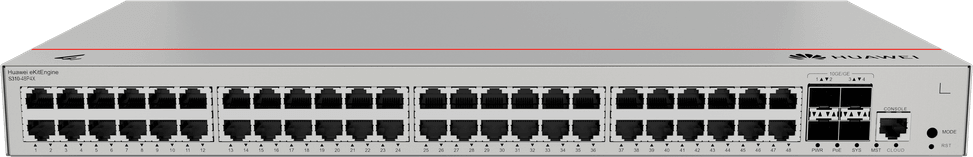

Huawei eKitEngine S310-48P4X 48-Port Switch (98012385) — image 1

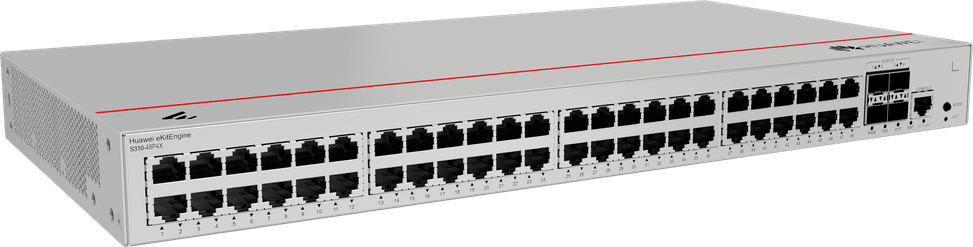

Huawei eKitEngine S310-48P4X 48-Port Switch (98012385) — image 2
Huawei eKitEngine S310-48P4X 48-Port Switch (98012385) — image 3

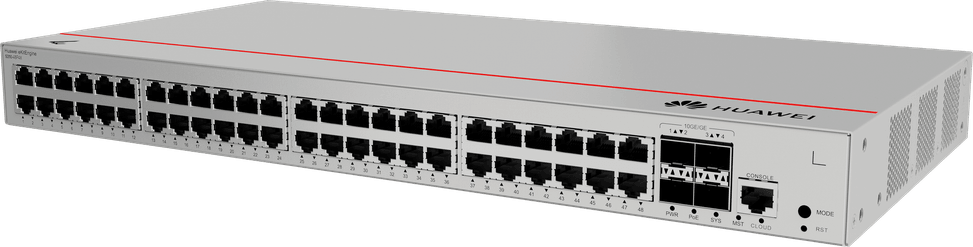

Huawei eKitEngine S310-48P4X 48-Port Switch (98012385) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
8 899,00 DHincl. VAT

Configuration · Huawei eKitEngine S310

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

Huawei eKitEngine S310-48P4X managed switch: 48 Gigabit PoE+ ports and 4 × 10 Gbit/s SFP+ ports in a 1U metal enclosure to scale up a business network with no compromise on performance.
Ports: 48 × 10/100/1000BASE-T PoE+ ports to power a large installation of IP cameras or Wi-Fi access points, plus 4 × 10GE SFP+ ports (fibre) for ultra-fast uplinks.
PoE+: 380 W total budget — the whole access layer is powered over the network cable, with no extra electrical cabling at each workstation.
Reliability & form factor: metal enclosure, 1U rack-mountable, intelligent heat dissipation, surge protection; typical power consumption 49.44 W.
Also: managed (VLAN, QoS, security), eKitEngine cloud management, flexible deployment for modern infrastructures.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size16,000 entries
Number of VLANs4,094 VLANs, voice VLAN and MUX VLAN
Interfaces48 x 10/100/1000BASE-T PoE+ ports, 4 SFP+ 10GE ports
PoE ports48 PoE+ ports
Total PoE budget380 W
Network standardsIEEE 802.1d, 802.1w, 802.1s, ITU-T G.8032
Switching capacity176 Gbps
Forwarding rate131 Mpps
Management modesWeb interface, CLI, SSH v2.0, SNMP v1/v2c/v3, RMON
Cloud management platformHUAWEI eKit (cloud management)
Layer 2 featuresiStack stacking, VBST, MUX VLAN, LACP aggregation, IGMP snooping
IP routingStatic routing and policy-based routing, 512 FIBv4 and 512 FIBv6 entries
Stacking and expansioniStack stacking
Quality of service (QoS)Rate limiting, packet redirection, 8 queues per port, DRR, SP or DRR+SP scheduling
Power consumption462.8 W maximum with 380 W PoE load, 64.7 W without PoE
Weight4.29 kg with packaging
Technical specifications (continued)
Dimensions (W x D x H)442 x 220 x 43.6 mm
Number of ports29 ports or more
ManagedYes
Security featuresHierarchical user management, DoS/ARP/ICMP defence, IP-MAC-port-VLAN binding, port isolation and security
Power supplyInternal 100-240 V AC power supply, 50/60 Hz
Cooling systemVariable-speed fans
Operating temperature-5 to 50 °C
Operating humidity5 to 95%, non-condensing
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelWeb interface (Smart)
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budget251 to 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How are the 380 W of PoE+ shared across 48 ports?
380 W shared across the 48 ports, all 10/100/1000BASE-T, each PoE+ compliant up to 30 W. Around thirty cameras at 12 W already use up most of it: it is the budget, not the number of sockets, that determines the size of the project.
How much power does this switch draw, excluding the power it supplies to devices?
49.44 W in typical use, with the rest of the power going to the cameras and access points it powers. The 1U rack-mountable metal casing features intelligent heat dissipation and surge protection.
What are the 4 SFP+ ports on this model for?
They are the 10 Gbps uplinks to the network core: 48 access ports do not bottleneck on a single Gigabit output. Optical modules are chosen according to the distance and the type of fibre.
Can this switch be managed remotely?
Yes, through Huawei's eKitEngine cloud: configuration, monitoring and diagnostics with no need to travel to the site. The management features cover VLANs, quality of service and access network security.
Is this switch suited to a demanding equipment room?
Its 1U rack-mountable metal casing, intelligent heat dissipation and surge protection make it designed for continuous operation in a rack — the profile you would expect from a campus access switch powering 48 devices.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is Huawei reference 98012385, model eKitEngine S310-48P4X, not to be confused with the more compact S310S models.
