Eaton 9PX 1000 VA Online UPS - RT2U (9PX1000IRT2U)

Twenty-eight minutes of runtime at half load (500 W), and up to four hot-swappable battery modules to last several hours. Under 35 dB in operation, so bearable in an office.

  • Runtime of 28 minutes at half load (500 W)
  • 1000 W genuinely available, power factor of 1
  • Up to 4 additional battery modules, hot-swappable
  • 8 C13 outlets, the format used by computer and server power cords
  • USB port and RS-232 serial port for automatic server shutdown
  • Slot for an SNMP, Modbus or dry contact network card
  • 2 controllable outlet groups: secondary equipment shuts down first
  • Internal bypass: power still flows if the UPS fails
  • ABM charge management, which extends battery service life
  • Pure sine wave output
  • Multilingual graphic LCD display
  • Convertible: 2U rack or tower mounting, brackets included
  • Noise level below 35 dBA
  • Weight 17.4 kg
Ref.: 9PX1000IRT2U

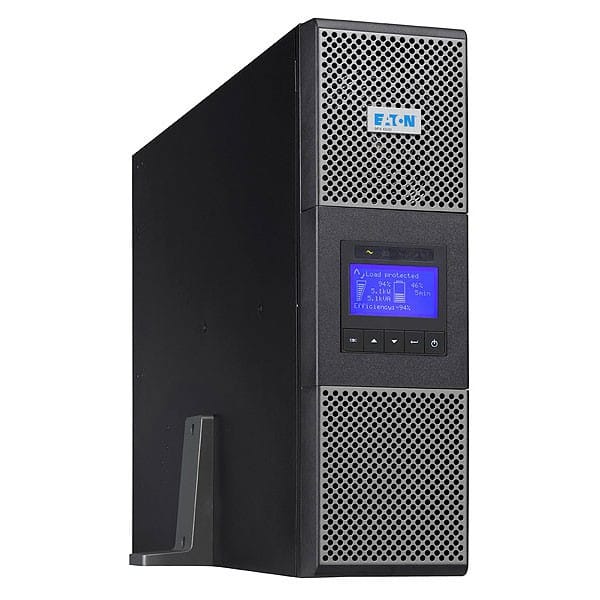

Eaton 9PX 1000 VA Online UPS - RT2U (9PX1000IRT2U) — image 1
Eaton 9PX 1000 VA Online UPS - RT2U (9PX1000IRT2U) — image 2

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/2
15 499,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 86 Ko — downloadable

Product overview

A high-end online UPS, convertible between rack and tower: online double conversion, 1000 VA / 1000 W, 2U format.
Technology & protection: power is fully and continuously regenerated — your servers are never exposed to the mains, with zero transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise.
Power: 1000 VA for 1000 W of real power — its power factor of 1 makes all of the rated power available in watts, where a conventional UPS loses almost half of it.
Runtime: about 28 minutes at half load (500 W) — outstanding runtime, extendable with additional battery modules.
Outlets: 8 C13-type outlets (the standard computer and server power cord).
Management: USB and RS-232 serial ports for automatic shutdown; slot for an SNMP network card. Graphical LCD display. Quiet operation (under 35 dB).
Ideal, for example, for a server, a NAS or network equipment.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage200/208/220/230/240 V
Waveform typeSine wave
Output connections8 IEC C13 outlets (10 A)
Input voltage200/208/220/230/240 V
Input frequency50 / 60 Hz auto-selecting (40 - 70 Hz), frequency converter mode
Input connections1 IEC C14 inlet (10 A)
Voltage range176 - 276 V without derating (up to 100 - 276 V with derating)
Battery replacementUser-replaceable, hot-swappable (no power interruption)
Battery managementABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, automatic recognition of external batteries
Interface port1 USB port, 1 RS232 serial port, 1 remote ON/OFF mini terminal block, 1 remote power-off mini terminal block, 1 output relay mini terminal block

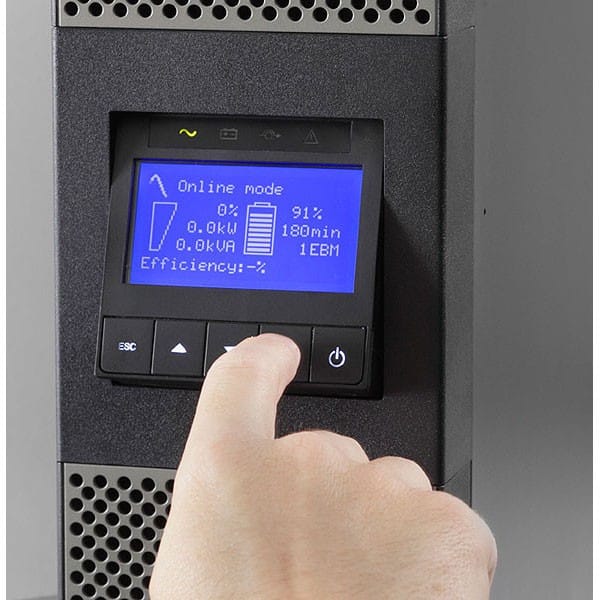

User interfaceMultilingual graphic LCD display
Audible alarmYes
Power management softwareEaton Intelligent Power
Weight (kg)17.4 kg
Dimensions (W x D x H) (mm)440 x 450 x 86.5 mm
TechnologyOn-line
Power (VA)1,000 VA
Voltage stabiliserYes
Box contents9PX uninterruptible power supply 2 IEC output power cords USB cable Serial cable 2 brackets for 19-inch mounting 2 universal rails 2 brackets for tower mounting Cable locking systems Safety guide Quick start
Technical specifications (continued)
Communication card slot1 slot for Network-MS, ModBus-MS or Relay-MS card (optional)
Rack height2U
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass
Audible noise< 35 dBA
Power factor (ratio)1
Input power factorInput power factor correction (PFC), ratio not published by the manufacturer
Output frequency50 - 60 Hz
Phase (output/input)Single-phase / Single-phase
Eco mode efficiency97.5% in high-efficiency mode
Double-conversion efficiencyUp to 91.5% in online mode
Output typeC13 outlets
Power (W)1,000 W
Runtime28 min at 300 W; 16 min at 500 W; 9 min at 800 W
External battery packsUp to 4 hot-swappable external battery modules (EBM 9PXEBM48RT2U)
Form factorConvertible rack/tower
Battery-backed outlets5 to 8 outlets
Control & communicationUSB, RS232 serial port, Card slot
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the 9PX 1000 RT2U run on battery?
28 minutes at half load, i.e. 500 W. That is exceptionally long for this power rating, and runtime can reach several hours with up to four hot-swappable battery modules.
Does this 1000 VA UPS really deliver 1000 W?
Yes: the power factor is 1, so all of the apparent power is available in watts. On a conventional UPS with a 0.7 power factor, only 700 would remain.
What does ABM charge management bring on the 9PX 1000?
It only recharges the batteries when necessary, instead of keeping them on permanent charge: this prevents plate corrosion and extends their service life.
What are the controllable outlet groups for?
To switch off secondary equipment first during an outage: two groups can be controlled separately, which reserves the whole battery for critical machines. That is extra runtime with no additional hardware.
What outlets does the 9PX 1000 RT2U have?
Eight C13 outlets on the output, with a C14 input. Two IEC output cords are supplied, along with the rack and tower mounting brackets and a cable locking system.
Can a 1000 VA online UPS stay in an office?
This one, yes: it is rated at less than 35 dBA, remarkably low for a double-conversion unit. Allow for 17.4 kg for a 2U chassis 440 mm wide and 450 mm deep.
Does power still get through if the UPS breaks down?
Yes, an internal bypass lets mains power through to the equipment. The unit also accepts an input of 176 to 276 V before drawing on its battery.
Is the Eaton 9PX 1000 RT2U (9PX1000IRT2U) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It delivers a pure sine wave output, shows its status on a multilingual graphic LCD screen and has a slot for a Network-MS, ModBus-MS or Relay-MS card. The datasheet covers the rest.
