APC Smart-UPS RT 5kVA 230V Double-Conversion Online UPS (SRTG5KXLI)

Additional battery modules extend runtime well beyond the 10 minutes held at half load (2500 W). 5000 W genuinely usable, with two batteries already fitted as standard.

  • Usable power 5000 W
  • Battery life 10 minutes at half load (2500 W)
  • Battery life 3 minutes 30 at full load
  • Runtime extendable with SRTG192XLBP4 battery modules
  • 2 pre-installed batteries
  • 2 C13 outlets, the format of computer and server power cords
  • 1 reinforced 16 A C19 outlet for power-hungry equipment
  • 3-wire terminal block output also available: fixed wiring by an electrician
  • Sine wave output
  • Automatic and manual internal bypass
  • LCD status and control display
  • Emergency power off button (EPO)
  • Rack mounting with a kit
  • Full battery recharge in 4 hours
  • Noise level 55 dB: to be installed in a technical room
Ref.: SRTG5KXLI

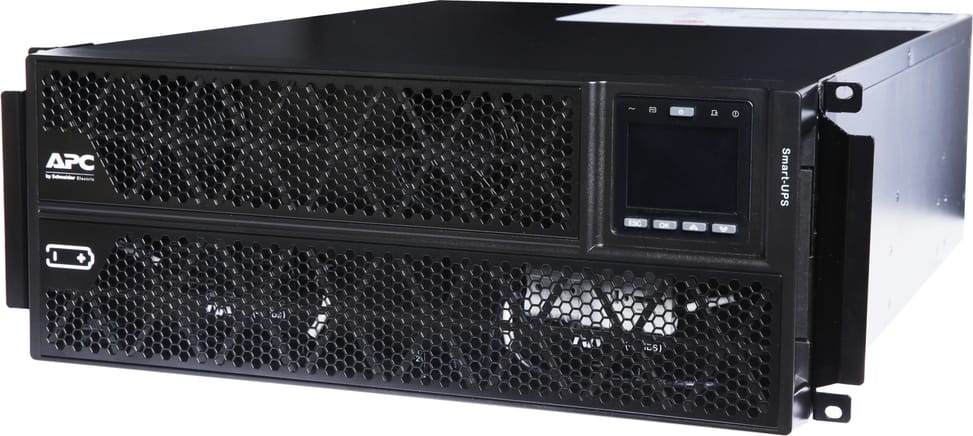

APC Smart-UPS RT 5kVA 230V Double-Conversion Online UPS (SRTG5KXLI) — image 1

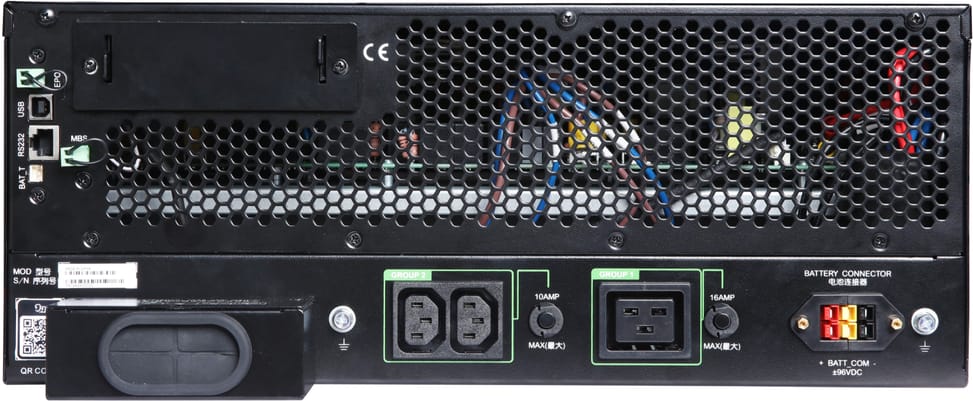

APC Smart-UPS RT 5kVA 230V Double-Conversion Online UPS (SRTG5KXLI) — image 2

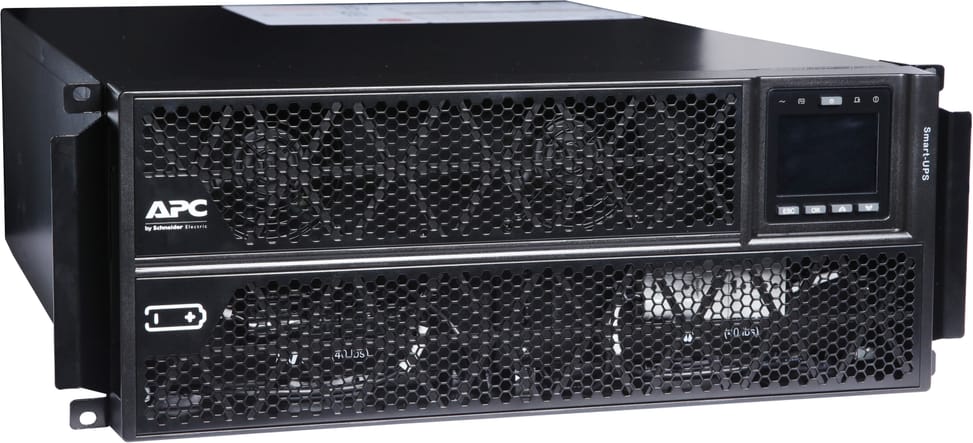

APC Smart-UPS RT 5kVA 230V Double-Conversion Online UPS (SRTG5KXLI) — image 3

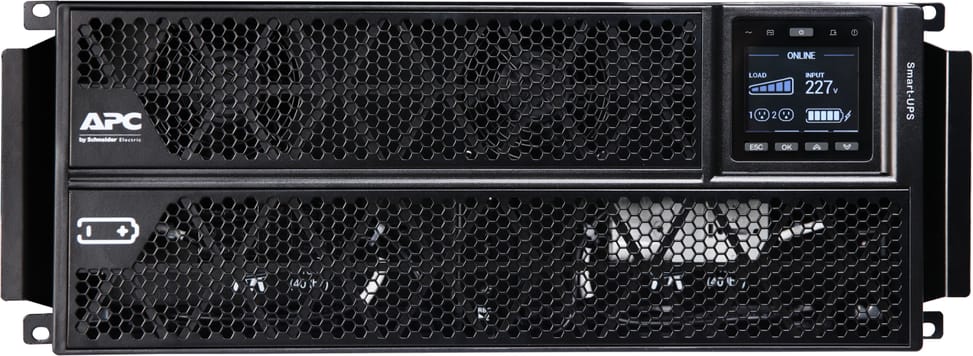

APC Smart-UPS RT 5kVA 230V Double-Conversion Online UPS (SRTG5KXLI) — image 4

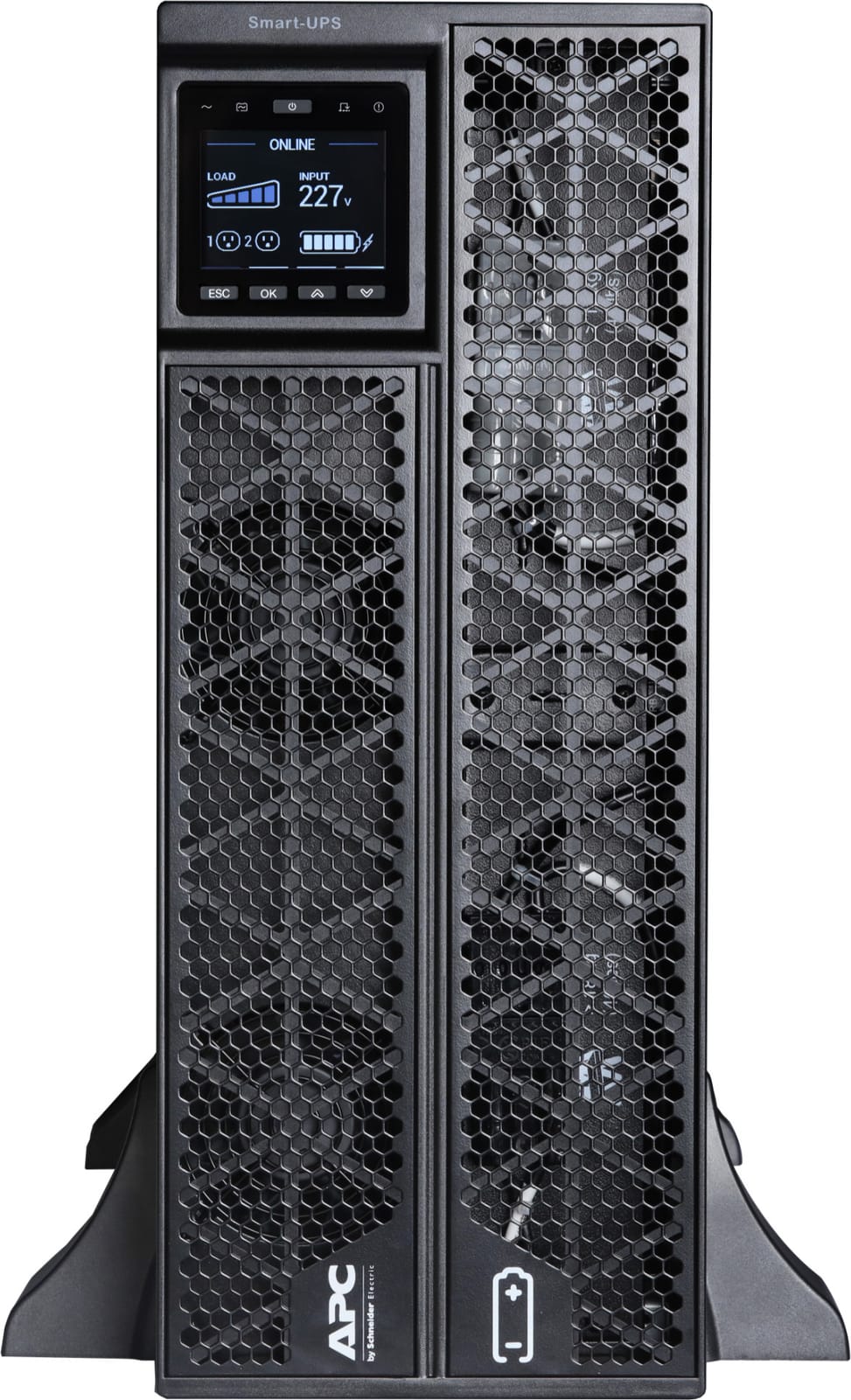

APC Smart-UPS RT 5kVA 230V Double-Conversion Online UPS (SRTG5KXLI) — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
50 099,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 109 Ko — downloadable

Product overview

High-power online UPS for server rooms: online double-conversion, 5000 VA / 5000 W.
Technology & protection: power is continuously rebuilt — your equipment receives perfect power without ever touching the mains, with zero transfer time. Maximum protection against power cuts, surges, voltage fluctuations and electrical noise.
Power: 5000 VA for 5000 W of usable power (power factor of 1) — enough to run several servers and network equipment, for example.
Runtime: approx. 10 minutes at half load (2500 W).
Outlets: 2 C13 outlets + 1 heavy-duty C19 outlet for power-hungry equipment.
Like every online model, it uses active cooling: install it in a technical room.
LCD display: shows load, battery level and remaining runtime at a glance — monitor the UPS without any software.
Designed, for example, for server racks and critical infrastructure.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230 V (220 / 240 V)
Waveform typeSine wave
Output harmonic distortionLess than 2%
Output connections2 IEC 60320 C13 outlets + 1 IEC 60320 C19 outlet + 1 hardwired 3-wire connection (phase + neutral + earth)
Input voltage230 V (220 / 240 V)
Input frequency40 - 70 Hz
Input connections1 hardwired 3-wire connection (1 phase + neutral + earth)
Voltage range100 - 280 V adjustable, 160 - 285 V
Maximum input current30 A per phase
Battery typeSealed lead-acid, +/- 96 V bus
Typical recharge time4 h
User interfaceIndicator light showing on-line or on-battery status, Multifunction LCD status and control console
Audible alarmAlarm when switching to battery mode; distinct low-battery alarm; continuous alarm on overload
Weight (kg)51.9 kg (59 kg with packaging)
Dimensions (W x D x H) (mm)440 x 620 x 177.8 mm
Estimated battery service life (years)3 to 5 years
TechnologyOn-line
Power (VA)5,000 VA
Technical specifications (continued)
Voltage stabiliserYes
Box contentsRS-232 cable for Smart UPS connection, User manual, USB cable
Preinstalled batteries2
Surge protection and filtering600 J
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass (automatic and manual)
Audible noise55 dBA
Crest factor3:1
Output frequency50/60 Hz +/- 3 Hz mains synchronisation
Phase (output/input)Single-phase / Single-phase
Output typeTerminal block
Power (W)5,000 W
Runtime10 min 20 s at 50% load (2,500 W); 3 min 30 s at full load (5,000 W)
External battery packsSRTG192XLBP4 external battery packs (1 to 4 packs, from 2651 to 8118 VAh)
Form factorRack
Battery-backed outlets3 to 4 outlets
Control & communicationUSB, RS232 serial port
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the SRTG5KXLI last on battery?
10 minutes at 50% load, i.e. 2500 W, 6 minutes at 70% and 3 minutes 30 seconds at full load. Three reference points for three different situations: the one that matches your actual load is the one to go by.
Does this 5 kVA really deliver 5000 W?
Yes, its power factor is 1: the 5000 VA are fully available in watts. On a UPS with a 0.8 power factor, only 4000 would remain for the same rated power — it is the figure in watts that determines what you can connect.
What outputs does the SRTG5KXLI offer?
Three types at once: two C13 outlets, one heavy-duty C19 outlet, and a 3-wire terminal block output for fixed wiring installed by an electrician. The input, for its part, is via a 3-wire terminal block only.
Can the runtime of the SRTG5KXLI be extended?
Yes, with additional battery packs, part number SRTG192XLBP4, on top of the two batteries already installed. A full recharge takes 4 hours.
How much space does the SRTG5KXLI take up in a rack?
17.78 cm high, 44 cm wide and 62 cm deep, for 51.9 kg, with a rack-mount kit. At this weight, mounting it in the rack takes several people and the unit goes at the bottom of the cabinet.
What input voltage does the UPS accept?
160 to 285 V, with an adjustable setting of up to 100-280 V. Frequency is accepted from 40 to 70 Hz: this wide range lets it cope with a severely degraded grid without drawing on the batteries.
Can work be done on the UPS without shutting down the servers?
Yes, thanks to the automatic and manual internal bypass: the automatic bypass takes over on a fault, while the manual one allows a deliberate transfer to direct mains power. Conversely, an emergency power-off button lets you cut everything in one move.
How do you know the UPS is overloaded or on battery?
Through a multifunction LCD console and an online/on-battery status indicator, backed by three distinct audible alarms: switch to battery mode, low battery threshold and a continuous tone in the event of overload.
What is in the box, and how do you manage the UPS?
A USB cable, an RS-232 cable and the user manual: both communication links are therefore supplied, and automatic server shutdown is possible from commissioning.
Is the APC Smart-UPS RT SRTG5KXLI new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 3 years. It delivers a sine wave and is rated at 55 dBA: it is a fan-cooled unit, to be installed in a technical room. The datasheet details the rest.
