Aruba 6100 48G Class 4 PoE 4SFP+ 370 W Switch (JL675A)

High-density managed switch for enterprise networks with many Wi-Fi access points and IP cameras to power. 10 Gbps uplinks to the network core, controlled from Aruba Central.

  • Managed via Aruba Central (cloud or on-premise), web GUI, CLI, REST API
  • PoE+ up to 30 W per port (IEEE 802.3af/at, class 4)
  • 4 fibre 10 Gbps uplinks (SFP+)
  • 1U 19-inch rack format
  • Switching capacity 176 Gbps, throughput 98.6 Mpps
  • 802.1Q VLANs (512 active), LACP link aggregation (up to 8 groups)
  • 802.1p/DiffServ QoS, IPv4/IPv6 access control lists
  • RADIUS/TACACS+ authentication
  • Automated deployment through Zero Touch Provisioning
Ref.: JL675A

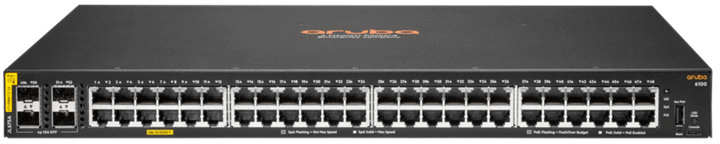

Aruba 6100 48G Class 4 PoE 4SFP+ 370 W Switch (JL675A) — image 1

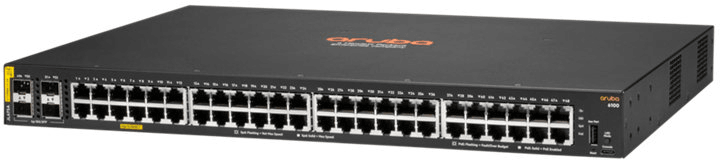

Aruba 6100 48G Class 4 PoE 4SFP+ 370 W Switch (JL675A) — image 2

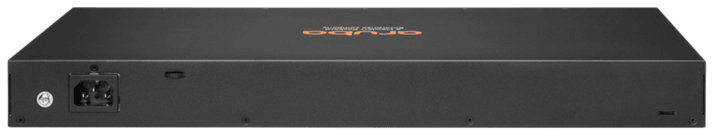

Aruba 6100 48G Class 4 PoE 4SFP+ 370 W Switch (JL675A) — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
31 199,00 DHincl. VAT

Configuration · Aruba CX 6100

On its way — back in stock soon

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 810 Ko — downloadable

Product overview

Aruba CX 6100 48-port PoE+ managed switch with 10 Gbit/s uplinks, designed for high-density enterprise networks that need both power and fast uplinks to the aggregation layer.
Connectivity: 48 10/100/1000BASE-T RJ45 PoE+ ports + 4 10G SFP+ uplink ports — 1U 19" rack format.
PoE+: 370 W budget (IEEE 802.3af/at, Class 4), up to 30 W per port — powers IP cameras, Wi-Fi access points and IoT devices across all 48 ports.
Performance: 176 Gbit/s non-blocking switching capacity, 98.6 Mpps throughput, 8,192-entry MAC table, 12.38 MB buffer.
Management: AOS-CX OS — Aruba Central (cloud/on-premises), web GUI, CLI, Zero Touch Provisioning and REST API; monitoring of wired, Wi-Fi and WAN.
802.1Q VLAN (512 active), 802.3ad LACP with up to 8 LAGs, MSTP/RSTP, 802.1p/DiffServ QoS, IGMP snooping, IPv4/IPv6 ACL, RADIUS/TACACS+.
Side-to-side airflow fans; 1U rack mounting kit included.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size8,192 entries
Number of VLANs4,094 VLAN IDs (802.1Q), 512 simultaneous VLANs
Internal memory4 GB DDR3, 16 GB eMMC flash memory
Interfaces48 x 10/100/1000BASE-T ports, 4 SFP 1G/10G ports, 1 USB-C console port, 1 USB Type-A host port
PoE ports48 Class 4 PoE ports (802.3af/802.3at), up to 30 W per port
Total PoE budget370 W
Network standardsIEEE 802.1p, 802.1Q, 802.1s, 802.1w, 802.1AB, 802.3 10BASE-T, 802.3ab, 802.3ad, 802.3az, 802.3x, 802.3af, 802.3at
Switching capacity176 Gbps
Forwarding rate98.6 Mpps
Packet buffer12.38 MB
Management modesWeb interface, CLI, HPE Aruba Networking Central, Switch Multi-Edit software
Cloud management platformHPE Aruba Networking Central
Layer 2 featuresLayer 2 switching, quality of service, IPv6
IP routingStatic routing
Stacking and expansionStackable up to 8 members (VSF), up to 384 downlink ports
Quality of service (QoS)Robust quality of service with traffic prioritisation
Power consumption480 W maximum with PoE, 45 W without PoE
Included softwareNone
Weight5.02 kg
Technical specifications (continued)
Dimensions (W x D x H)442 x 304.8 x 43.9 mm
Package contents19-inch rack-mount kit included
Latency1 Gbps: 1.9 µs · 10 Gbps: 1.8 µs
ProcessorDual-core ARM Cortex-A9 at 1016 MHz
Number of ports29 ports or more
ManagedYes
Security featuresAccess control lists (ACL)
Power supplyFixed internal 100-127 V AC / 200-240 V AC power supply
Cooling systemFans, side-to-side airflow
Operating temperature0 to 45 °C up to 1,500 m altitude, derated by 1 °C per 300 m above
Operating humidity15 to 95% at 40 °C, non-condensing
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelWeb interface (Smart)
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budget251 to 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How is the 370 W of PoE+ shared across the 48 ports?
370 W shared by all 48 ports, in Class 4 (802.3af/at), up to 30 W per port. Thirty cameras at 12 W already use most of the budget: it is the power budget, not the number of ports, that sets the real limit of a Wi-Fi or video surveillance deployment.
What speed do the uplinks on this 48-port model offer?
Four 10 Gbps SFP+ slots to connect up to the aggregation layer or the network core. Switching capacity reaches 176 Gbps for 98.6 Mpps, with a 12.38 MB buffer: the 48 access ports do not bottleneck on the way out.
How many VLANs can be active at the same time?
512 active VLANs, taken from the full 802.1Q range, with 802.3ad LACP aggregation of up to eight groups and loop protection through MSTP and RSTP. 802.1p/DiffServ quality of service prioritises voice and video on saturated links.
Can this switch route between VLANs?
Yes, with static routing for IPv4 and IPv6, with a dual stack so that both protocols can coexist. Traffic between segmented departments stays within the switch instead of going up to the router, which lightens the load on the uplink on a busy floor.
How is this switch deployed at a new site?
Through Zero Touch Provisioning: once plugged in, it retrieves its own configuration. Monitoring is then done through Aruba Central, in the cloud or on-premises, with a unified view of wired, Wi-Fi and WAN. The embedded software is activated without a subscription.
Can the configuration of several switches be automated?
Yes, through the REST API built into AOS-CX: changes are scripted instead of being entered port by port. The Switch Multi-Edit software also applies the same change to several devices in a single operation.
What network access protections does this model offer?
IPv4 and IPv6 access control lists, RADIUS and TACACS+ authentication, and management security that restricts access to critical commands through privilege levels. Enough to control what comes in on 48 outlets spread across a building.
Are jumbo frames supported for backups?
Yes: jumbo frame support improves the performance of backups and large transfers, provided that servers and network cards are set to the same size. At the same time, IGMP snooping avoids flooding all 48 ports with multicast traffic.
Does this PoE chassis have fans, and where should it be installed?
Yes, it is cooled by fans with side-to-side airflow: only the compact 12-port model in the CX family does without fans. It belongs in a rack or a network room, with the supplied 1U mounting kit, not on a desk where people work.
Is the switch new and covered by a warranty?
Yes, new equipment with a 3-year warranty, with the invoice serving as the warranty document. The manufacturer's document details the CX 6100 series and lets you compare the PoE and non-PoE models: PDF datasheet.
