APC E3MUPS100KHS Double-Conversion (Online) UPS 100 kVA 100000 W (E3MUPS100KHS)
A stated efficiency of 94.8 % on a three-phase 400 V machine fed by an external battery system. Touchscreen, built-in static bypass and EcoStruxure cloud monitoring, in a 145 kg tower format.
Three-phase 400 V input and output, also 380 and 415 V
External battery system to be provided
Efficiency 94.8 %
Built-in static bypass

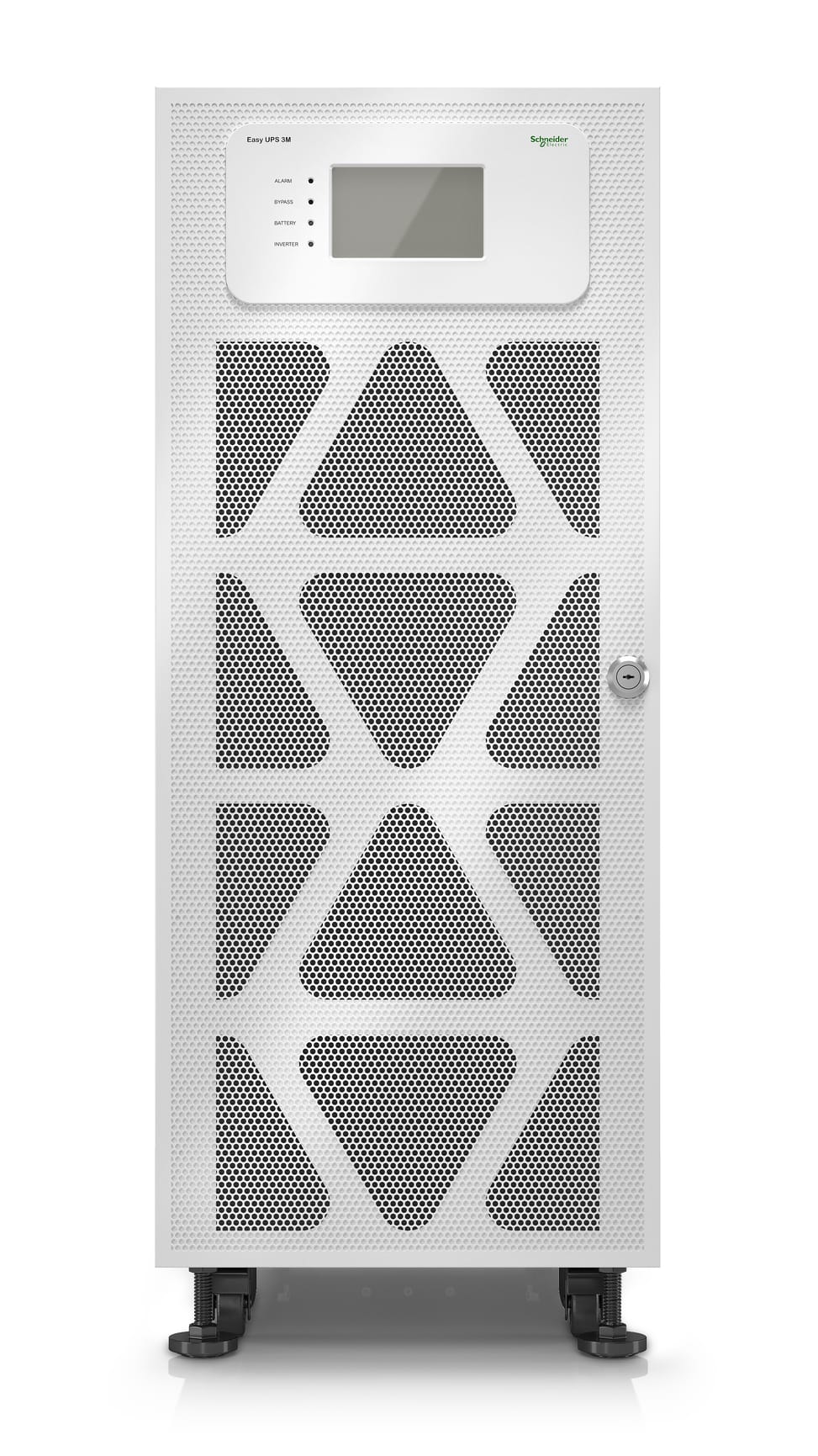

LCD touchscreen interface
Remote monitoring and management in the cloud with EcoStruxure
Input power factor 0.99 at full load
Output harmonic distortion below 3 %
Noise level 65 dBA

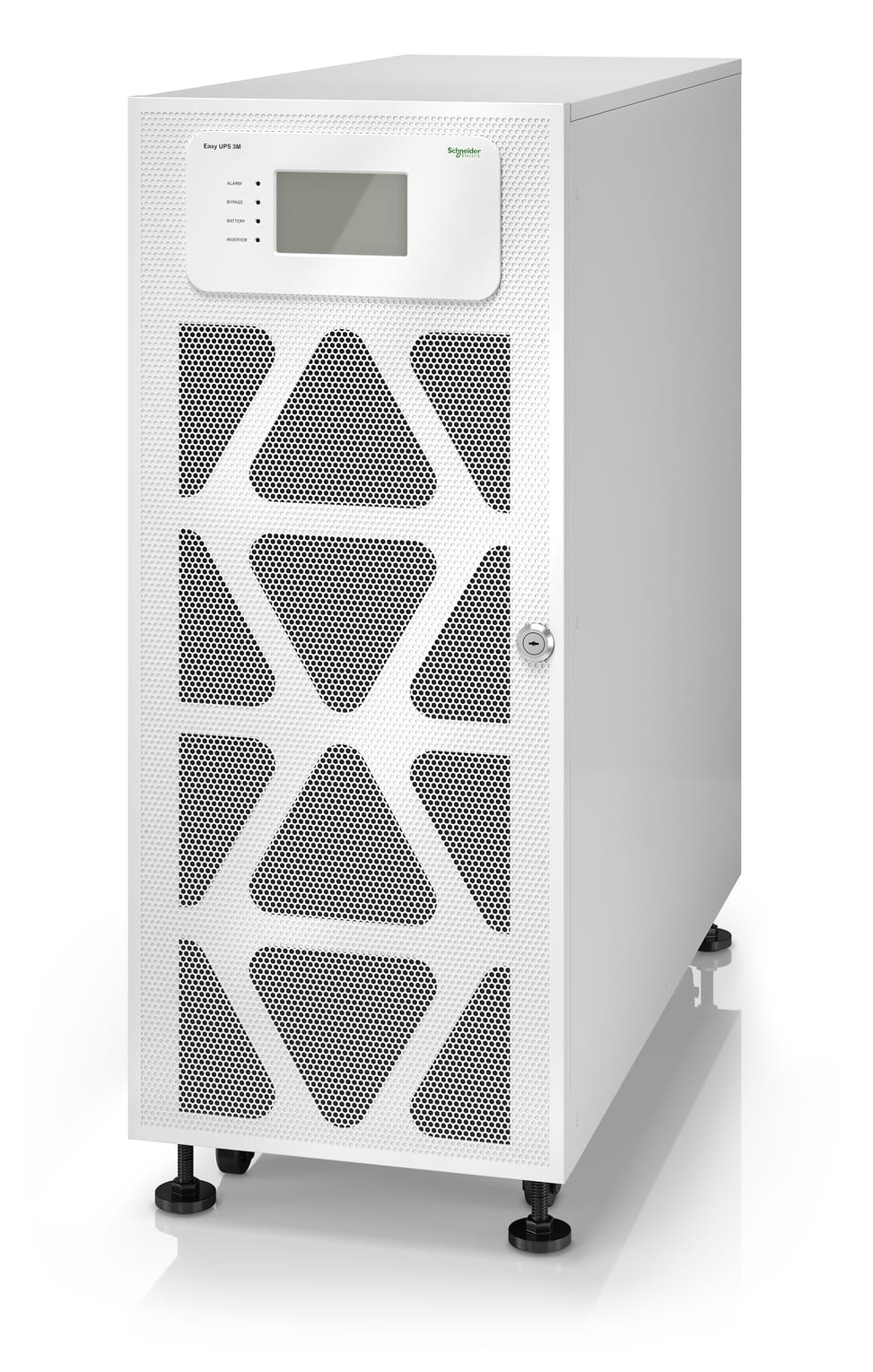

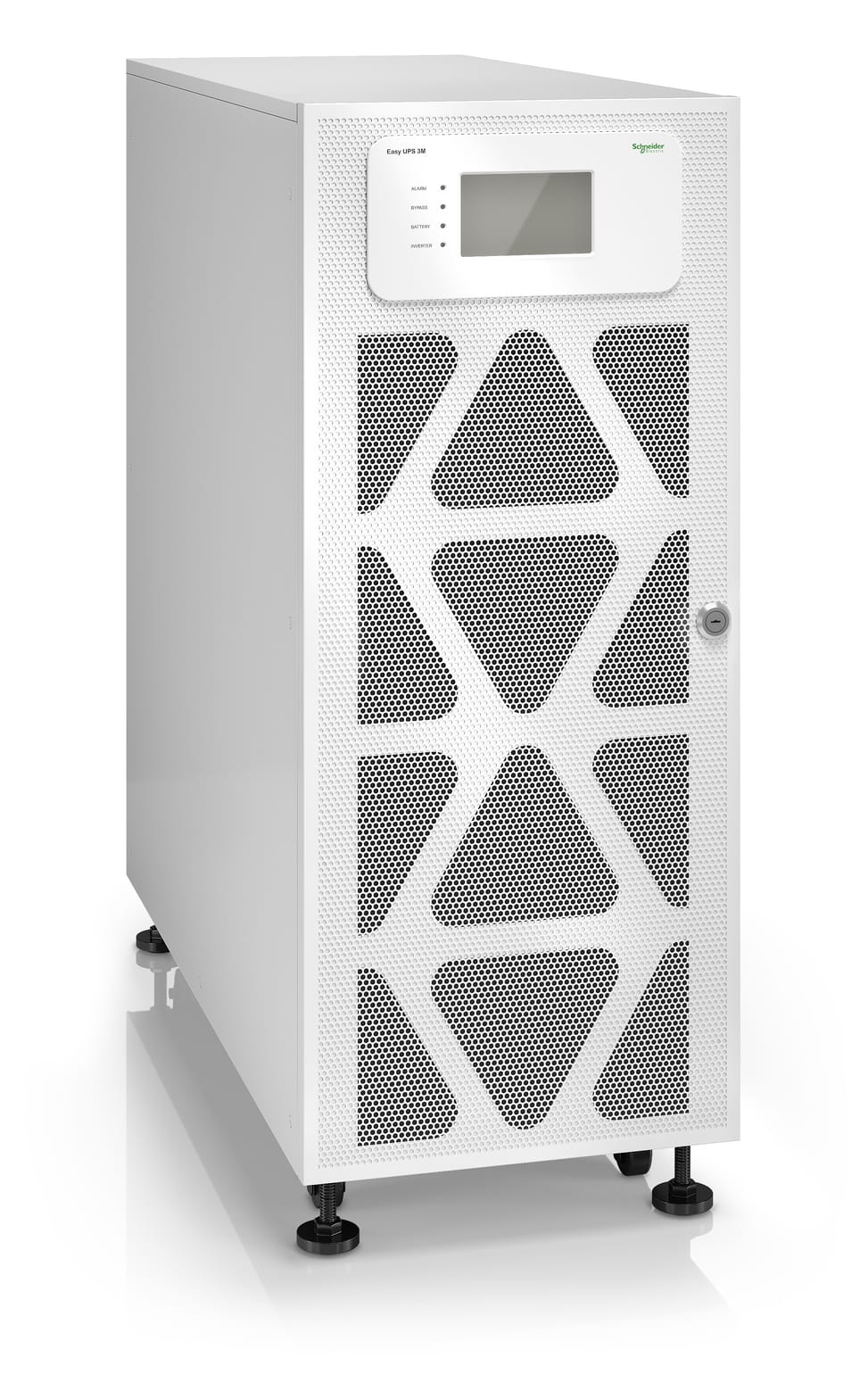

Tower format, 91.5 x 36 x 85 cm
Weight 145 kg
Ref.: E3MUPS100KHS
Out of stock
1/4
227 599,00 DHincl. VAT
Out of stock
Product overview
Optimise your power supply with the APC E3MUPS100KHS, a 100 kVA, 100,000 W double-conversion (online) UPS. Ideal for delivering stable power, it provides a sine waveform for maximum protection of sensitive equipment. Its white tower design includes an LCD display for easy management. With 94.8% efficiency and a high power factor of 0.99, this UPS delivers superior performance across a wide range of professional environments.
- Double-conversion (online) - 100 kVA 100,000 W - Waveform: Sine - White tower
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is the battery system included with the E3MUPS100KHS?
No: an external battery system must be provided. It is what will determine the actual runtime, and it accounts for a significant share of the project's budget and footprint — to be costed from the outset.
Does the E3MUPS100KHS require a three-phase connection?
Yes: input and output are three-phase at 400 V — also 380 or 415 V —, on a 5-wire terminal block (3 phases, neutral, earth). Input current reaches 177 A per phase.
What efficiency does the E3MUPS100KHS achieve?
94.8%. On a 100 kW unit running continuously, each point of efficiency means one kilowatt less heat to remove — the air-conditioning calculation depends directly on it.
What input voltage range does the UPS accept?
342 to 477 V, at a frequency of 40 to 70 Hz. The input power factor reaches 0.99 at full load: the UPS sends virtually no harmonics back onto the upstream grid.
What type of bypass does the E3MUPS100KHS have?
A built-in static bypass: it transfers the equipment to direct mains power in the event of an internal fault or overload, with no mechanical parts and therefore no switching time.
How is a 100 kVA UPS monitored?
Through a touchscreen interface on the front panel and through the EcoStruxure platform, which provides remote monitoring and management in the cloud. A USB port remains available locally.
How much space and weight should be allowed for in the room?
A cabinet 91.5 cm high, 36 cm wide and 85 cm deep, weighing 145 kg — excluding the battery system. That is compact for 100 kVA, but access and the floor must be checked before ordering.
Is the APC E3MUPS100KHS new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It delivers a sine wave with output distortion below 3%, and its noise level of 65 dBA confines it to a dedicated electrical room.
