nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG)

Under 45 dB in operation: it can stay in an office. Around 11 minutes of runtime at half load (1350 W), with a colour LCD screen showing load, battery and remaining time.

  • Runtime: 11 min at 50% load (1350 W), 25 min at 25%, 3 min 20 s at full load
  • C13 outlets: the format of computer and server power cords
  • C19 outlet: reinforced 16 A outlet for power-hungry equipment
  • Pure sine wave output
  • USB HID and RS-232 ports for automatic server shutdown
  • SNMP port for remote supervision with an optional card
  • Multifunction colour LCD screen
  • Optional external battery pack to extend runtime
  • Input on a reinforced C20 inlet
  • Accepted input voltage from 80 to 300 V
  • Internal bypass and cold start
  • EPO function (emergency power off)
  • Efficiency up to 97% in ECO mode
  • Rack or tower mounting, 26 kg
  • Recharge to 90% in 4 hours
Ref.: UPCMCOP930HASCG
Best seller

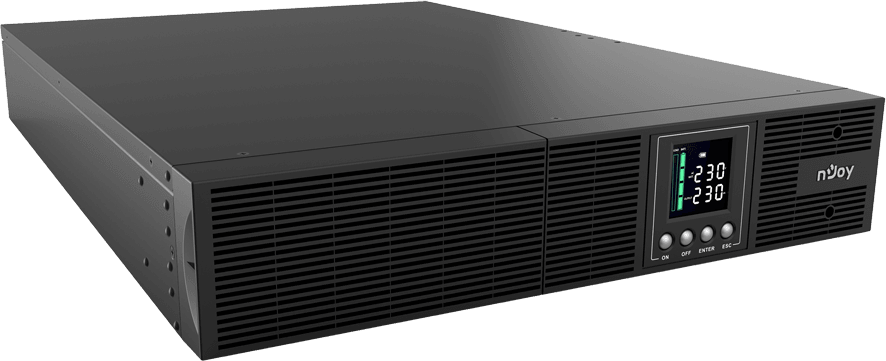

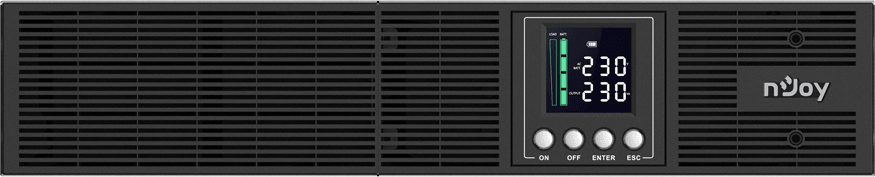

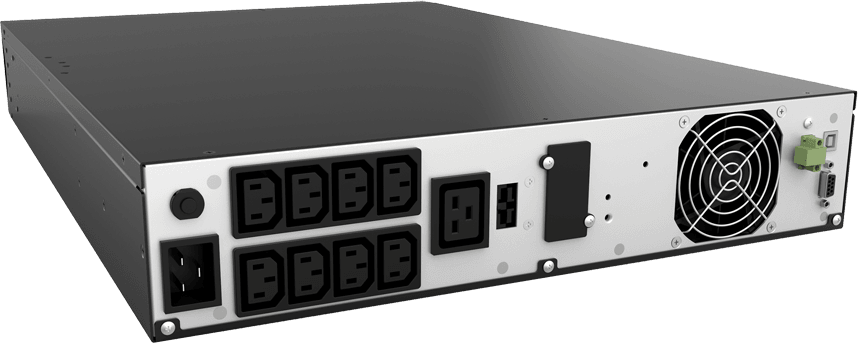

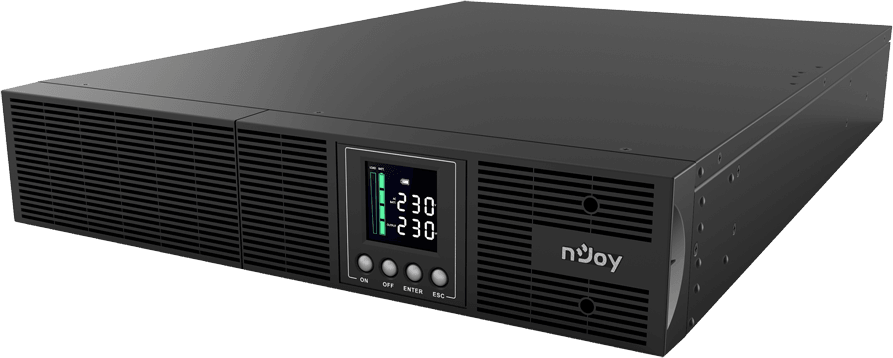

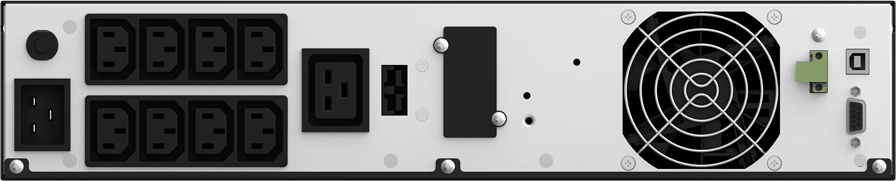

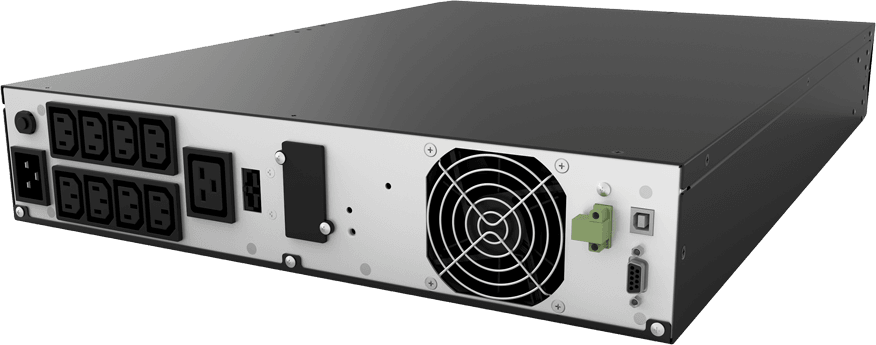

nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG) — image 1
nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG) — image 2
nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG) — image 3
nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG) — image 4
nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG) — image 5
nJoy Aster 3K Online UPS - 2700 W / 3000 VA - 8 C13 outlets + 1 C19 outlet (UPCMCOP930HASCG) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
9 499,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 265 Ko — downloadable

Product overview

Online UPS to protect servers and sensitive equipment: online double-conversion, 3000 VA / 2700 W.
Technology & protection: power is fully regenerated, continuously — your servers never touch the mains, with no transfer time. Complete protection against power cuts, surges, voltage fluctuations and electrical noise.
Power: 3000 VA for 2700 W of usable power (power factor of 0.9) — almost all of the rated power is available in watts.
Outlets: 8 C13 outlets + 1 heavy-duty C19 outlet for power-hungry equipment.
LCD display: shows load, battery level and remaining runtime at a glance — monitor the UPS without any software.
Ideal, for example, for servers, storage arrays or switches.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage208 V / 220 V / 230 V / 240 V AC selectable, +/- 1%
Waveform typePure sine wave
Output harmonic distortion≤ 5% at non-linear load
Output connections8 IEC C13 outlets + 1 IEC C19 outlet
Input voltage208 V / 220 V / 230 V / 240 V
Input frequency50 Hz / 60 Hz with auto-sensing (40 - 70 Hz)
Input connections1 IEC-320 C20 inlet
Voltage range80 - 300 V
Battery typeLead-acid, 6 x 12 V / 9 Ah
Battery replacementBy the user
Battery managementDeep discharge and overcharge protection, automatic recharge
Typical recharge time4 hours to 90% of capacity
Interface port1 USB port (HID), 1 RS232 serial port, 1 SNMP port, 1 emergency power off (EPO)
User interfaceColour LCD screen (status, load, battery level, input and output voltages, discharge timer, faults)
Audible alarmAlarms for load capacity, charge and battery level, mains, battery and bypass mode, and fault
Power management softwarePower Monitor
Weight (kg)26 kg (27.34 kg with packaging)
Dimensions (W x D x H) (mm)438 x 610 x 88 mm
TechnologyOn-line
Power (VA)3,000 VA
Voltage stabiliserYes
Preinstalled batteries6
Technical specifications (continued)
Replacement batteryGP09122L (part no. BTVACGUEBTI2LCG01B)
Rack height2U
Transfer/switching time0 ms (continuous double conversion)
Cold startYes
BypassInternal bypass
Audible noise< 45 dB
Power factor (ratio)0.9
Crest factor3:1
Output frequency50 Hz / 60 Hz +/- 0.5%
Phase (output/input)Single-phase / Single-phase
Eco mode efficiency≥ 97%
Overload capacity105-110%: alert only; 110-120%: transfers to bypass after 60 s; > 120%: immediate transfer
Double-conversion efficiency≥ 91% in UPS mode, ≥ 88% on battery
Output typeC13 outlets
Power (W)2,700 W
Runtime25 min at 25% load; 11 min at 50%; 5 min at 75%; 3 min at 100%
External battery packs1 optional external battery module (EBM)
Form factorConvertible rack/tower
Battery-backed outlets9 outlets or more
Control & communicationUSB, RS232 serial port, Network (SNMP / monitoring)
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the Aster 3K last depending on the connected load?
The full curve is known: 25 minutes at 25% load, 11 minutes at 50%, 5 min 20 s at 75% and 3 min 20 s at full load. Runtime collapses as the load on the UPS increases: that is the real sizing criterion, far more than the rated VA.
What input voltage does the Aster 3K accept before switching to battery?
From 80 to 300 V, with an accepted frequency of 40 to 70 Hz with auto-sensing. That is an exceptionally wide window: on a grid that regularly sags to low voltage, the UPS keeps regenerating the power instead of drawing on the battery.
Is the transfer time really zero in double conversion?
Yes, the transfer time is rated at zero: the power is continuously rebuilt, so your equipment is already being powered by the UPS before the outage even occurs. The output waveform is a pure sine wave, with distortion of 5% or less on a non-linear load.
What happens if you exceed the UPS's power rating?
The response is graduated. On mains: between 105 and 110%, a simple alarm; between 110 and 120%, transfer to bypass after 60 seconds; above 120%, immediate transfer. On battery, it is stricter: shutdown after 10 seconds between 110 and 120%, immediate shutdown above that.
Can the Aster 3K be installed in a rack and as a tower?
Yes, the chassis is convertible: 2U in a rack or standing as a tower. Allow for 438 mm wide, 610 mm deep and 88 mm high at 26 kg — the 61 cm depth is the point to check in a shallow cabinet.
What sockets does the Aster 3K have, on both input and output?
On the output, eight C13 outlets — the format used by server power cords — and one heavy-duty C19 outlet for a high-current device. On the input, a C20 inlet, also heavy-duty: the power cord is not an ordinary computer cord.
Can the Aster 3K's runtime be extended?
Yes, an external battery pack is available as an option, in addition to the six internal batteries. The UPS also recharges its batteries to 90% in 4 hours, and battery replacement is designed to be straightforward.
Does the Aster 3K work with a generator?
Yes, generator compatibility is stated. Combined with the 80 to 300 V input range and cold start, this is what allows it to be used where the grid is truly unstable, including starting up with no mains present.
What is the UPS's actual efficiency, mode by mode?
91% or more in online mode, 88% or more in battery mode, and 97% or more in ECO mode. ECO mode saves energy but bypasses part of the power conditioning: keep it for periods when the grid is clean.
How do you monitor the Aster 3K and shut servers down automatically?
Four interfaces: USB HID, RS-232, SNMP and an EPO emergency power-off contact. Network monitoring requires an optional SNMP card; the PowerGuide and PowerMaster software handle graceful shutdown over USB or serial.
What does the Aster 3K's display show?
A multifunction colour LCD screen shows the UPS status, load level, battery level, input and output voltages, the discharge countdown and faults. It is this countdown that shows you, live, how much runtime you have left.
Can two Aster 3K units be run in parallel to double the power?
No, parallel operation is not supported on this model. For more power, you need to move up to a higher-capacity UPS; for more runtime, on the other hand, the optional external battery pack does the job.
Is the nJoy Aster 3K UPS new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 3 years. Its noise level stays below 45 dB, which, unlike many UPSs of this power, allows it to stay in an office rather than a technical room. The datasheet covers the rest.
