Eaton USB/Serial 8000VA Online UPS (9SX8KIRT)

Fixed terminal block wiring on the input as on the output, to be installed by an electrician: 7,200 W usable and around 15 minutes of runtime at 50% load, 10 minutes at 70%.

  • Usable power of 7,200 W (0.9 power factor)
  • Runtime of around 15 minutes at 50% load, 10 minutes at 70%
  • Terminal block input and output: fixed wiring, to be installed by an electrician
  • USB port and RS-232 serial port for automatic server shutdown
  • Slot for an SNMP network card, remote monitoring
  • Intelligent Power software included, compatible with VMware and Hyper-V
  • Built-in bypass: power still flows even if the UPS develops a fault
  • Hot-swappable batteries from the front panel
  • Runtime extendable with external battery cabinets, detected automatically
  • Multilingual graphic LCD display, rotatable for rack or tower
  • 4 dry contacts and remote on/off control
  • Sine wave output
  • Noise level below 48 dB
  • Efficiency up to 95%, 98% in high-efficiency mode
Ref.: 9SX8KIRT

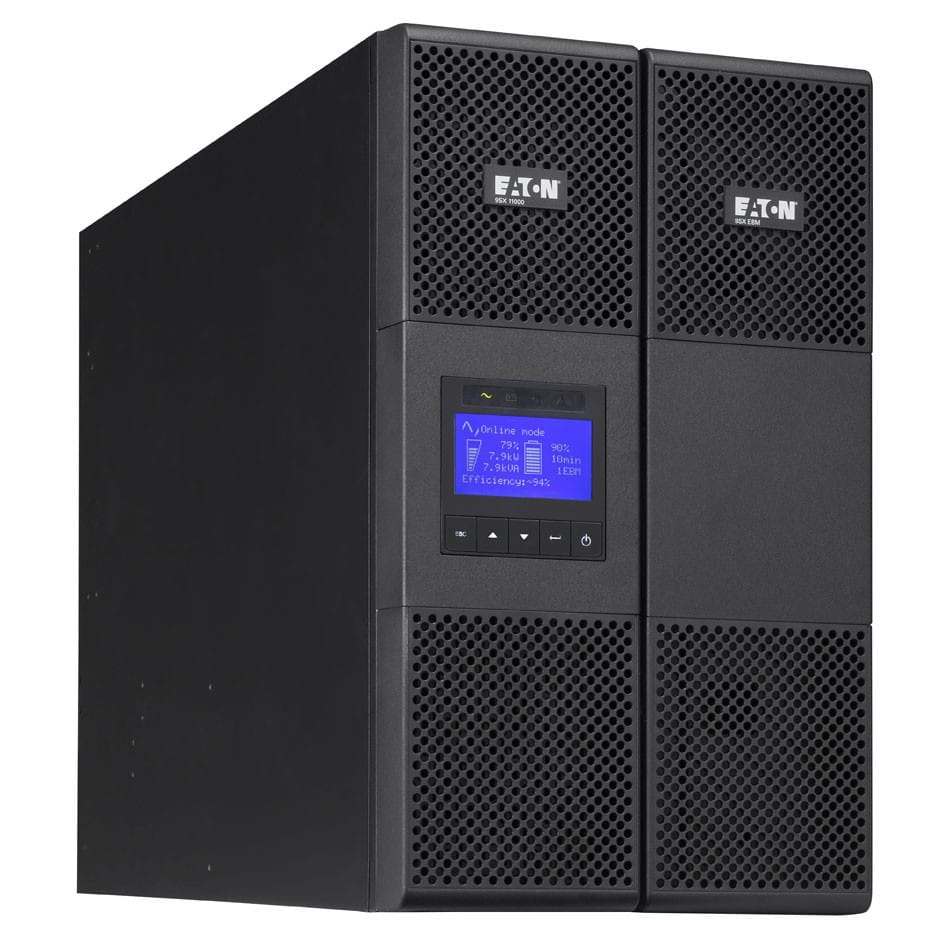

Eaton USB/Serial 8000VA Online UPS (9SX8KIRT) — image 1

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

61 499,00 DHincl. VAT

Configuration · Eaton 9SX RT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 216 Ko — downloadable

Product overview

A high-end, high-power online UPS for server rooms: online double conversion, 8000 VA / 7200 W.
Technology & protection: power is fully and continuously regenerated — the equipment is never exposed to the mains, with zero transfer time. Maximum protection against outages, surges, voltage fluctuations and electrical noise.
Power: 8000 VA for 7200 W of real power (0.9 power factor) — almost all of the rated power is available in watts.
Ports: terminal block connection (hard-wired by an electrician); USB and serial links for management.
Pure sine wave output; active cooling, to be installed in a technical room.
Designed, for example, for server racks or critical infrastructure.
LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage200/208/220/230/240/250 V +/- 1%
Waveform typeSine wave
Output harmonic distortion< 2% (THDU)
Output connectionsTerminal block
Input voltage200/208/220/230/240/250 V
Input frequency50/60 Hz auto-selecting (40 - 70 Hz)
Input connectionsTerminal block (up to 16 mm²)
Voltage range176 - 276 V without derating (100 - 276 V with derating)
Battery typeSealed, lead-acid (12 V/7 Ah)
Battery replacementUser-replaceable, hot-swappable (no power interruption)
Battery managementABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, external battery pack detection
Interface port1 USB port, 1 RS232 port (cannot be used simultaneously), 4 dry contacts (DB9), 1 remote on/off control mini terminal block, 1 emergency power off
User interfaceMultilingual graphic LCD screen
Audible alarmYes
Power management softwareEaton Intelligent Power
Weight (kg)84 kg
Dimensions (W x D x H) (mm)440 x 700 x 260 mm
TechnologyOn-line
Power (VA)8,000 VA
Voltage stabiliserYes
Box contents9SX power module 9SX battery module 2 brackets for 19-inch mounting 2 universal rails USB cable Serial cable 1 battery cable with communications for automatic battery cabinet recognition 2 brackets for tower mounting Tower mounting link plate Safety guide Quick start
Technical specifications (continued)
Communication card slot1 slot for Network-MS, ModBus-MS or Relay-MS card (optional)
Rack height6U
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass
Audible noise< 48 dBA
Power factor (ratio)0.9
Crest factor3:1
Input power factorInput power factor correction (PFC), ratio not published by the manufacturer
Output frequency50/60 Hz auto-selecting, frequency converter as standard
Phase (output/input)Single-phase / Single-phase
Eco mode efficiency98% in high-efficiency mode
Overload capacity102-110%: 120 s; 110-125%: 60 s; 125-150%: 10 s; > 150%: 900 ms
Double-conversion efficiencyUp to 95% in online mode
Output typeTerminal block
Power (W)7,200 W
Runtime15 min at 50% load; 10 min at 70% (at 0.7 power factor)
External battery packsUp to 12 hot-pluggable external battery modules (EBM 9SXEBM240)
Form factorConvertible rack/tower
Control & communicationUSB, RS232 serial port, Card slot
Warranty2 years

Specific references

EAN743172040220

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the 9SX 8000i last on battery?
15 minutes at 50% load and 10 minutes at 70%, figures given at a 0.7 power factor. Runtime can be extended from a few minutes to several hours by adding external battery modules.
How many battery modules can be added to the 9SX 8000i?
Up to twelve, hot-pluggable and automatically detected by the UPS. This is what makes it possible to go from a few minutes of runtime to several hours without changing units.
How does the 9SX 8000i connect to the electrical installation?
Via a terminal block on both input and output: there are no sockets on the unit. It is fixed wiring, to be done by an electrician, with a dedicated circuit sized for 8 kVA.
Does this 8 kVA unit deliver 7200 W of usable power?
Yes, thanks to a 0.9 power factor: 8000 × 0.9 = 7200 W. The 9SX also has built-in input power factor correction, which limits the harmonics sent back onto the upstream grid.
What efficiency does the 9SX 8000i reach?
Up to 95%, and 98% in high-efficiency mode. On a unit of this power running around the clock, every point of efficiency translates directly into fewer watts of heat in the room.
What are the 9SX 8000i's load segments for?
To reserve battery runtime for critical equipment by switching off the rest. The same control also lets you remotely restart equipment that has frozen, or carry out scheduled shutdowns and restarts.
What space and weight should you allow for the 9SX 8000i?
440 × 260 × 700 mm and 84 kg, in a convertible rack or tower chassis. The model comprises a power module and a battery module: arrange for handling and a floor that can bear this load.
How do you monitor the 9SX 8000i and shut down virtualised servers?
Through a USB port or an RS-232 port — not simultaneously —, four dry contacts on DB9, a remote control mini terminal block and an emergency power-off. The Intelligent Power software, supplied, covers VMware and Hyper-V.
Is the Eaton 9SX 8000i (9SX8KIRT) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years. It delivers a sine wave, stays below 48 dBA and has a built-in bypass as well as batteries that are hot-swappable from the front panel. The datasheet covers the rest.
