Eaton 9SX 11000i Online UPS - RT 6U (9SX11KIRT)

The internal bypass takes over if the UPS develops a fault, and the batteries are changed hot without cutting power to the servers. 10 kW usable, around 9 minutes of runtime at 50% load.

  • Usable power of 10 kW (0.9 power factor)
  • Runtime of around 9 minutes at 50% load, 5 minutes at 70%
  • Terminal block input and output: fixed wiring, to be installed by an electrician
  • Built-in bypass: power still flows even if the UPS develops a fault
  • Hot-swappable batteries from the front panel
  • Runtime extendable with external battery cabinets, detected automatically
  • USB port and RS-232 serial port for automatic server shutdown
  • Slot for an SNMP network card, remote monitoring
  • Intelligent Power software included, compatible with VMware and Hyper-V
  • Multilingual graphic LCD display, rotatable for rack or tower
  • 4 dry contacts and remote on/off control
  • Sine wave output
  • Efficiency up to 95%, 98% in high-efficiency mode
  • Noise level below 50 dB
Ref.: 9SX11KIRT

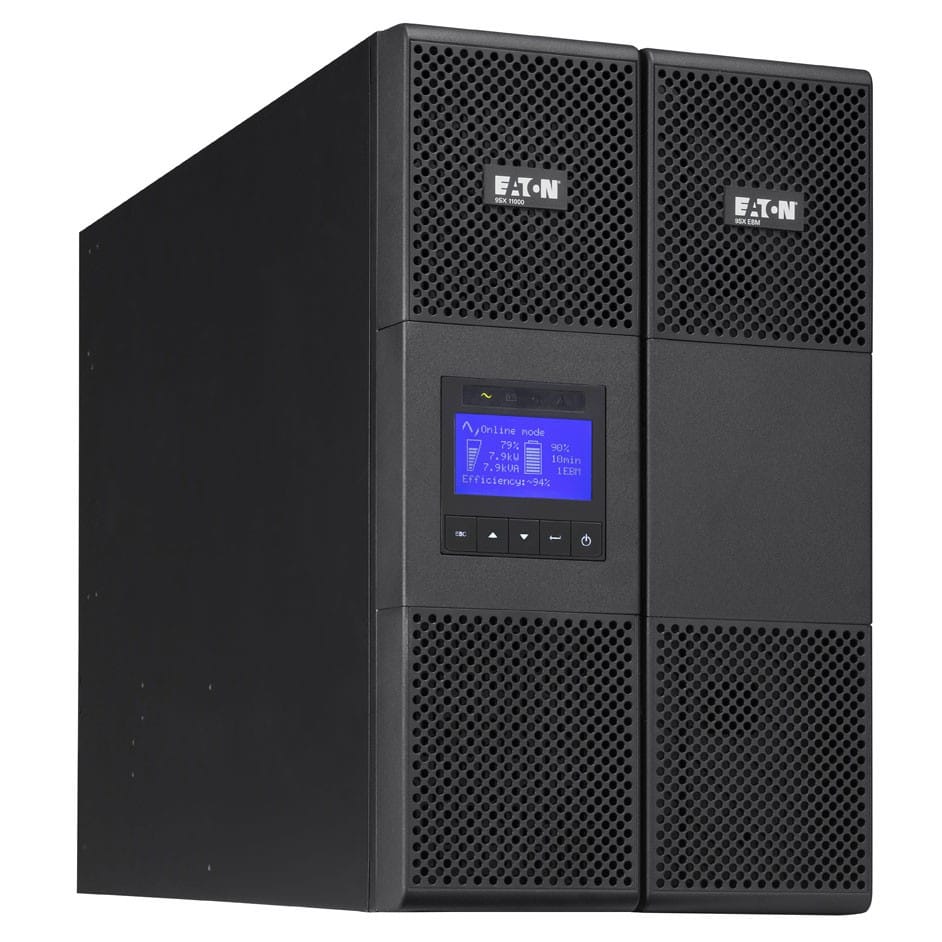

Eaton 9SX 11000i Online UPS - RT 6U (9SX11KIRT) — image 1

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

72 899,00 DHincl. VAT

Configuration · Eaton 9SX RT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 89 Ko — downloadable

Product overview

A high-end, high-power online UPS for server rooms: online double conversion, 11 kVA / 10 kW, 6U rack format.
Technology & protection: power is fully and continuously regenerated — the equipment is never exposed to the mains, with zero transfer time. Maximum protection against outages, surges, voltage fluctuations and electrical noise.
Power: 11 kVA for 10 kW of real power (0.9 power factor) — almost all of the rated power is available in watts.
Runtime can be extended with external battery cabinets.
Ports: terminal block connection (hard-wired by an electrician); USB and serial ports and slot for an SNMP network card.
Pure sine wave output; active cooling (≈ 50 dB), to be installed in a rack or technical room.
LCD display: shows load, battery level and remaining runtime — so you can monitor the UPS without any software.
Designed, for example, for server racks, network equipment or industrial applications.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage200/208/220/230/240/250 V +/- 1%
Waveform typeSine wave
Output harmonic distortion< 2% (THDU)
Output connectionsTerminal block
Input voltage200/208/220/230/240/250 V
Input frequency50/60 Hz auto-selecting (40 - 70 Hz)
Input connectionsTerminal block (up to 16 mm²)
Voltage range176 - 276 V without derating (100 - 276 V with derating)
Battery replacementUser-replaceable, hot-swappable (no power interruption)
Battery managementABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, external battery pack detection
Interface port1 USB port, 1 RS232 port (cannot be used simultaneously), 4 dry contacts (DB9), 1 remote on/off control mini terminal block, 1 emergency power off
User interfaceMultilingual graphic LCD screen
Audible alarmYes
Power management softwareEaton Intelligent Power
Weight (kg)84 kg
Dimensions (W x D x H) (mm)440 x 700 x 260 mm
TechnologyOn-line
Power (VA)11,000 VA
Voltage stabiliserYes
Box contents9PX power module 9PX battery module External maintenance bypass USB cable Serial cable 1 battery cable with communications for automatic battery cabinet recognition 2 brackets for tower mounting Tower mounting link plate Safety guide Quick start
Technical specifications (continued)
Communication card slot1 slot for Network-MS, ModBus-MS or Relay-MS card (optional)
Rack height6U
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass
Audible noise< 50 dBA
Power factor (ratio)0.9
Crest factor3:1
Input power factorInput power factor correction (PFC), ratio not published by the manufacturer
Output frequency50/60 Hz auto-selecting, frequency converter as standard
Phase (output/input)Single-phase / Single-phase
Eco mode efficiency98% in high-efficiency mode
Overload capacity102-110%: 120 s; 110-125%: 60 s; 125-150%: 10 s; > 150%: 900 ms
Double-conversion efficiencyUp to 95% in online mode
Output typeTerminal block
Power (W)10,000 W
Runtime9 min at 50% load; 5 min at 70% (at 0.7 power factor)
External battery packsUp to 12 hot-pluggable external battery modules (EBM 9SXEBM240)
Form factorConvertible rack/tower
Control & communicationUSB, RS232 serial port, Card slot
Warranty2 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the 9SX 11000i run on battery?
About 9 minutes at 50% load and 5 minutes at 70%. Runtime can be extended with external battery cabinets, which the UPS detects automatically as soon as they are connected.
How is the 9SX 11000i connected to the electrical installation?
Via a terminal block on both input and output: the unit has no outlets at all. It is fixed wiring, to be done by an electrician, with a dedicated circuit sized for 11 kVA.
Does this 11 kVA UPS deliver 10 kW of usable power?
Yes, thanks to a power factor of 0.9: 11,000 × 0.9 = 10,000 W. It is this wattage figure that you need to compare with the combined consumption of your server racks.
Does power still get through if the UPS fails?
Yes, a built-in bypass lets mains power through to the equipment. The batteries can also be hot-swapped from the front panel, without interrupting the servers.
What efficiency does the 9SX 11000i achieve?
Up to 95%, and 98% in high-efficiency mode. At this power level, every percentage point gained translates directly into fewer watts of heat in the technical room.
How do you cleanly shut down virtualised servers with the 9SX 11000i?
The Intelligent Power software is included and supports VMware and Hyper-V. It communicates via the USB port or the RS-232 port — which cannot be used simultaneously —, complemented by four dry contacts and a remote on/off control.
Is the network management card included?
No: it is only supplied as standard on the Netpack versions. On this model, the slot is free and accepts a Network-MS (SNMP), ModBus-MS or Relay-MS card, to be ordered separately.
Can the 9SX 11000i be installed in a rack or as a tower?
Both: it has a convertible chassis, with a multilingual graphic LCD screen that can be rotated to suit the chosen position. Allow for 86 kg: it takes several people to handle, and the unit goes at the bottom of the cabinet.
Is the Eaton 9SX 11000i (9SX11KIRT) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years. It delivers a sine wave, accepts an input frequency of 40 to 70 Hz and stays below 50 dBA. The datasheet covers the rest.
