The network management card is already included: the UPS is monitored and controlled remotely with nothing more to buy. 1000 W genuinely available, 28 minutes of runtime at half load (500 W) and under 35 dB.
SNMP network management card included, for remote monitoring
Runtime of 28 minutes at half load (500 W)
1000 W genuinely available, power factor of 1
Up to 4 additional battery modules, hot-swappable
8 C13 outlets, the format used by computer and server power cords
USB port and RS-232 serial port for automatic server shutdown
2 controllable outlet groups: secondary equipment shuts down first
Internal bypass: power still flows if the UPS fails
Pure sine wave output

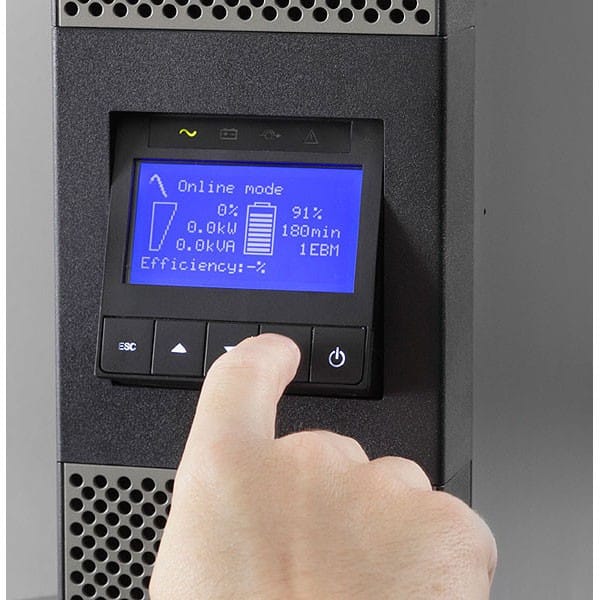

Multilingual graphic LCD display
Convertible: 2U rack or tower mounting, brackets included
Noise level below 35 dBA
Weight 17.4 kg
Ref.: 9PX1000IRTN
1/2
18 999,00 DHincl. VAT
Availability to be checked
We cannot guarantee this product's availability online. Write to us or call us: we reply quickly.
A high-end online UPS, convertible between rack and tower: online double conversion, 1000 VA / 1000 W, 2U format. Technology & protection: power is fully and continuously regenerated — your servers are never exposed to the mains, with zero transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise. Power: 1000 VA for 1000 W of real power — its power factor of 1 makes all of the rated power available in watts, where a conventional UPS loses almost half of it. Runtime: about 28 minutes at half load (500 W) — outstanding runtime, extendable with additional battery modules. Outlets: 8 C13-type outlets (the standard computer and server power cord). Management: USB and RS-232 serial ports for automatic shutdown; slot for an SNMP network card. Graphical LCD display. Quiet operation (under 35 dB). Ideal, for example, for a server, a NAS or network equipment. Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.
176 - 276 V without derating (up to 100 - 276 V with derating)
Battery replacement
User-replaceable, hot-swappable (no power interruption)
Battery management
ABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, automatic recognition of external batteries
Interface port
Network-MS network management card, 1 USB port, 1 RS232 serial port, 1 remote ON/OFF mini terminal block, 1 remote power-off mini terminal block, 1 output relay mini terminal block
User interface
Multilingual graphic LCD display
Audible alarm
Yes
Power management software
Eaton Intelligent Power
Weight (kg)
17.4 kg
Dimensions (W x D x H) (mm)
440 x 450 x 86.5 mm
Technology
On-line
Power (VA)
1,000 VA
Voltage stabiliser
Yes
Box contents
9PX uninterruptible power supply
Network card
2 IEC output power cords
USB cable
Serial cable
2 brackets for 19-inch mounting
2 universal rails
2 brackets for tower mounting
Cable locking systems
Safety guide
Quick start
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is the network management card supplied with the 9PX 1000?
Yes, the network management card is in the box — that is what the “N” in the part number indicates. Remote monitoring and control are therefore up and running from commissioning, with no accessory to order.
How long does the 9PX 1000 run on battery?
28 minutes at half load, i.e. 500 W. That is exceptionally long for a UPS of this power rating, and runtime can be extended further with up to four hot-swappable battery modules.
Does this 1000 VA UPS really deliver 1000 W?
Yes: the power factor is 1, so all of the apparent power is available in watts. On a conventional UPS with a 0.7 power factor, only 700 would remain — that is nearly a third more equipment for the same footprint.
What are the controllable outlet groups on the 9PX for?
To switch off secondary equipment first: two outlet groups can be controlled separately, so you can reserve the whole battery for critical machines during an outage. That is extra runtime with no additional hardware.
Can a 1000 VA online UPS stay in an office?
This one, yes: it is rated at less than 35 dBA, which is very low for a double-conversion unit. Allow for 17.4 kg for a 2U chassis 440 mm wide and 450 mm deep.
Can the 9PX 1000 be installed in a rack or as a tower?
Both: the box contains two 19-inch mounting brackets, two universal rails and two tower stands, as well as a cable locking system. No kit to order separately.
What outlets does the 9PX 1000 have?
Eight C13 outlets on the output, the format of computer and server power cords, with a C14 input. Two IEC output cords are supplied: beyond two machines, you will need your own cords.
Does power still get through if the UPS breaks down?
Yes, an internal bypass lets mains power through to the equipment. A multilingual graphic LCD screen also shows the unit's status and measurements on the front panel.
How do you connect the 9PX 1000 to a monitoring system or a server?
Via the supplied network card, a USB port, an RS-232 serial port, and three mini terminal blocks: remote on/off, remote power off and output relay. The USB and serial cables are in the box.
Is the Eaton 9PX 1000 (9PX1000IRTN) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It accepts an input of 176 to 276 V at 50 or 60 Hz with automatic selection, with input power factor correction. The datasheet covers the rest.
