Remote monitoring included: the network management card is supplied as standard. 1500 W genuinely available for 1500 VA, eight outlets in the server cord format and a graphic LCD display, under 35 dB.
Network management card included, for remote monitoring
1500 W genuinely available, power factor of 1
8 C13 outlets, the format used by computer and server power cords
USB port and RS-232 serial port for automatic server shutdown
Pure sine wave output

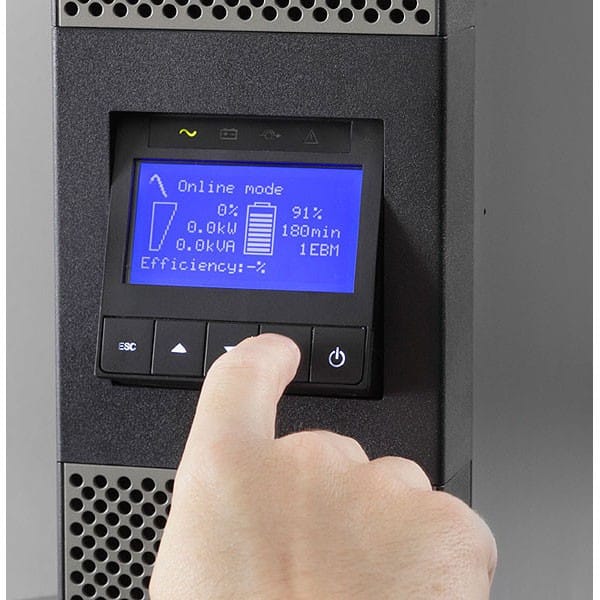

Multilingual graphic LCD display
Convertible: 2U rack or tower mounting, brackets included
Accepted input voltage from 176 to 276 V
Noise level below 35 dBA
Weight 18.9 kg
Ref.: 9PX1500IRTN
Out of stock
1/2
23 699,00 DHincl. VAT
Out of stock
Product overview

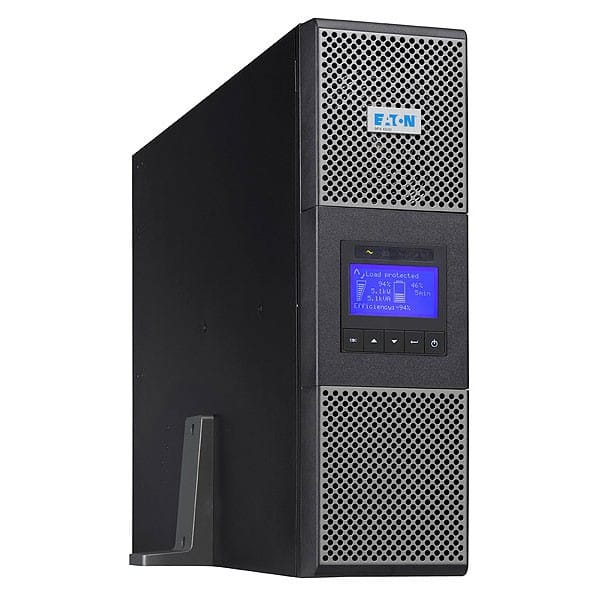

A high-end online UPS, convertible between rack and tower: online double conversion, 1500 VA / 1500 W, 2U format. Technology & protection: power is fully and continuously regenerated — your servers are never exposed to the mains, with zero transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise. Power: 1500 VA for 1500 W of real power — its power factor of 1 makes all of the rated power available in watts. Outlets: 8 C13-type outlets (the standard computer and server power cord). Management: USB port and RS-232 serial port for automatic shutdown; slot for an SNMP network card. Pure sine wave output; quiet operation (under 35 dB). LCD display: shows load, battery level and remaining runtime at a glance — so you can monitor the UPS without any software. Ideal, for example, for a server, a NAS or network equipment. Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.
176 - 276 V without derating (up to 100 - 276 V with derating)
Battery replacement
User-replaceable, hot-swappable (no power interruption)
Battery management
ABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, automatic recognition of external batteries
Interface port
Network-MS network management card, 1 USB port, 1 RS232 serial port, 1 remote ON/OFF mini terminal block, 1 remote power-off mini terminal block, 1 output relay mini terminal block
User interface
Multilingual graphic LCD display
Audible alarm
Yes
Power management software
Eaton Intelligent Power
Weight (kg)
18.9 kg
Dimensions (W x D x H) (mm)
440 x 450 x 86.5 mm
Technology
On-line
Power (VA)
1,500 VA
Voltage stabiliser
Yes
Box contents
9PX uninterruptible power supply
Network card
2 IEC output power cords
USB cable
Serial cable
2 brackets for 19-inch mounting
2 universal rails
2 brackets for tower mounting
Cable locking systems
Safety guide
Quick start
Input power factor correction (PFC), ratio not published by the manufacturer
Output frequency
50 - 60 Hz
Phase (output/input)
Single-phase / Single-phase
Eco mode efficiency
97.5% in high-efficiency mode
Double-conversion efficiency
Up to 92.5% in online mode
Output type
C13 outlets
Power (W)
1,500 W
Runtime
38 min at 300 W; 23 min at 500 W; 13 min at 800 W; 7 min at 1,200 W
External battery packs
Up to 4 hot-swappable external battery modules (EBM 9PXEBM48RT2U)
Form factor
Convertible rack/tower
Battery-backed outlets
5 to 8 outlets
Control & communication
USB, RS232 serial port, Network (SNMP / monitoring), Card slot
Warranty
1 year
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is the network management card supplied with this 9PX 1500?
Yes, the network management card is in the box — that is what the “N” in the reference 9PX1500IRTN indicates. Remote monitoring and control are operational from the moment the unit is commissioned.
Does this 1500 VA unit really deliver 1500 W?
Yes: the power factor is 1, so the full 1500 VA is available in watts. On a desktop line-interactive UPS at 0.6, only 900 would be left.
Which outlets does the 9PX 1500 have?
Eight C13 outlets on the output side, with one C14 inlet. Two IEC output cords come with the unit: beyond two machines, you will need your own cords.
Can a 1500 VA online UPS stay close to a workstation?
This one, yes: less than 35 dBA, which is remarkably low for a double-conversion unit. Allow for 18.9 kg in a 2U chassis 440 mm wide and 450 deep.
Does the 9PX 1500 install in a rack or as a tower?
Both, brackets supplied: two 19-inch mounting brackets, two universal rails and two stands for vertical installation, plus a cable locking system. No additional kit to order.
What voltage range does the 9PX 1500 accept?
From 176 to 276 V, at a frequency of 50 or 60 Hz, auto-selected. Double conversion with power factor correction also limits the harmonics fed back into the upstream mains.
How do you connect the 9PX 1500 to a monitoring system or a server?
Through the supplied network card, a USB port, an RS-232 serial port, and three mini terminal blocks: remote on/off, remote power off and relay output. The USB and serial cables are in the box.
Is the Eaton 9PX 1500 (9PX1500IRTN) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It delivers a pure sine wave, displays its status on a multilingual graphical LCD screen, and its output voltage can be set to 200, 208, 220, 230 or 240 V.
