Eaton 9PX 2200 VA Online UPS - RT3U (9PX2200IRT3U)

Fifteen minutes of runtime at half load (1100 W), and up to four hot-swappable battery modules to go well beyond. 2200 W genuinely available and ten outlets, two of them heavy-duty 16 A.

  • Runtime of 15 minutes at half load (1100 W)
  • 2200 W genuinely available, power factor of 1
  • Up to 4 additional battery modules, hot-swappable
  • 8 C13 outlets, the format used by computer and server power cords
  • 2 C19 outlets, heavy-duty 16 A for power-hungry equipment
  • USB port and RS-232 serial port for automatic server shutdown
  • Slot for an SNMP, Modbus or dry contact network card
  • 2 controllable outlet groups: secondary equipment shuts down first
  • Internal bypass: power still flows if the UPS fails
  • Pure sine wave output
  • Multilingual graphic LCD display
  • Shallow 3U format, tower-convertible, brackets included
  • Noise level below 40 dBA
  • Weight 24.5 kg
Ref.: 9PX2200IRT3U

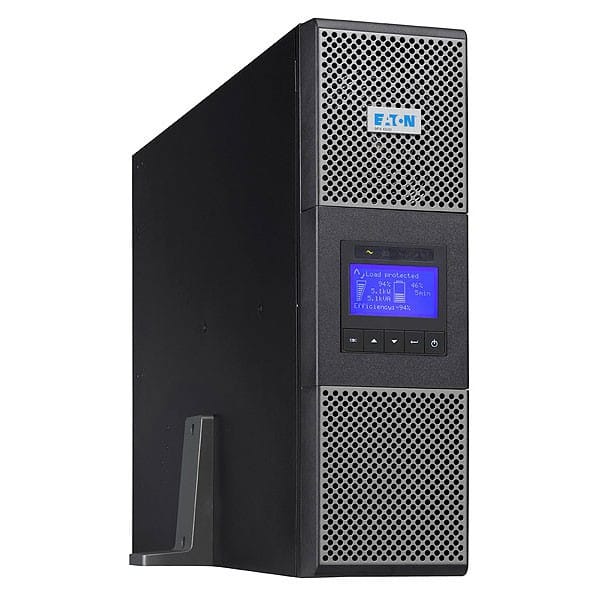

Eaton 9PX 2200 VA Online UPS - RT3U (9PX2200IRT3U) — image 1

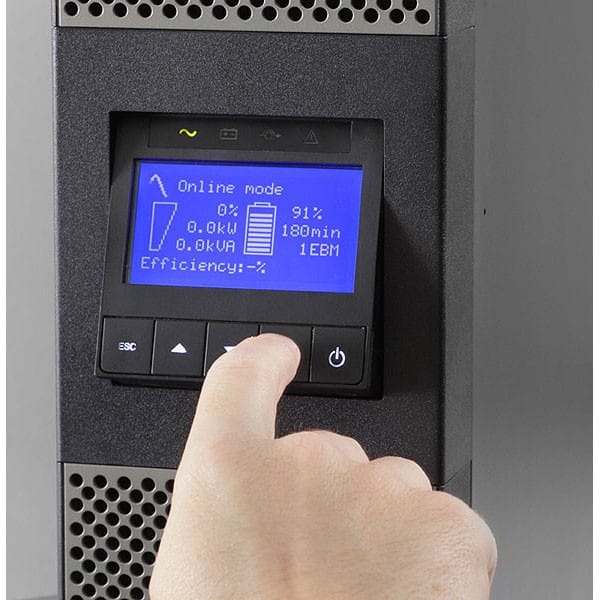

Eaton 9PX 2200 VA Online UPS - RT3U (9PX2200IRT3U) — image 2

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/2
17 999,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 86 Ko — downloadable

Product overview

A high-end online UPS, convertible between rack and tower: online double conversion, 2200 VA / 2200 W, 3U format.
Technology & protection: power is fully and continuously regenerated — your servers are never exposed to the mains, with zero transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise.
Power: 2200 VA for 2200 W of real power — its power factor of 1 makes all of the rated power available in watts.
Runtime: about 15 minutes at half load (1100 W); extendable with additional battery modules.
Outlets: 8 C13 outlets + 2 heavy-duty C19 outlets for power-hungry equipment.
Management: USB port and RS-232 serial port for automatic shutdown; slot for an SNMP network card. Graphical LCD display to monitor the UPS. Low-noise operation (under 40 dB).
Ideal, for example, for servers, storage or network equipment.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage200/208/220/230/240 V
Waveform typeSine wave
Output connections8 IEC C13 outlets (10 A) + 2 IEC C19 outlets (16 A)
Input voltage200/208/220/230/240 V
Input frequency50 / 60 Hz auto-selecting (40 - 70 Hz), frequency converter mode
Input connections1 IEC C20 inlet (16 A)
Voltage range176 - 276 V without derating (up to 100 - 276 V with derating)
Battery replacementUser-replaceable, hot-swappable (no power interruption)
Battery managementABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, automatic recognition of external batteries
Interface port1 USB port, 1 RS232 serial port, 1 remote ON/OFF mini terminal block, 1 remote power-off mini terminal block, 1 output relay mini terminal block
User interfaceMultilingual graphic LCD display
Audible alarmYes
Power management softwareEaton Intelligent Power
Weight (kg)24.5 kg
Dimensions (W x D x H) (mm)440 x 485 x 130 mm
TechnologyOn-line
Power (VA)2,200 VA
Voltage stabiliserYes
Box contents9PX uninterruptible power supply Input cable 2 IEC output power cords USB cable Serial cable 2 brackets for 19-inch mounting 2 universal rails 2 brackets for tower mounting Cable locking systems Safety guide Quick start
Technical specifications (continued)
Communication card slot1 slot for Network-MS, ModBus-MS or Relay-MS card (optional)
Rack height3U
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass
Audible noise< 40 dBA
Power factor (ratio)1
Input power factorInput power factor correction (PFC), ratio not published by the manufacturer
Output frequency50 - 60 Hz
Phase (output/input)Single-phase / Single-phase
Eco mode efficiency98% in high-efficiency mode
Double-conversion efficiencyUp to 93% in online mode
Output typeC13 outlets
Power (W)2,200 W
Runtime43 min at 300 W; 25 min at 500 W; 15 min at 800 W; 9 min at 1,200 W; 5 min at 1,800 W
External battery packsUp to 4 hot-swappable external battery modules (EBM 9PXEBM72RT3U)
Form factorConvertible rack/tower
Battery-backed outlets9 outlets or more
Control & communicationUSB, RS232 serial port, Card slot
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the 9PX 2200 RT3U run on battery?
15 minutes at half load, i.e. 1100 W. The runtime can be extended with up to four hot-swappable battery modules, which lets you go well beyond that without changing UPS.
What is the benefit of this 9PX's shallow 3U format?
It is only 485 mm deep, for 440 wide and 130 high, i.e. 3U. By trading one U of height for 12 cm less depth, it fits into shallow cabinets where a longer 2U unit will not.
Does this 2200 VA unit really deliver 2200 W?
Yes: the power factor is 1, so the full 2200 VA is available in watts. On a line-interactive UPS at 0.6, only 1320 would be left.
Which outlets does the 9PX 2200 RT3U have?
Eight C13 outlets and two heavy-duty 16 A C19 outlets, with a C20 inlet. The input cable and two IEC output cords are supplied.
What are the controllable outlet groups for?
To shut down secondary equipment first during a power cut, keeping the battery for critical machines. On a 2200 VA unit, this can noticeably extend the useful backup time.
Does power still get through if the UPS fails?
Yes, an internal bypass keeps the equipment powered. The UPS accepts an input of 176 to 276 V at 50 or 60 Hz, auto-selected, before drawing on its battery.
Can this 9PX 2200 stay in an occupied room?
It stays below 40 dBA, which is low for a 2200 VA double-conversion unit. Allow for 24.5 kg: rack installation takes two people.
Is the Eaton 9PX 2200 RT3U (9PX2200IRT3U) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It delivers a pure sine wave, displays its status on a multilingual graphical LCD screen, and its battery can be extended with an external EBM 3U module. The datasheet covers the rest.
