Eaton 9PX 3000 VA Online UPS - RT 3U (9PX3000IRTBPF)

Devices plug straight into four FR outlets, with no adapter or special cord. 3000 W genuinely available for 3000 VA, a graphic LCD display and a slot for a network management card.

  • 4 FR outlets: devices plug straight in, with no adapter
  • 3000 W genuinely available, power factor of 1
  • USB port and RS-232 serial port for automatic server shutdown
  • Slot for an SNMP, Modbus or dry contact network card
  • Pure sine wave output
  • Multilingual graphic LCD display
  • Shallow 3U format, tower-convertible, brackets included
  • Accepted input voltage from 176 to 276 V
  • Noise level below 40 dBA
  • Weight 27.4 kg
Ref.: 9PX3000IRTBPF

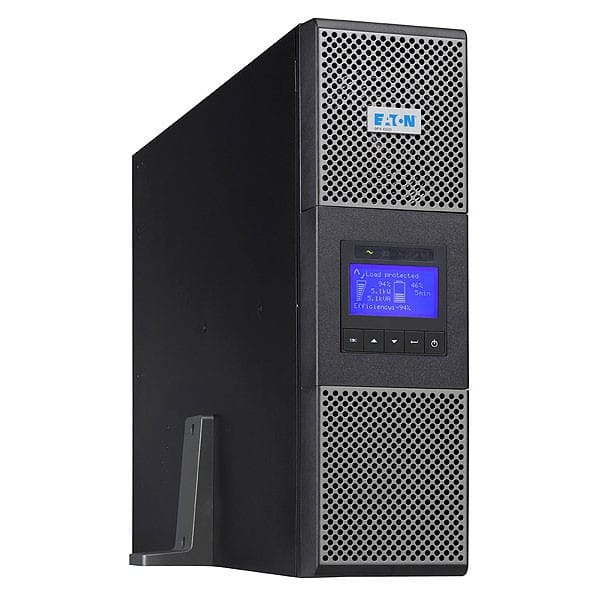

Eaton 9PX 3000 VA Online UPS - RT 3U (9PX3000IRTBPF) — image 1
Eaton 9PX 3000 VA Online UPS - RT 3U (9PX3000IRTBPF) — image 2

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/2
27 799,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

A high-end online UPS, convertible between rack and tower: online double conversion, 3000 VA / 3000 W, 3U format.
Technology & protection: power is fully and continuously regenerated — your equipment is never exposed to the mains, with zero transfer time. Complete protection against outages, surges, voltage fluctuations and electrical noise.
Power: 3000 VA for 3000 W of real power — its power factor of 1 makes all of the rated power available in watts.
Outlets: 4 French-standard outlets — plug your devices in directly, no adapter needed.
Management: USB port and RS-232 serial port for automatic shutdown; slot for an SNMP network card.
Pure sine wave output; low-noise operation (under 40 dB).
Ideal, for example, for a server, a demanding workstation or network equipment.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage200/208/220/230/240 V
Waveform typeSine wave
Output connections4 FR/Schuko outlets (HotSwap MBP module)
Input voltage200/208/220/230/240 V
Input frequency50 / 60 Hz auto-selecting (40 - 70 Hz), frequency converter mode
Input connections1 IEC C20 inlet (16 A)
Voltage range176 - 276 V without derating (up to 100 - 276 V with derating)
Battery replacementUser-replaceable, hot-swappable (no power interruption)
Battery managementABM® or temperature-compensated charging method (user-selectable), automatic battery test, deep discharge protection, automatic recognition of external batteries
Interface port1 USB port, 1 RS232 serial port, 1 remote ON/OFF mini terminal block, 1 remote power-off mini terminal block, 1 output relay mini terminal block

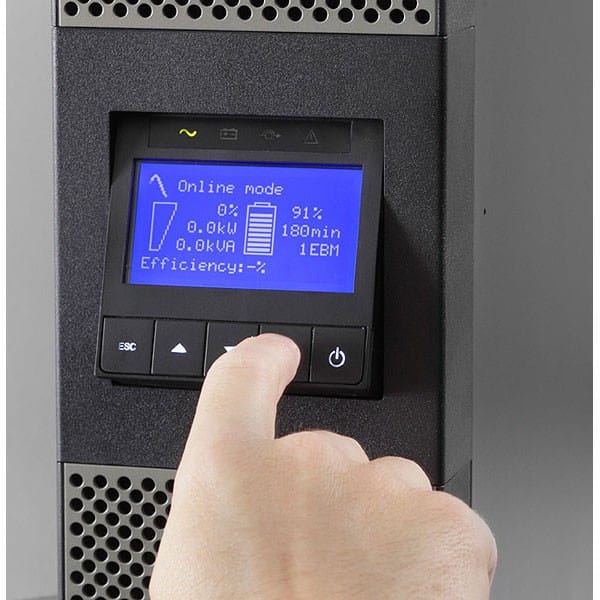

User interfaceMultilingual graphic LCD display
Audible alarmYes
Power management softwareEaton Intelligent Power
Weight (kg)27.4 kg
Dimensions (W x D x H) (mm)440 x 485 x 130 mm
TechnologyOn-line
Power (VA)3,000 VA
Voltage stabiliserYes
Box contents9PX UPS · 2 IEC output power cords · USB cable · Serial cable · 2 brackets for tower mounting · 2 brackets for 19-inch mounting · 2 universal rails · Cable locking systems · Safety guide · Quick start
Technical specifications (continued)
Communication card slot1 slot for Network-MS, ModBus-MS or Relay-MS card (optional)
Rack height3U
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass + HotSwap MBP maintenance bypass as standard
Audible noise< 40 dBA
Power factor (ratio)1
Input power factorInput power factor correction (PFC), ratio not published by the manufacturer
Output frequency50 - 60 Hz
Phase (output/input)Single-phase / Single-phase
Eco mode efficiency98% in high-efficiency mode
Double-conversion efficiencyUp to 94% in online mode
Output typeFR outlets
Power (W)3,000 W
Runtime60 min at 300 W; 36 min at 500 W; 22 min at 800 W; 13 min at 1,200 W; 7 min at 1,800 W; 4 min at 2,500 W
External battery packsUp to 4 hot-swappable external battery modules (EBM 9PXEBM72RT3U)
Form factorConvertible rack/tower
Battery-backed outlets3 to 4 outlets
Control & communicationUSB, RS232 serial port, Card slot
Warranty1 year

Specific references

EAN743172081506

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does this 9PX 3000 have French outlets?
Yes, and that is what sets it apart: four French outlets on the output side, into which you plug your devices directly — with no adapter or IEC cord, unlike almost every other UPS in this range.
Does this 3000 VA unit really deliver 3000 W?
Yes: the power factor is 1, so the full 3000 VA is available in watts. On a conventional UPS with French outlets, whose power factor is around 0.6, only 1800 would be left.
How does the 9PX3000IRTBPF connect to the mains?
Via a heavy-duty C20 inlet — the 16 A format, not the C14 of a desktop UPS. The accepted range runs from 176 to 276 V, with automatic 50/60 Hz selection.
What is the benefit of this model's shallow 3U format?
It is only 485 mm deep, for 440 wide and 130 high, i.e. 3U. It therefore fits into shallow cabinets where a longer 2U unit will not, and converts to a tower, brackets supplied.
Is the output a pure sine wave?
Yes, the output is a pure sine wave, continuously regenerated by double conversion. The output frequency is held at 50 or 60 Hz.
How do you monitor the 9PX3000IRTBPF?
Through a USB port, an RS-232 serial port and three mini terminal blocks — remote on/off, remote power off, relay output. A slot accepts a Network-MS, ModBus-MS or Relay-MS card.
Is this 9PX 3000 with French outlets noisy?
It stays below 40 dBA, which is low for a 3000 VA double-conversion unit. Allow for 27.4 kg: it has to sit on the floor or at the bottom of the rack.
Is the Eaton 9PX 3000 RT3U (9PX3000IRTBPF) new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It displays its status on a multilingual graphical LCD screen, and its battery can be extended with an external EBM 3U module.
