APC Smart-UPS SRT 5000VA Double-Conversion Online UPS 230V (SRT5KRMXLI)

4500 W genuinely available, eleven minutes of runtime at half load (2250 W) and a Web/SNMP management card already installed. The input connects to a terminal block: plan for an electrician to do the wiring.

  • 4500 W genuinely available
  • Runtime of 11 minutes at 50% load (2250 W) and 7 minutes at 70% (3150 W)
  • Web/SNMP management card installed, for remote monitoring
  • 3-wire terminal block input connection, to be installed by an electrician
  • 6 C13 outlets, the format used by computer and server power cords
  • 4 C19 outlets, heavy-duty 16 A for power-hungry equipment
  • Pure sine wave output
  • Automatic and manual internal bypass
  • Runtime extendable with additional SRT192RMBP battery packs
  • LCD display: load, battery level and remaining runtime at a glance
  • Temperature probe included
  • Full recharge in 1 h 30
  • 3U rack format, rails and mounting brackets included
  • 55 dBA noise level: active ventilation, to be installed in a technical room
  • Weight 54.43 kg
Ref.: SRT5KRMXLI

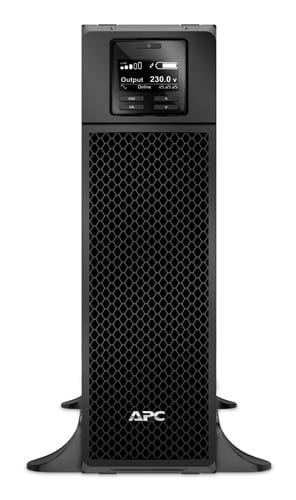

APC Smart-UPS SRT 5000VA Double-Conversion Online UPS 230V (SRT5KRMXLI) — image 1

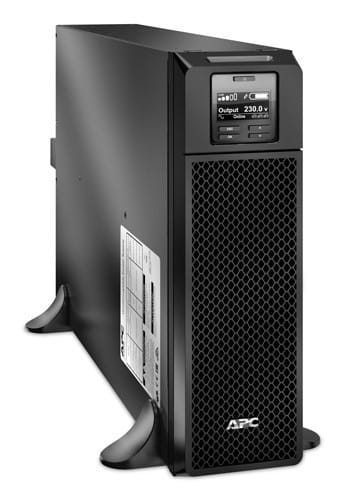

APC Smart-UPS SRT 5000VA Double-Conversion Online UPS 230V (SRT5KRMXLI) — image 2

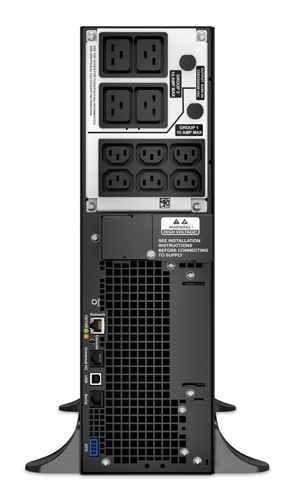

APC Smart-UPS SRT 5000VA Double-Conversion Online UPS 230V (SRT5KRMXLI) — image 3

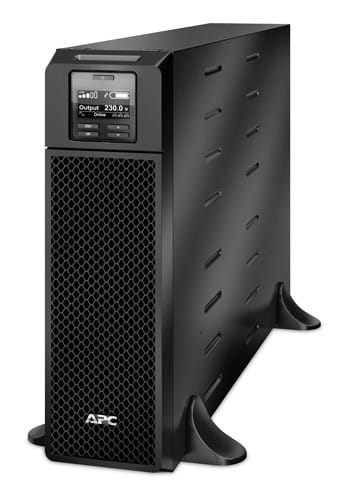

APC Smart-UPS SRT 5000VA Double-Conversion Online UPS 230V (SRT5KRMXLI) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
65 199,00 DHincl. VAT

Configuration · APC Smart-UPS SRT Rack

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 103 Ko — downloadable

Product overview

A high-power online UPS for server rooms: online double conversion, 5000 VA / 4500 W, rack format.
Technology & protection: power is constantly rebuilt — the equipment receives flawless power without ever touching the mains, with zero transfer time. Maximum protection against outages, surges, voltage fluctuations and electrical noise.
Power: 5000 VA for 4500 W of real power — enough to run several servers and network equipment.
Runtime: its battery takes over during a power cut, giving you time to shut the machines down cleanly; runtime can be extended with additional battery modules.
Outlets: 6 C13 outlets + 4 heavy-duty C19 outlets; terminal block input connection.
Active cooling, to be installed in a rack or technical room.
Designed, for example, for server racks or critical business infrastructure.
Remember to check how much power your equipment draws and to choose the rating according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage230 V (220 / 240 V)
Waveform typeSine wave
Output harmonic distortionLess than 2%
Output connections6 IEC 60320 C13 outlets + 4 IEC 60320 C19 outlets + 2 IEC jumpers
Input voltage230 V (220 / 240 V)
Input frequency40 - 70 Hz auto-sensing
Input connections1 hardwired connection on 3-wire terminal block (1 phase + neutral + earth)
Voltage range100 - 275 V adjustable at half load
Battery typeSealed lead-acid, 192 V bus
Typical recharge time1.5 hours
Interface port1 USB port, 1 SmartSlot, 1 emergency power off (EPO)
User interfaceMultifunction LCD status and control console
Audible alarmAudible and visual alarms according to severity level
Weight (kg)54.43 kg
Dimensions (W x D x H) (mm)432 x 719.4 x 130 mm
Estimated battery service life (years)3 to 5 years
TechnologyOn-line
Power (VA)5,000 VA
Voltage stabiliserYes
Technical specifications (continued)
Box contentsDocumentation CD · Installation guide · Rack-mounting hardware · Rack-mount brackets · Rack-mount support rails · Temperature probe · Warranty card · Web/SNMP management card
Replacement batteryAPCRBC140 (1 cartridge)
Communication card slot1 SmartSlot available; network management card (Network Management Card 3 with environmental monitoring) preinstalled
Rack height3U
Surge protection and filtering480 J
Transfer/switching time0 ms (continuous double conversion)
BypassInternal bypass (automatic and manual)
Audible noise55 dBA
Crest factor3:1
Output frequency50/60 Hz +/- 3 Hz, synchronised to mains
Phase (output/input)Single-phase / Single-phase
Output typeC13 outlets
Power (W)4,500 W
Runtime50% load (2,250 Watts): 11 minutes / 70% load (3,150 Watts): 7 minutes
External battery packsSRT192RMBP external battery packs (1 to 10 packs, from 2535 to 17745 VAh)
Form factorRack
Battery-backed outlets9 outlets or more
Control & communicationUSB, RS232 serial port, Network (SNMP / monitoring), Card slot
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How long does the SRT5KRMXLI run on battery?
11 minutes at 50% load, i.e. 2250 W, and 7 minutes at 70%, i.e. 3150 W. A full recharge is then very fast: 1 h 30, which narrows the window of vulnerability between two power cuts.
Is the network management card already installed?
Yes, a Web/SNMP management card is supplied with the UPS — which is rare, as it is almost always sold separately. It comes with a temperature probe, to monitor the room from the same interface.
How does the SRT5KRMXLI connect to the electrical installation?
Via a 3-wire terminal block — phase, neutral, earth: there is no plug to insert. It is a hardwired connection, to be entrusted to an electrician, with a dedicated circuit to be prepared at the distribution board before delivery.
What outputs does the SRT5KRMXLI offer?
Six C13 outlets, four heavy-duty 16 A C19 outlets and two IEC jumpers. C19 is the format for high-current equipment: blade chassis, storage arrays, high-power servers.
How much rack space does the SRT5KRMXLI take up?
3U high (13 cm), 43.2 cm wide and 71.9 cm deep, for 54.4 kg. This depth rules out shallow cabinets, and the weight means several people are needed to rack it, at the bottom of the cabinet.
Does this 5 kVA unit deliver 4500 usable watts?
Yes, thanks to a power factor of 0.9: 4500 W actually available for 5000 VA stated. It is this figure in watts that you should compare with the combined consumption of the rack.
Can the SRT5KRMXLI's runtime be extended?
Yes, with SRT192RMBP additional battery packs. This is the intended way to go beyond the eleven nominal minutes without changing UPS.
Can the UPS be serviced without shutting down the rack?
Yes, an automatic and manual internal bypass keeps the equipment powered: the automatic one in the event of a fault, the manual one for scheduled work on the unit.
Is the APC Smart-UPS SRT SRT5KRMXLI new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for a period of 3 years. It delivers a pure sine wave, accepts an input of 40 to 70 Hz and runs at 55 dBA: fan-cooled, to be installed in a technical room. The datasheet covers the rest.
