TP-Link TL-SG1016PE L2 Managed Gigabit Ethernet Switch (10/100/1000) Power over Ethernet (PoE) 1U

16 Gigabit ports, 8 of them PoE+ (150 W budget), to connect and power IP cameras, Wi-Fi access points and IP phones on a structured network. Full administration through a web interface.

  • 16 Gigabit ports, 8 of them PoE+, up to 30 W per port
  • Total PoE budget of 150 W
  • Switching capacity 32 Gbps, throughput 23.8 Mpps
  • VLANs, QoS and IGMP Snooping configurable through the web interface
  • Link aggregation and port mirroring
  • MAC address table of 8,000 entries
  • 19-inch 1U rack-mountable
  • VLANs up to 4,000, 10,000-byte Jumbo frames
Ref.: TL-SG1016PE

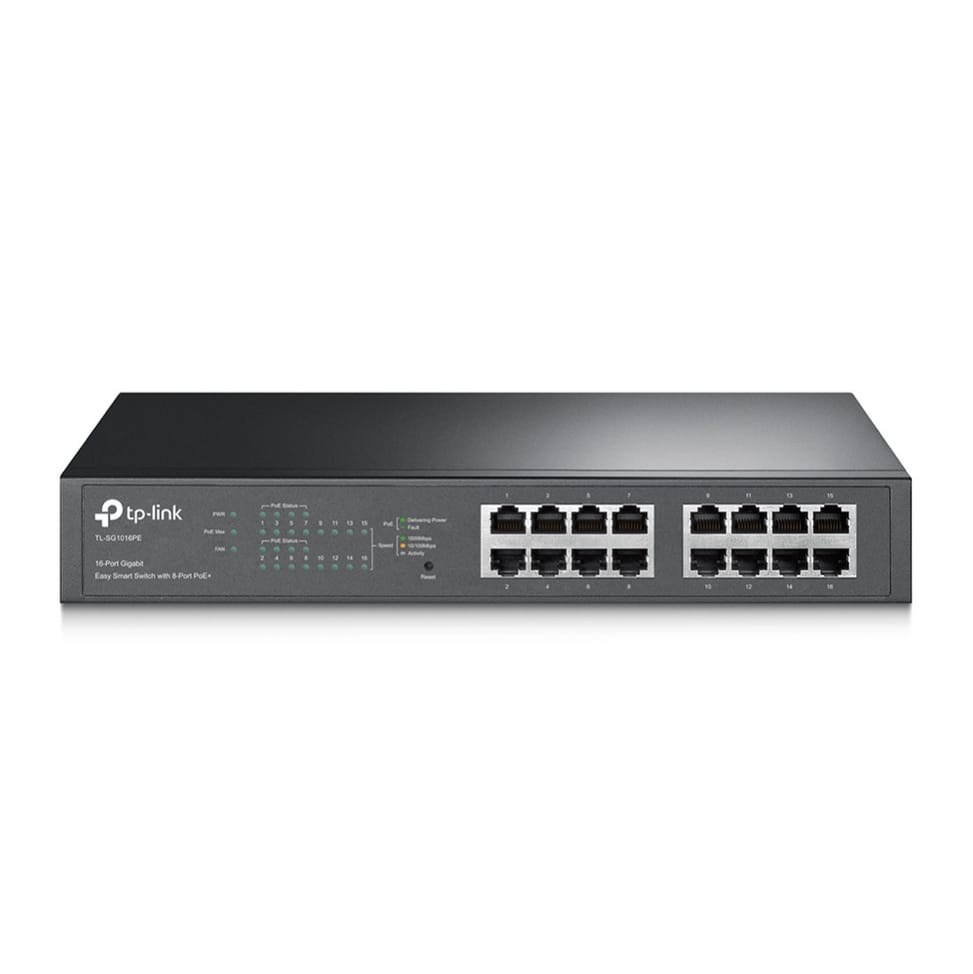

TP-Link TL-SG1016PE L2 Managed Gigabit Ethernet Switch (10/100/1000) Power over Ethernet (PoE) 1U — image 1

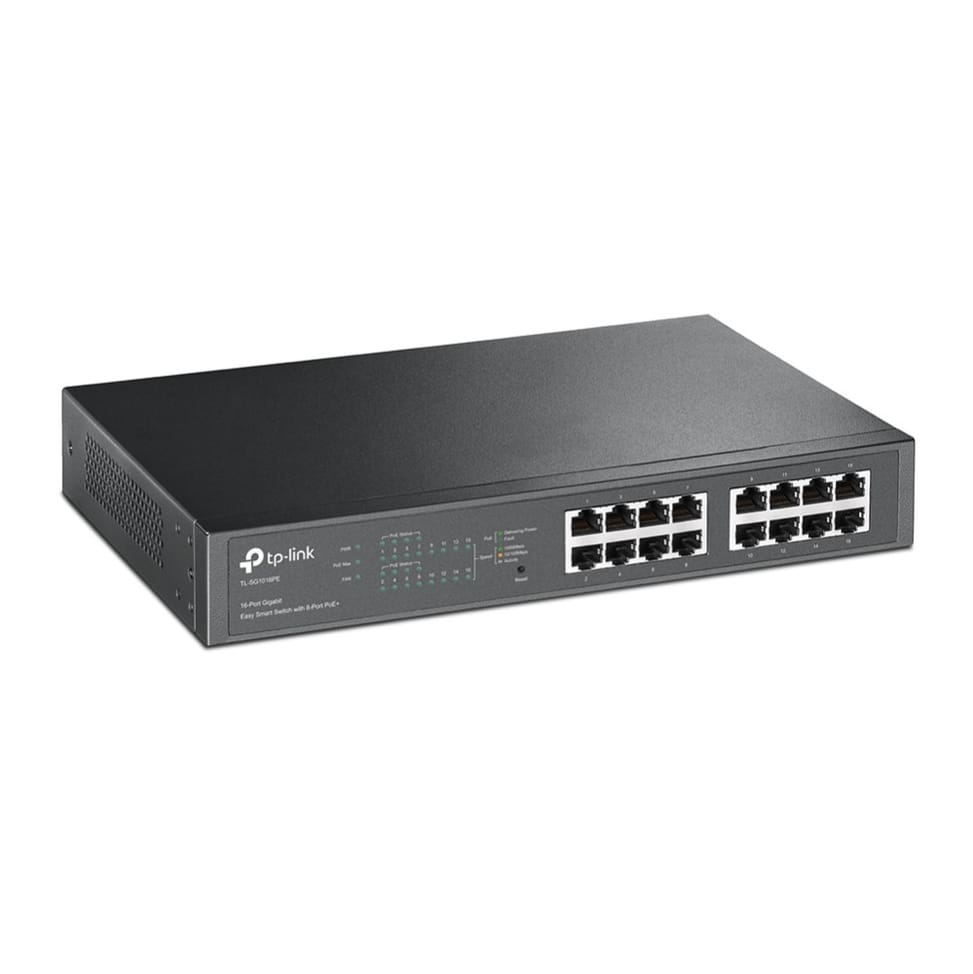

TP-Link TL-SG1016PE L2 Managed Gigabit Ethernet Switch (10/100/1000) Power over Ethernet (PoE) 1U — image 2

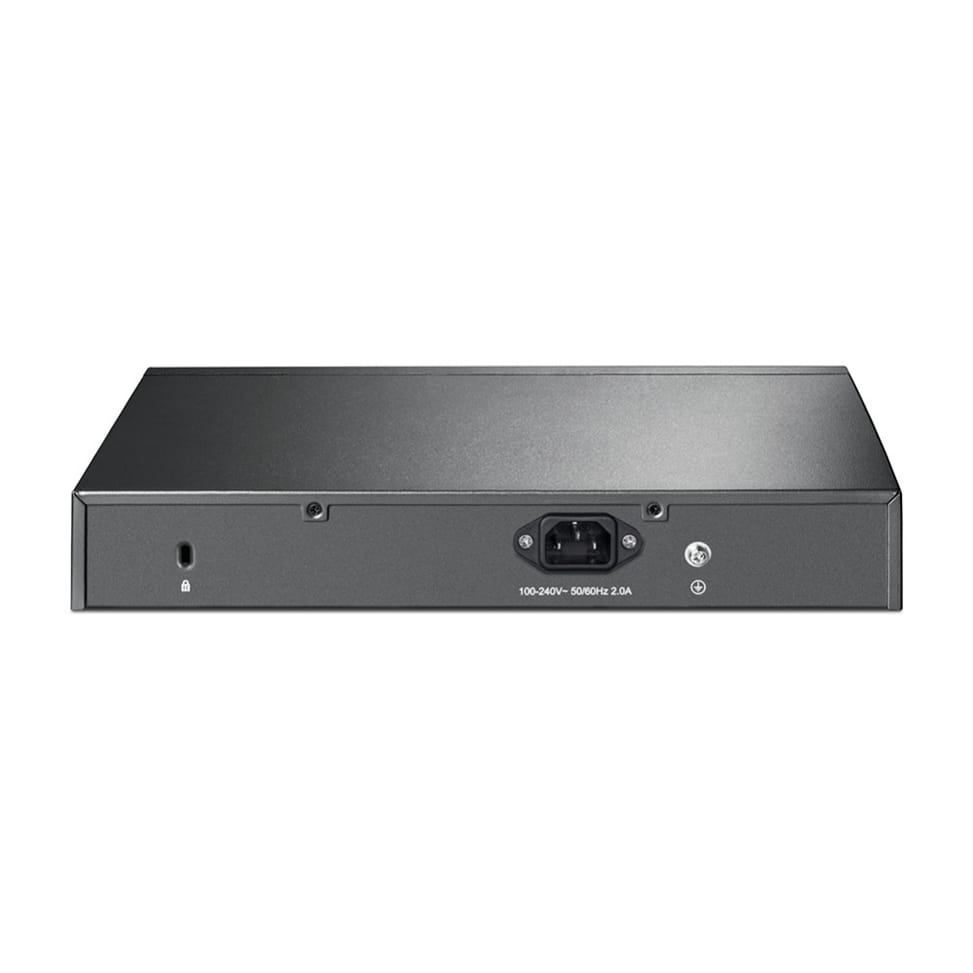

TP-Link TL-SG1016PE L2 Managed Gigabit Ethernet Switch (10/100/1000) Power over Ethernet (PoE) 1U — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
2 259,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

TP-Link TL-SG1016PE managed switch: 16 × 10/100/1000 Mbps Gigabit ports, including 8 PoE+ ports, to connect and power IP cameras, Wi-Fi access points and IP phones on a structured business network.
PoE: 8 PoE+ ports, up to 30 W per port, 150 W total budget — power up to eight devices over the network cable with no extra power socket.
L2 management: configurable via web interface, with VLAN, QoS, IGMP snooping, link aggregation, 802.3x flow control and port mirroring — management suited to SMEs and small campuses.
Form factor: 19-inch 1U rack-mountable, 294 × 180 × 44 mm.
Also: 32 Gbit/s switching capacity, 23.8 Mpps throughput, 8K MAC table, 4.1 MB buffer, up to 4,000 VLANs, 10,000-byte jumbo frames, 1 fan.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size8,000 entries
Number of VLANs128 simultaneous VLAN groups (802.1Q, port-based, MTU)
Interfaces16 RJ45 10/100/1000 Mbps ports including 8 PoE+
PoE ports8 PoE+ ports (802.3at)
Total PoE budget110 W
Network standardsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, 802.3at
Switching capacity32 Gbps
Forwarding rate23.8 Mpps
Packet buffer4.1 Mbit
Management modesWeb interface and Easy Smart Configuration Utility (Windows)
Cloud management platformNone
Layer 2 featuresIGMP snooping v1/v2/v3 (128 groups), static link aggregation (8 groups of 4 ports), port mirroring, cable test, loop prevention
IP routingNone
Quality of service (QoS)Port-based priority, 802.1p and DSCP, 4 queues, rate limiting, storm control
Power consumption124.4 W maximum
Technical specifications (continued)
Dimensions (W x D x H)294 x 180 x 44 mm
Number of ports11 to 18 ports
ManagedYes
Security featuresNone
Power supplyInternal 100-240 V AC power supply, 50/60 Hz
Cooling system1 fan
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelLayer 2
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budgetUp to 65 W
Fibre slots (SFP)No
Mounting19-inch rack-mountable
Warranty1 year

Specific references

EAN6935364098865

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How many of the TL-SG1016PE's ports supply PoE+?
Eight out of sixteen, at up to 30 W each, within a total budget of 150 W. The other eight Gigabit ports carry data only: plan where cameras and access points go accordingly when patching.
How many VLANs can you create on this switch?
Up to 4,000, tag-based or port-based, configured from the web interface. That is what “L2 managed” means: enough to isolate cameras, workstations and guests without the complexity of a fully managed switch.
How much electrical power does this switch draw?
124.4 W at most, the 150 W PoE budget only being reached with the devices connected. The power supply is built in and accepts 100 to 240 V: a mains power cable is all you need, supplied with the rack-mount kit.
Which operating tools does this switch offer?
Port mirroring to analyse traffic, link aggregation, broadcast storm control, quality of service with four queues and IGMP filtering for multicast — all from the web interface.
What internal performance does this 16-port model offer?
32 Gbps of switching capacity and 23.8 Mpps, with an 8,000-entry MAC address table, 4.1 MB of buffer and jumbo frames up to 10,000 bytes. Cabling from category 3 to 6 is supported.
Does this chassis have fans, and how much space does it take up?
One fan cools it, in a 294 × 180 × 44 mm 1U unit with a mounting kit included. It operates from 0 to 40 °C, at 10 to 90% relative humidity.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is the TP-Link TL-SG1016PE, a Layer 2 managed switch with eight PoE+ ports, FCC, CE and RoHS certified.
