Grandstream GWN7806 Layer 2+ Managed Switch 48 Gigabit Ports + 6 Gigabit SFP+ Ports

Designed to centralise all the connections of a building: 6 SFP+ ports at 10 Gbps, beyond plain Gigabit. 216 Gbps switching capacity, managed through GWN.Cloud or GWN Manager.

  • 6 SFP+ ports at 10 Gbps for very high-speed fibre links
  • L2+ level management: advanced VLANs, voice VLAN, QoS, IGMP/MLD snooping
  • 216 Gbps switching capacity, 160.7 Mpps throughput, 16 MB buffer
  • Managed through GWN.Cloud or GWN Manager, web/CLI/SNMP interface
  • 19" 1U rackable (kits included), 3 automatically regulated fans
  • 32K MAC address table, 4K VLANs
  • Up to 27 link aggregation groups, STP/RSTP/MSTP
  • Surge protection up to 6 kV
Ref.: GWN7806

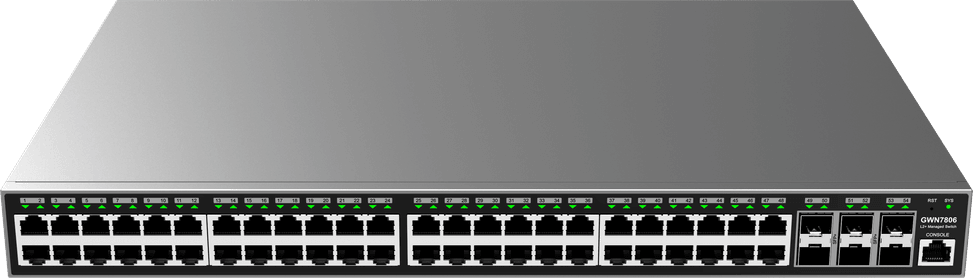

Grandstream GWN7806 Layer 2+ Managed Switch 48 Gigabit Ports + 6 Gigabit SFP+ Ports — image 1
Grandstream GWN7806 Layer 2+ Managed Switch 48 Gigabit Ports + 6 Gigabit SFP+ Ports — image 2

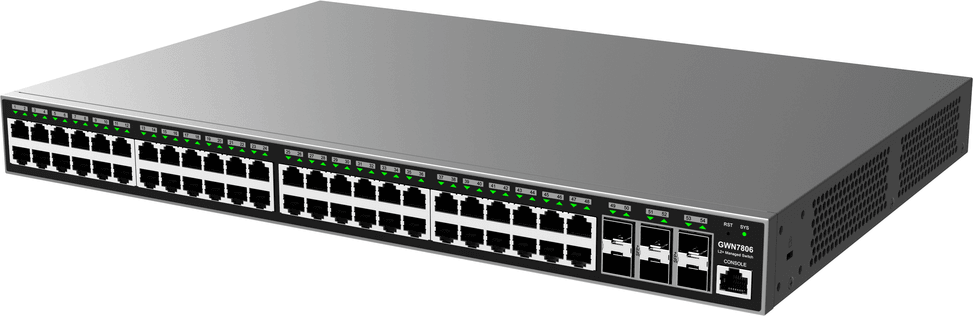

Grandstream GWN7806 Layer 2+ Managed Switch 48 Gigabit Ports + 6 Gigabit SFP+ Ports — image 3

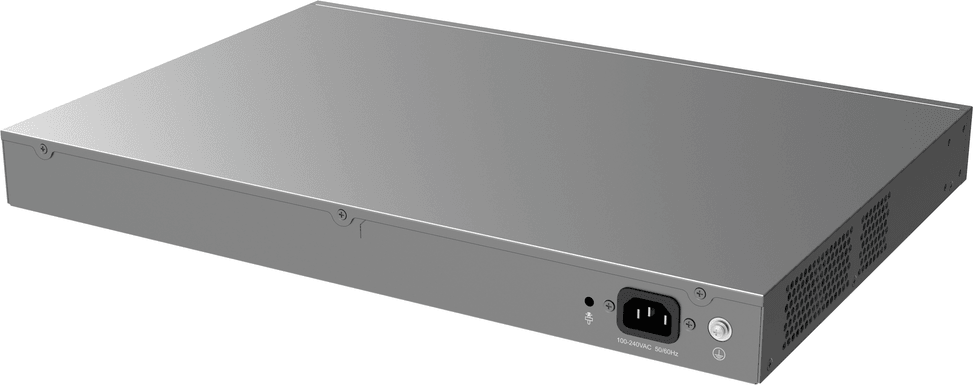

Grandstream GWN7806 Layer 2+ Managed Switch 48 Gigabit Ports + 6 Gigabit SFP+ Ports — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
4 295,00 DHincl. VAT

Configuration · Grandstream GWN7800

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 728 Ko — downloadable

Product overview

Grandstream GWN7806 Layer 2+ managed switch: 48 Gigabit ports and 6 × 10 Gbit/s SFP+ ports to bring all of a building's connections together in one robust, scalable enterprise device.
Ports: 48 Gigabit RJ45 ports and 6 × 10 Gbit/s SFP+ ports for very high-speed fibre links; 216 Gbit/s switching capacity, 160.7 Mpps forwarding rate, 16 MB buffer.
L2+ management: advanced VLANs (IEEE 802.1Q, QinQ, automatic voice VLAN), multi-layer QoS, IGMP/MLD snooping, static routing, link aggregation; web interface, CLI, SNMP; managed via GWN.Cloud or GWN Manager; stacking of up to 16 units (coming soon).
Form factor: 19" 1U rack-mountable, mounting kits included, 3 fans with automatic speed control.
Also: 32K MAC table, 4K VLANs, 27 link aggregation groups, STP/RSTP/MSTP, 802.1X, RADIUS, TACACS+, IP Source Guard, ARP inspection, DHCP snooping, 6 kV surge protection.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size32,000 entries
Number of VLANs4,094 VLANs (802.1Q), port-based VLAN and voice VLAN
Interfaces48 Gigabit ports, 6 SFP+ ports, 1 console port
PoE portsNone
Total PoE budgetNone
Network standardsIEEE 802.3x, 802.3af/at, 802.1p, 802.1Q, 802.3ab, 802.1D, 802.1s, 802.1w, 802.1x
Switching capacity216 Gbps
Forwarding rate160.704 Mpps
Packet buffer16 Mbit
Management modesWeb interface, LLDP and LLDP-MED, syslog, port mirroring, SSH, Telnet, HTTPS
Cloud management platformGWN.Cloud (GDMS Networking) and GWN Manager
Layer 2 features802.1Q VLAN, 27 link aggregation groups, STP/RSTP/MSTP (64 instances), IGMP and MLD snooping
IP routingStatic routing
Stacking and expansionStacking of up to 16 switches in a single interface, listed as “pending” by the manufacturer
Quality of service (QoS)Port priority, SP, WRR, WFQ, SP-WRR and SP-WFQ scheduling, rate limit, 4K ACLs
Technical specifications (continued)
Weight4 kg
Dimensions (W x D x H)440 x 301 x 44 mm
Package contentsSwitch, 1 AC cable (1.2 m, 10 A), 1 grounding cable (25 cm), 4 rubber pads, 2 rack-mount kits, 8 screws, 1 anti-pull power cord, 1 quick installation guide
Latency< 4 µs
Number of ports29 ports or more
ManagedYes
Security features802.1X, RADIUS and TACACS+, port isolation and security, IP source guard, ARP inspection, DHCP snooping
Power supplyInternal power supply 60 W, 10 A power cable included
Cooling system3 fans
PoE powerNo
Port speed1 Gbps (Gigabit)
Management levelLayer 2+
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does the GWN7806 power devices over PoE?
No: this is the non-PoE version in the series. Its 48 Gigabit ports carry data only. The GWN7806P, its counterpart, powers all 48 ports within a 400 W budget.
What are the 6 SFP+ slots on this switch used for?
They are 10 Gbps links: uplink to the network core, connection to a server or a storage array, fibre interconnection between buildings. Six slots, on a chassis that already lines up 48 Gigabit access ports.
How many VLANs and MAC addresses does this chassis handle?
4,000 VLANs and a table of 32,000 MAC addresses — twice that of the 24-port models in the series. VLANs are assigned per port or by 802.1Q tagging, with a voice VLAN dedicated to telephony.
How many links can be aggregated to the network core?
Up to 27 aggregation groups, with STP, RSTP and MSTP spanning tree for redundant topologies. Switching capacity reaches 216 Gbps at 160.7 Mpps, with 16 MB of buffer memory.
Does this chassis have fans, and where should it be installed?
Three automatically regulated fans cool it: it belongs in a rack or a technical room. It takes up 1U in 19-inch format, mounting kits included.
What electrical protection does this switch offer?
Surge protection of up to 6 kV, which matters on a chassis that brings together 48 copper links from across a whole building — every cable being an entry point for an electrical transient.
How is this switch managed day to day?
Through the local web interface, the command line or SNMP, and remotely via GWN.Cloud or GWN Manager, the platform installed on your own server. All three options coexist with no additional licence.
Is the switch new, and where can I view its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the GWN7806 and its PoE version, with capacities, security and environmental conditions: datasheet (PDF).
