TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W

Easy Smart management through a web interface: VLAN, QoS and link aggregation without the complexity of a fully managed switch. Automatic recovery of PoE devices that have stopped responding.

  • 8 of the 9 RJ45 ports are PoE+ 802.3af/at, up to 30 W per port
  • Easy Smart management through a web interface
  • VLAN (port-based, tag-based, MTU)
  • Automatic PoE recovery
  • Link aggregation, loop prevention
  • Fanless (silent)
  • Switching capacity 20 Gbps
  • MAC table of 4,000 entries
Ref.: TL-SG1210MPE
TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W — image 1
TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W — image 2
TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W — image 3
TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W — image 4
TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W — image 5
TP Link TL-SG1210MPE Managed Switch 9 Gigabit RJ45 Ports and 1 Gigabit SFP / RJ45 combo port - PoE 123 W — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
1 859,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 279 Ko — downloadable

Product overview

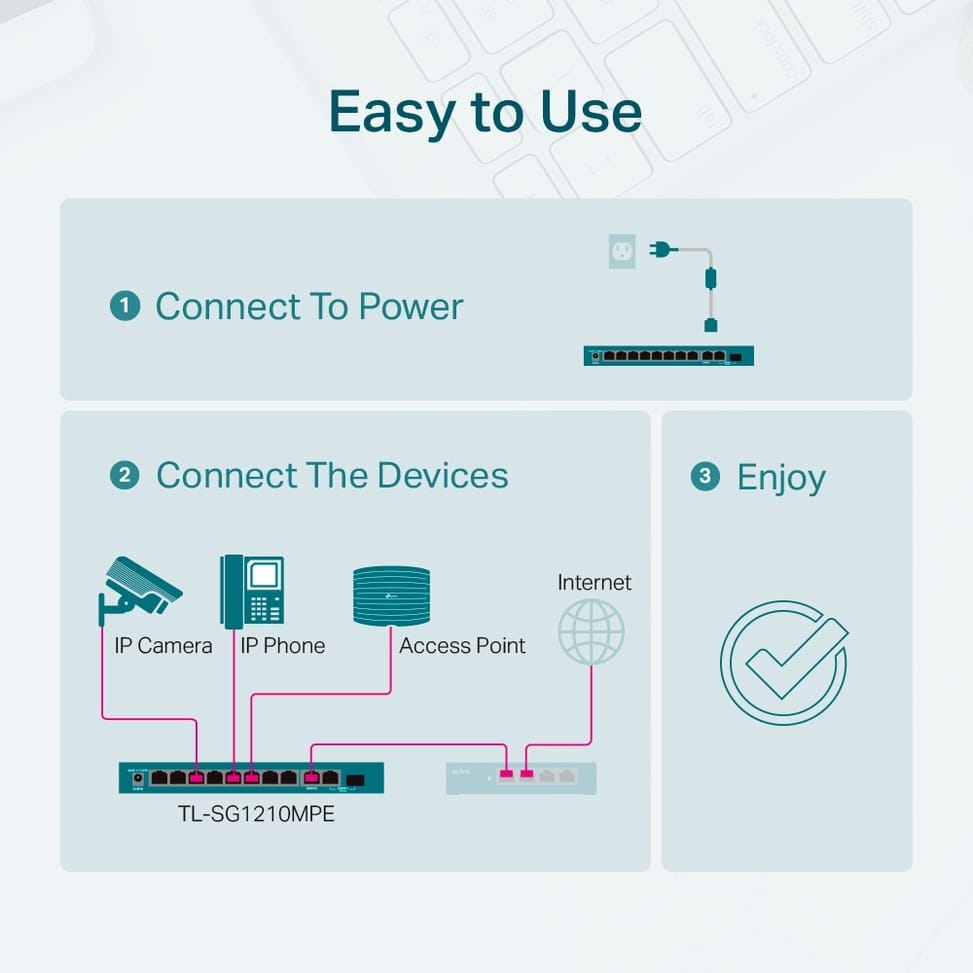

TP-Link TL-SG1210MPE Easy Smart switch: 10 Gigabit ports with 8 PoE+ ports to power IP cameras, Wi-Fi access points and IP phones over the network cable — simplified network management for small businesses.
Ports: 9 Gigabit 10/100/1000 Mbit/s RJ45 ports + 1 Gigabit SFP/RJ45 combo port for a copper or fibre uplink, depending on your installation.

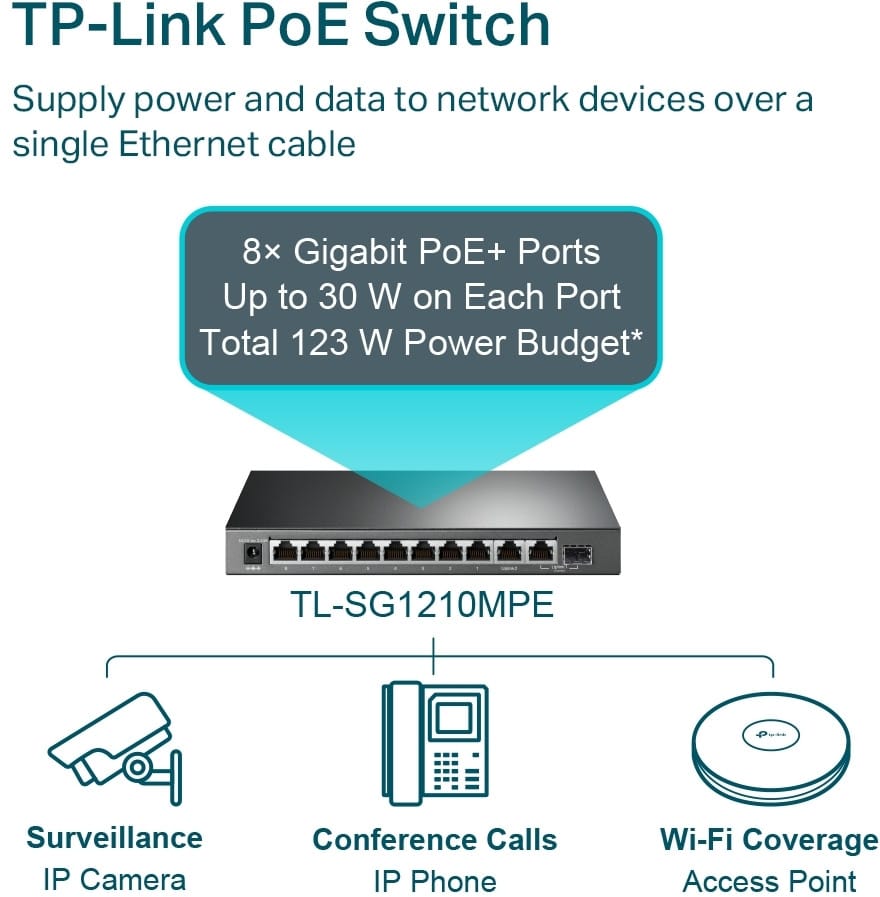

PoE: the first 8 ports deliver PoE+ 802.3af/at (up to 30 W per port, 123 W total budget) — power cameras and access points with no mains outlet nearby. Automatic PoE recovery if a device fails.
Management: web interface, QoS, port/tag/MTU VLAN, link aggregation, loop prevention. Fanless operation, compact desktop form factor.
Also: 20 Gbit/s switching capacity, 14.88 Mpps forwarding rate, 4K MAC table, IGMP snooping.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size4,000 entries
Number of VLANs32 simultaneous VLAN groups (802.1Q, port-based, MTU)
Interfaces10 RJ45 10/100/1000 Mbps ports including 8 PoE+, 1 Gigabit SFP combo slot, auto-negotiation and Auto MDI/MDIX
PoE ports8 PoE+ ports (802.3af/at), up to 30 W per port
Total PoE budget123 W
Network standardsIEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, 802.3af, 802.3at
Switching capacity20 Gbps
Forwarding rate14.88 Mpps
Management modesWeb interface and Easy Smart Configuration Utility (Windows)
Cloud management platformNone
Layer 2 featuresIGMP snooping (128 groups), static link aggregation (4 groups of 4 ports), port mirroring, cable test, loop prevention, Extend mode and PoE auto recovery
IP routingNone
Quality of service (QoS)Port-based priority, 802.1p and DSCP, 4 queues, rate limiting, storm control
Power consumption141.54 W maximum with 123 W PoE load, 7.66 W without PoE load
Technical specifications (continued)

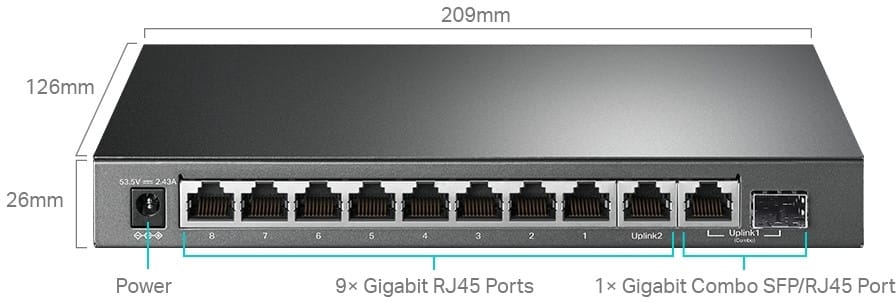

Dimensions (W x D x H)209 x 126 x 26 mm
Number of ports6 to 10 ports
ManagedYes
Security featuresNone
Power supplyExternal AC adapter 53.5 V DC, 2.43 A
Cooling systemFanless
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelWeb interface (Smart)
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budgetUp to 65 W
Fibre slots (SFP)Yes
MountingDesktop
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What PoE budget does the TP-Link TL-SG1210MPE offer?
123 W in total, up to 30 W per port in PoE+ 802.3af/at, on eight of the ten ports. Enough to power eight standard cameras or phones, or four power-hungry devices such as dual-band Wi-Fi access points.
What is the combo port on this switch for?
For the uplink, over RJ45 copper or SFP fibre, as you choose — never both at once. This lets you connect the switch to the router in the same room, or to a remote rack over fibre.
What can be configured on this Easy Smart switch?
VLANs — port-based, tag-based or MTU-based —, quality of service, link aggregation and loop prevention, from a web interface or the Easy Smart Configuration Utility.
What happens if a PoE camera hangs?
Automatic PoE recovery restarts it by cutting and then restoring power to the port, with no site visit. It is the feature that saves the most trips on a video surveillance installation.
Does this PoE switch make any noise?
No: it runs without a fan, which eliminates noise and reduces power consumption. Its desktop format means it can sit in a shared room rather than in a closed rack.
What performance does this switch offer?
20 Gbps of switching capacity and 14.88 Mpps, with a 4,000-entry MAC address table and IGMP snooping to limit the spread of multicast video streams.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. Full technical details are in the TL-SG1210MPE datasheet.
