TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2)

The heart of a business network ready for Wi-Fi 6E/7 and ultra-fast links between devices. Generous PoE++ budget and centralised cloud management for simplified deployment.

  • 24 Multi-Gigabit RJ45 ports at 2.5 Gbps
  • 4 SFP+ ports at 10 Gbps (switch-to-switch or server links)
  • 8 PoE++ 802.3bt ports, up to 60 W per port
  • 16 PoE+ 802.3at ports, up to 30 W per port
  • Total PoE budget 500 W
  • L2+ management (static routing)
  • Omada SDN cloud management, zero-touch deployment
  • VLAN, QoS, ACL, advanced security
  • Switching capacity 200 Gbps
  • MAC table of 32,000 entries
  • Rack-mountable, RJ45 and Micro-USB console ports
Ref.: SG3428XPP-M2

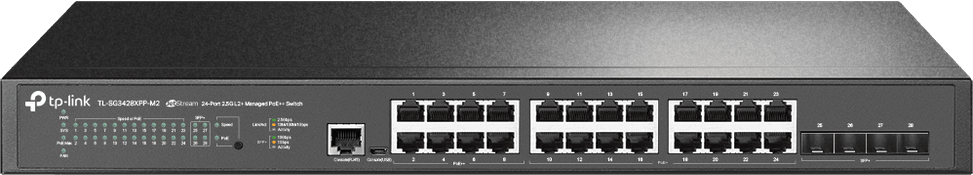

TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2) — image 1

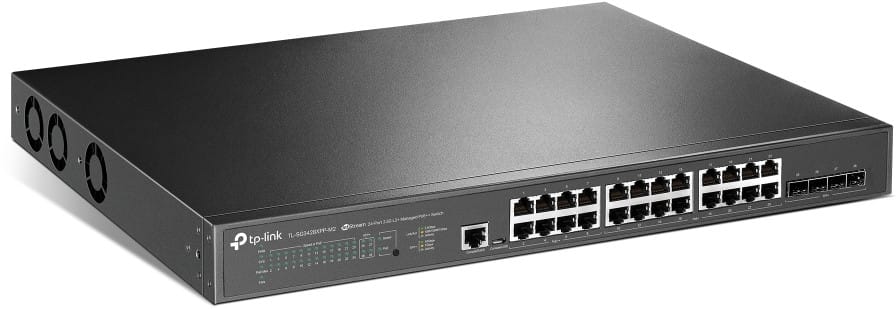

TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2) — image 2

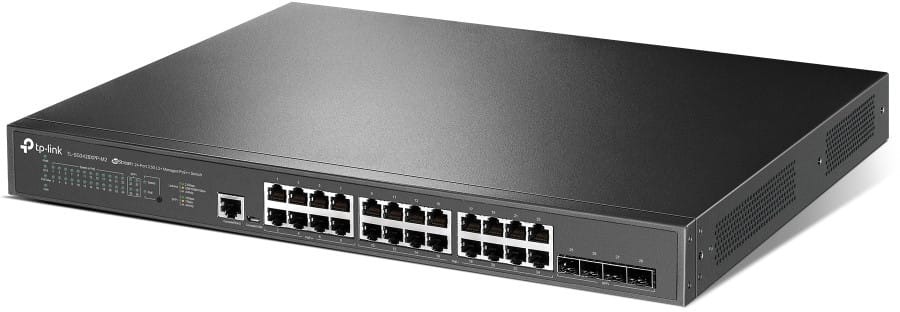

TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2) — image 3

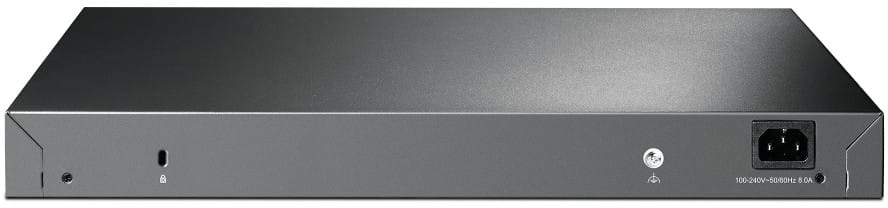

TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2) — image 4

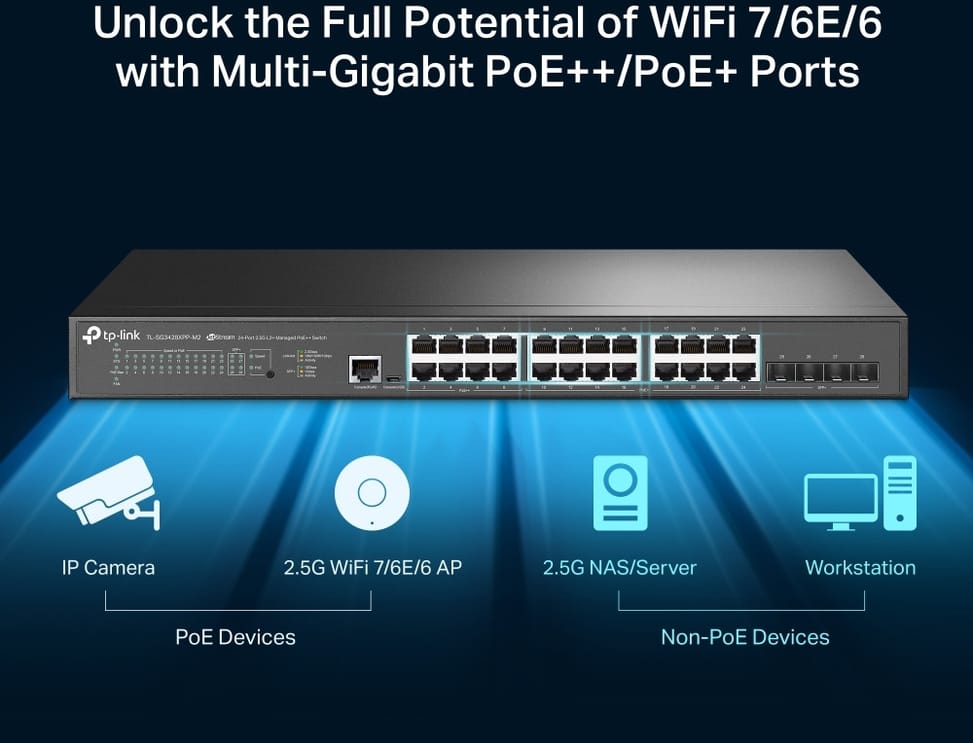

TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2) — image 5

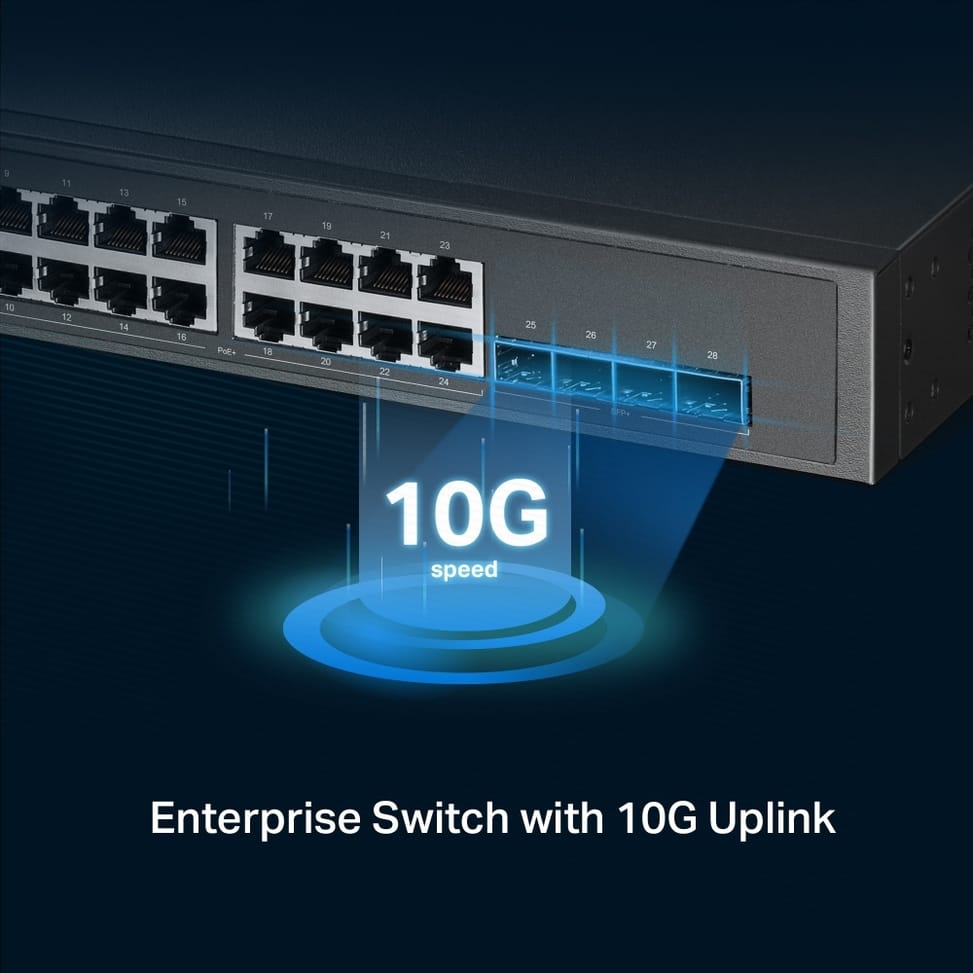

TP Link JetStream SG3428XPP-M2 Managed Switch (SG3428XPP-M2) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
15 499,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

TP-Link JetStream SG3428XPP-M2 switch: 24 × 2.5G Multi-Gigabit ports with PoE++ and 4 × 10G SFP+ ports — the core of a business network ready for Wi-Fi 7 and ultra-fast links between devices.
Ports: 24 × 2.5 Gbps RJ45 ports + 4 × 10 Gbit/s SFP+ slots (switch-to-switch or server links) + 1 RJ45 console port + 1 Micro-USB console port.
PoE: 500 W budget across 24 ports — 8 PoE++ 802.3bt ports (up to 60 W per port) and 16 PoE+ 802.3at ports (up to 30 W per port). Power Wi-Fi 6/6E/7 devices and high-consumption equipment without a single mains outlet nearby.
Management: L2+ managed switch with static routing, manageable via the Omada SDN platform (centralised cloud management, zero-touch provisioning). VLAN, QoS, ACLs, advanced security.
Also: 200 Gbit/s switching capacity, 148.80 Mpps forwarding rate, 32K MAC table, rack-mountable.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size32,000 entries
Number of VLANs4,096 VLAN groups (802.1Q), MAC VLAN, protocol VLAN, voice VLAN, QinQ
Internal memory256 MB DRAM, 32 MB flash memory
Interfaces24 RJ45 multi-gigabit 10/100/1000 Mbps and 2.5 Gbps ports, 4 SFP+ 10 Gbps slots, 1 RJ45 console port, 1 micro-USB console port
PoE ports24 powered ports: 8 PoE++ (802.3bt) up to 60 W and 16 PoE+ (802.3at) up to 30 W
Total PoE budget500 W
Network standardsIEEE 802.3i, 802.3u, 802.3ab, 802.3bz, 802.3z, 802.3ae, 802.3af, 802.3at, 802.3bt
Switching capacity200 Gbps
Forwarding rate148.80 Mpps
Packet buffer16 Mbit
Management modesWeb interface, CLI, SNMP v1/v2c/v3, RMON, dual image
Cloud management platformOmada SDN (OC200/OC300 controllers, software or cloud)
Layer 2 featuresLACP 802.3ad aggregation (8 groups), STP/RSTP/MSTP, loop detection, 802.3x flow control, port mirroring
IP routingStatic routing, 48 IPv4 and IPv6 routes, 32 IP interfaces
Quality of service (QoS)802.1p and DSCP, 8 queues, SP, WRR or SP+WRR scheduling, rate limiting
Technical specifications (continued)
Power consumption629.1 W maximum, 24.2 W standby
Dimensions (W x D x H)440 x 330 x 44 mm
Number of ports19 to 28 ports
ManagedYes
Security featuresIP-MAC-Port binding, Layer 2 to 4 ACL, 802.1X, DHCP Snooping, port security, storm control
Power supplyInternal 100-240 V AC power supply, 50/60 Hz
Cooling system3 fans
PoE powerYes
Port speed2.5 Gbps (Multi-Gig)
Management levelLayer 2+
PoE standardPoE++ (802.3bt, up to 60 W/port)
PoE budgetOver 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What PoE budget does the TP-Link SG3428XPP-M2 offer?
500 W in total across 24 ports: 8 PoE++ 802.3bt ports at up to 60 W and 16 PoE+ 802.3at ports at 30 W. The eight most powerful ports are best reserved for recent Wi-Fi access points and power-hungry devices.
Do all 24 ports on this switch run at 2.5 Gbps?
Yes, all 24 RJ45 ports reach 2.5 Gbps. This is what lets Wi-Fi 6, 6E or 7 access points perform to their full potential: a Gigabit port would hold them back, whereas the existing cabling is sufficient for 2.5 Gbps.
What are the 4 SFP+ slots used for?
For 10 Gbps links between switches or to servers. With 24 access ports at 2.5 Gbps, a Gigabit uplink would be saturated from the outset: these four optical links carry the traffic to the network core.
How can I access the switch if the network is down?
Through the two console ports, one RJ45 and the other Micro-USB. A laptop connected to the front panel lets you regain control of the switch even when no network link responds any more.
Does this switch support routing?
Yes, static routing, on Layer 2+ management. That is enough to let several internal VLANs communicate without going up to the router, while keeping the simplicity of an access switch.
Can this switch be managed from the cloud?
Yes, through the Omada SDN platform, which centralises the configuration of all your devices and enables zero-touch provisioning: a new switch plugged in on site retrieves its configuration by itself.
What performance does this switch offer?
200 Gbps of switching capacity and 148.80 Mpps, with a 32,000-entry MAC address table. This sizing matches 24 ports at 2.5 Gbps and 4 links at 10 Gbps running simultaneously.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is the TP-Link JetStream SG3428XPP-M2, a rack-mountable managed switch with VLANs, quality of service and access control lists.
