Aruba 6200F 24-Port Class 4 PoE 4SFP+ Switch (JL725A)

An Aruba CX access switch, managed at L2/L3 and driven from the Aruba Central cloud: each PoE port delivers up to 30 W to power Wi-Fi access points, cameras and IP phones, with 10 Gigabit fibre links to the network core.

  • PoE Class 4, up to 30 W per port (IEEE 802.3af/at)
  • Managed at L2/L3 level (Aruba CX range)
  • 4 SFP+ 1/10 GbE ports for fibre uplinks
  • Cloud management through Aruba Central (ACL, QoS, automated policies)
  • Stackable through VSF for unified management across switches
  • 1U rackable format, built-in fans and power supply
Ref.: JL725A

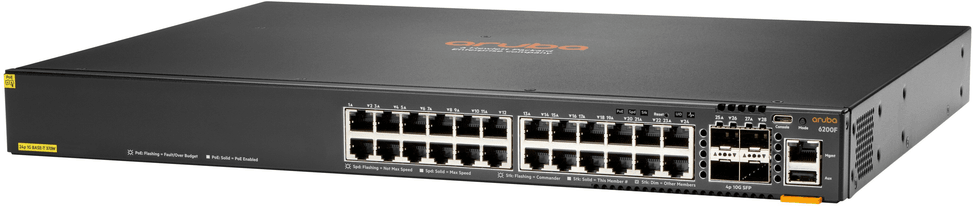

Aruba 6200F 24-Port Class 4 PoE 4SFP+ Switch (JL725A) — image 1

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

41 199,00 DHincl. VAT

Configuration · Aruba CX 6200F

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Product overview

The Aruba CX 6200F 24-port PoE+ 4SFP+ is an L2/L3 managed switch from the CX family, designed for enterprise access networks that combine PoE+ power with 10 Gigabit fibre uplinks.
24 Gigabit RJ45 Class 4 PoE ports: each port delivers up to 30 W (IEEE 802.3af/at) to power Wi-Fi 6 access points, IP cameras and VoIP phones straight from the switch, with no external power adapter.
4 × 1/10 GbE SFP+ ports to connect the switch to the distribution layer or the network core over fibre.
Managed through the Aruba Central cloud platform: centralised monitoring, ACLs, QoS and automated network policies. Stackable via VSF for unified management of several switches.
1U rack-mountable form factor with built-in fans and internal power supply. Ref. JL725A.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Internal memory8 GB DDR4, 16 GB eMMC flash memory
Interfaces24 Class 4 PoE 10/100/1000BASE-T ports 4 x 1/10G SFP ports. Supports PoE Standards IEEE 802.3af, 802.3at 1 USB-C console port 1 OOBM port 1 USB Type-A host port 1 Bluetooth adapter for use with the Aruba CX mobile app
PoE ports24 Class 4 PoE ports (802.3af/802.3at), up to 30 W per port
Total PoE budget370 W
Switching capacity128 Gbps
Forwarding rate95.2 Mpps
Management modesWeb interface, CLI, HPE Aruba Networking Central, Switch Multi-Edit software
Cloud management platformHPE Aruba Networking Central
Layer 2 featuresLayer 2 and 3 switching, quality of service, built-in network analytics engine
IP routingStatic routing and Access OSPF routing
Stacking and expansionStackable up to 8 members (VSF), up to 384 ports
Power consumption65 W at 230 V AC
Latency1 Gbps: 2.28 µs · 10 Gbps: 1.46 µs
Technical specifications (continued)
ProcessorQuad-core ARM Cortex-A72 at 1.8 GHz
Number of ports19 to 28 ports
ManagedYes
Security featuresAccess control lists (ACL), dynamic segmentation based on application policy
Power supplyFixed internal power supply 500 W, 100-120 V / 200-240 V AC
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelLayer 3 (inter-VLAN routing)
PoE standardPoE+ (802.3at, up to 30 W/port)
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How much PoE power does this switch deliver per port?
Up to 30 W per port, in Class 4 (802.3af/at), on all 24 access ports. That is the level expected to power Wi-Fi access points, cameras and IP phones over the network cable, with no power outlet needed at each point.
What speed do this model's uplinks reach?
Four 1/10 GbE SFP+ slots: the uplink to the network core runs at 10 Gbps over fibre, or at Gigabit with a 1G module. The same ports are also used to build a switch stack.
Can several CX 6200F switches be stacked?
Yes, with VSF stacking: several switches are then managed as a single device, which cuts configuration and monitoring work accordingly across an entire building.
Can this switch route between VLANs?
Yes: it is specified as managed at Layers 2 and 3, within the Aruba CX range. Traffic between segments then stays inside the switch rather than going up to the site router.
How is this switch managed day to day?
From the Aruba Central cloud, which centralises access control lists, quality of service and automated policies. A fleet spread across several sites can thus be monitored from a single console.
Does this chassis have fans, and where should it be installed?
Yes, fans and power supply are built in, in a 1U rack-mountable form factor: it belongs in a rack or a technical room. With 24 PoE ports, passive cooling is not an option.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is part number JL725A from the HPE Aruba CX 6200F range, a campus access switch with 24 Class 4 PoE ports.
