nJoy Echo Pro 3000 Online UPS - 2400 W / 3000 VA - 4 FR outlets (UPOL-OL300EP-CG)

Alongside the direct outlets, a terminal block output allows a fixed circuit to be connected, fitted by an electrician. Around 7 minutes of runtime at half load (1200 W), below 40 dB.

  • Runtime: 7 min at 50% load (1200 W), 18 min at 25%
  • Schuko outlets: an everyday device plugs straight in, with no adapter
  • Additional terminal block output: fixed wiring, to be fitted by an electrician
  • Automatic shutdown of the NAS or the server over USB HID, compatible with Synology NAS units
  • RS-232, EPO and SNMP ports for monitoring and emergency shutdown
  • PowerGuide and PowerMaster software for monitoring
  • Pure sine wave output
  • LCD screen: load, battery level and faults
  • Input voltage accepted from 80 to 300 V
  • Input surge protection: 565 joules
  • Automatic restart and recharge when the power returns
  • Compatible with a generator
  • Efficiency up to 96% in ECO mode
  • Under 40 dB in operation
  • Tower format, 21.3 kg
Ref.: UPOL-OL300EP-CG
Best seller

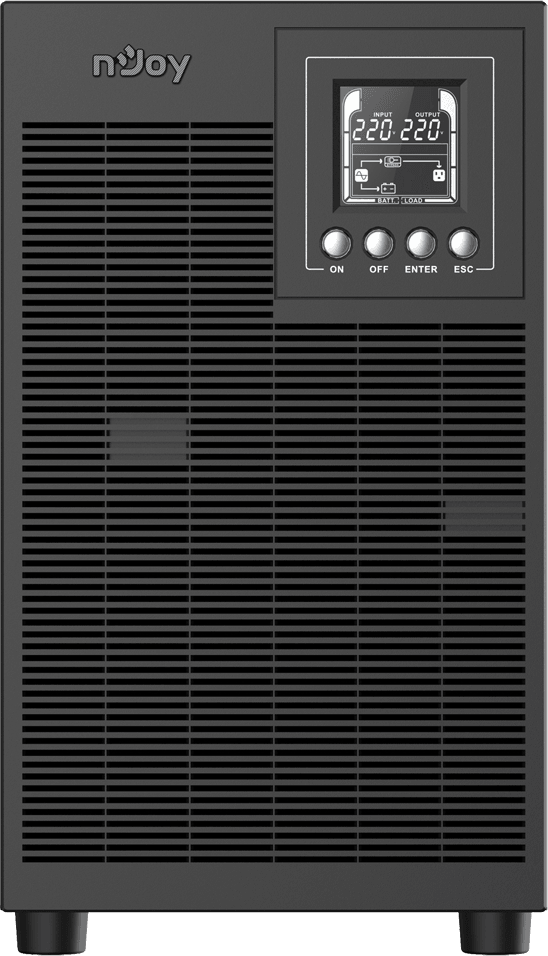

nJoy Echo Pro 3000 Online UPS - 2400 W / 3000 VA - 4 FR outlets (UPOL-OL300EP-CG) — image 1

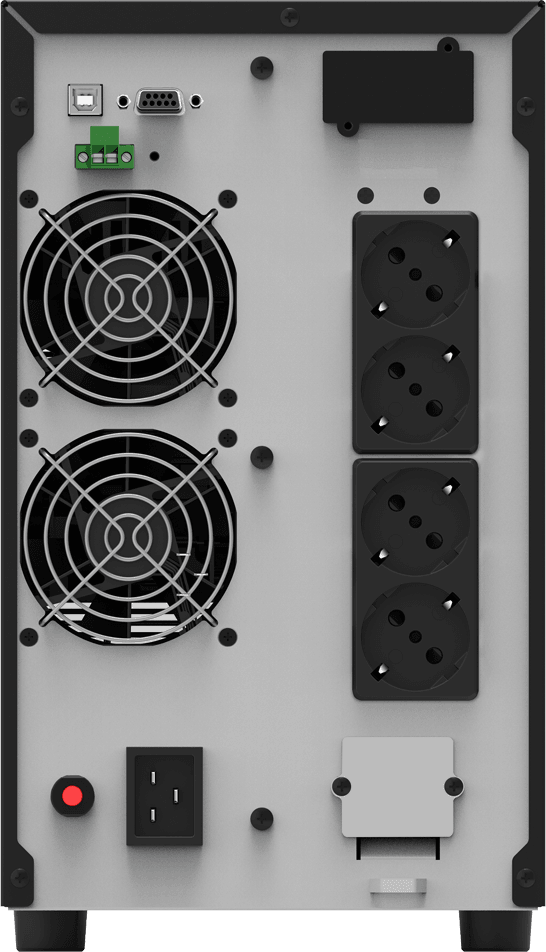

nJoy Echo Pro 3000 Online UPS - 2400 W / 3000 VA - 4 FR outlets (UPOL-OL300EP-CG) — image 2

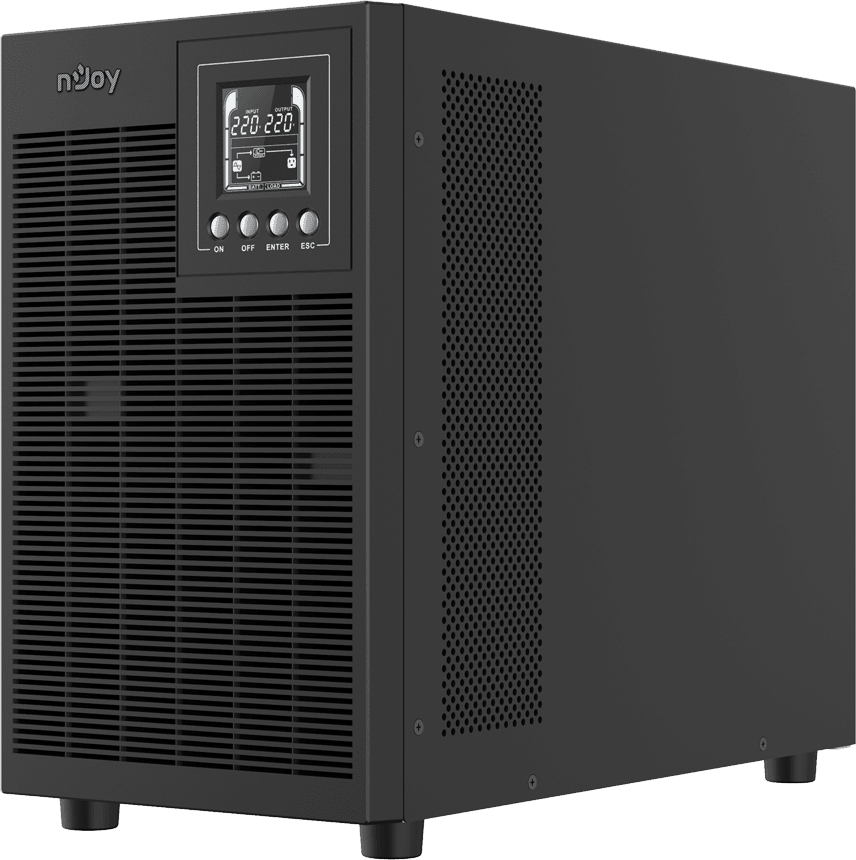

nJoy Echo Pro 3000 Online UPS - 2400 W / 3000 VA - 4 FR outlets (UPOL-OL300EP-CG) — image 3

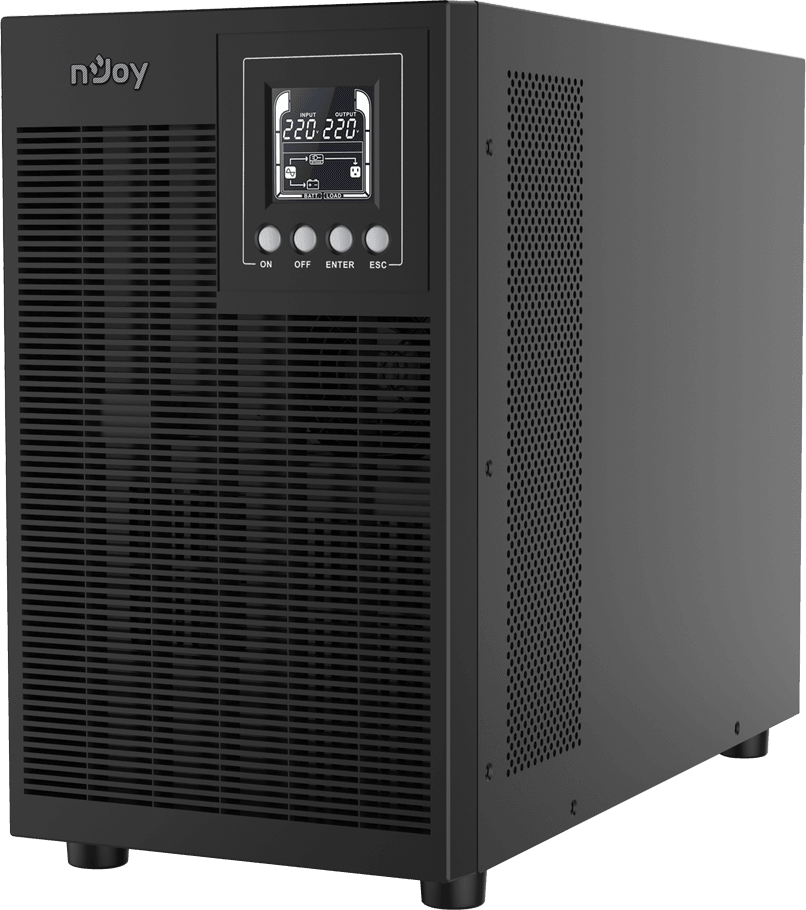

nJoy Echo Pro 3000 Online UPS - 2400 W / 3000 VA - 4 FR outlets (UPOL-OL300EP-CG) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Outlets : the number and type of outlets (Schuko, IEC) vary between versions of a single photographed series.
  • Options : LCD display, USB or RJ45 port, SNMP network card and rack kit are supplied only if the specifications say so.
  • Batteries : the additional battery modules photographed next to the UPS are sold separately.
  • Runtime : it depends on the load actually plugged in, never on what the image shows.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
6 095,00 DHincl. VAT

Configuration · nJoy Echo Pro

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 374 Ko — downloadable

Product overview

Online UPS to protect servers or sensitive equipment: online double-conversion, 3000 VA / 2400 W.
Technology & protection: power is fully regenerated, continuously — your servers never touch the mains, with no transfer time. Complete protection against power cuts, surges, voltage fluctuations and electrical noise.
Power: 3000 VA for 2400 W of usable power — all of the power remains available for your critical equipment.
Outlets: 4 Schuko outlets (earthed household sockets) — plug your devices in directly, no adapter needed.
LCD display: shows load, battery level and remaining runtime at a glance — monitor the UPS without any software.
Ideal, for example, for a server, a demanding workstation or critical network equipment.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Output voltage208/220/230/240 V, user-selectable (+/- 1% on battery)
Waveform typePure sine wave
Output harmonic distortion≤ 3% THD at linear load, ≤ 5% THD at non-linear load
Output connections4 Schuko outlets + terminal block connection
Input voltage220 - 240 V
Input frequency50/60 Hz user-selectable (40 - 70 Hz)
Input connectionsTerminal block
Voltage range80 - 300 V
Battery typeSealed and maintenance-free (GP07122L batteries)
Typical recharge time4 hours to 90% of capacity
Interface port1 USB HID port, 1 RS-232 port, 1 SNMP port, 1 emergency power off (EPO)
User interfaceLCD screen: load level, battery level, mains mode, battery mode, faults
Power management softwarePowerGuide or PowerMaster
Weight (kg)21.3 kg (22.1 kg with packaging)
Dimensions (W x D x H) (mm)196 x 416 x 342 mm
TechnologyOn-line
Power (VA)3,000 VA
Voltage stabiliserYes
Preinstalled batteries6
Replacement batterynJoy GP07122L
Communication card slot1 SNMP port for communication card — card optional
Technical specifications (continued)
Surge protection and filtering565 J
Transfer/switching time0 ms typical (continuous double conversion); 4 ms in eco mode
BypassAutomatic bypass
Audible noise< 40 dB
Power factor (ratio)0.8
Crest factor3:1
Input power factor≥ 0.99 at rated voltage (100% load)
Output frequency50 / 60 Hz +/- 0.5 Hz on battery
Phase (output/input)Single-phase
Eco mode efficiency96 %
Overload capacityMains mode: 105-110% alarm only; 110-120% transfers to bypass after 60 s; > 120% immediate transfer. On battery: 110-120% shutdown after 10 s; > 120% immediate shutdown
Double-conversion efficiency88% in mains mode, 85% on battery
Output typeC13 outlets
Power (W)2,400 W
Runtime18 min at 25% load; 7 min at 50%; 2 min at 75%; 1 min at 100%
External battery packsNone (runtime not expandable)
Form factorTower
Battery-backed outlets3 to 4 outlets
Control & communicationUSB, RS232 serial port, Network (SNMP / monitoring)
Warranty3 years

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does the Echo Pro 3000 have a terminal block output in addition to its outlets?
Yes, and that is what sets it apart: in addition to its four Schuko outlets, it offers a terminal block output for connecting a fixed circuit, installed by an electrician. You can therefore power both plug-in equipment and a dedicated line.
How long does the Echo Pro 3000 last on battery?
7 minutes at 50% load, i.e. 1200 W, and 18 minutes at 25%. On a 2400 W load, runtime is therefore counted in minutes: it is there to switch over to another source or to shut down cleanly, not to keep working through the outage.
What input voltage does the Echo Pro 3000 accept?
From 80 to 300 V. This very wide window lets it keep regenerating the power on a grid that regularly drops out, instead of switching to battery at every dip and draining it.
Why does 3000 VA give only 2400 W?
The power factor is 0.8: 3000 × 0.8 = 2400 W actually available — well above the 0.6 of an entry-level UPS, which would offer only 1800 for the same rated power.
Can the Echo Pro 3000 shut down a Synology NAS on its own?
Yes, Synology NAS compatibility is stated: connected via USB HID, the NAS detects the outage and unmounts its volumes before the battery runs out. The PowerGuide and PowerMaster software cover other systems.
Can a 3000 VA online UPS stay in an office?
This one, yes: it is rated at less than 40 dB, which is very low for a double-conversion unit of this power. On the other hand, allow for 416 × 196 × 342 mm and 21.3 kg: it stands on the floor, not on a piece of furniture.
How much surge energy does the Echo Pro 3000 absorb?
565 joules on its mains input. In double conversion, the power is continuously rebuilt anyway: this protection deals with the spikes that arrive before the conversion stage.
Can the Echo Pro 3000 be used with a generator?
Yes, generator compatibility is stated. Combined with the 80 to 300 V input range, this makes it a sensible choice where the grid often cuts out and a generator takes over.
What efficiency, and with how many batteries?
Up to 96% in ECO mode, with six internal GP07122L batteries. The UPS restarts and recharges automatically when power returns, with no intervention.
Can two Echo Pro 3000 units be combined to double the power?
No, parallel operation is not supported on this model. For more power, you need to move up the range; the terminal block output, on the other hand, lets you power a dedicated line in addition to the four outlets.
Is the nJoy Echo Pro 3000 UPS new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 3 years. It delivers a pure sine wave, shows its status on an LCD screen, and has RS-232, SNMP and EPO ports. The datasheet covers the rest.
