Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370 W Managed Switch (JL686A)

Powers and connects Wi-Fi access points, IP cameras and VoIP phones in bulk over the 48 Gigabit ports of a whole floor, controlled from the Aruba Instant On app, with no subscription.

  • PoE+ (802.3at) on all 48 ports, up to 30 W per port
  • SFP+/SFP 1G/10 Gbps uplinks (fibre)
  • L2+ administration through the Aruba Instant On cloud portal (app and web)
  • No subscription required for local management
  • Rackable 1U 19-inch format
  • Switching capacity 176 Gbps
  • Throughput 130.95 Mpps
  • MAC address table of 16,000 entries
Ref.: JL686A

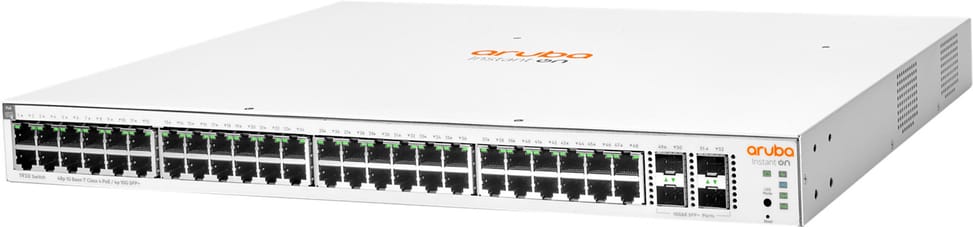

Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370 W Managed Switch (JL686A) — image 1

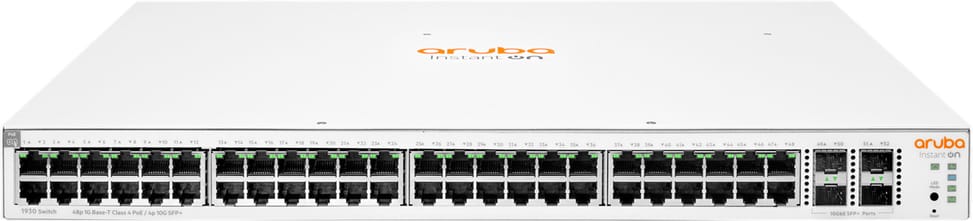

Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370 W Managed Switch (JL686A) — image 2
Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370 W Managed Switch (JL686A) — image 3
Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370 W Managed Switch (JL686A) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4

Configuration · Aruba Instant On 1930

No longer sold

We no longer sell this product. Its page stays online for its specifications and technical documentation.

Manufacturer's datasheetView the PDF · 678 Ko — downloadable

Product overview

Aruba Instant On 1930 48G PoE 4SFP/SFP+ 370W managed switch (JL686A): 48 Class 4 Gigabit PoE+ ports and 4 × 10 Gbit/s SFP+ uplinks, ideal for powering and connecting Wi-Fi access points, IP cameras and VoIP phones in large numbers across an entire floor.
PoE: 370 W total budget, 802.3at Class 4 standard on all 48 Gigabit RJ45 ports — covers dense Wi-Fi deployments and multi-camera video surveillance.
L2+ management: Aruba Instant On cloud portal (mobile app and web browser), SNMP, VLAN, QoS, IGMP snooping, link aggregation — no subscription required for local management.
Form factor: 1U 19-inch rack-mountable.
Also: 176 Gbit/s switching capacity, 130.95 Mpps throughput, 16,000-entry MAC table, STP/RSTP, LACP, 802.3x flow control, IPv6.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size16,000 entries
Number of VLANs256 VLANs, VLAN IDs 2 to 4093 (802.1Q)
Internal memory512 MB SDRAM, 256 MB flash memory
Interfaces48 Class 4 PoE RJ-45 10/100/1000 ports, 4 SFP/SFP+ 1/10 GbE ports
PoE ports48 Class 4 PoE ports (PoE+)
Total PoE budget370 W
Network standardsIEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x, 802.1Q, 802.1p, 802.3ad, 802.1X, 802.3az, 802.1D, 802.1w, 802.1s, 802.1AB, 802.3at
Switching capacity176 Gbps
Forwarding rate130.95 Mpps
Packet buffer1.5 MB
Management modesInstant On cloud portal, mobile app, local web interface, SNMP manager
Cloud management platformHPE Networking Instant On
Layer 2 featuresVLAN, link aggregation, STP, Energy Efficient Ethernet
IP routingStatic IPv4 routing, 32 static routes
Quality of service (QoS)802.1p and DSCP, 4 queues, SPQ or WRR scheduling
Power consumption460 W maximum, 34.5 W idle
Included softwareNone
Weight4.52 kg
Technical specifications (continued)
Dimensions (W x D x H)442.5 x 322.6 x 43.9 mm
Latency100 Mbps: < 4.5 µs · 1 Gbps: < 2.2 µs · 10 Gbps: < 1.2 µs
ProcessorARM Cortex-A9 at 800 MHz
Number of ports29 ports or more
ManagedYes
Security featuresIEEE 802.1X access control, VLAN, denial-of-service protection, management security
Power supplyInternal 100 - 127 / 200 - 240 V AC power supply
Cooling systemVariable-speed fans
Operating temperature0 to 40 °C
Operating humidity15 to 95% at 40 °C, non-condensing
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelLayer 2+
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budget251 to 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

How is the 370 W of PoE+ shared across 48 ports?
370 W shared by all 48 ports in Class 4, up to 30 W each. The budget fills up quickly: around thirty 12 W cameras use almost all of it. Add up the actual consumption of your devices before cabling.
What speed do the 4 uplinks reach?
They are 1G/10G SFP+ slots: you start with a Gigabit fibre module, then move to 10 Gigabit without changing switches. Essential when 48 access ports feed into the same network core.
How many VLANs can be created, and in what range?
256 simultaneous VLANs, with IDs taken between 2 and 4093: the range is wide, but the number of active networks is capped at 256. A dedicated management VLAN protects access to the interface.
How many link aggregation groups does this 48-port model accept?
Sixteen, of up to eight ports each, using LACP or manual configuration — twice as many as the 24-port models. Enough to spread the load of several servers and secure the uplink.
Can this switch let two VLANs communicate?
Yes, through static IPv4 routing: each VLAN gets its own address, manually or via DHCP, and the switch forwards traffic from one to the other, within a limit of 32 static entries. That is the hallmark of Layer 2+.
Can PoE power be scheduled by time of day?
Yes: PoE scheduling sets the day and time at which each port powers the connected device. Power allocation follows LLDP-MED, the PoE class or actual consumption, and the critical priority level is reserved for Instant On access points.
Is a licence needed to manage this switch?
No: all features are included in the price of the hardware, with no licence or subscription. Management is done from the Instant On mobile app, the hosted web portal or the local web interface, with no Internet access required.
What internal performance does this high-density model offer?
176 Gbps of switching capacity and 130.95 Mpps, with a 16,000-address MAC table. The sizing covers the 48 Gigabit ports and the 4 10 Gigabit links simultaneously, at peak times.
Is the switch new, and where can I view its documentation?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the Instant On 1930 series and compares its seven models, PoE and non-PoE: datasheet (PDF).
