Aruba Instant On 1930 24G Class 4 PoE 4SFP/SFP+ 195 W Managed Switch (JL683A)

Powers Wi-Fi 6 access points, IP cameras and VoIP phones over a single cable on all 24 Gigabit ports, with simplified control from the Aruba Instant On app, with no subscription.

  • PoE+ (802.3at) on all 24 ports, up to 30 W per port
  • SFP+/SFP 1G/10 Gbps uplinks (fibre)
  • L2+ administration through the Aruba Instant On cloud portal (app and web)
  • No subscription required for local management
  • Rackable 1U 19-inch format
  • Switching capacity 128 Gbps
  • Throughput 95.23 Mpps
  • MAC address table of 16,000 entries
Ref.: JL683A

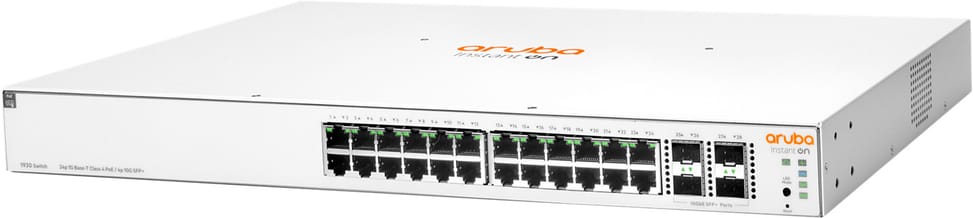

Aruba Instant On 1930 24G Class 4 PoE 4SFP/SFP+ 195 W Managed Switch (JL683A) — image 1

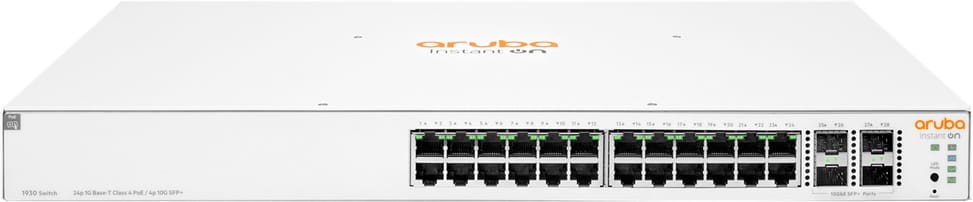

Aruba Instant On 1930 24G Class 4 PoE 4SFP/SFP+ 195 W Managed Switch (JL683A) — image 2
Aruba Instant On 1930 24G Class 4 PoE 4SFP/SFP+ 195 W Managed Switch (JL683A) — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
9 799,00 DHincl. VAT

Configuration · Aruba Instant On 1930

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 678 Ko — downloadable

Product overview

Aruba Instant On 1930 24G PoE 4SFP/SFP+ 195W managed switch (JL683A): 24 Class 4 Gigabit PoE+ ports and 4 × 10 Gbit/s SFP+ uplinks, designed for SMEs and branch offices deploying Wi-Fi 6 access points, IP cameras and VoIP phones.
PoE: 195 W budget, 802.3at Class 4 standard on all 24 Gigabit RJ45 ports — suited to mid-sized Wi-Fi deployments.
L2+ management: Aruba Instant On cloud portal (mobile app and web browser), SNMP, VLAN, QoS, IGMP snooping, link aggregation — no subscription required for local management.
Form factor: 1U 19-inch rack-mountable.
Also: 128 Gbit/s switching capacity, 95.23 Mpps throughput, 16,000-entry MAC table, STP/RSTP, LACP, 802.3x flow control, IPv6.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size16,000 entries
Number of VLANs256 VLANs, VLAN IDs 2 to 4093 (802.1Q)
Internal memory512 MB SDRAM, 256 MB flash memory
Interfaces24 Class 4 PoE RJ-45 10/100/1000 ports, 4 SFP/SFP+ 1/10 GbE ports
PoE ports24 Class 4 PoE ports (PoE+)
Total PoE budget195 W
Network standardsIEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x, 802.1Q, 802.1p, 802.3ad, 802.1X, 802.3az, 802.1D, 802.1w, 802.1s, 802.1AB, 802.3at
Switching capacity128 Gbps
Forwarding rate95.23 Mpps
Packet buffer1.5 MB
Management modesInstant On cloud portal, mobile app, local web interface, SNMP manager
Cloud management platformHPE Networking Instant On
Layer 2 featuresVLAN, link aggregation, STP, Energy Efficient Ethernet
IP routingStatic IPv4 routing, 32 static routes
Quality of service (QoS)802.1p and DSCP, 4 queues, SPQ or WRR scheduling
Power consumption234 W maximum, 19.3 W idle
Included softwareNone
Weight3.5 kg
Technical specifications (continued)
Dimensions (W x D x H)442.5 x 264.7 x 43.9 mm
Latency100 Mbps: < 4.7 µs · 1 Gbps: < 2.4 µs · 10 Gbps: < 1.3 µs
ProcessorARM Cortex-A9 at 800 MHz
Number of ports19 to 28 ports
ManagedYes
Security featuresIEEE 802.1X access control, VLAN, denial-of-service protection, management security
Power supplyInternal 100 - 127 / 200 - 240 V AC power supply
Cooling systemVariable-speed fans
Operating temperature0 to 40 °C
Operating humidity15 to 95% at 40 °C, non-condensing
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelLayer 2+
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budget131 to 250 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What do this switch's 195 W of PoE+ amount to?
195 W shared between the 24 ports, each of which can go up to 30 W. Sixteen 12 W cameras fit within the budget; six 30 W Wi-Fi access points already use it up. The JL684A version in the same series offers 370 W if the budget needs to be larger.
What speed do the 4 uplinks reach?
They are 1G/10G SFP+ slots: they accept a Gigabit fibre module as well as a 10 Gigabit module, so you can start at 1G and then move up in speed without changing switches.
How many VLANs can be created, and in what range?
256 simultaneous VLANs, with IDs taken between 2 and 4093: the range is wide, but the number of active networks is capped at 256. The auto voice VLAN also recognises IP phones and prioritises their traffic.
Can PoE power be scheduled by time of day?
Yes: PoE scheduling sets the day and time at which each port powers the connected device. Power allocation follows LLDP-MED, the PoE class or actual consumption — which matters when the budget is tight.
How many ports can be aggregated towards the network core?
Eight ports per group and eight groups on this 24-port model, using LACP or manual configuration. Uplink bandwidth is multiplied and the link survives the loss of a cable.
Is a licence needed for Instant On cloud management?
No: all features are included in the price of the hardware, with no licence or subscription. Management is done through the mobile app, the hosted web portal or the local web interface, the latter requiring no Internet access.
What filtering rules can be applied?
Up to 50 access control lists for IPv4 and MAC on ingress, totalling 480 rules, which can be applied to a port or a VLAN. They work alongside 802.1X with RADIUS-assigned VLANs, DHCP snooping and dynamic ARP protection.
What internal performance does this model offer?
128 Gbps of switching capacity and 95.23 Mpps, with a 16,000-address MAC table. The form factor is 1U rack-mountable to the 19-inch standard, with jumbo frames up to 9,216 bytes.
Is the switch new, and where can I view its documentation?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the Instant On 1930 series and lets you compare the PoE budgets of the different models: datasheet (PDF).
